GKB Top-clean | TC Series | Working Width 47", 59" & 70" inches | Horsepower 20-30 HP | For Tractor

Product Description

GKB Top-clean | TC Series | Working Width 47", 59" & 70" inches | Horsepower 20-30 HP | For Tractor

DESCRIPTION

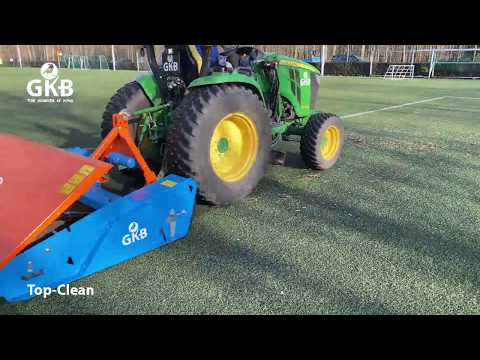

The Top-Clean is designed with two rubber wheels at the front. These wheels ensure that the machine rolls lightly over your field. A rotating brush is connected to the wheels with a chain so that the driving speed determines the rotation speed of the brushes. It sweeps and collects debris and trash while dropping the infill back into place.

The Brushes throw the dirt on a vibrating sieve. In this way, the infill material falls back onto the field and the dirt ends up in collection trays. At the end of the operation, you can easily detach the collection trays to empty them in the waste container.

Key Features

• Front Rubber Wheels: Ensures smooth, lightweight rolling across synthetic turf surfaces without damaging infill or seams
• Chain-Driven Brush System: Brush rotation speed is directly linked to tractor speed—no PTO required, simplifying operation
• Debris Sweeping & Infill Recovery: Rotating brushes sweep debris while allowing infill to fall back into place—preserves field integrity
• Vibrating Sieve Mechanism: Separates dirt from infill; infill returns to the turf while waste is collected in trays
• Removable Collection Trays: Dirt and trash are stored in easy-to-detach trays for fast emptying into waste containers
• Working Widths: 47″, 59″, and 70″ options for tailored coverage across synthetic turf areas
• Horsepower Requirement: Operates with 20–30+ HP tractors depending on model size
• Linkage Type: 3-point, Category 1 hitch for fast and secure tractor mounting
• Working Depth: Adjustable from 0 to 20 mm for precise surface-level cleaning
• Cleaning Function: Designed to lift compacted infill and remove debris from synthetic turf
• Dimensions (L×W×H): Compact frame—up to 82″ wide and only 59″ long for easy maneuverability
• Weight (With Water): 507 to 640 lbs with water ballast for added cleaning pressure
• Bin Capacity: Ranges from 4.2 to 6.8 gallons for efficient debris collection
• Application: Ideal for stadiums, schools, and municipal turf maintenance crews

Detailed Specifications

• Surface cleaner artificial grass, sand and rubber based
• The infill material is swept up by the depth adjustable brush and put on the sieve
• Dirt will fall from the in the waste bin
