GreenTec 3PT Boom Mower Tractor | Model Scorpion 430 S | Transport Width 7' 3" Ft | Horsepower 80 HP | For Tractors
Description

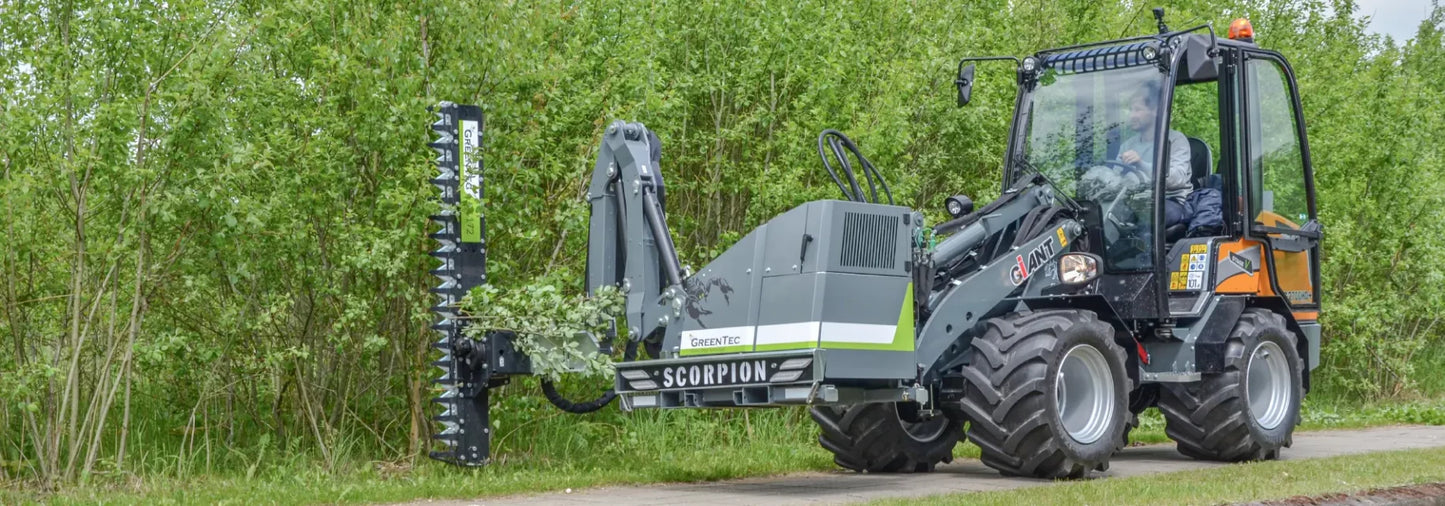

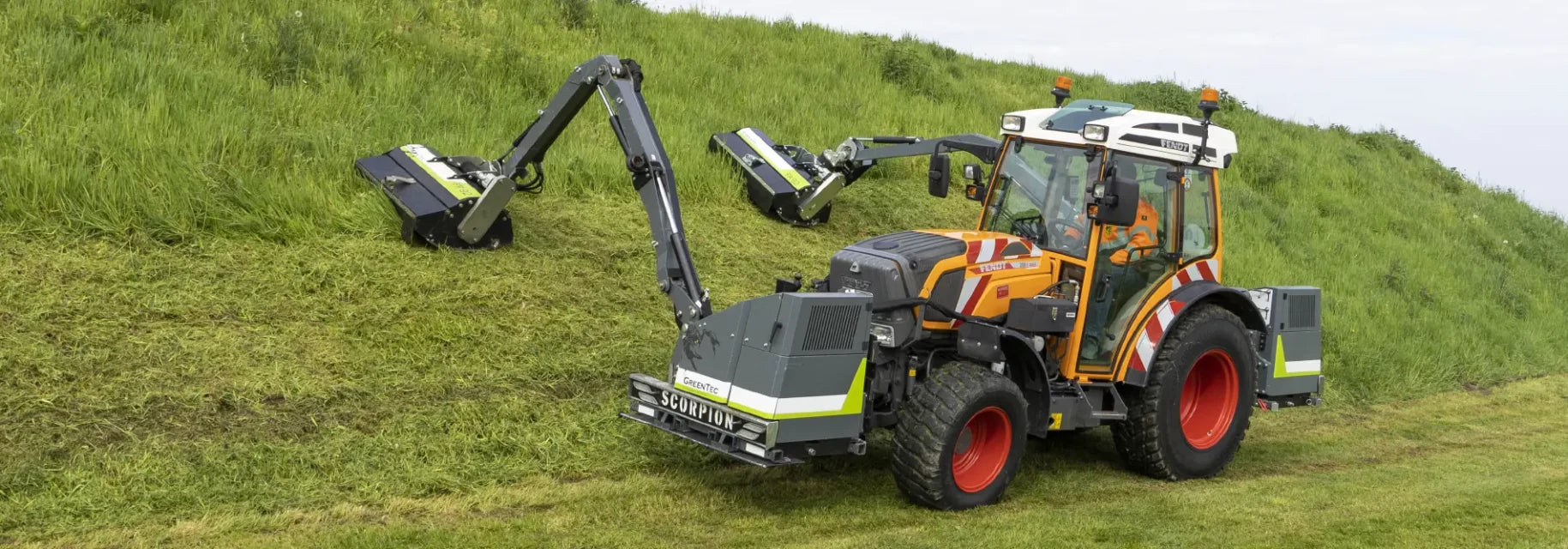

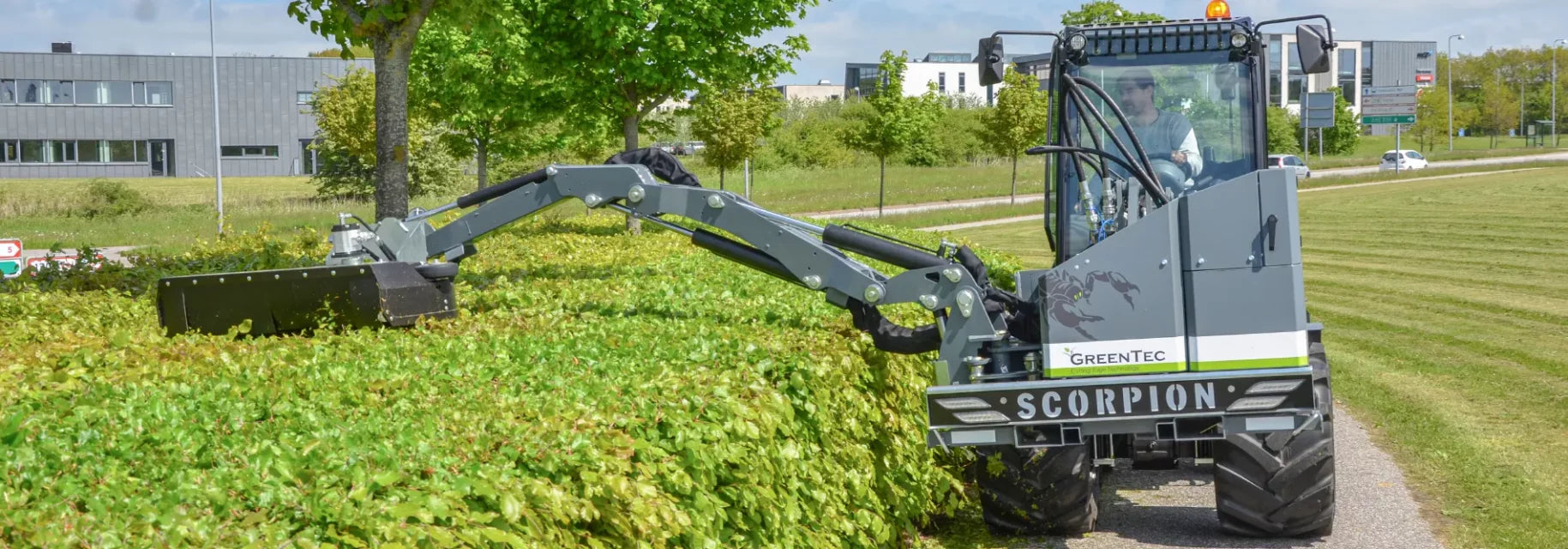

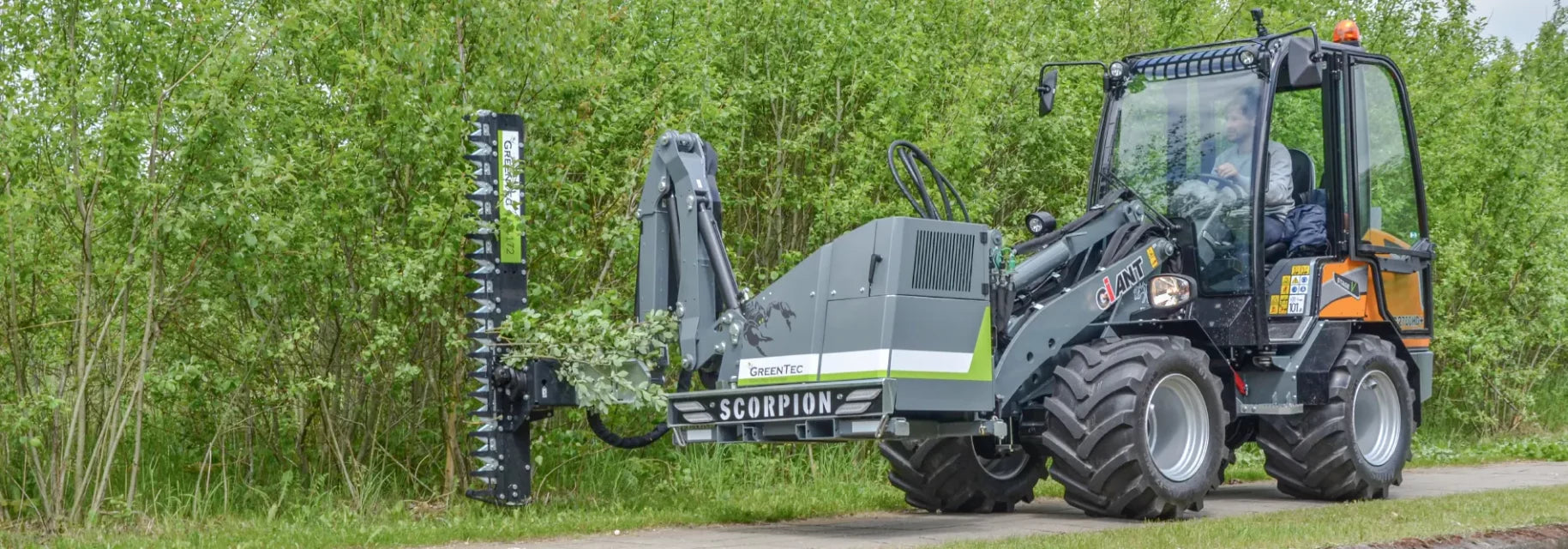

The Scorpion 430 S is a professional boom mower designed for use by municipalities, agricultural contractors, forest workers, gardeners, and landscapers. This versatile machine is perfect for areas with limited space, such as verge mowing on bike paths or hedge trimming in residential areas. It also excels in trimming trees on narrow forest tracks and maintaining hedgerows in agricultural fields. Designed for small tractors weighing at least 2,000 kg (4,409 lbs), the Scorpion 430 S features a robust mounting system with four points on the mainframe, ensuring a faster and more reliable setup compared to traditional three-point mounting systems.
Key Features
- Hybrid Arm System: Offers dual-function versatility, enabling smooth and efficient operation for multiple applications.
- Strenx 700 Steel Construction: Built with one of the most durable steel types in the world, ensuring exceptional strength and longevity even in extreme conditions.
- 155° Hydraulic Turn of the Arm: Allows precise control with power-assisted movement, optimizing handling for challenging tasks.
- Danfoss Proportional Valve PVG 16: Ensures smooth operation by providing accurate hydraulic flow regulation, leading to better efficiency.
- Mini Joystick: Features three proportional functions, enabling precise and easy control for seamless operation.
- Two Oil Flows: Supports 40 and 25 l/min (10.6 and 6.6 gpm) oil flow rates for optimized performance based on attachment requirements.
- Hydraulic Float: Allows flexible arm and cutting angle adjustments, ensuring better adaptability to different terrains.
- Oil Cooler: Enhances hydraulic system cooling, preventing overheating and ensuring continuous performance in demanding conditions.
- 80 l (21.13 Gallons) Oil Tank Capacity: Provides ample hydraulic fluid storage, reducing downtime and improving operational efficiency.
- 4-Point Mounting for Cat. 1 or 2: Offers secure and stable attachment to the tractor, ensuring reliability during operation.
- PTO Speed: Operates at 350-540 rpm (rear-mounted) for efficient power transfer, maximizing work output.
- Holes for Pallet Forks: Designed to facilitate easy transport and handling, making movement more convenient.
- Transport Safety: Includes built-in safety features to ensure secure transportation of the equipment.
- LED Lights: Provides enhanced visibility for safe operation in low-light conditions.
| Feature | Description | Photo |
|---|---|---|
| Hybrid arm system | Control the arm with or without parallel motion |  |
| Mini joystick | 3 proportional functions |  |
| LED lights | Visible from a long distance |  |
| Oil cooler | Effective oil cooling |  |
| Flexibility | 155° hydraulic turn of the arm |  |
| 4-point mounting | Easy installation that provides 100% stability |  |
| HYBRID ARM SYSTEM | Switch between parallel and non-parallel motion |  |
| SWITCH BETWEEN TOOLS | 2 oil flows, 40 and 25 l/min (10.6 and 6.6 gpm) for attachment tool |  |
| Control panel |  |
|
| Counterweight | SC 4 S & P 90 kg (OPTE1115) |  |
Detailed Specifications
| Feature | Details |
|---|---|
| Part Number | 9992430R-40SR / OPTE1115 / 9991602R-40 |
| Manufacturer | GreenTec |
| Category | Tractor Attachments |
| Subcategory | Boom Mower Tractor 3PT |
| Industry | Agricultural |
| Machine Size | Tractor |
| Attachment Size | Vertical Reach: 13'5" (4.11 m) / Horizontal Reach: 14'1" (4.29 m) |
| Horizontal Reach | 14'1" (4.29 m) |
| Vertical Reach | 13'4" (4.06 m) |
| Minimum Tractor Weight | 4,409 lbs (2,000 kg) |
| Transport Width | 7'2" (2.19 m) |
| Weight with Head & Counterweights | 1,741 lbs (790 kg) |
| Cutting Capacity | 4.72" (12 cm) |
| Cutting Width | 5'3" (1.60 m) |
| Maximum Speed of Tractor with Saw | 3.11 mph (5 km/h) |
| Blade Speed of Saw | 2600-2700 rpm |
| Required Horsepower | Minimum 80 HP for optimal performance |
