GreenTec Limb Trimmer High Reach | Scorpion 430 Plus w/ LRS1602 Quadsaw Limb Trimmer | Cutting Width 5'3" | Hydraulic Flow Range 25-52 GPM | For Skid Steers

 Product Description

GreenTec Limb Trimmer High Reach | Scorpion 430 Plus w/ LRS1602 Quadsaw Limb Trimmer | Cutting Width 5'3"  | Hydraulic Flow Range 25-52 GPM | For Skid Steers

DESCRIPTION

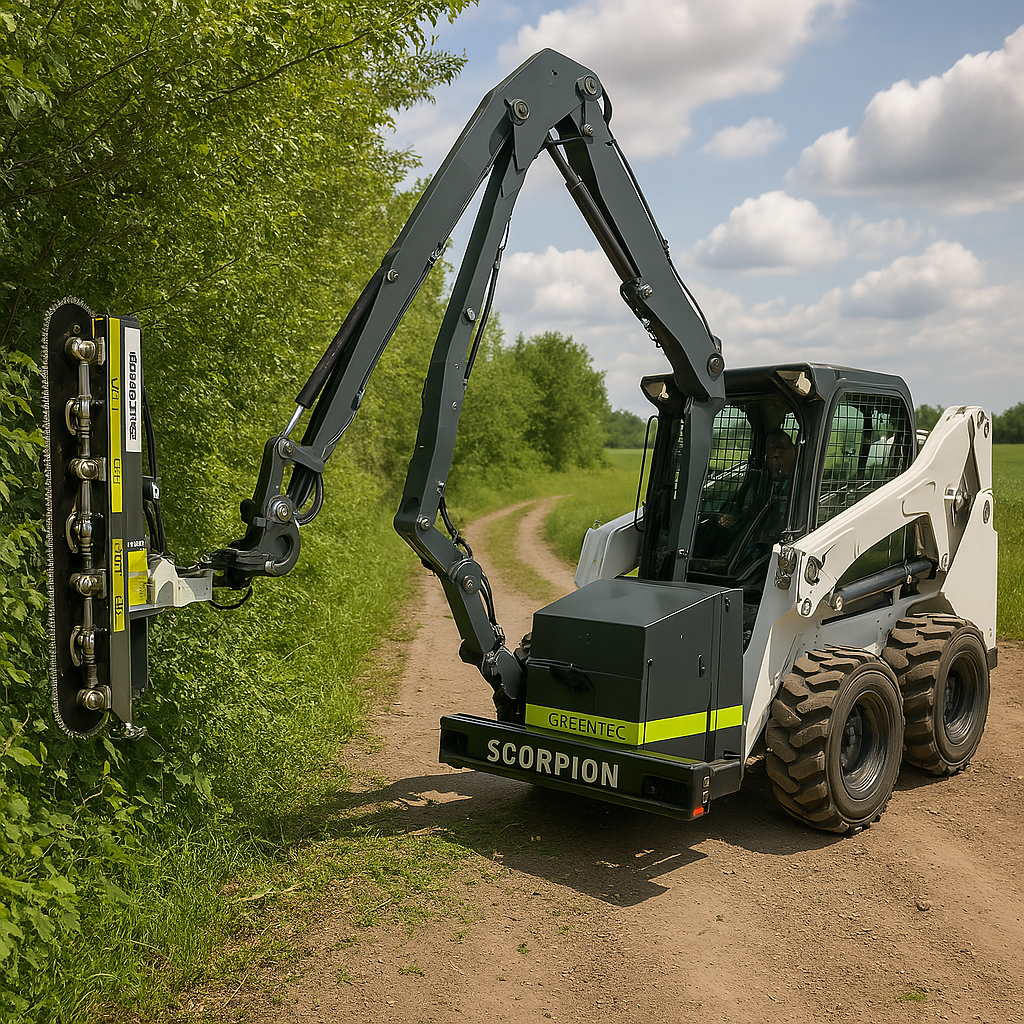

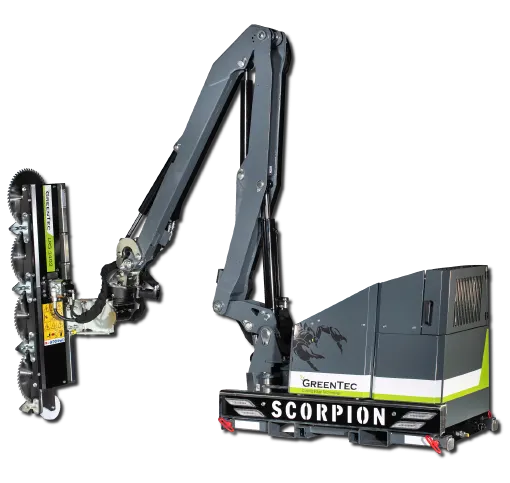

The Scorpion 430 PLUS Boom Mower is a high-reach, heavy-duty trimming solution, designed for municipal maintenance, forestry, and agricultural applications. Equipped with Rotor Flex Technology, it provides superior visibility and efficient operation in tight spaces. The LRS1602 Quadsaw Limb Trimmer enhances its cutting precision, making it ideal for tree topping, hedge trimming, and verge mowing.

Built for skid steer loaders and tractors with a minimum weight of 8,500 lbs, this mower features four-point mounting, ensuring secure attachment and improved stability compared to traditional three-point mounting systems.

Key Features

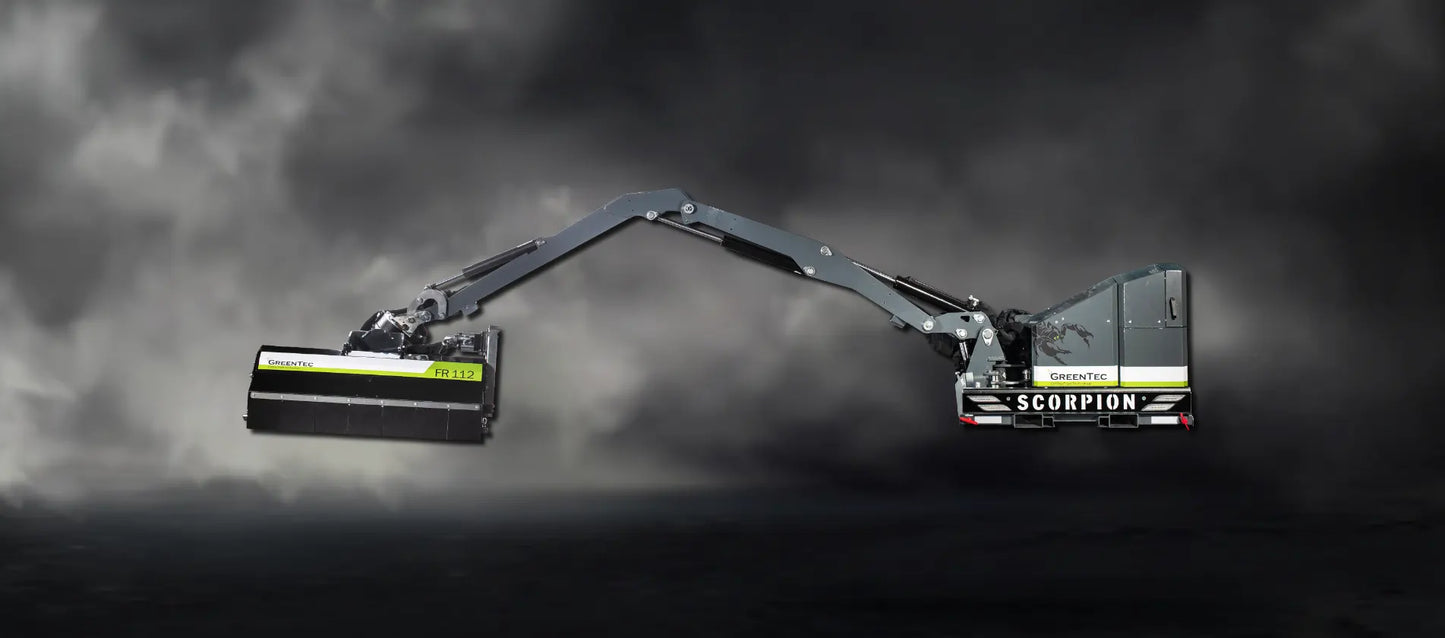

• Extended Reach for Versatile Cutting: The 4.3 m (14'1") horizontal reach and 4.1 m (13'5") vertical reach allow for efficient trimming of hedgerows, verges, and tree lines, even in tight spaces.
• Compact & Transport-Friendly Design: With a width of 2.2 m (7'3") and height of 1.22 m (4'), the mower is easy to maneuver, making it ideal for municipal and agricultural tasks.
• Hybrid Arm System: Switch between parallel and non-parallel motion, offering greater flexibility for precise trimming in different terrains.
• High-Efficiency Hydraulic System: Operates at 52 l/min @ 210 bar (13.74 GPM @ 3046 PSI), ensuring powerful and smooth cutting performance.
• Powerful Pump: The 32 ccm gear pump delivers consistent hydraulic pressure, allowing for effective vegetation management.
• Rotor Flex Technology: The 221° turn of the cutting head and 180° cutting angle keep the mower in the driver's natural field of vision, improving precision and ease of use.
• Mini Joystick Control: Offers three proportional functions, enabling fine-tuned adjustments for accurate trimming.
• LED Safety Lights: Highly visible from long distances, ensuring safe operation in public or high-traffic areas.
• 155° Hydraulic Arm Turn: Provides optimal maneuverability, allowing for easy repositioning while mowing.
• Strenx 700 Steel Construction: Made from one of the toughest steels available, ensuring long-lasting durability and minimal maintenance.
• Oil Cooler System: Prevents hydraulic overheating, maintaining consistent efficiency for prolonged use.
• Tool Compatibility & Quick Switching: The dual oil flow system (40 and 25 l/min, or 10.6 and 6.6 GPM) supports a variety of cutting attachments for different tasks.
• Horsepower Requirement: Designed for tractors with a minimum of 50 HP, ensuring reliable operation and powerful trimming performance.

Image	Feature	Description
	Hybrid arm system	Hybrid arm system Control the arm with or without parallel motion
	Mini joystick	Mini joystick 3 proportional functions
	LED lights	LED lights Visible from a long distance
	Oil cooler	Oil cooler Effective oil cooling

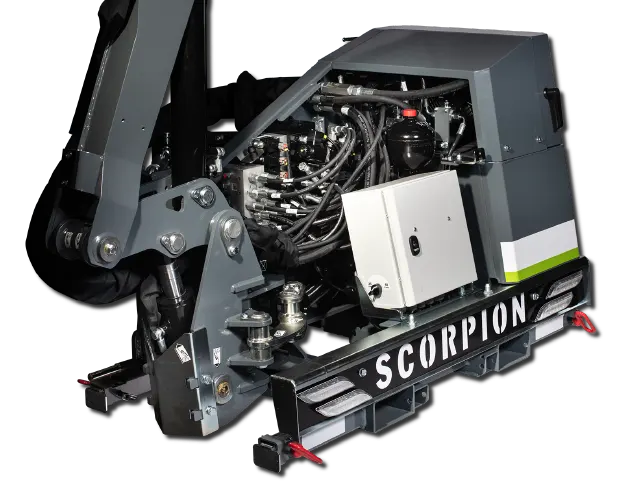

	Flexibility	Flexibility 155° hydraulic turn of the arm 4-point mounting
	SWITH BETWEEN TOOLS	2 oil flows, 40 and 25 l/min (10.6 and 6.6 gpm) for attachment
	Control panel

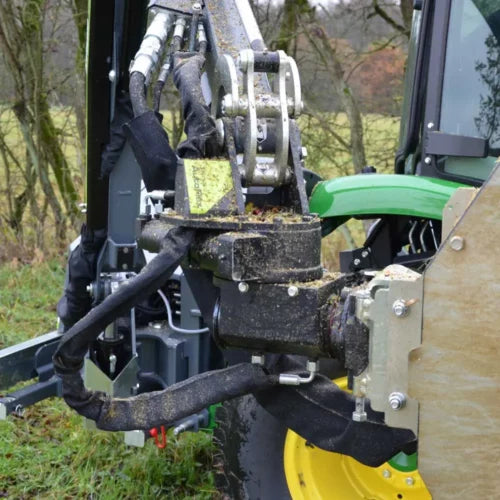

	ROTOR FLEX	With Rotor flex the cutting head is always in the driver's natural field of vision. Rotor Flex has a double pivot joint which enables you to move the cutting head forward, so it is in the drivers field of vision. The cutting head can also be moved behind the vehicle which is useful for verge mowing on small roads with oncoming traffic.

Detailed Specifications

Manuals & Documents

• Manual
• Product Brochure
