GreenTec

GreenTec Limb Trimmer | Model Multi Carrier Puma 3303 | Transport Width 7'3" Ft | Oil Flow 13.2 GPM | For Loader

GreenTec Limb Trimmer | Model Multi Carrier Puma 3303 | Transport Width 7'3" Ft | Oil Flow 13.2 GPM | For Loader

$21,727.00
$21,727.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Hydraulic cutting angle control: Up to 110º adjustment of cutting angle through the top bar, ensuring precision trimming even in hard-to-reach areas.
  • Oil flow divider: Improves oil distribution, extending the lifespan of the oil engine by preventing uneven lubrication.
  • Automatic break-back system: The arm moves backward when encountering excessive pressure, protecting the machine from potential damage.
View full details

 Product Description

GreenTec Limb Trimmer | Model Multi Carrier Puma 3303 | Transport Width 7'3" Ft | Oil Flow 13.2 GPM | For Loader

DESCRIPTION

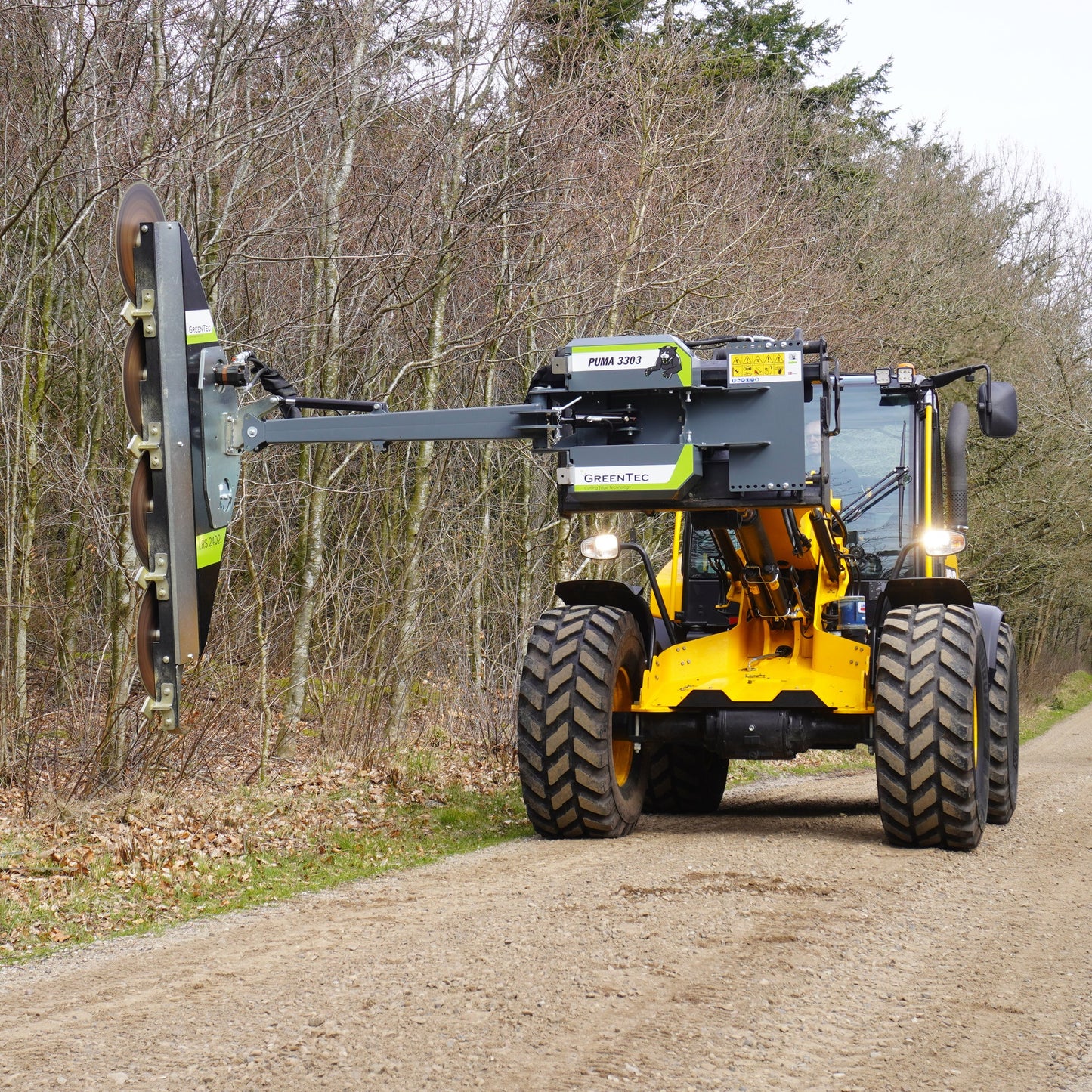

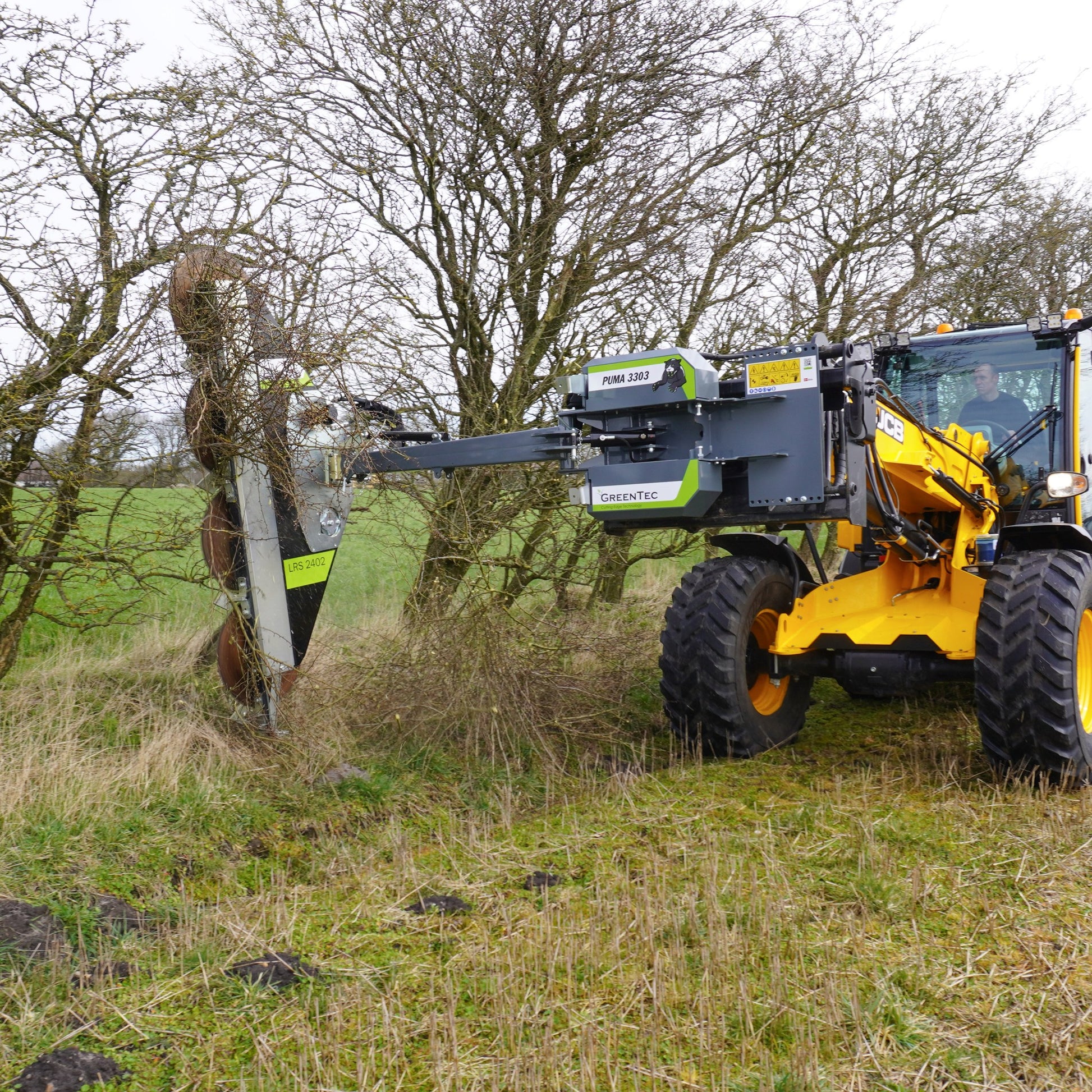

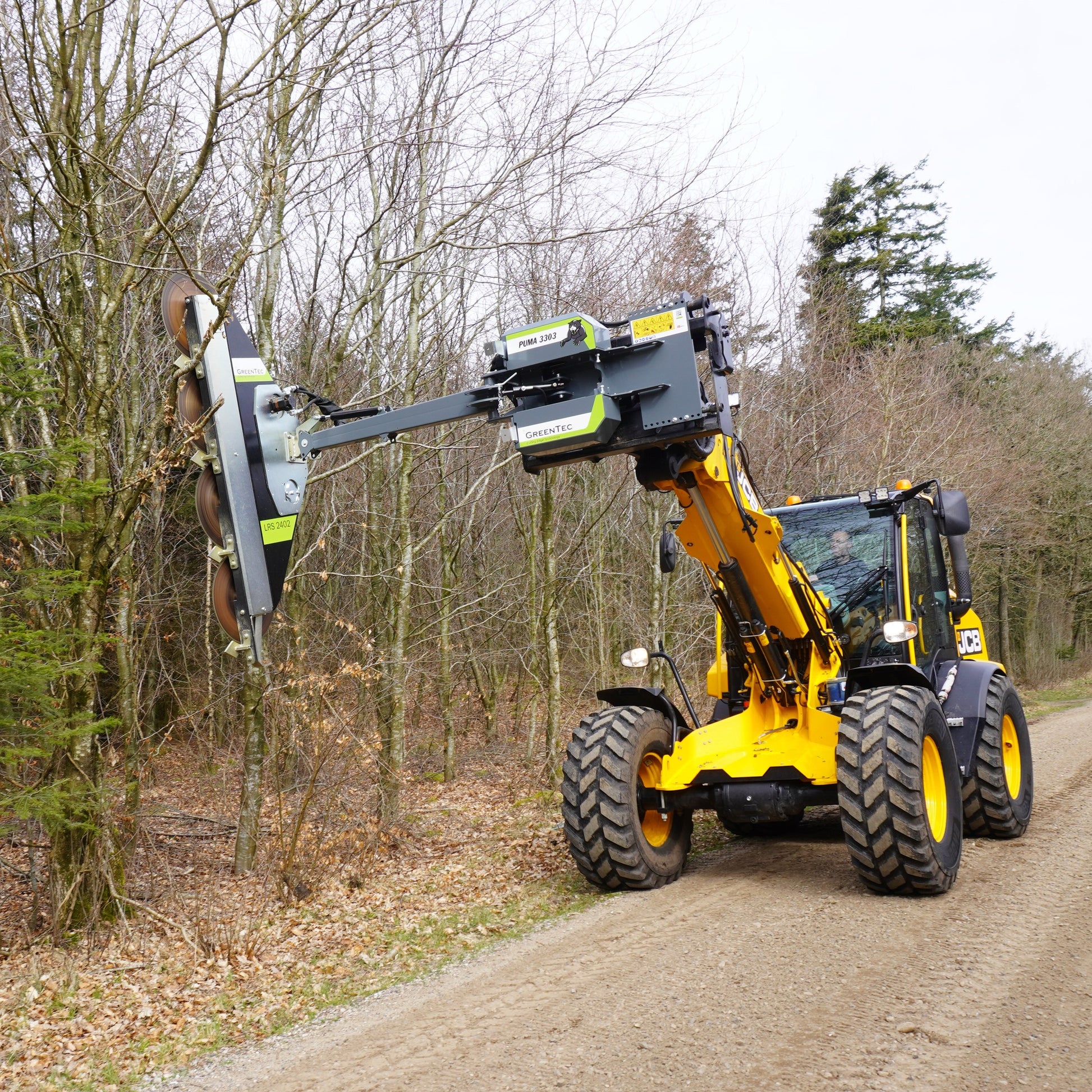

The Multi Carrier Puma 3303 is the largest model in the Puma series and is mainly mounted on telehandlers, large front end loaders and excavators. An extensive range of tools for hedge cutting and tree trimming can quickly be attached or detached to the frame. Extend the horizontal reach of your vehicle with our Multi Carrier Puma 3303 and reduce the time spend on landscape maintenance tasks.

Key Features

  • Hydraulic cutting angle control: Up to 110º adjustment of cutting angle through the top bar, ensuring precision trimming even in hard-to-reach areas.
  • Oil flow divider: Improves oil distribution, extending the lifespan of the oil engine by preventing uneven lubrication.
  • Automatic break-back system: The arm moves backward when encountering excessive pressure, protecting the machine from potential damage.
  • Counterweights: Balances the weight between the Puma 3303 and your vehicle, increasing stability and operational efficiency.

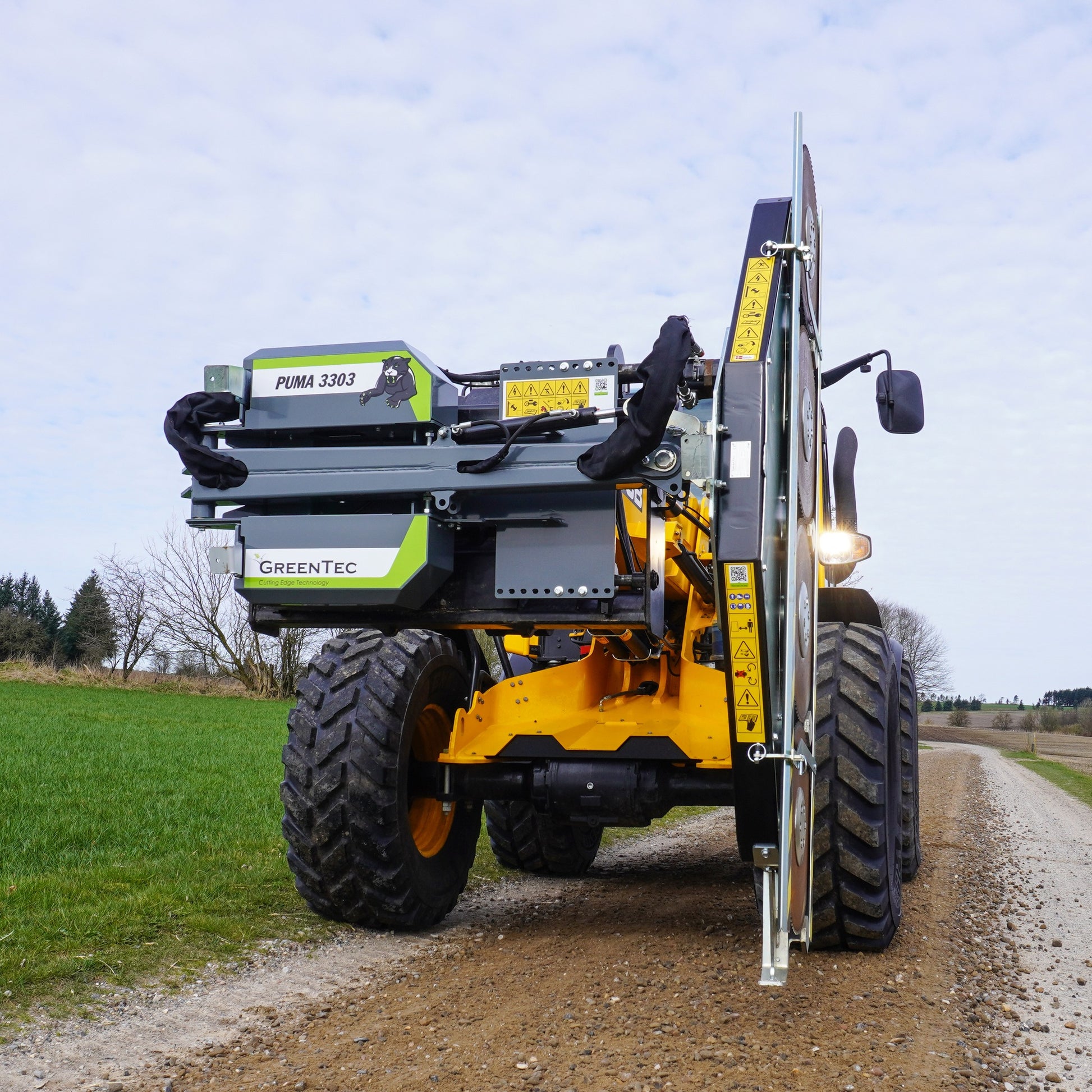

  • Foldable arm: Compact and safe transport mode, making storage and maneuvering easier.
  • Right and left versions: Available in both right and left versions, allowing for customized mounting preferences.
  • Anti-cavitation valve: Minimizes cavitation risk by stabilizing hydraulic pressure, preventing internal damage.
  • Mounting brackets: Compatible with a wide range of tractors, loaders, and excavators, ensuring versatile mounting solutions.
 Image Feature Description
Foldable arm Ensures safety when in transport position Foldable arm Foldable arm Ensures safety when in transport position
Anti-cavitation valve Minimize the risk of cavitation damage in connection with insufficient inlet pressure Anti-cavitation valve Anti-cavitation valve Minimize the risk of cavitation damage in connection with insufficient inlet pressure
Oil flow divider Longer life for the oil engine Oil flow divider Oil flow divider Longer life for the oil engine
The break back system consists of a mounted cylinder connected to an accumulator. The accumulator works by ensuring a soft return of the cylinder piston, so that no recoil effect occurs when the oil pressure in the cylinder is affected. Hydraulic cutting angle control Hydraulic cutting angle control
Widia carbide tipped teeth Smooth cut and long life Widia carbide tipped teeth Smooth cut and long life Widia carbide tipped teeth Smooth cut and long life
TO KEEP BELTS FROM BECOMING LOOSE Belt stretcher

TO KEEP BELTS FROM BECOMING LOOSE


WIRELESS REMOTE Electric remote control

WIRELESS REMOTE

    Detailed Specifications

    Feature Details
    Reach from Center of Vehicle to End of Tool 2.5 m (8'2")
    Transport Width 2.2 m (7'3")
    Required Hydraulic Connections 1 x double acting
    Minimum Oil Flow 50 l/min @ 180 bar (13.2 gpm @ 2611 psi)
    Weight Without Brackets 200 kg (441 lbs)
    Hydraulic Angle Control Includes e-control of all functions
    Mechanical Switch From working to transport position
    Automatic Hydraulic Break-back With pre-pressure
    Oil Flow Divider Extends oil engine life
    Anti-cavitation Valve Minimizes cavitation risk
    Pressure Relief Valve Protects hydraulic system
    Hose Kit 1.5 m (5'2") for attachment tools
    Mounting Brackets Euro brackets or universal plate
    • Hardox Steel Cutter Bars: Low maintenance, strong, and durable.
    • No Sharpening Required: Cutter bars remain effective without the need for sharpening.
    Model Cutting Width Cutting Capacity
    HX 270 8'10" (2.69 m) 4.3" (10.92 cm)
    HX 170 5'7" (1.70 m) 4.3" (10.92 cm)
