GreenTec Limb Trimmer Tractor Loader Mount | Model Puma 2303 With Quadsaw LRS 1402 | Working Width 4' 7" Ft | Horsepower 75-90 HP | For Tractors

Product Description

GreenTec Limb Trimmer Tractor Loader Mount | Model Puma 2303 With Quadsaw LRS 1402 | Working Width 4' 7" Ft | Horsepower 75-90 HP | For Tractors

DESCRIPTION

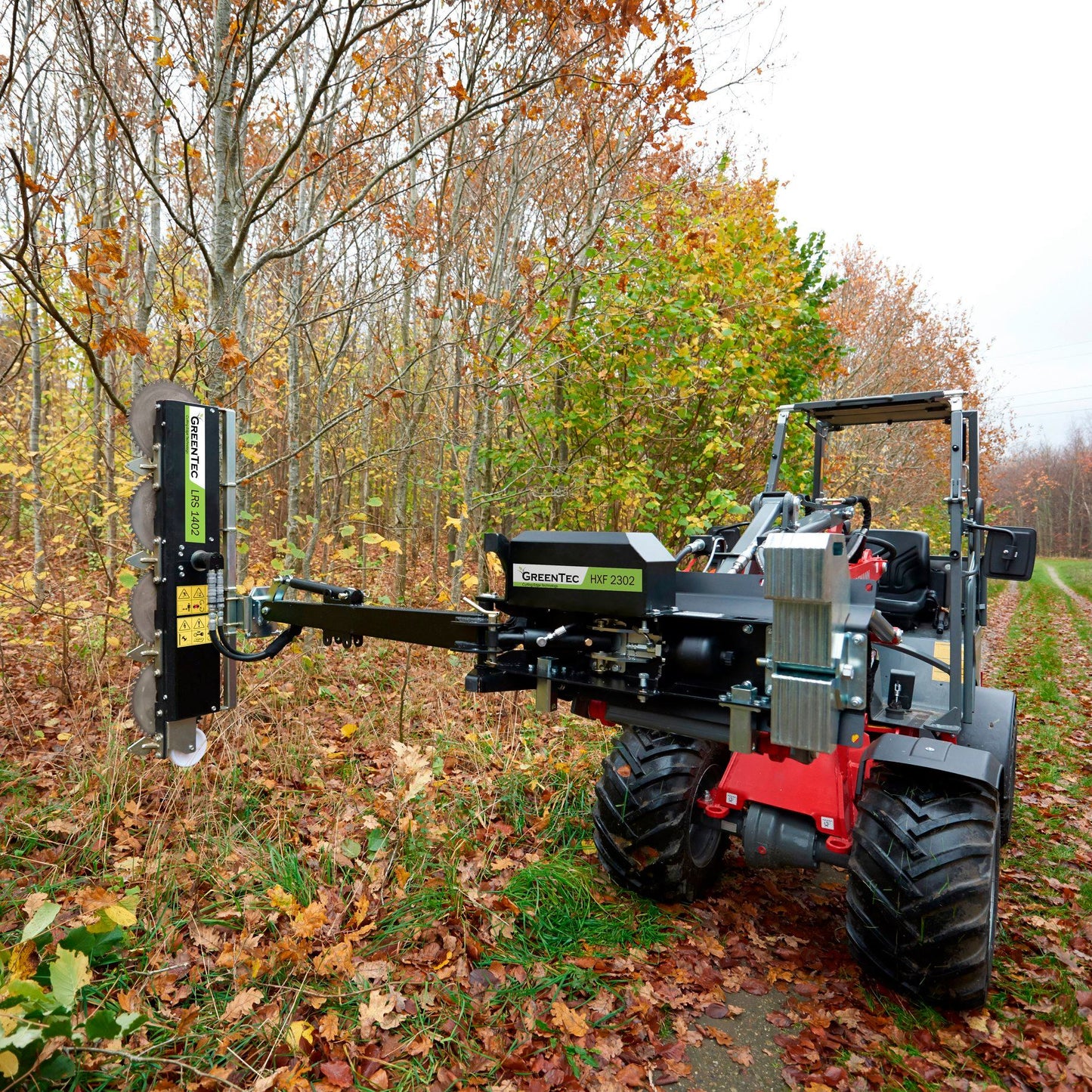

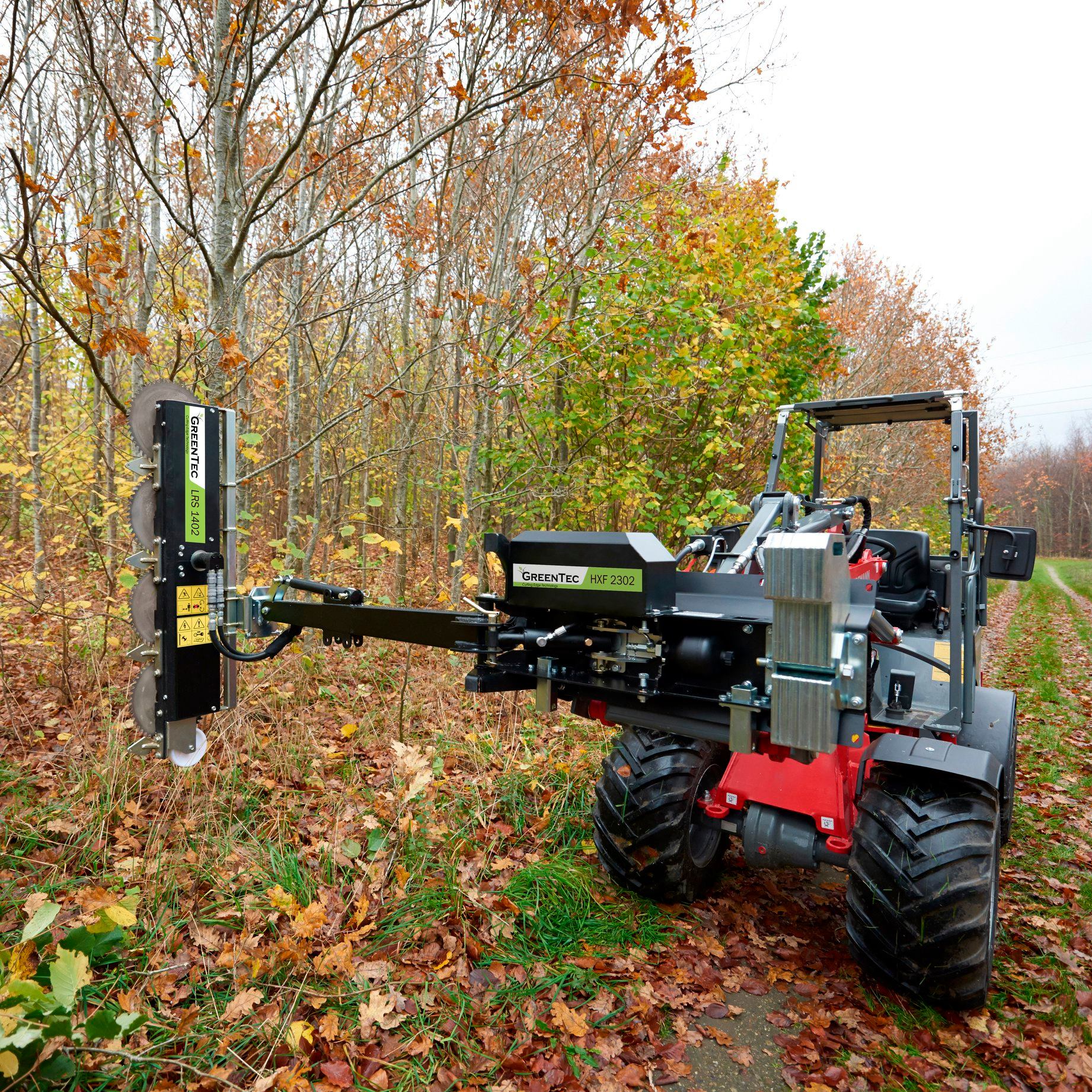

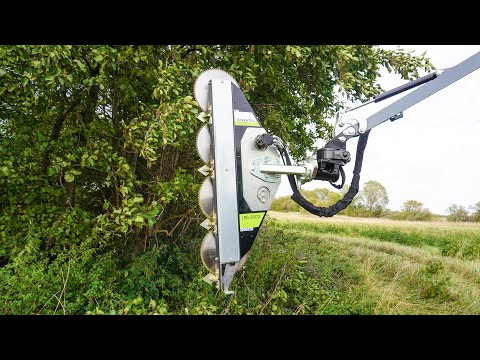

The Model Puma 2303 combined with the Quadsaw LRS 1402 provides exceptional performance in trimming branches, hedgerows, and maintaining paths and roads in forest areas. The Quadsaw LRS 1402 features four circular blades with carbide-tipped teeth that ensure smooth cutting of branches and limbs up to 3.9" in thickness. The attachment is hydraulic driven and can be mounted on a variety of vehicles, including telehandlers, front-end loaders, tractors, and excavators, enhancing its versatility and efficiency.

Key Features

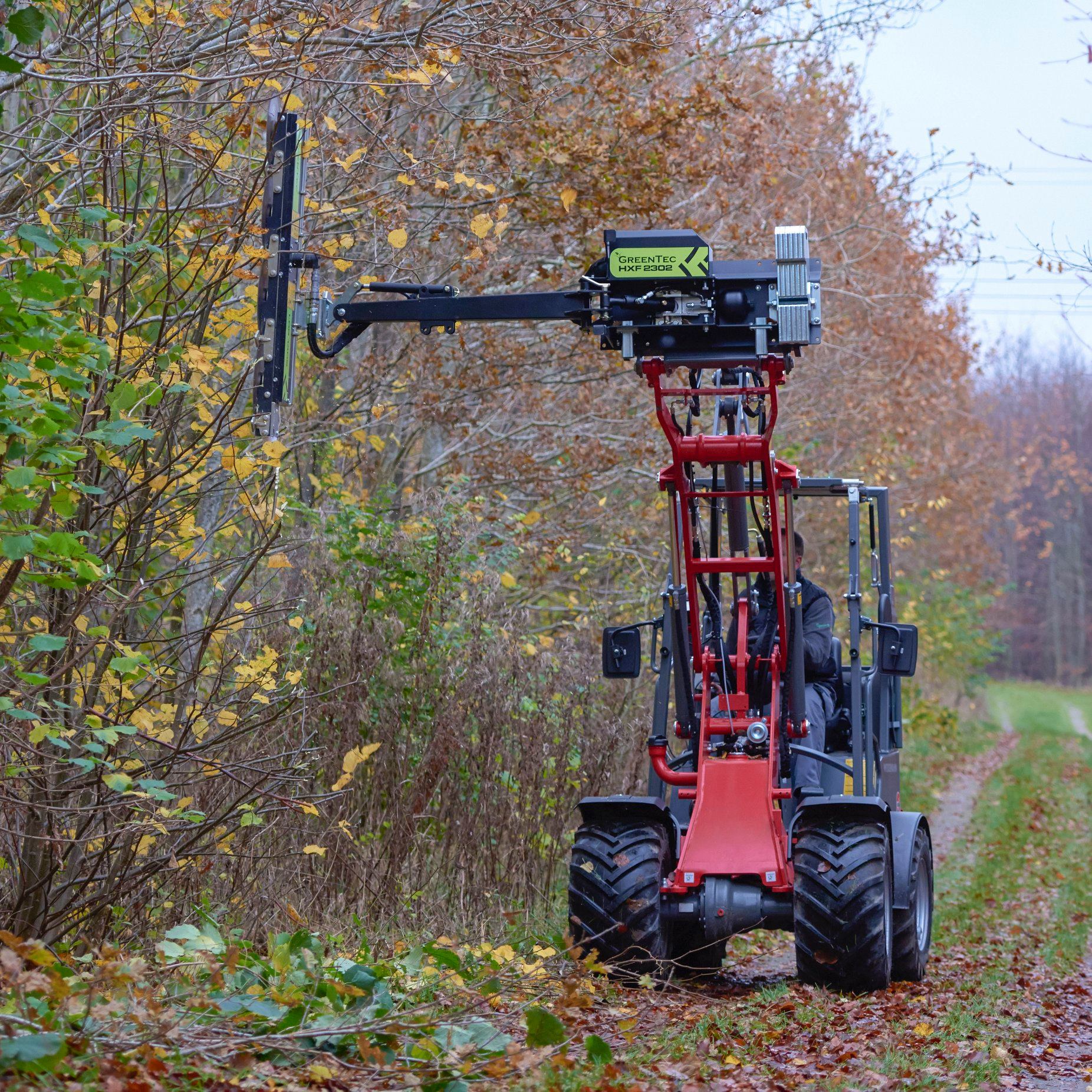

• Multi Carrier Puma 2303: Extends the horizontal reach of your vehicle, significantly improving efficiency for landscape maintenance tasks.
• Versatile Mounting: Compatible with small and medium-sized vehicles, including skid steer loaders and compact tractors, with a minimum weight requirement of 1,200 kg (2,646 lb).
• Hydraulic Driven: Ensures consistent power output, providing smooth and efficient cutting performance.

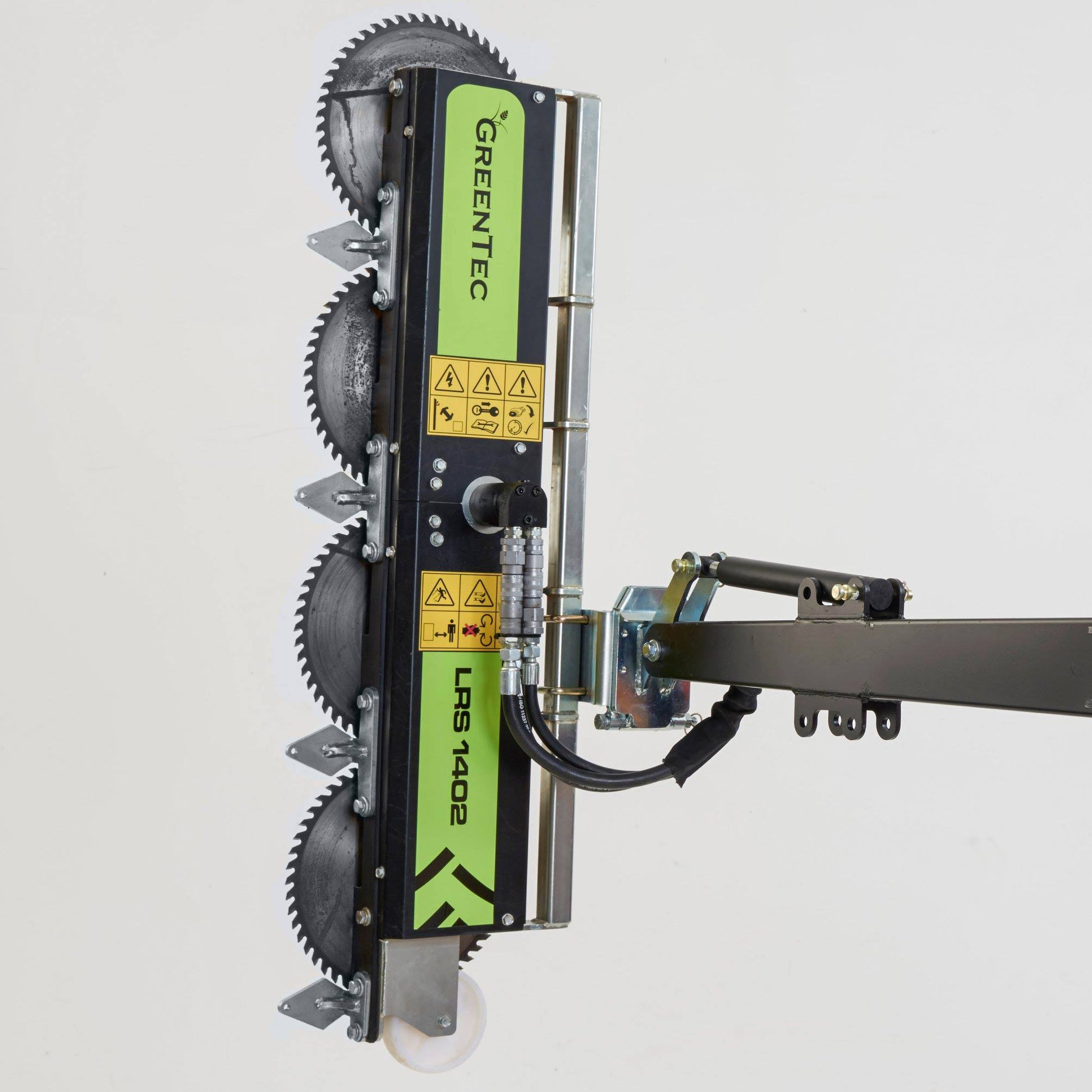

• Carbide Tipped Blades: Features four circular blades with carbide-tipped teeth, offering sharp, smooth, and durable cuts for various vegetation.
• Wireless Handheld Remote: Allows seamless operation, giving the user full control over all features from a distance.
• Automatic Brake-Back System: Protects the machine from overloading when cutting large materials by utilizing a mounted cylinder connected to an accumulator, ensuring a soft return of the piston to prevent recoil effects.
• Reach from Center of Vehicle to End of Tool: Provides a working reach of 5’11”, increasing cutting efficiency and accessibility.
• Transport Width: Designed with a compact transport width of 4’3”, ensuring easy maneuverability and storage.
• Required Hydraulic Connections: Requires 1 x double acting + 1 x drain for smooth hydraulic operation.
• Minimum Oil Flow: 6.6 gpm ensures stable lubrication and hydraulic pressure, optimizing performance.
• Weight Without Brackets: Lightweight at 575 lbs, making it easy to mount and maneuver.
• Cutting Capacity: Able to cut materials up to 3.92” thick, ensuring powerful trimming ability.
• Drive Speed: Operates at 3.11 mph, delivering steady movement and efficient work progress.
• Blade Speed: High-performance blades spinning at 4000 rpm, delivering precise cuts.
• Working Width: Provides a cutting width of 4'7”, ensuring efficient coverage.
• Blade Diameter: Equipped with 1'2” diameter blades, balancing speed and cutting accuracy.
• Blade Holder in Transport: One pin is pulled to transition from transport to working mode, ensuring quick setup.
• Automatic Brake-Back System: Protects the machine from excessive pressure, improving lifespan and durability.

Feature	Description	Photo
Foldable arm	Ensures safety when in transport position
Anti-cavitation valve	Minimize the risk of cavitation damage with insufficient inlet pressure
Oil flow divider	1. Regulates oil flow to the tool, excess oil is returned with pressure. 2. Anti-cavitation valve prevents cavitation from pressure fluctuations. 3. Pressure relief valve protects tools from overload.
Counterweights	Stabilize the weight between the Puma 3303 and your vehicle
Mounting brackets	Wide variety of solutions for tractors, loaders, and excavators
Automatic Hydraulic Break-back with Pre-pressure	The break-back system ensures a soft return of the cylinder piston, preventing recoil effects due to oil pressure changes.
Support Legs	Provide stability for quick mounting and dismounting
Widia Carbide Tipped Teeth	Provides smooth cutting and long life
Branch Guider	Ensures even intake of branches
