Guardian Industrial Products

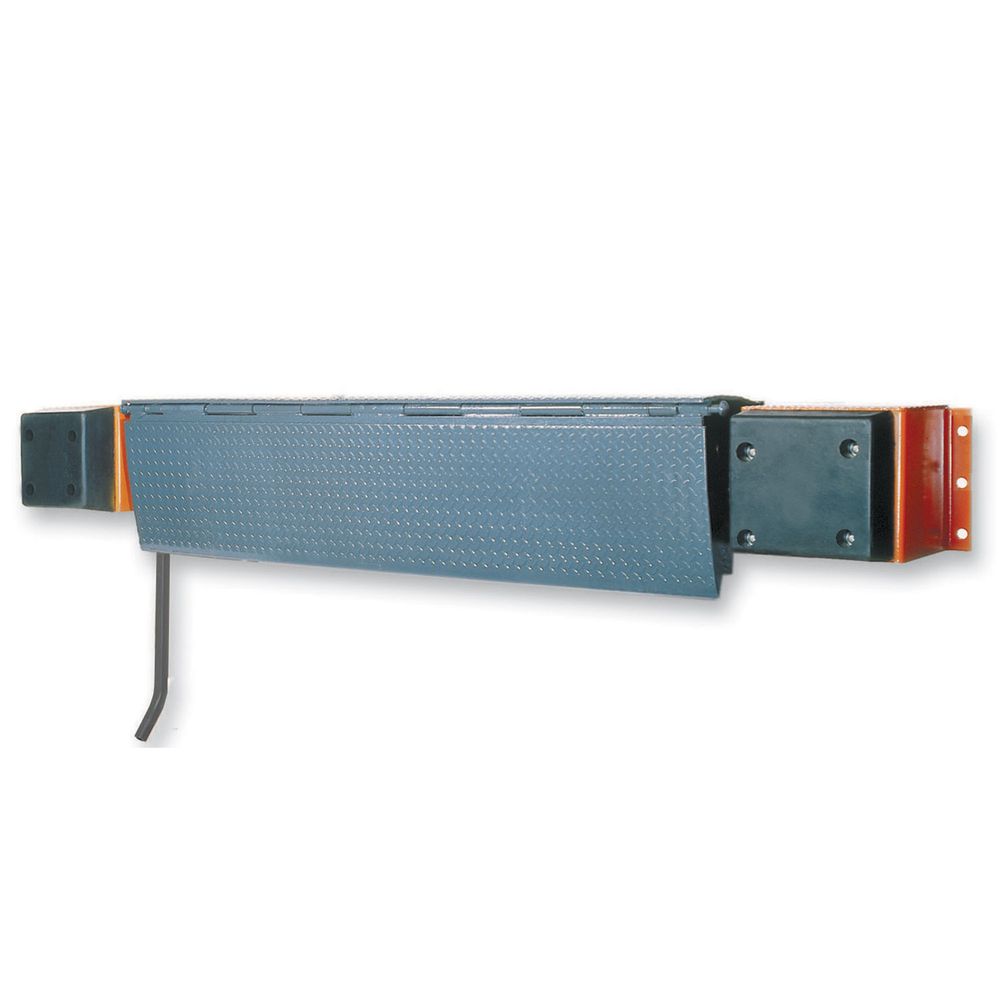

Guardian Industrial Products Edge of Dock Leveler | Model HED662017 | 66" W | 20,000 lb Capacity | For Refrigerated Trailers

Guardian Industrial Products Edge of Dock Leveler | Model HED662017 | 66" W | 20,000 lb Capacity | For Refrigerated Trailers

Regular price $2,199.99
Regular price Sale price $2,199.99
Sale Sold out
Customizable
Fast
24/7 Support
  • Width: 66".
  • Weight Capacity: 20,000 lbs.
  • Lift Assist: Spring, 28–34 lbs torque.
  • Span: 27.75" from dock to truck.
  • For Refrigerated Trailers, Loading Docks
View full details

Product Description

Guardian Industrial Products Edge of Dock Leveler | Model HED662017 | 66" W | 20,000 lb Capacity | For Refrigerated Trailers


DESCRIPTION

Upgrade your loading dock operations with the Guardian 66" Edge of Dock Leveler, engineered for effortless, safe, and durable performance. Designed specifically for refrigerated trailers, this industrial-grade dock leveler bridges the gap between your dock and truck, supporting up to 20,000 lbs with ease. Constructed from heavy-duty steel in the USA, it delivers long-lasting strength and reliability in high-traffic environments.

The spring-assisted lift system requires only 34 lbs. of torque, making operation simple and safe for your team. Its 27.75" overall span accommodates trucks of varying heights, while the 5" working range above or below dock level ensures smooth loading and unloading every time. Dual safety bumpers protect both the dock and vehicle, complying with O.S.H.A. standards for secure operation.

Ideal for warehouses, cold storage, and distribution centers, this Guardian edge of dock leveler transforms the loading process into a fast, safe, and reliable workflow, reducing manual strain while boosting operational efficiency.

Key Features

  • Durable Steel Construction Built in the USA from industrial-grade steel for long-lasting strength and reliability.
  • 20,000 lb Weight Capacity Handles heavy loads effortlessly for all types of refrigerated trailers.
  • Spring-Assisted Lift System Requires only 28–34 lbs. torque for safe, easy operation.
  • 27.75" Overall Span Bridges the gap between dock and truck for smooth, seamless loading.
  • Adjustable Working Range Operates 5" above or below dock level for versatile trailer compatibility.
  • Dual Safety Bumpers Protects both dock and trucks, compliant with O.S.H.A. safety standards.
  • Designed for Refrigerated Trailers Perfect for cold storage, food distribution, and logistics operations.
  • Quick Dock Installation Mounts directly to your dock for minimal setup and downtime.
  • Reduces Manual Strain Ergonomic lift assists reduce injury risk for warehouse staff.
  • All-Weather Reliability Steel construction withstands heavy use and extreme conditions.
  • High-Performance Industrial Design Ideal for high-traffic warehouses and distribution centers.
  • Safe Load Transition Smoothly levels truck beds with the dock for secure material handling.
  • Made in the USA Ensures superior craftsmanship and adherence to industrial safety standards.
  • Low Maintenance Minimal upkeep needed, keeping your operations efficient and cost-effective.
  • Optimized for Efficiency Streamlines loading/unloading, saving time and boosting productivity.

Detailed Specifications

Specification Details
Brand Guardian Industrial Products
Model HED662017
Width 66"
Maximum Capacity 20,000 lbs
Material Steel
Lift Type Spring-Assisted
Required Lift Torque 28–34 lbs
Overall Span 27.75"
Working Range 5" above or below dock level
Compatibility Refrigerated Trailers
Bumpers 2 per dock leveler, O.S.H.A compliant
Origin Made in the USA
Application Loading docks, warehouses, distribution centers
Weight Approx. 1,200 lbs
Safety Standards O.S.H.A. compliant



Manuals & Documents

Product Manual
