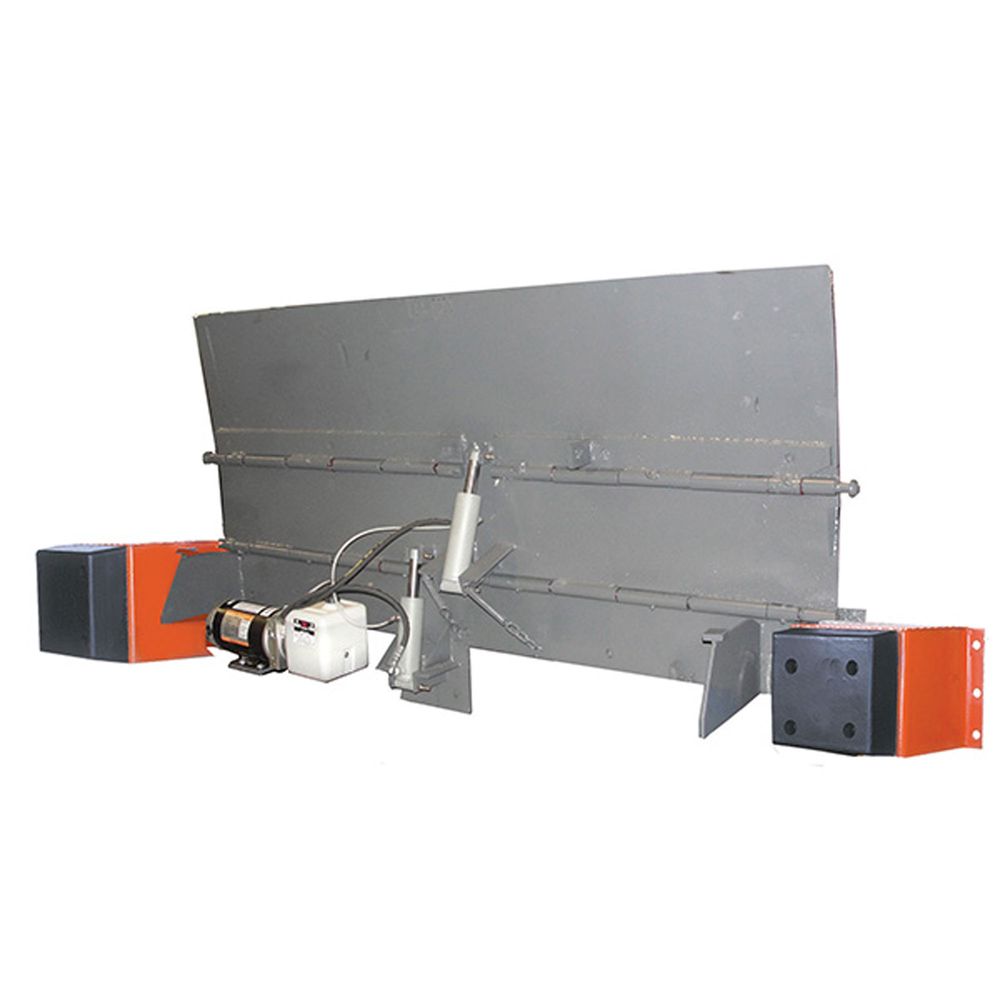

Guardian Industrial Products Hydraulic Edge Dock Leveler | Model HED722017 | 72" W | 20,000 lb Capacity | For Refrigerated Trailer Loading Dock

Product Description

Guardian Industrial Products Hydraulic Edge Dock Leveler | Model HED722017 | 72" W | 20,000 lb Capacity | For Refrigerated Trailer Loading Dock

DESCRIPTION

Built for demanding warehouse and cold-storage environments, the Guardian 72" Hydraulic Edge of Dock Leveler delivers a safer, faster, and more efficient way to bridge the gap between your dock and refrigerated trailers. Designed for facilities that require reliable dock loading without the hassle of portable dock boards, this heavy-duty hydraulic leveler mounts directly to the dock face for seamless daily operation.

Constructed from high-strength 55,000 lb yield steel tread plate, the deck and lip provide exceptional durability under continuous forklift traffic and heavy pallet loads up to 20,000 lbs. A fully enclosed hydraulic power unit with a 4,000 PSI pump ensures smooth, quiet lifting with minimal maintenance, while the automatic return feature safely resets the leveler once a trailer departs.

With a 5" above and below dock working range, extended 12.75" lip projection, and integrated dock bumpers for refrigerated trailers, this leveler improves productivity while meeting OSHA and ANSI safety standards. Made proudly in the USA, it’s the ideal solution for warehouses, food distribution centers, and cold-storage facilities seeking dependable, long-term dock performance.

Key Features

• Heavy-Duty Steel Construction Engineered from 55,000 lb minimum yield steel tread plate to withstand constant forklift traffic and high-impact loading cycles in industrial dock environments.
• 20,000 lb Load Capacity Safely supports heavy pallets, forklifts, and material handling equipment, making it ideal for high-volume refrigerated trailer loading operations.

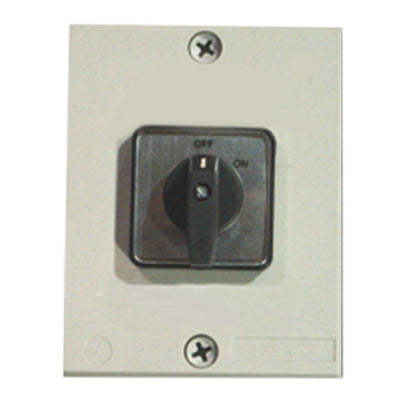

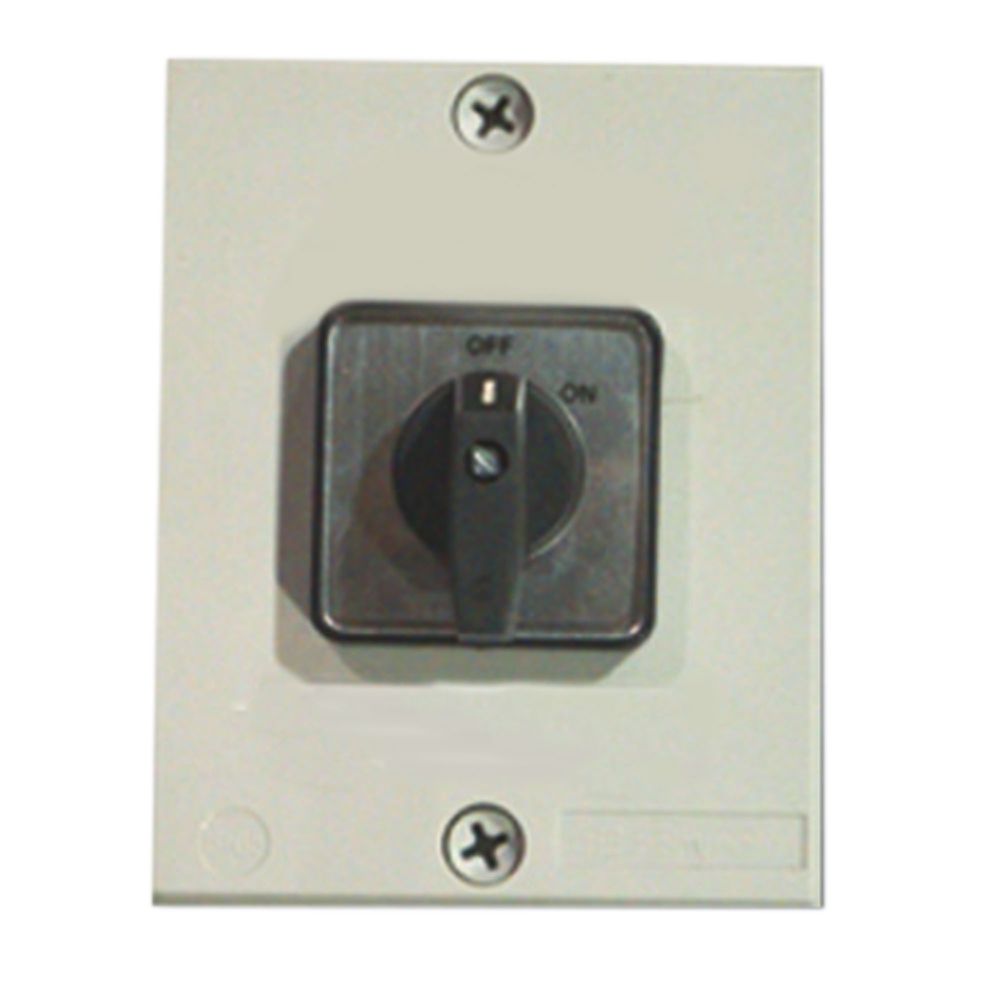

• Hydraulic Powered Operation Fully enclosed hydraulic system delivers smooth, quiet, and dependable lifting with one-man rotary switch activation for efficient dock workflow.
• Automatic Return Safety Feature Leveler instantly returns to the stored position after trailer departure, reducing dock hazards and improving operator safety.
• Optimized for Refrigerated Trailers Designed specifically for docks servicing reefer trailers, including protective bumpers to absorb trailer impact and prevent dock damage.
• Wide 72-Inch Platform Extra-wide deck improves stability, alignment, and safety when loading or unloading forklifts and pallet jacks.
• Extended Lip Projection Minimum 12.75" lip ensures secure contact with trailer beds, even with varied dock heights and trailer positions.
• 5-Inch Vertical Working Range Operates 5" above or below dock height to accommodate uneven trailer positioning and changing load conditions.
• Industrial Hydraulic Power Pack Features a 4,000 PSI-capable pump with solid-state controls for reliable performance in demanding environments.
• Continuous Lip Hinge Design Includes grease fittings for reduced wear, smoother operation, and longer service life under heavy daily use.
• Structural Steel Gusset Support Two formed steel gussets add strength and stability when the leveler is stored or under full load.
• Forklift-Friendly Installation Built-in steel rivets at hinge points allow for fast, efficient installation using standard forklift equipment.
• Dock Face Protection Bumpers Molded rubber bumpers and steel bump blocks protect both the dock and trailer during repeated impacts.
• OSHA & ANSI Compliant Design Meets or exceeds OSHA, CS202-56, and ANSI MH14.1 safety and performance requirements.
• Proudly Made in the USA Manufactured with precision and quality materials for long-term durability and dependable dock operation.
