Guardian Industrial Products Hydraulic Edge of Dock Leveler | Model HED6620 | 66" W | 20,000 lb Capacity | For Conventional Trailers

Guardian Industrial Products Hydraulic Edge of Dock Leveler | Model HED6620 | 66" W | 20,000 lb Capacity | For Conventional Trailers

Regular price $3,999.99
Regular price Sale price $3,999.99
Sale Sold out
Customizable
Fast
24/7 Support
  • Width: 66" for standard loading docks.
  • Capacity: Supports 20,000 lb trailers safely.
  • Hydraulic Operation: Fully automated return feature.
  • Usage: For conventional and refrigerated trailers.
  • Deck Material: 55,000 lb yield steel tread plate.
View full details

Product Description

Guardian Industrial Products Hydraulic Edge of Dock Leveler | Model HED6620 | 66" W | 20,000 lb Capacity | For Conventional Trailers


DESCRIPTION

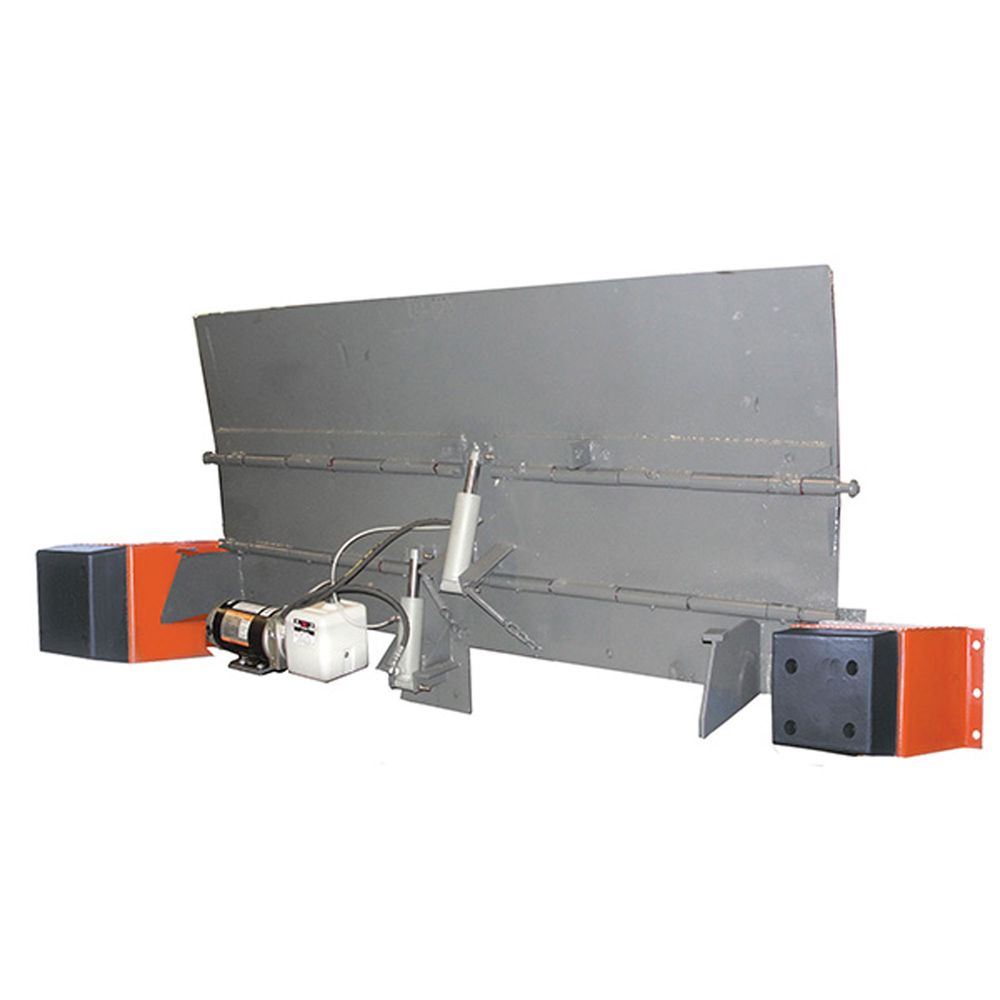

Bridge the gap between your loading dock and trucks effortlessly with the Guardian Hydraulic Edge of Dock Leveler. Built in the USA from durable 55,000 lb. yield steel, this 66" wide leveler is engineered for reliability, safety, and ease of use, making it ideal for warehouses, distribution centers, and refrigerated facilities. Designed to service conventional trailers, it features a fully hydraulic operation with an automatic return, allowing a single operator to deploy and store the leveler in seconds.

The leveler’s dual-cylinder design ensures smooth, quiet operation, while the enclosed industrial motor and 4,000 PSI hydraulic pump deliver dependable power for daily dock operations. Two formed steel gussets and molded bumpers protect both the dock and vehicles from damage, while OSHA-compliant safety features provide peace of mind. With an operating range of 5" above and below dock height and a minimum lip projection of 12.75", this leveler accommodates a wide variety of trucks seamlessly.

Upgrade your loading efficiency with a dock leveler that combines strength, durability, and precision engineering. Perfect for facility managers who demand long-lasting, low-maintenance, and safe dock solutions, the Guardian Edge of Dock Leveler makes every loading and unloading operation faster, smoother, and safer.

Key Features

  • Durable USA Steel Construction Crafted from high-strength 55,000 lb. minimum yield steel for long-lasting performance.
  • 20,000 lb Capacity Handles heavy trailers with confidence, supporting high-volume warehouse operations.
  • Hydraulic Edge Dock Leveler Fully automated lift and return feature reduces operator effort and speeds workflow.
  • Dual-Cylinder Smooth Operation Provides quiet, reliable movement for safe and efficient loading.
  • Safety-Compliant Design Meets OSHA standards with built-in bumpers and steel gussets for protection.

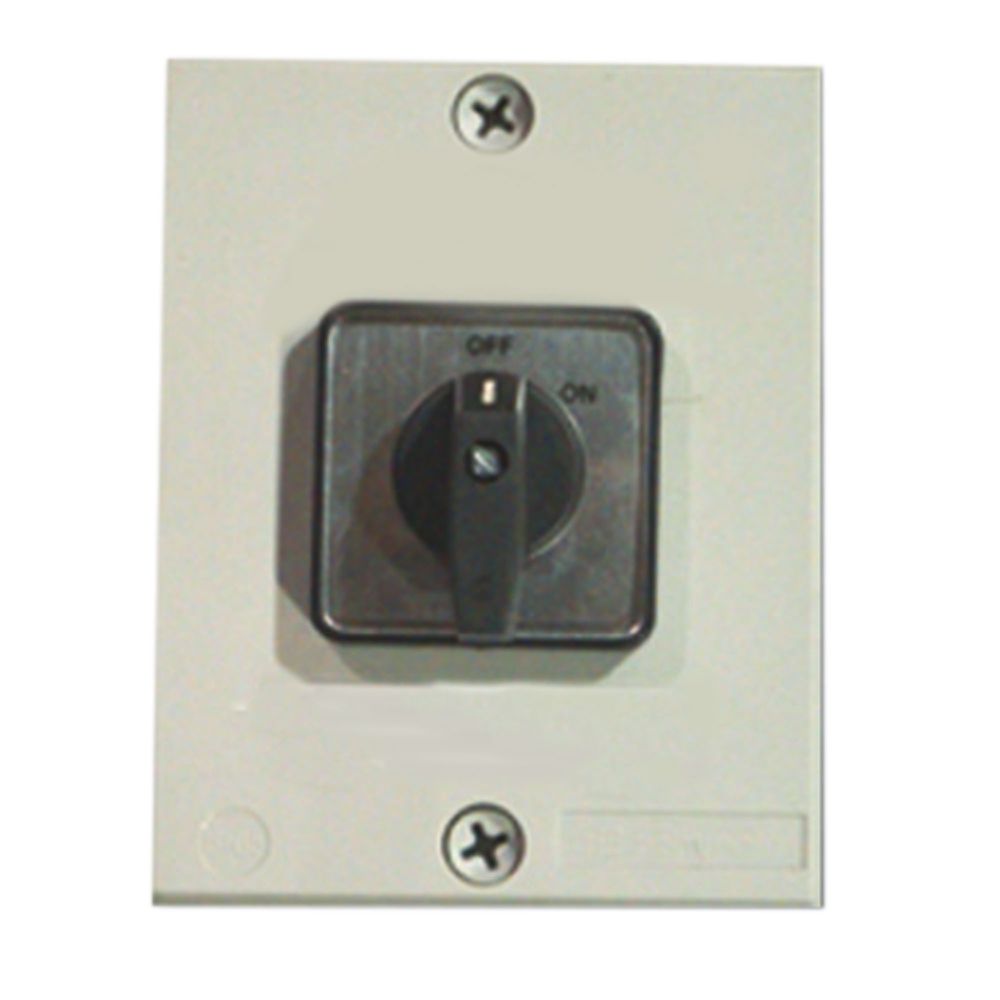

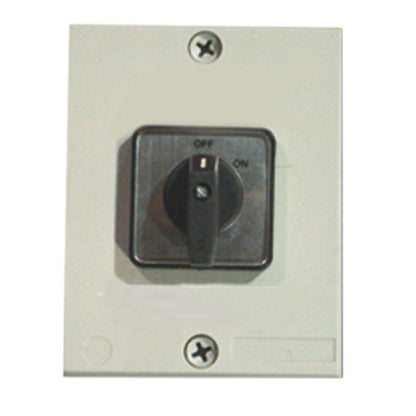

  • Quick One-Person Deployment Rotary switch activation allows single operator control for efficiency.
  • Versatile Trailer Compatibility Designed for conventional trailers and refrigerated trucks.
  • Operating Range Flexibility Adjusts 5" above or below dock for precise leveling.
  • Minimum Lip Projection 12.75" Ensures secure contact with truck beds for safe loading.
  • Enclosed Industrial Motor Protects internal components from dust, moisture, and damage.
  • 4,000 PSI Hydraulic Pump Powerful performance to handle heavy loads without strain.
  • Grease-Fitted Continuous Hinge Reduces maintenance and prolongs hinge life.
  • Formed Steel Gussets Extra structural support in stored position for durability.
  • Plate-Steel Bump Blocks & Rubber Bumpers Protect both dock and vehicle from impact.
  • Easy Forklift Installation Riveted centerplate design simplifies setup and relocation.

Detailed Specifications

Specification Details
Brand Guardian Industrial Products
Model HED6620
Type Hydraulic Edge of Dock Leveler
Width 66 inches
Maximum Capacity 20,000 lb
Deck Material 55,000 lb. minimum yield steel tread plate
Lip Length Minimum 12.75 inches
Operating Range 5" above or below dock level
Hydraulic System Enclosed motor with 4,000 PSI pump
Cylinders Dual-cylinder design for smooth operation
Safety Features OSHA-compliant bumpers and steel gussets
Installation Forklift-assisted steel rivets at centerplate hinge
Bumpers Molded cord rubber, two per dock leveler
Motor Type Totally enclosed industrial electric motor
Made In USA
