Product Description

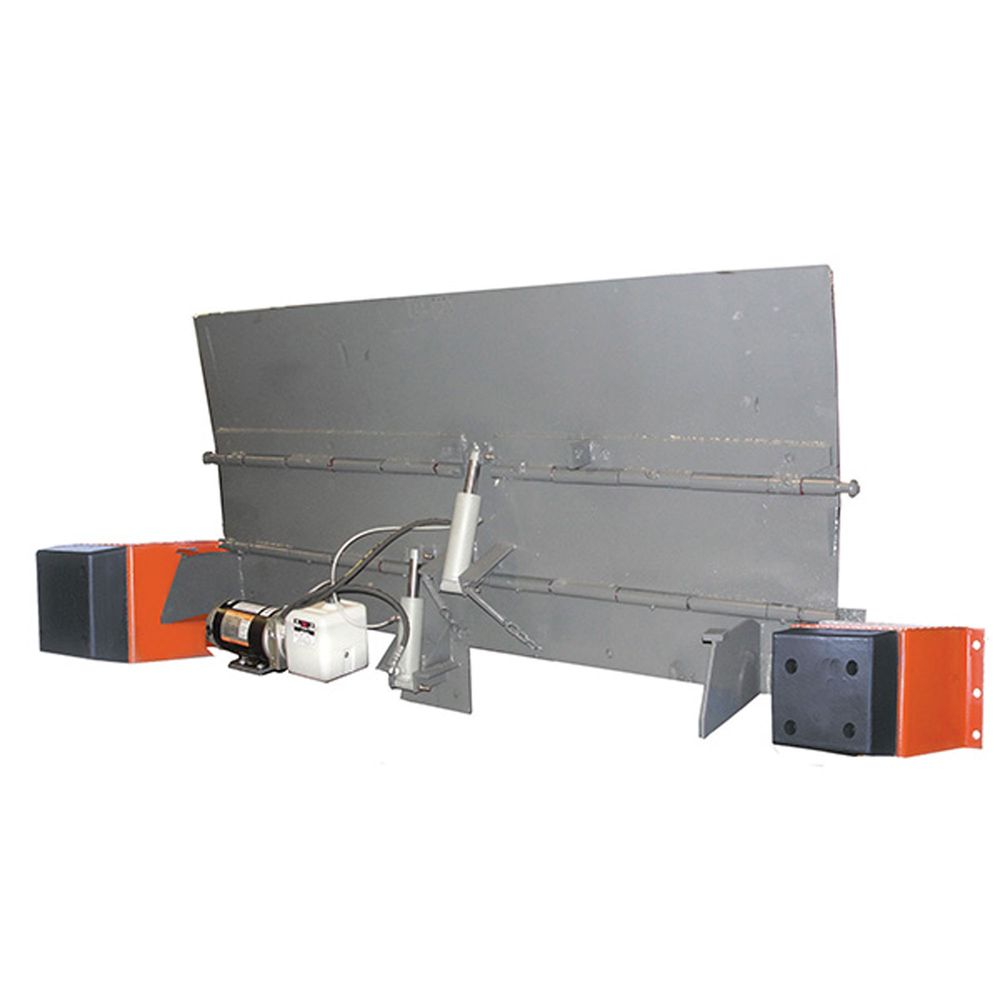

Guardian Industrial Products Hydraulic Edge of Dock Leveler | Model HED662517 | 66" W | 25,000 lb Capacity | For Refrigerated Trailer
DESCRIPTION
Bridge the gap between your loading dock and refrigerated trailers with the Guardian 66" Hydraulic Edge of Dock Leveler, engineered for maximum efficiency, safety, and durability. Crafted from high-strength 55,000 lb. minimum yield steel, this leveler supports up to 25,000 lbs, making it ideal for high-capacity commercial docks. Designed for refrigerated trailer operations, its fully hydraulic system with automatic return ensures smooth, quiet, and reliable lifting and lowering every time.
The leveler’s two-cylinder design and continuous lip hinge with grease fittings provide long-lasting performance, while formed steel gussets offer extra structural support in the stored position. With a working range of 5" above or below dock level and a minimum 12.75" lip projection, loading and unloading trucks has never been easier or safer. Built in the USA and compliant with O.S.H.A. and ANSI standards, this Guardian Edge of Dock Leveler delivers dependable performance and peace of mind. Perfect for warehouse operators, logistics managers, and industrial facilities seeking a heavy-duty, hassle-free dock solution.
Key Features
- Maximum 25,000 lb Capacity: Supports heavy-duty loads for refrigerated trailers with confidence.
- Durable 55,000 lb Steel: Long-lasting construction for commercial and industrial dock operations.
- Hydraulic Edge of Dock: Smooth, quiet, fully automated lifting and lowering system.
- Automatic Return Feature: Leveler returns to stored position immediately after truck departs.
- Working Range ±5": Compensates for trucks above or below dock for seamless operation.

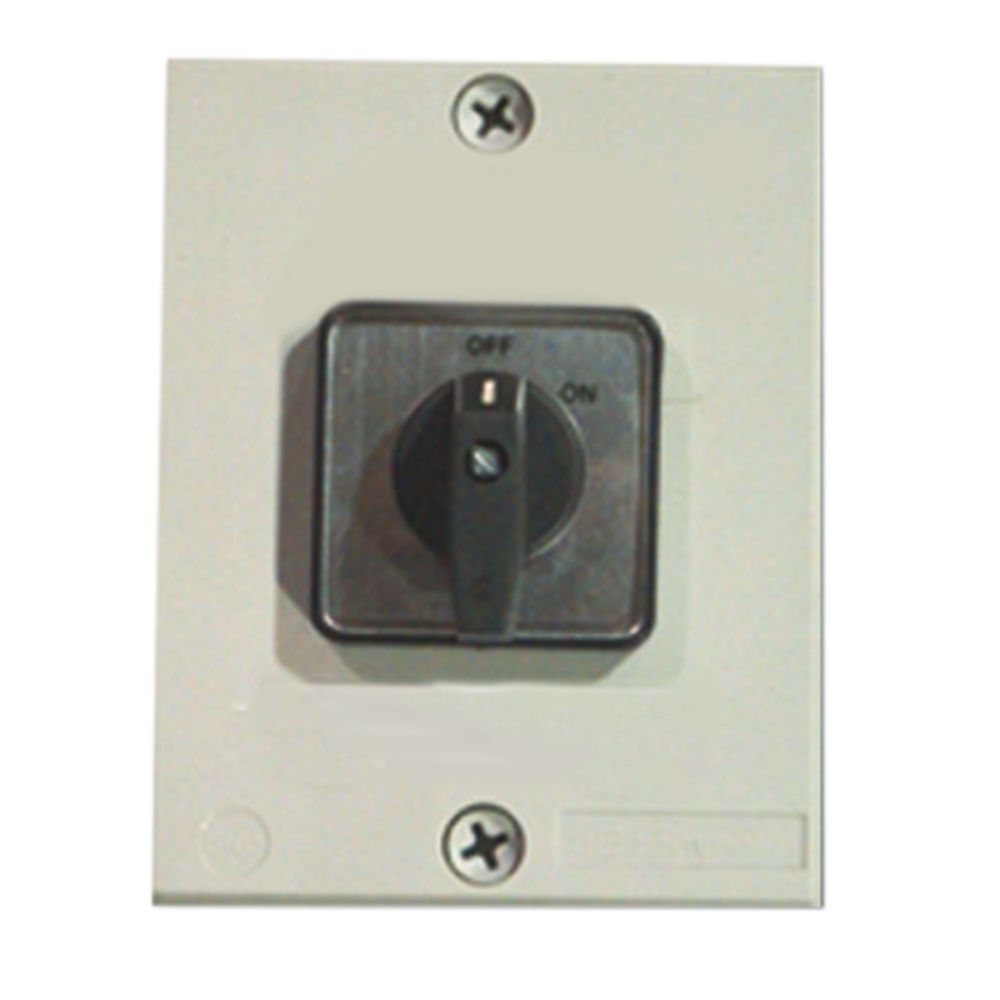

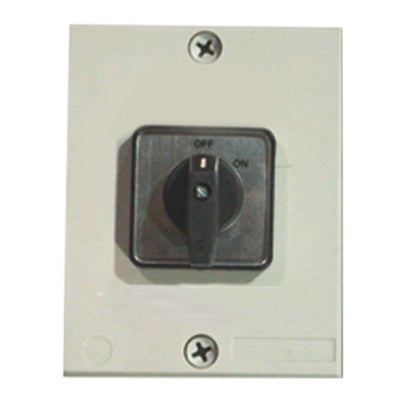

- Rotary Switch Activation: One-person operation reduces labor and improves efficiency.
- Two-Cylinder Design: Ensures smooth, quiet, and reliable performance every cycle.
- Formed Steel Gussets: Extra support in stored position prevents bending or warping.
- Continuous Lip Hinge with Grease Fittings: Minimal maintenance for long-lasting use.
- Dual Dock Bumpers: Protects both dock and leveler from incidental damage.
- Industrial Electric Motor Power Pack: Enclosed, factory-wired, and tested for durability.
- Refrigerated Trailer Compatible: Optimized for temperature-sensitive load handling.
- Easy Installation: Forklift-ready centerplate hinge simplifies setup and integration.
- Compliant with OSHA & ANSI: Meets or exceeds safety standards for industrial docks.
- Made in the USA: Quality craftsmanship and reliable performance you can trust.
Detailed Specifications
| Specification | Details |
|---|---|
| Brand | Guardian Industrial Products |
| Model | HED662517 |
| Width | 66" |
| Maximum Capacity | 25,000 lbs |
| Material | 55,000 lb. minimum yield steel |
| Design Type | Hydraulic Edge of Dock Leveler |
| Operation | Fully Automated with Automatic Return |
| Lip Projection | Minimum 12.75" |
| Working Range | 5" Above or Below Dock Level |
| Cylinders | Two-Cylinder Design |
| Motor Power | Industrial Electric, Enclosed Power Pack |
| Bumpers | Two per Leveler, Molded Cord Rubber |
| Support Gussets | Two Formed Steel Gussets |
| Activation | Rotary Switch, One-Person Operation |
| Compliance | OSHA & ANSI MH14.1 - 1984 |
| Country of Manufacture | USA |
