Product Description
Guardian Industrial Products Hydraulic Edge of Dock Leveler | Model HED782517 | 78" W | 25,000 lb Capacity | For Refrigerated Trailer Dock
DESCRIPTION

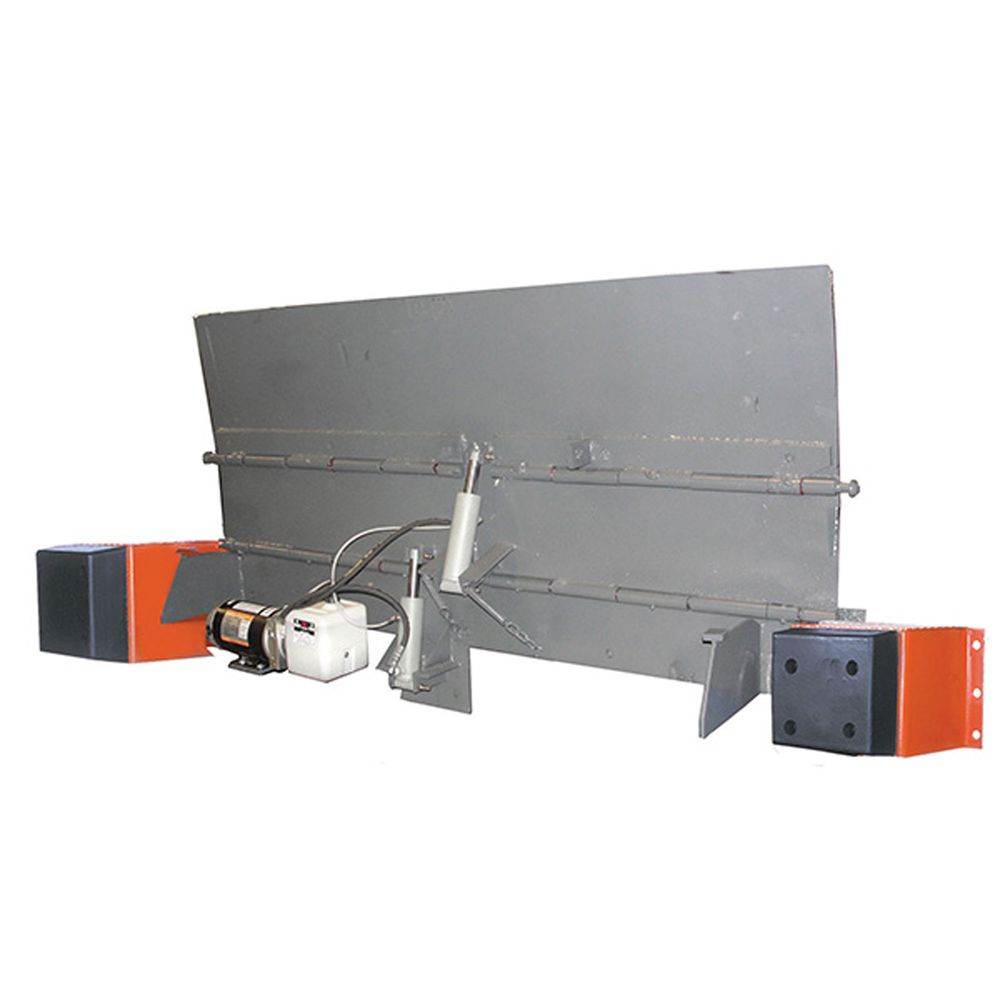

Built for demanding dock environments, the Guardian Hydraulic Edge of Dock Leveler delivers reliable, high-capacity performance for facilities that service refrigerated trailers daily. Designed to permanently mount to your loading dock, this 78-inch wide hydraulic dock leveler eliminates the inefficiency and safety risks of portable dock boards while ensuring faster, smoother truck transitions.
Constructed from 55,000 lb minimum yield steel tread plate, the deck and extended lip provide exceptional durability and secure trailer contact even with temperature-controlled trailers that require deeper lip engagement. A fully enclosed electric hydraulic power pack with a 4,000 PSI-capable pump delivers smooth, quiet operation, while the automatic return-to-stored position activates immediately when the trailer departs.
With a 5-inch operating range above and below dock level, this unit adapts easily to varying trailer heights. Formed steel bump blocks and molded rubber dock bumpers protect both the dock face and the leveler from impact damage. Engineered to meet or exceed OSHA and ANSI MH14.1 safety standards, this Guardian leveler is proudly manufactured in the USA for long-term reliability in high-volume warehouse and cold storage operations.
Key Features
- Heavy-duty steel construction ensures long-term durability for high-cycle loading docks servicing refrigerated trailers in distribution, food storage, and cold chain logistics operations.
- 25,000 lb load capacity safely supports forklifts, pallet jacks, and heavy cargo transfers between dock and trailer with confidence and reduced risk.
- Designed for refrigerated trailers with a longer lip projection to maintain secure trailer contact and prevent unsafe lip disengagement.
- 78-inch wide deck surface provides ample working width for smooth forklift maneuvering and improved operational efficiency at busy dock doors.
- Hydraulic edge of dock design eliminates manual lifting and reduces operator strain compared to traditional steel dock boards.
- 4,000 PSI hydraulic pump system delivers dependable lifting power with consistent performance in demanding industrial environments.
- Automatic return feature lowers the deck to the stored position immediately after trailer departure, improving safety and workflow.
- 5-inch vertical operating range above and below dock level accommodates varying trailer heights for flexible dock usage.
- 55,000 lb yield steel tread plate offers superior traction and structural integrity under heavy rolling loads.
- Two-cylinder hydraulic system provides smooth, quiet, and controlled deck and lip movement during operation.
- Continuous lip hinge with grease fittings simplifies maintenance while extending service life of critical moving components.
- Formed steel gussets reinforce the deck in the stored position for added structural support and longevity.
- Molded rubber dock bumpers protect dock face, building structure, and equipment from trailer impact damage.
- Forklift-assisted installation design allows efficient placement using built-in steel rivets on the centerplate hinge.
- OSHA and ANSI compliant build meets or exceeds recognized safety and performance standards for industrial dock equipment.
Detailed Specifications
| Specification | Details |
|---|---|
| Brand | Guardian Industrial Products |
| Model Number | HED782517 |
| Product Type | Hydraulic Edge of Dock Leveler |
| Dock Width | 78 inches |
| Maximum Capacity | 25,000 lbs |
| Material | Heavy-duty steel |
| Deck Steel Rating | 55,000 lb minimum yield tread plate |
| Operating Range | 5 inches above and below dock |
| Lip Projection | 12.75 inches |
| Overall Span | 27.75 inches |
| Hydraulic System | Electric motor with 4,000 PSI-capable pump |
| Bumpers Included | Two molded rubber dock bumpers |
| Compliance Standards | OSHA, ANSI MH14.1 |
| Country of Origin | Made in the USA |
| Primary Application | Refrigerated trailer loading docks |
