Hammer Head SS-Big Block Log Splitter | Splitter Width 36" | Length 84" | Hydraulic Flow 20–25 GPM | For Skid Steers

Hammer Head SS-Big Block Log Splitter | Splitter Width 36" | Length 84" | Hydraulic Flow 20–25 GPM | For Skid Steers

Regular price $5,494.50
Regular price Sale price $5,494.50
Sale Sold out
Machine Compatibility
Customizable
Fast
24/7 Support
  • Hydraulic Flow 20–25 GPM For Skid Steers.
  • Power-Packed Performance: Operates efficiently with a minimum of 2850 PSI, ensuring powerful and consistent splitting.
  • Robust and Spacious Design: At 84" long and 36" wide, the Big Block provides ample room and stability for large rounds.
  • Heavy-Duty Construction: Weighing in at 930 lbs., this log splitter is built to withstand heavy-duty use.
View full details

Product Description

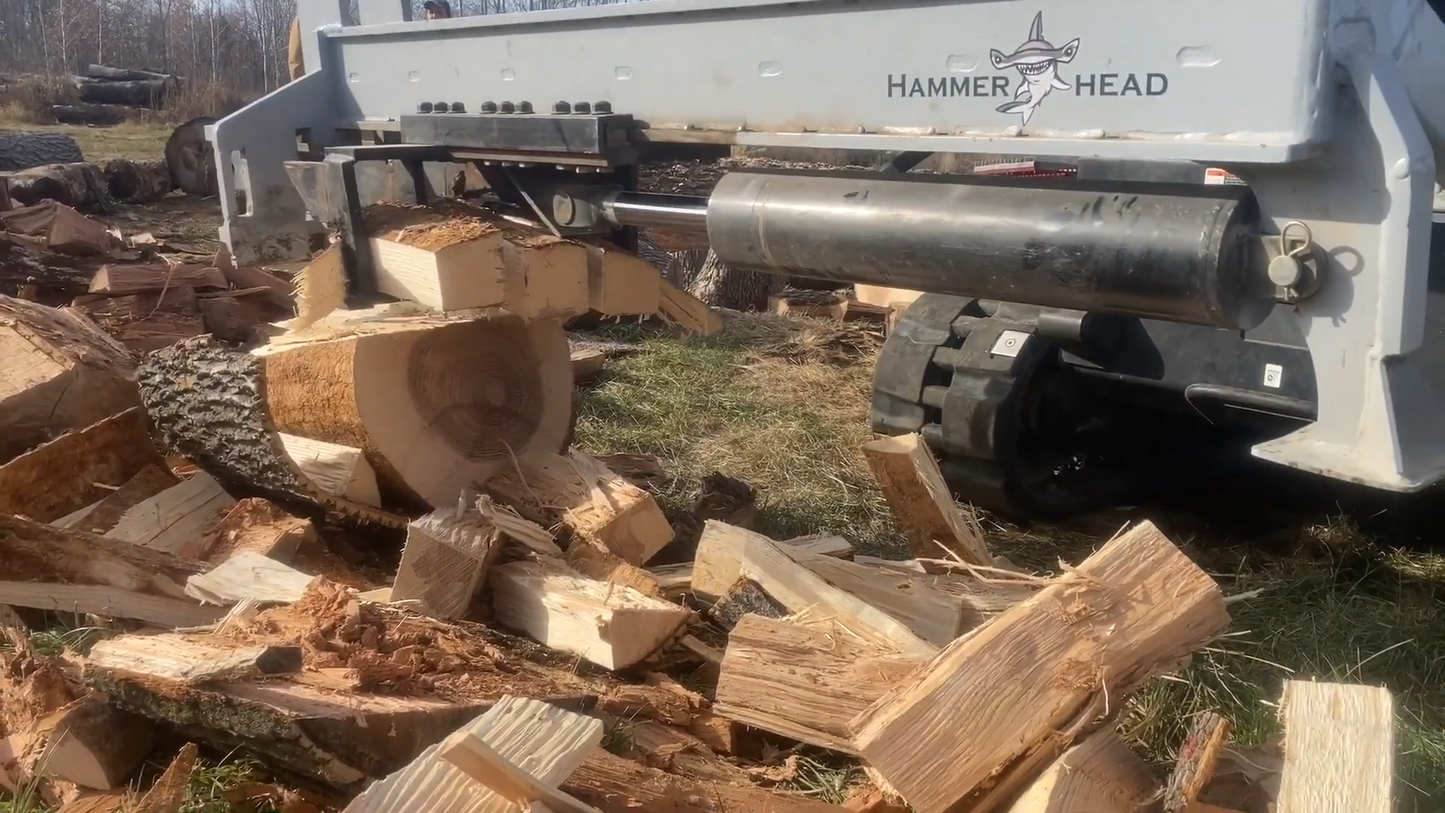

Hammer Head SS-Big Block Log Splitter | Splitter Width 36" | Length  84" | Hydraulic Flow 20–25 GPM | For Skid Steers

Description

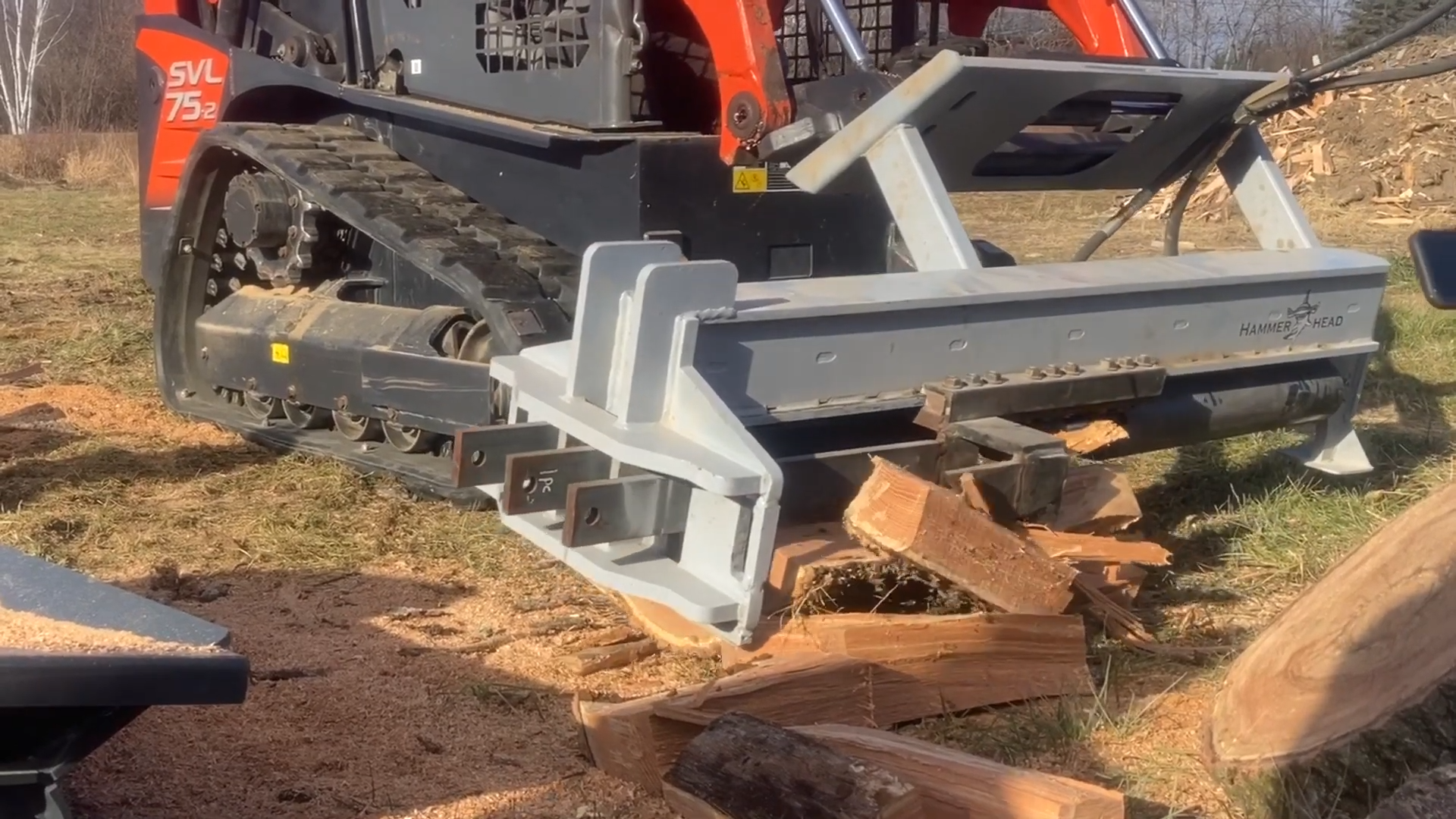

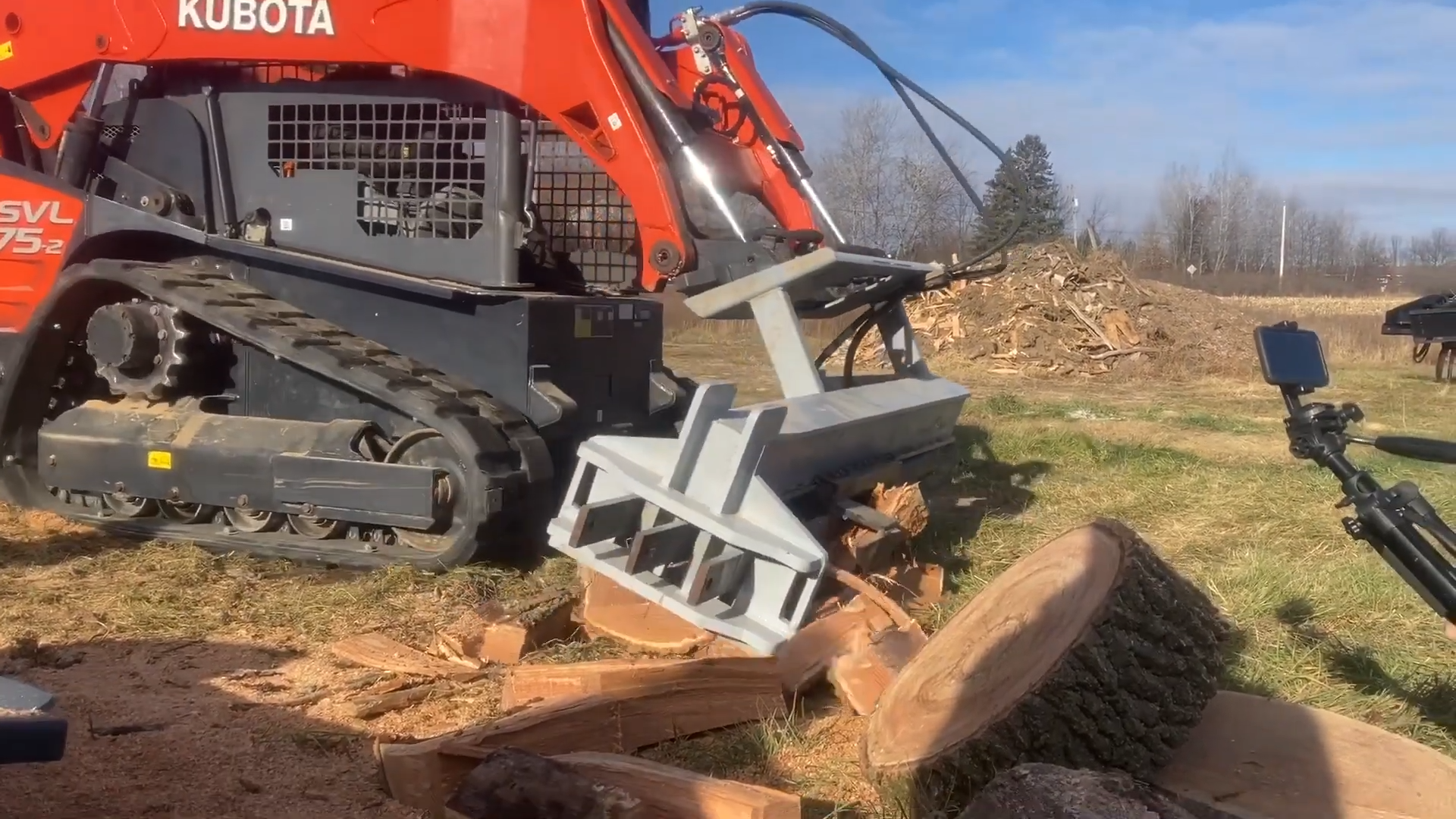

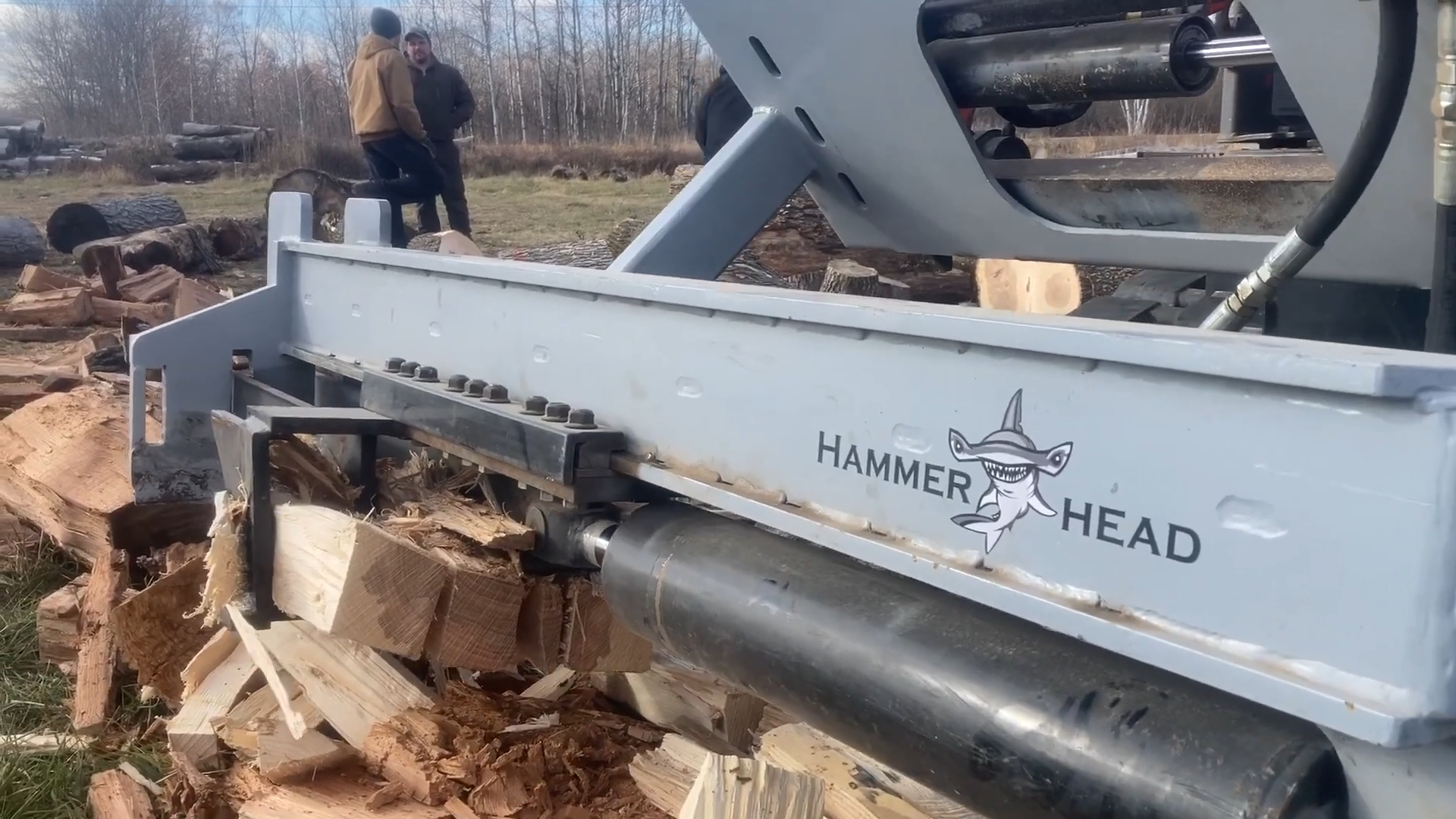

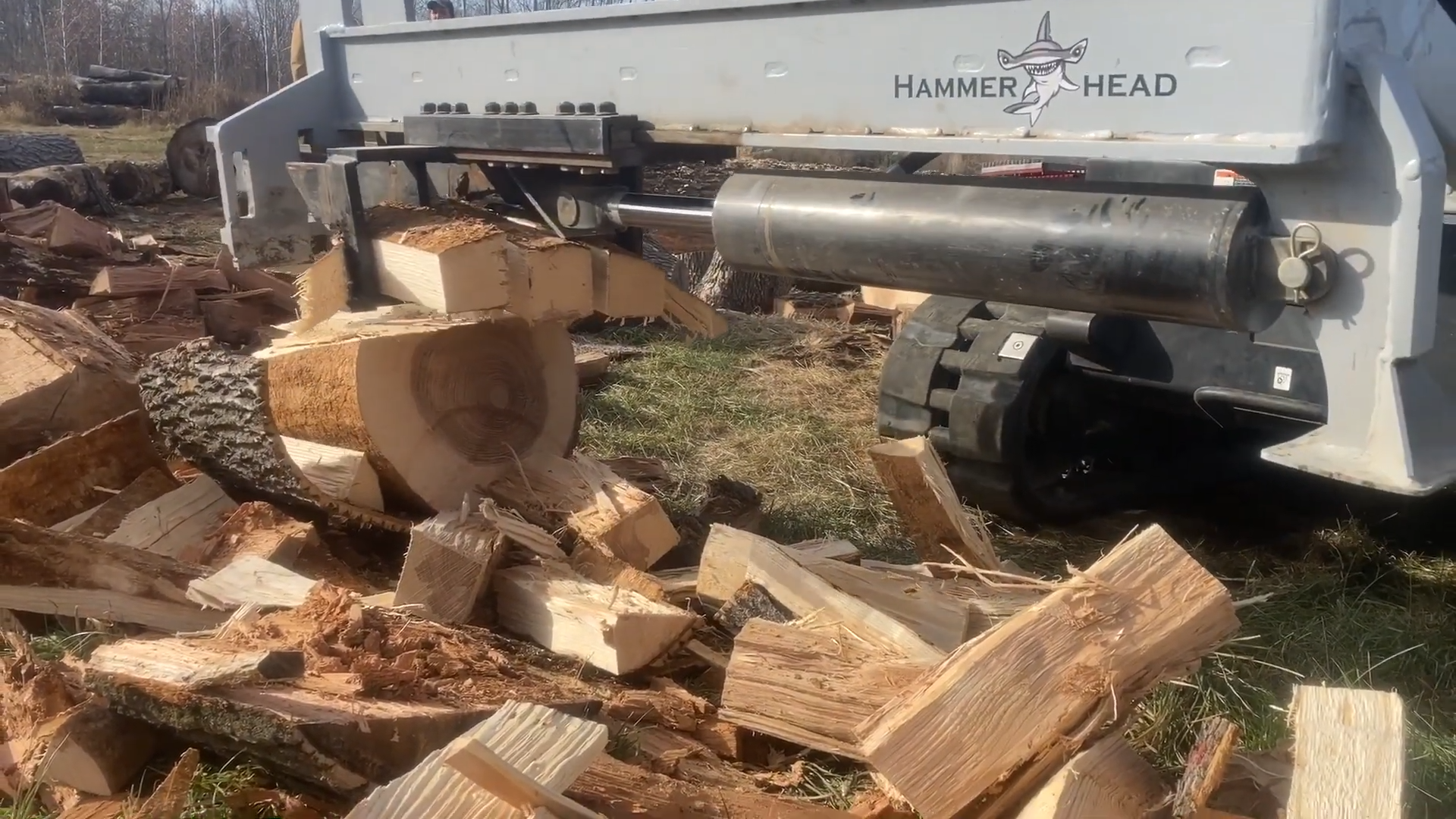

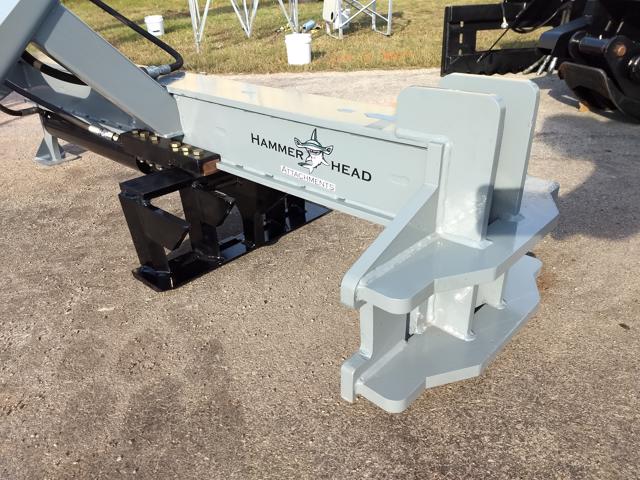

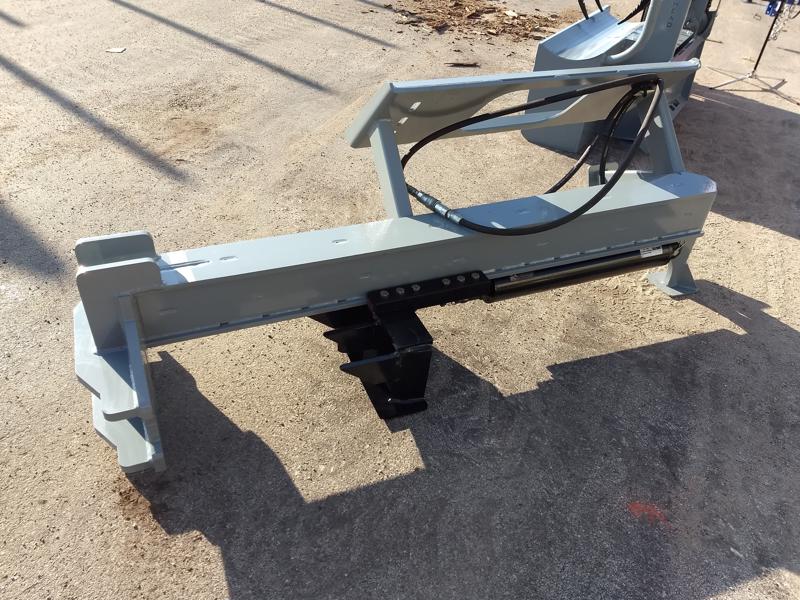

The Hammerhead SS-Big Block is a sideways-mounted skid steer log splitter equipped with a unique box-style wedge, tailored for handling large rounds with ease. Whether you're dealing with 24" rounds or 48" rounds that usually require pre-splitting, the Big Block ensures efficient splitting. Designed to work with skid steers, wheel loaders, or excavators, this log splitter combines high-strength steel and industrial-grade components to offer exceptional durability and longevity. Its unique splitting wedge methodically creates uniform firewood pieces by "shaving" the block from top to bottom, all controlled through the skid steer's hydraulics for seamless operation from the cab.

Key Features

  • Power-Packed Performance: Operates efficiently with a minimum of 2850 PSI, ensuring powerful and consistent splitting.
  • Robust and Spacious Design: At 84" long and 36" wide, the Big Block provides ample room and stability for large rounds.
  • Heavy-Duty Construction: Weighing in at 930 lbs., this log splitter is built to withstand heavy-duty use.
  • Adaptable Firewood Length: Splits logs up to 20" in length (18" recommended) with an optional extension accommodating up to 26" (24" recommended), offering flexibility for various firewood sizes.
  • Precision Cutting: The standard wedge creates uniform 4.5"x4.5" pieces of firewood, ensuring consistent results every time.
  • No Diameter Limit: With no maximum diameter, the Big Block can handle logs of any size.
  • Durable Box Wedge Design: The innovative box wedge design enhances cutting efficiency and durability.
  • Resilient Coating: Powder-coated frame and components for increased protection against wear and tear.
  • Powerful Splitter Cylinder: A 5" cylinder delivering 58,905 lbs. of force at 3,000 PSI ensures maximum splitting power.
  • Hydraulic Convenience: Comes with "Connect Under Pressure" hydraulic couplers for easy and hassle-free connections.
  • Replaceable Wear Material: Includes replaceable wear material on the splitter slide for extended lifespan and reduced maintenance costs.
  • User-Friendly Operation: Controlled by the skid steer's hydraulics, enabling easy operation from the comfort of your cab.

Detailed Specifications

Specification Details
PSI Recommended Minimum 2850
Length 84"
Width 36"
Weight 930 lbs.
Max Firewood Length Up to 20" (18" Recommended), optional up to 26"
Standard Wedge Produces 4.5"x4.5" pieces of firewood
Max Diameter No max limit
Design Box wedge
Frame & Components Powder coated
Splitter Cylinder 5" cylinder with 58,905 lbs of force @ 3,000 PSI
Hydraulic Couplers Includes "Connect Under Pressure" hydraulic couplers
Slide Wear Material Replaceable

Manual & Documents

General Warranty Info:

  • Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
  • The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
  • Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
  • Please reach out to us for any specific warranty information needed about products and parts you can’t find!

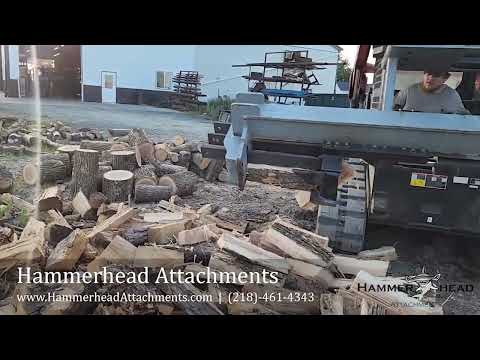

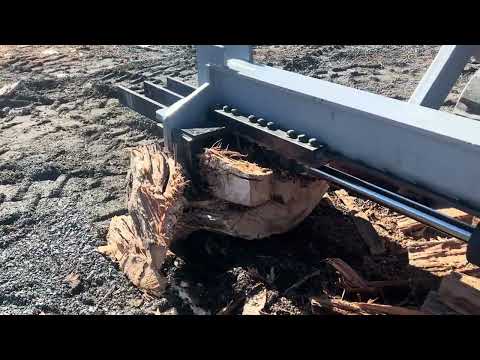

Videos
