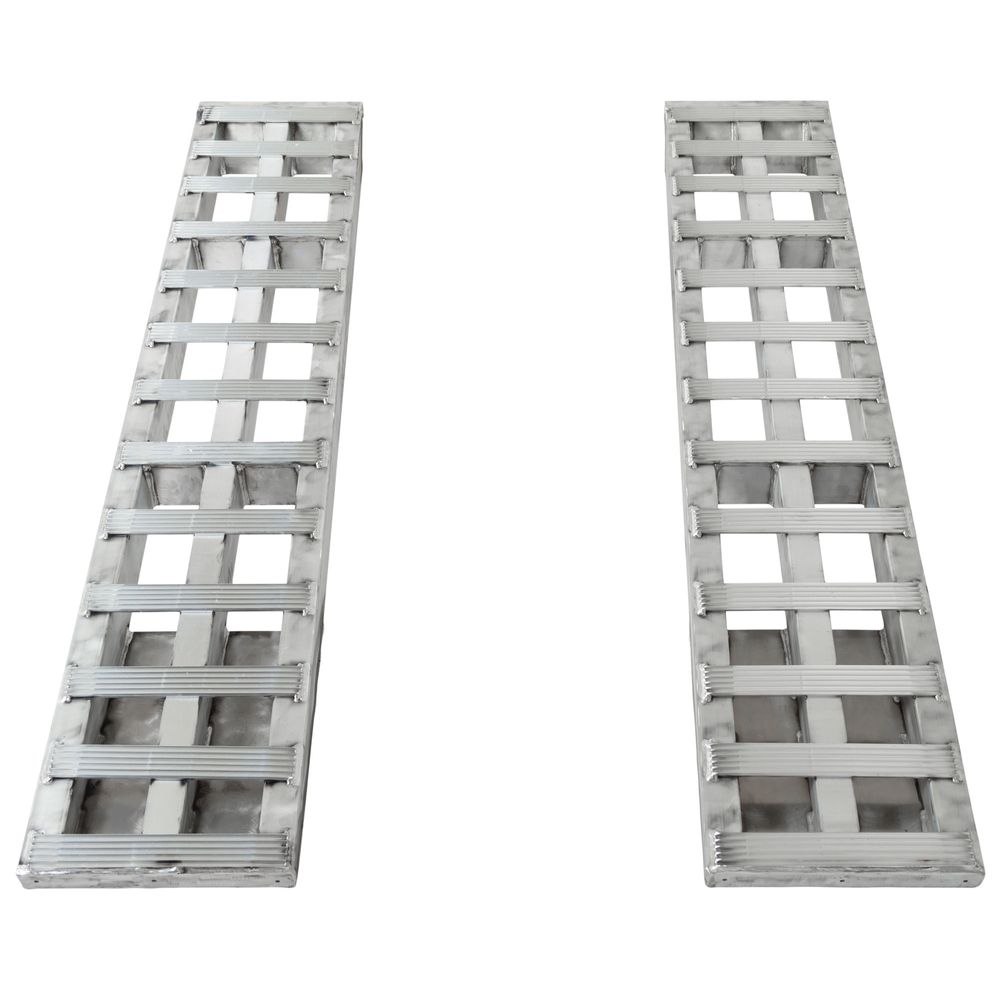

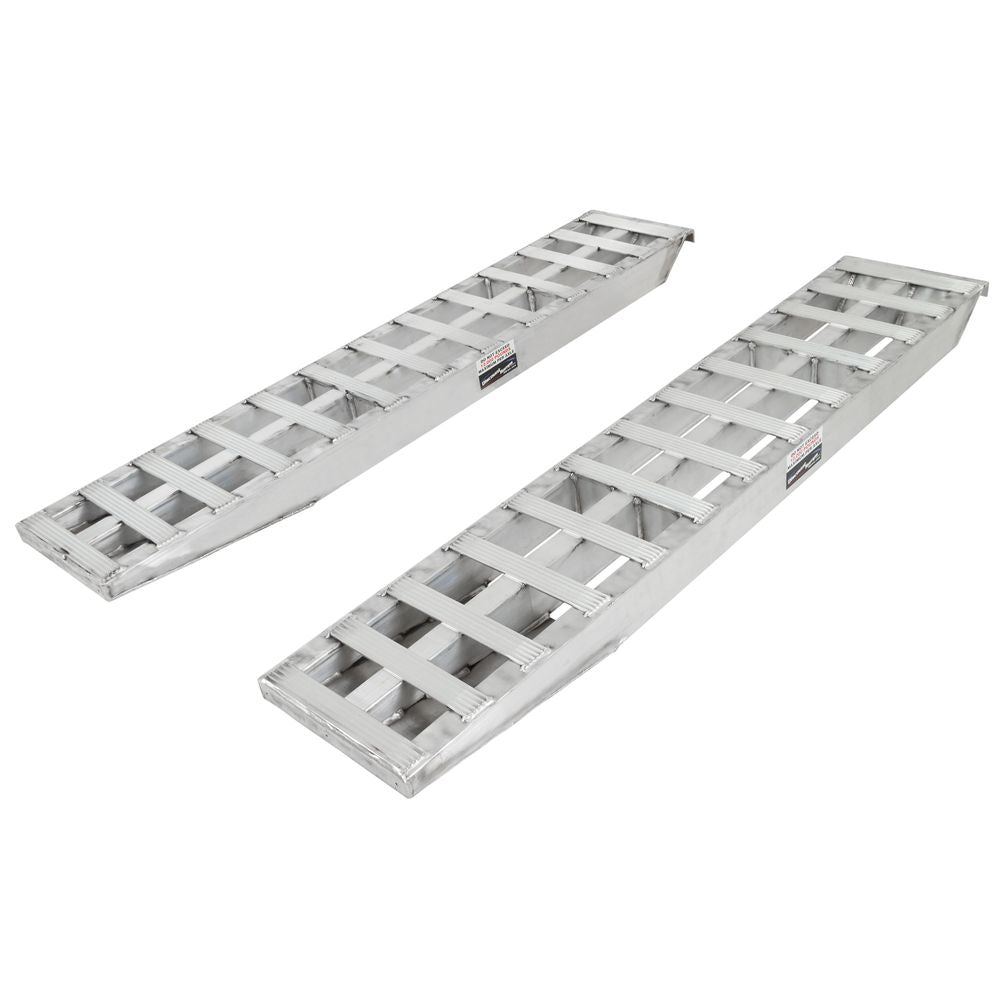

Heavy Duty Ramps

Heavy Duty Ramps Heavy Equipment Loading Ramps | Model 12-14-072-05-S | Size 6' L x 14" W | Capacity 12,000 lb | 23 HP | 0 To 25 GPM | For Trailers, Skid Steers, Tractors & Loaders

Heavy Duty Ramps Heavy Equipment Loading Ramps | Model 12-14-072-05-S | Size 6' L x 14" W | Capacity 12,000 lb | 23 HP | 0 To 25 GPM | For Trailers, Skid Steers, Tractors & Loaders

Regular price $1,384.99
Regular price Sale price $1,384.99
Sale Sold out
Customizable
Fast
24/7 Support
  • Ramp Size: 6' L x 14" W; Weight: 42 lbs each.
  • Load Capacity: 12,000 lbs per axle for heavy equipment.
  • Compatibility: For skid steers, compact tractors, mini loaders.
  • Trailer Fit: Hook-end connection for rub rails up to 1-5/16".
  • Ideal Use: Safe loading onto 12"–20" trailer heights.
View full details

Product Description

Heavy Duty Ramps Heavy Equipment Loading Ramps | Model 12-14-072-05-S | Size 6' L x 14" W | Capacity 12,000 lb | 23 HP | 0 To 25 GPM | For Trailers, Skid Steers, Tractors & Loaders


DESCRIPTION

When you need dependable strength, confident traction, and a ramp system engineered for real-world heavy equipment loading, these Heavy Duty Ramps 6' x 14" Aluminum Equipment Ramps deliver uncompromising performance. Built for contractors, landscapers, farmers, and equipment operators who demand reliability day after day, these ramps combine lightweight handling with exceptional load-bearing capability supporting 12,000 lbs per axle without flex, slip, or compromise.

Each ramp features a rugged hook-end connector that locks securely onto your trailer’s rub rail, eliminating kickouts and removing the need for safety straps. The reinforced stub foot design expands the usable height range, allowing safe and stable loading onto trailer rises from 12" to 20". Whether you're transporting a skid steer, compact tractor, mini loader, trencher, or utility equipment, these ramps provide a solid, confidence-building approach under all conditions.

For operators working in mud, rain, snow, or loose terrain, the serrated rung traction system ensures reliable tire grip and immediate debris shedding letting you load safely even when conditions are at their worst. Fabricated from high-strength aluminum, each ramp weighs only 42 lbs, giving you the durability of steel without the back-breaking weight. Easy to carry, simple to position, and built in the USA, these ramps are a long-term solution for anyone who values durability, safety, and productivity in the field.

Key Features

  • High-Strength Aluminum Build: Engineered from premium aluminum to deliver exceptional strength without unnecessary weight, ensuring long-lasting performance in demanding jobsite conditions.
  • 12,000 lb Per Axle Capacity: Heavy-duty load rating supports skid steers, tractors, trenchers, loaders, and utility equipment with confidence during daily hauling operations.

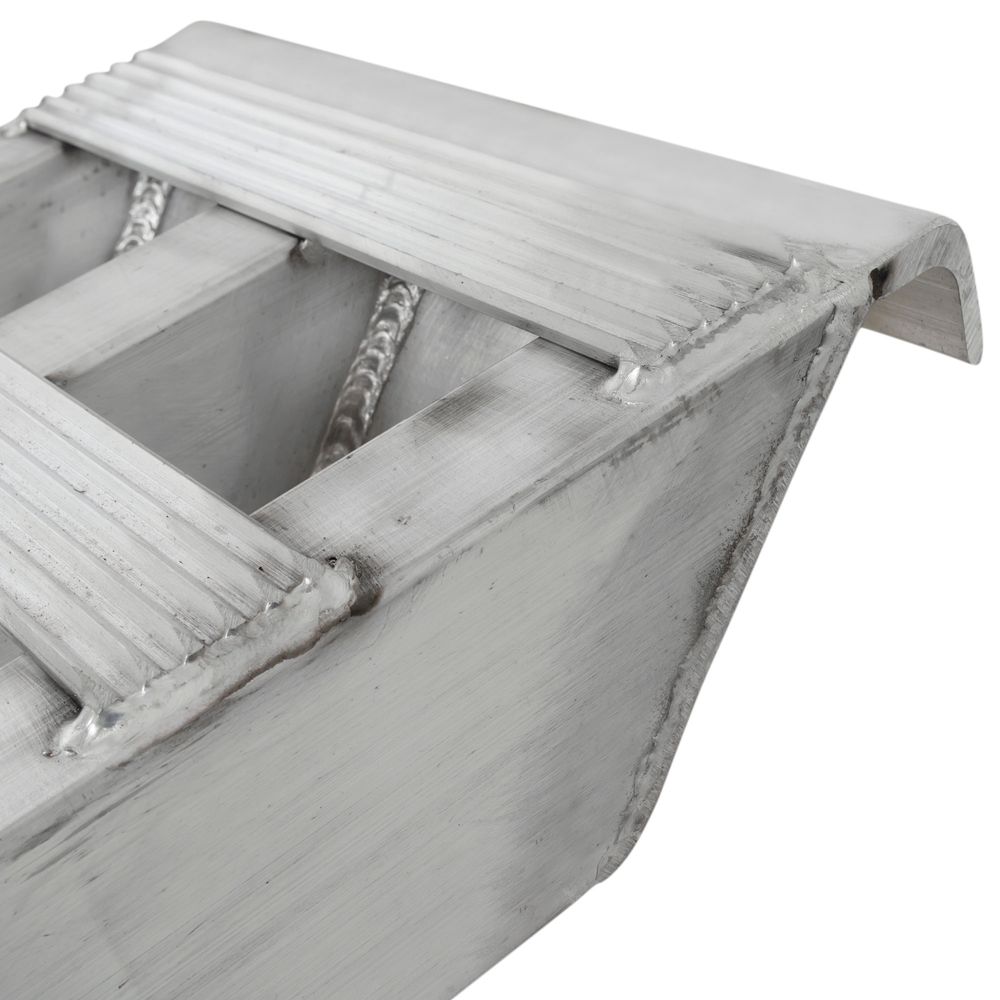

  • Hook-End Trailer Connector: Secure hook end grips rub rails up to 1-5/16" diameter, preventing ramp kickouts while eliminating the need for tie-down straps during loading.

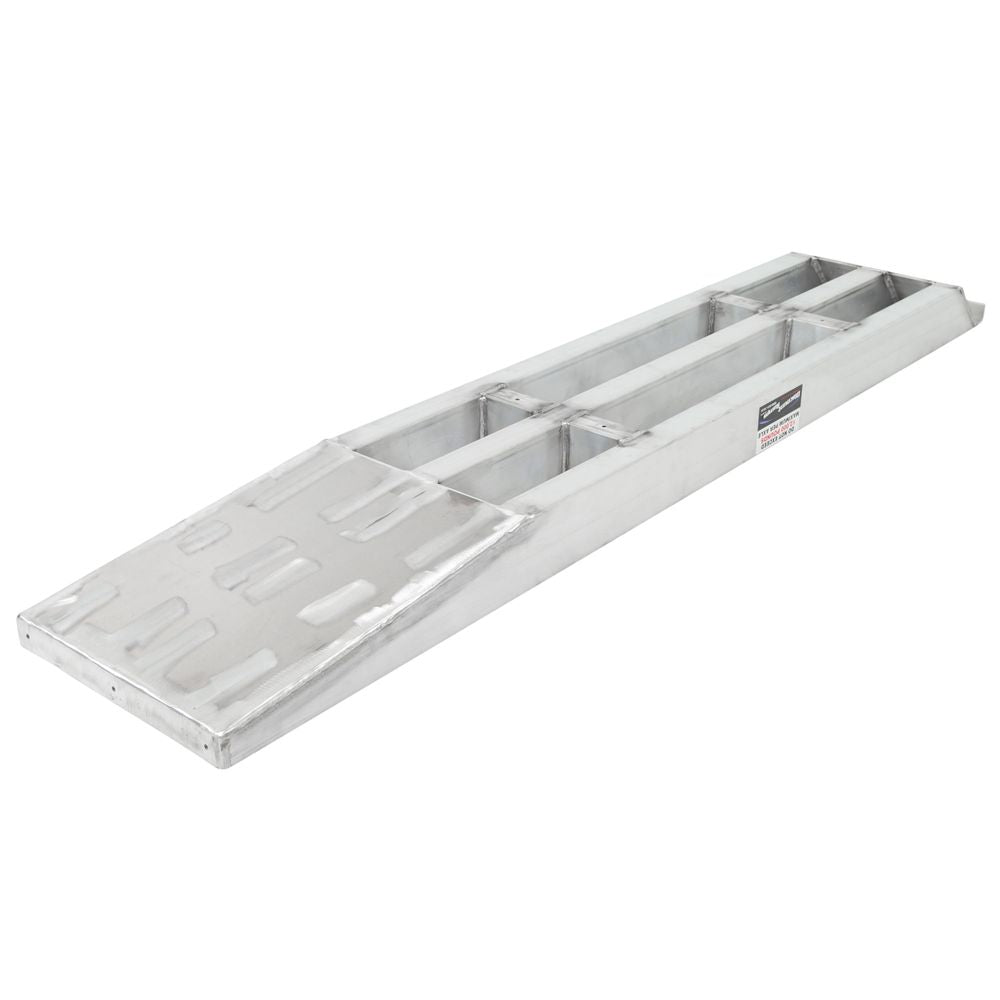

  • Reinforced Stub Foot Design: Stub foot provides stable footing on varied heights and surfaces, allowing safe loading onto trailers with 12" to 20" deck height.

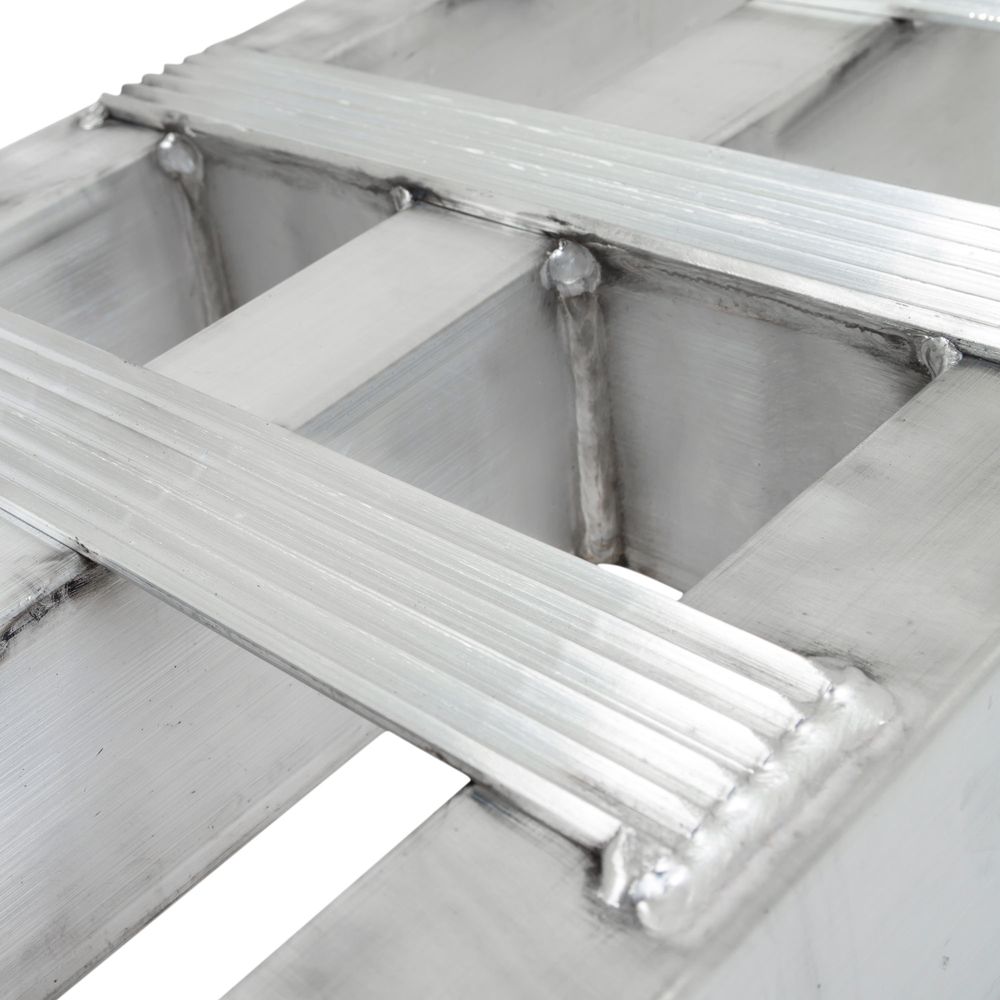

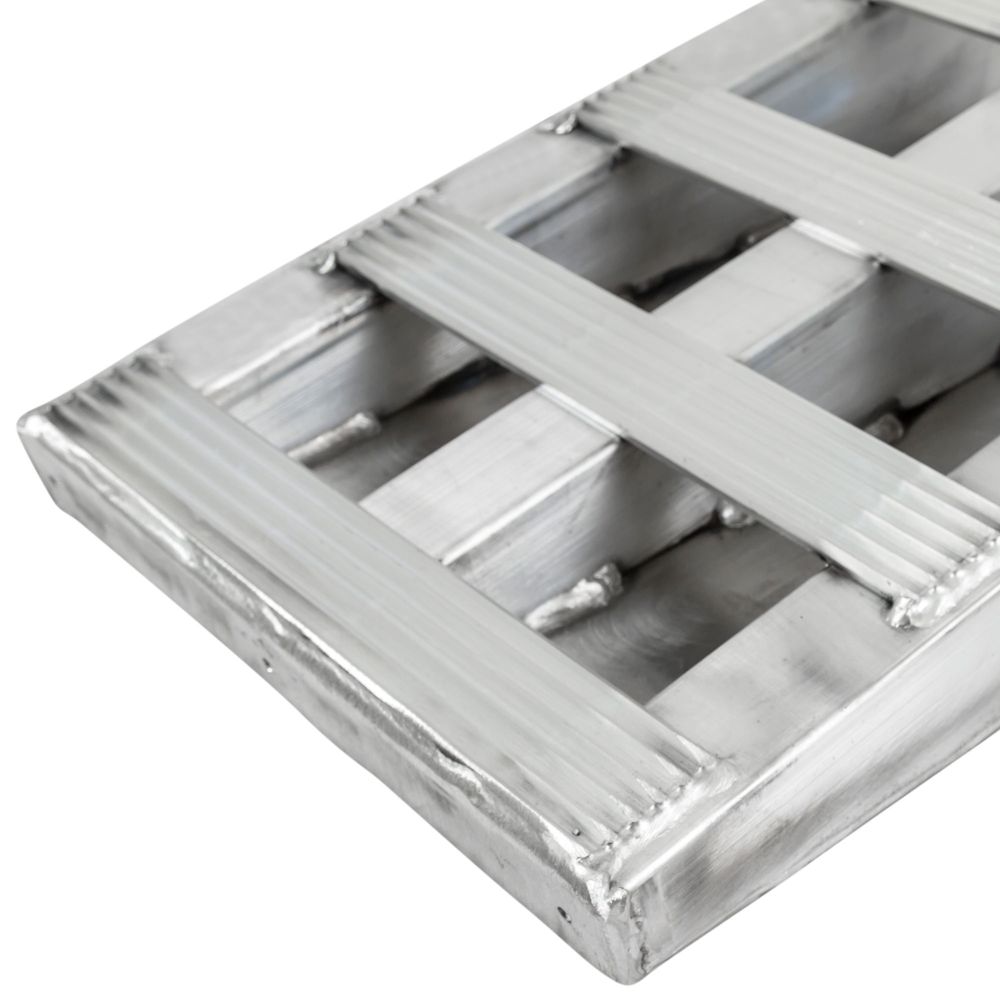

  • Serrated Rung Traction: Horizontally serrated rungs maximize tire grip and shed mud, water, and debris instantly for secure loading in wet or muddy environments.
  • Lightweight, Easy Handling: At just 42 lbs each, the ramps are easy to maneuver, set up, and store while still delivering commercial-grade strength.
  • 6' x 14" Versatile Size: Ideal loading length and width for compact to mid-size equipment, giving operators the right balance of angle, control, and stability.
  • Compatible With Common Equipment: Perfect for skid steers, mini loaders, compact tractors, trenchers, and UTV/ATV equipment used in landscaping or construction.
  • Built for Professional Use: Designed for daily loading operations, supporting contractors, farmers, rental yards, and fleet operators who rely on dependable equipment.
  • Corrosion-Resistant Aluminum: Rust-free design ensures years of outdoor exposure without degradation, even in rain, snow, and coastal environments.
  • Quick Positioning System: Hook ends allow rapid install and removal, saving time during frequent loading cycles and improving jobsite efficiency.
  • Optimized Load Angle: Stub foot and 6-foot length provide a safe, controlled loading angle compatible with many trailer setups and loading heights.
  • Open Rung Debris Pass-Through: Large debris passes freely through rungs to prevent slippage and maintain consistent tire contact during loading.
  • USA-Built Construction Quality: Manufactured in the United States with strict quality standards for durability and long-term reliability.
  • Universal Trailer Fit: Designed to work with trailers featuring rub rails or angle-iron edges, providing wide compatibility with worksite and farm trailers.

Detailed Specifications

Specification Details
Brand Heavy Duty Ramps
Model 12-14-072-05-S

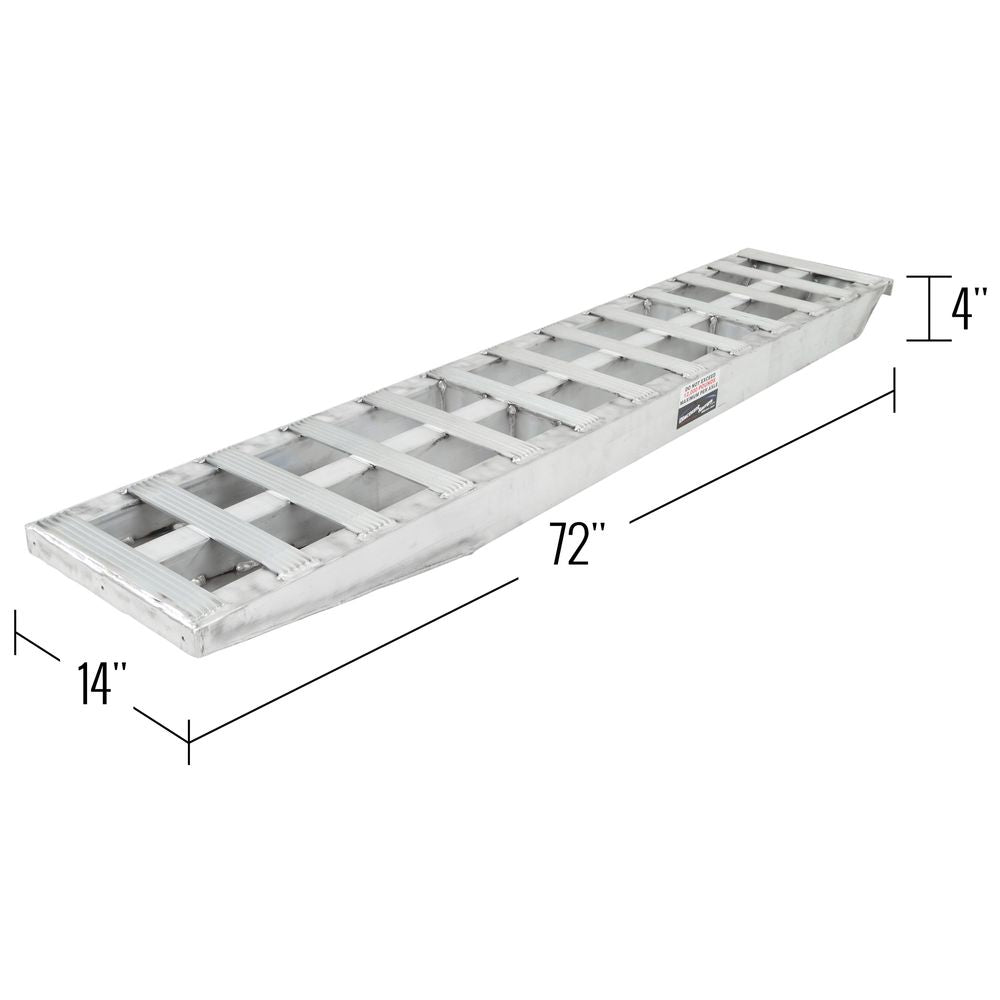

Ramp Length 6 ft
Ramp Width 14 in
Ramp Height 4 in
Weight (Each Ramp) 42 lbs
Capacity 12,000 lbs per axle
Minimum Loading Height 12 in
Maximum Loading Height 20 in
Material High-Strength Aluminum
Attaching End Hook End
Foot Type Stub Foot
Traction Type Serrated Rung
Compatibility Trailers, Skid Steers, Tractors, Loaders
Required Rating Horsepower: 23 HP
