Heavy Duty Ramps Modular Step Deck Trailer Ramp System | Model 20-16-192-02-02M | 16' L x 16" W | 20,000 lb. Weight Capacity | Horsepower 23 HP | For Trailers, Loaders

Heavy Duty Ramps Modular Step Deck Trailer Ramp System | Model 20-16-192-02-02M | 16' L x 16" W | 20,000 lb. Weight Capacity | Horsepower 23 HP | For Trailers, Loaders

$6,313.43
$6,313.43
Sale Sold out
Customizable
Fast
24/7 Support
  • Ramp Length: 192" (16') × Width: 16".
  • Weight Capacity: 20,000 lbs. per axle.
  • Section Weight: 74 lbs. each; Total System Weight: 380 lbs.
  • Recommended Power: 23 HP equipment and vehicles.

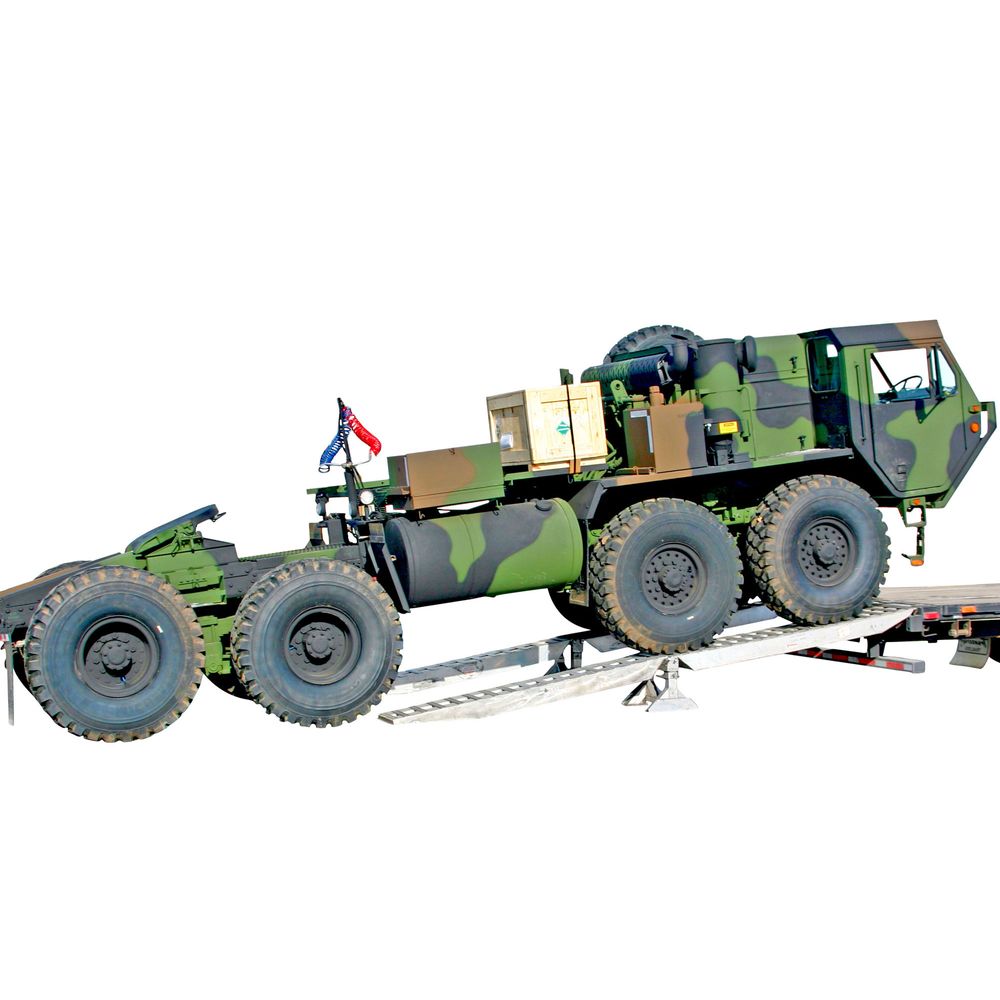

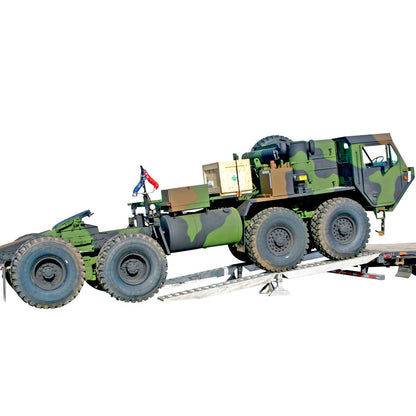

  • For Step Deck Trailers, Loaders, Trucks, and Heavy Equipment.
View full details

Product Description

Heavy Duty Ramps Modular Step Deck Trailer Ramp System | Model 20-16-192-02-02M | 16' L x 16" W | 20,000 lb. Weight Capacity | Horsepower 23 HP | For Trailers, Loaders

DESCRIPTION

Experience effortless loading and unloading with the Brand Name Heavy Duty Aluminum Step Deck Trailer Ramp System, designed for professional haulers, contractors, and equipment operators who demand reliability, strength, and portability. Engineered from high-strength aluminum, this modular ramp system combines durability with lightweight convenience, making setup fast and manageable—even by a single person.

Whether you’re transporting tractors, loaders, trucks, or heavy machinery, these ramps ensure smooth, safe, and secure loading on step deck trailers, flatbeds, or loading docks. Each ramp section is built with a reinforced stubbed toe to prevent bending under weight, while the adjustable support stands allow for precise alignment, accommodating vehicles with long wheelbases or low ground clearance.

Say goodbye to heavy, cumbersome ramps that slow your workflow. With Brand Name Heavy Duty Ramps, every load is handled with confidence and safety.

Key Features

  • Heavy-Duty Aluminum Construction Lightweight yet capable of supporting up to 20,000 lbs. per axle.
  • Modular Ramp System Each 16’ side includes two 8’ L ramps, allowing flexible configuration.

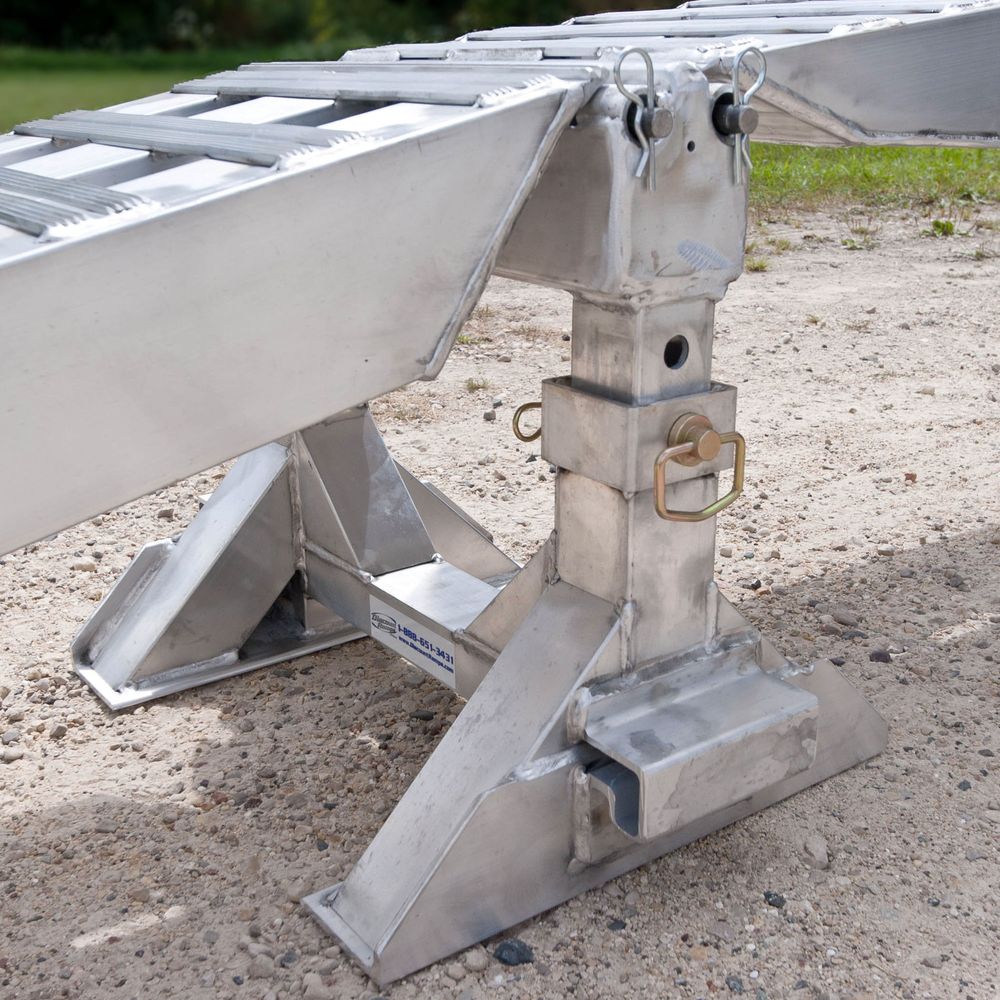

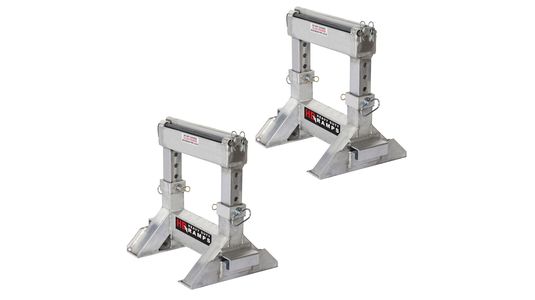

  • Adjustable Ramp Stands Create an offset angle or arch to fit varying trailer heights and vehicle ground clearance.

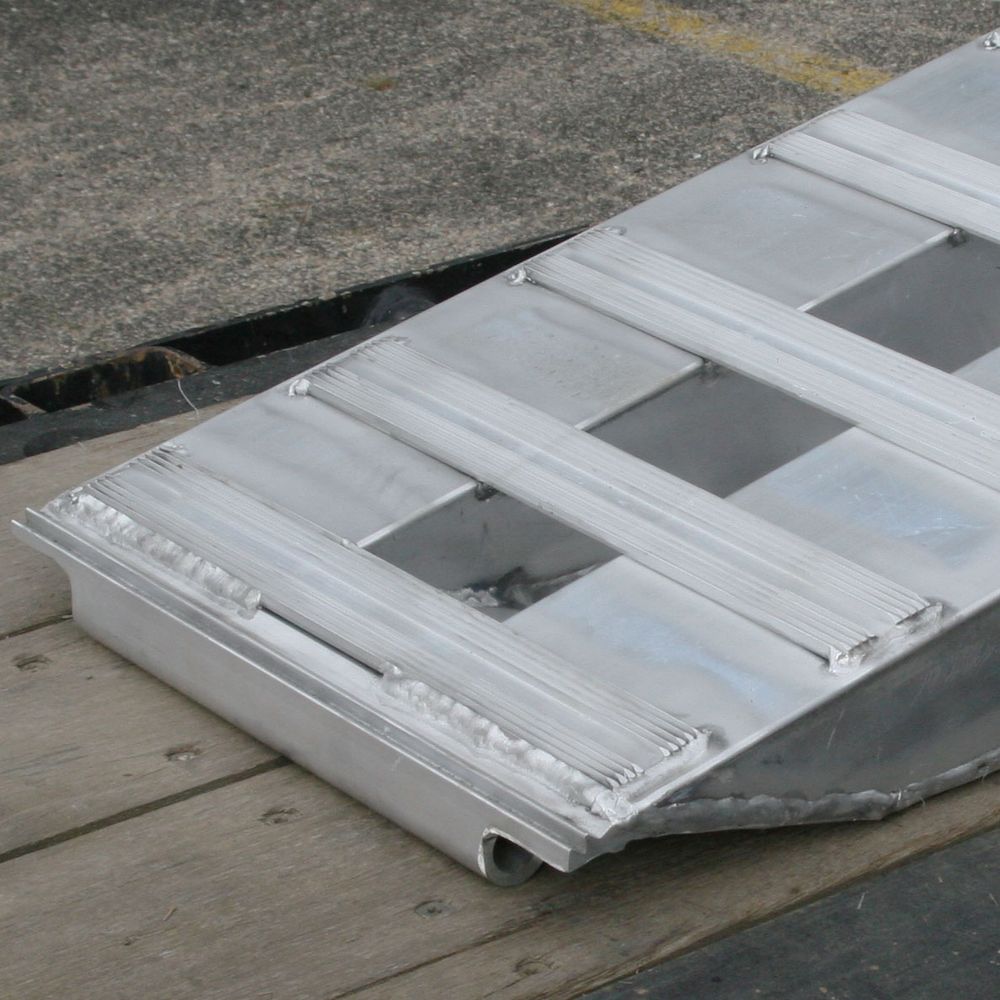

  • Reinforced Stubbed Toe Prevents bending and adds extra support at the ramp’s base.
  • Pin-On End Design Easily secures ramps to skid seat brackets on trailers or docks.
  • Versatile Loading Ideal for tractors, loaders, trucks, and other heavy equipment.
  • Lightweight Sections Individual ramp sections weigh just 74 lbs. for one-person setup.
  • High Strength-to-Weight Ratio Aluminum construction reduces weight without sacrificing load capacity.
  • Portable & Easy Storage Use optional ramp hangers and stand hangers to store conveniently under trailers.

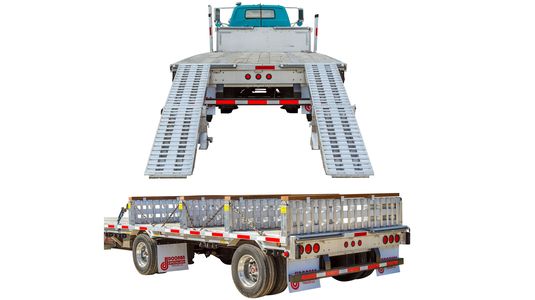

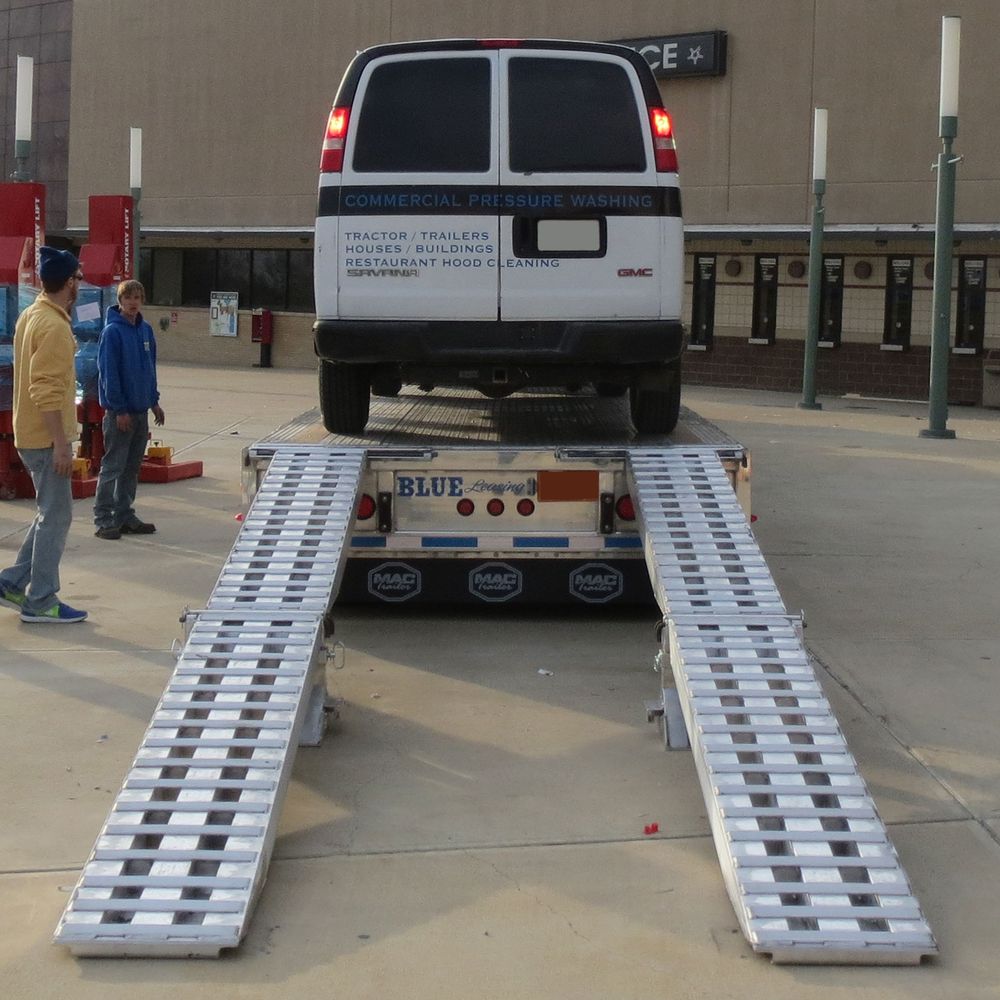

  • Step Deck Compatible Designed specifically for step deck trailers but works on flatbeds and docks.
  • Durable Finish Rust-resistant aluminum ensures long-lasting performance in outdoor conditions.
  • Safe Loading Angle Adjustable stands prevent high-centering and minimize risk when loading long wheelbase vehicles.
  • Quick Assembly No welding required for routine setup; ramps pin directly into skid seat brackets.
  • Made in the USA Built with precision and durability you can trust.
  • Versatile Use Cases Perfect for construction sites, landscaping, agricultural operations, and fleet transportation.

Detailed Specifications

Specification Details
Ramp Type Step Deck Trailer Modular Ramp System
Material High-Strength Aluminum
Maximum Capacity 20,000 lbs. per axle
Ramp Length 16' (two 8’ L ramps per side)
Ramp Width 16"
Ramp Height 6"
Ramp Section Weight 74 lbs. each
Total Weight (Full Ramp Set) 380 lbs.
Recommended Horsepower 23 HP
Compatible Vehicles Step Deck Trailers, Loaders, Trucks, Heavy Equipment
Country of Manufacture USA
Key Features Adjustable Stands, Reinforced Stub Toe, Pin-On Ends
Setup Time 1 Person, Under 10 Minutes
Usage Restrictions Not recommended for cranes, forklifts, or steel track vehicles
Storage Options Optional Lockable Ramp Hangers
