Product Description
Heavy Duty Ramps Modular Step Deck Trailer Ramp System | Model 23-18-192-02-02M | 16' L x 18" W | Horsepower 23 HP | 23,500 lb. Weight Capacity | For Trailers, Loaders
DESCRIPTION

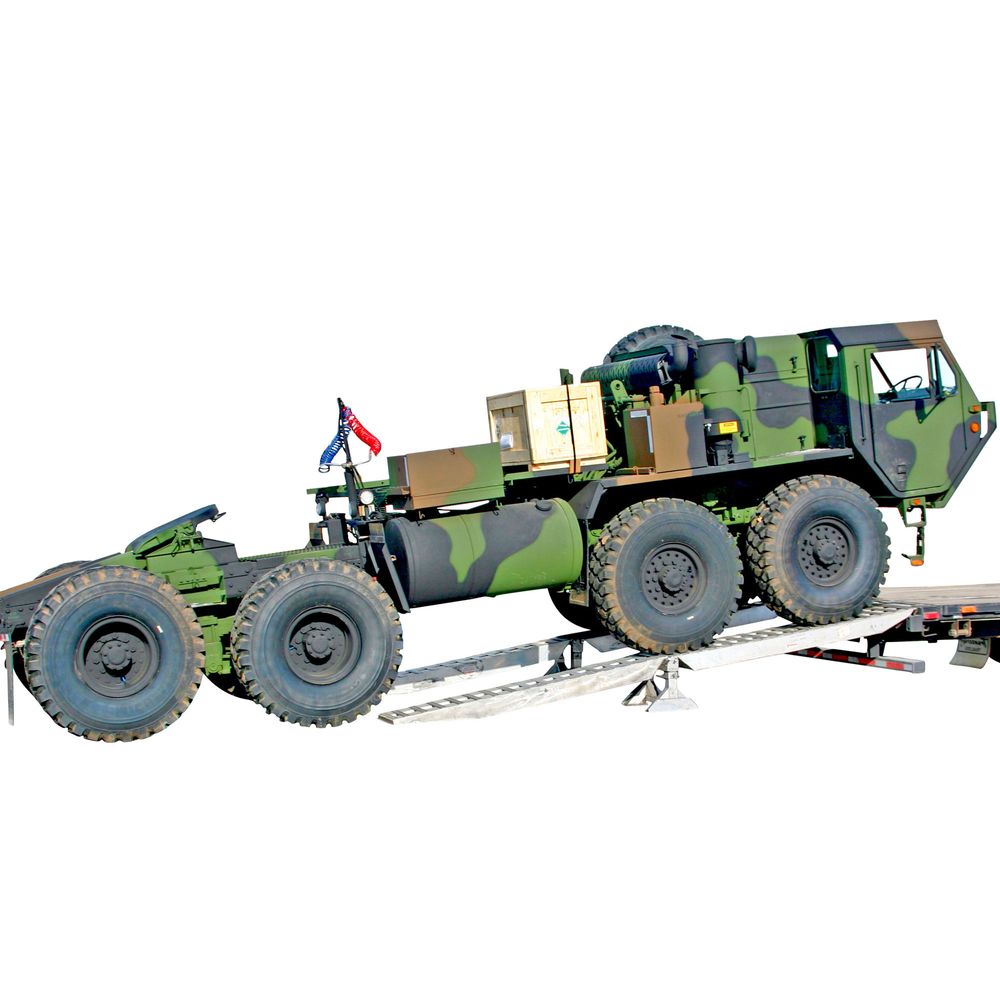

The Heavy Duty Ramps 16' L x 18" W Modular Step Deck Trailer Ramp System (Model 23-18-192-02-02M) is the ultimate solution for safely and efficiently loading tractors, skid steers, trucks, and heavy equipment onto step deck trailers or loading docks. Crafted in the USA from high-strength, lightweight aluminum, this ramp system offers professional-grade performance with a 23,500 lb. per axle weight capacity ideal for commercial haulers, contractors, and operators who demand safety, speed, and reliability.
Each side includes two 8-foot ramps and a reinforced ramp stand, allowing you to customize your setup for different load heights or trailer configurations. The system’s modular design lets you create a smooth, stable loading arch, minimizing risk of high-centering and protecting equipment with long wheelbases or low clearance.
Built for simplicity and strength, every section weighs just 74 lbs., so a single operator can position and assemble the entire system without heavy lifting equipment. When paired with skid seat brackets and lockable storage hangers (sold separately), this setup transforms your trailer into a fully integrated, professional loading platform.
Whether you’re transporting construction machinery, agricultural tractors, or industrial vehicles, the Heavy Duty Ramps Modular Step Deck System delivers dependable performance you can trust day after day, load after load.
Key Features
- Massive 23,500 lb. per axle capacity Built to handle large tractors, loaders, and heavy construction equipment.
- Precision-engineered aluminum construction Combines lightweight handling with industrial-grade strength.
- Modular 16-foot system Each side includes two 8' x 18" ramps plus an adjustable center support stand.
- One-person setup Individual ramp sections weigh just 74 lbs., making transport and assembly quick and easy.

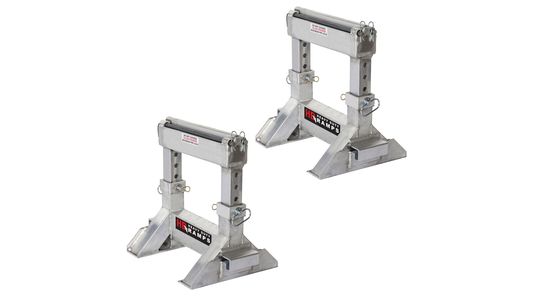

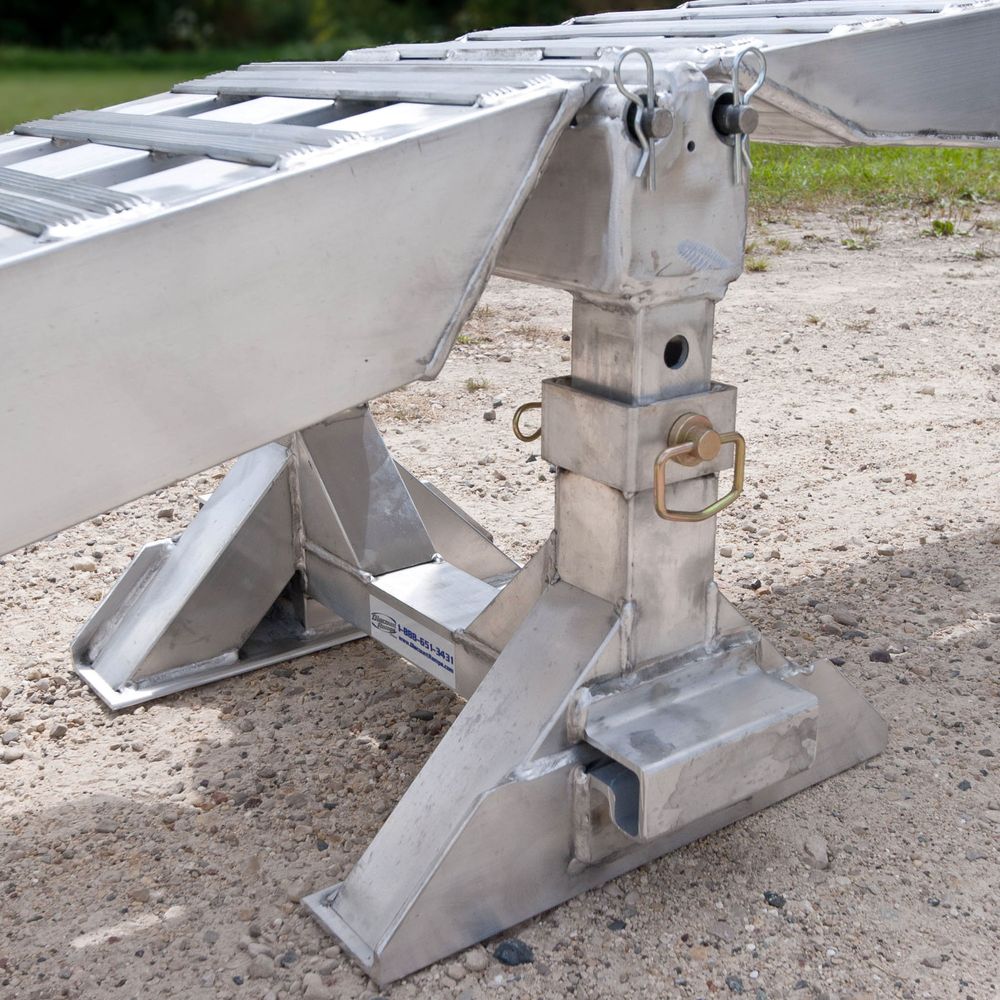

- Adjustable ramp stands Fine-tune your loading angle for smooth, safe transfers to various trailer or dock heights.

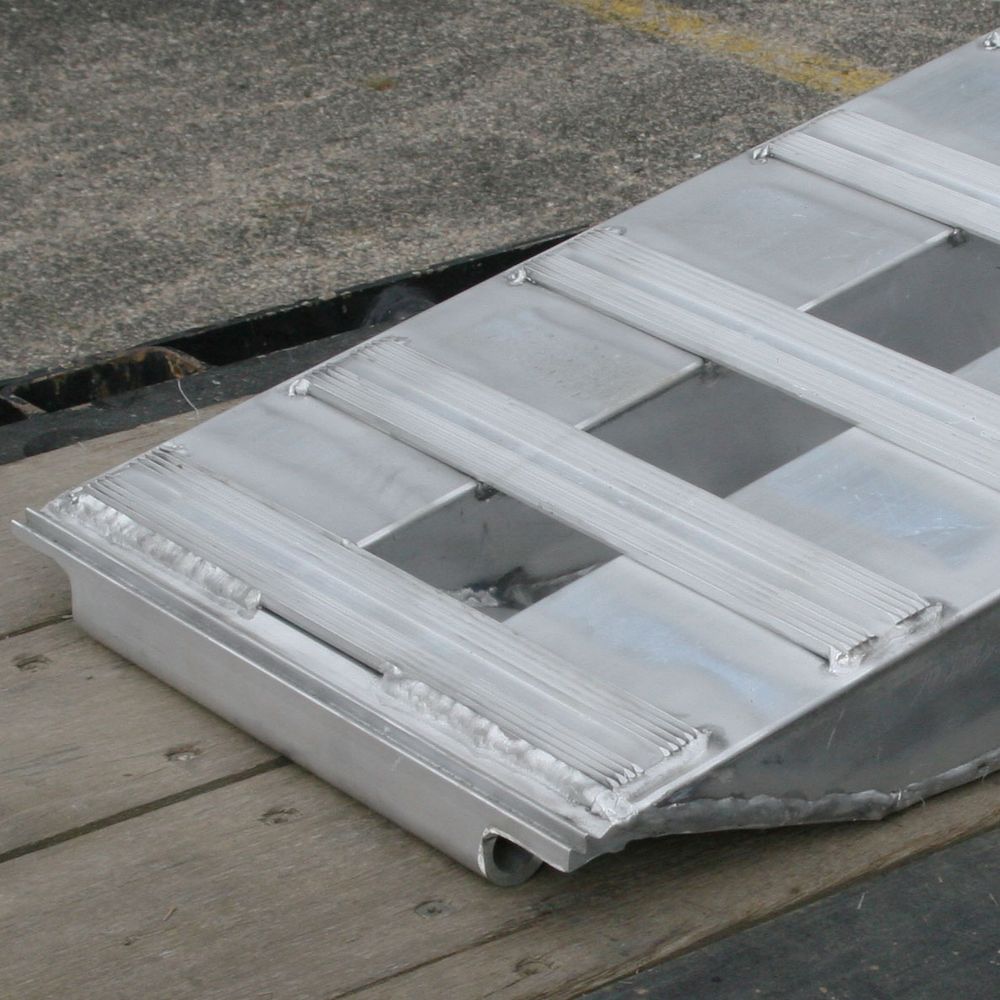

- Stub-foot reinforced toe Prevents bending and improves load distribution across ramp ends.
- Pin-on end connection Ensures secure attachment to skid seat brackets (sold separately) for maximum safety.

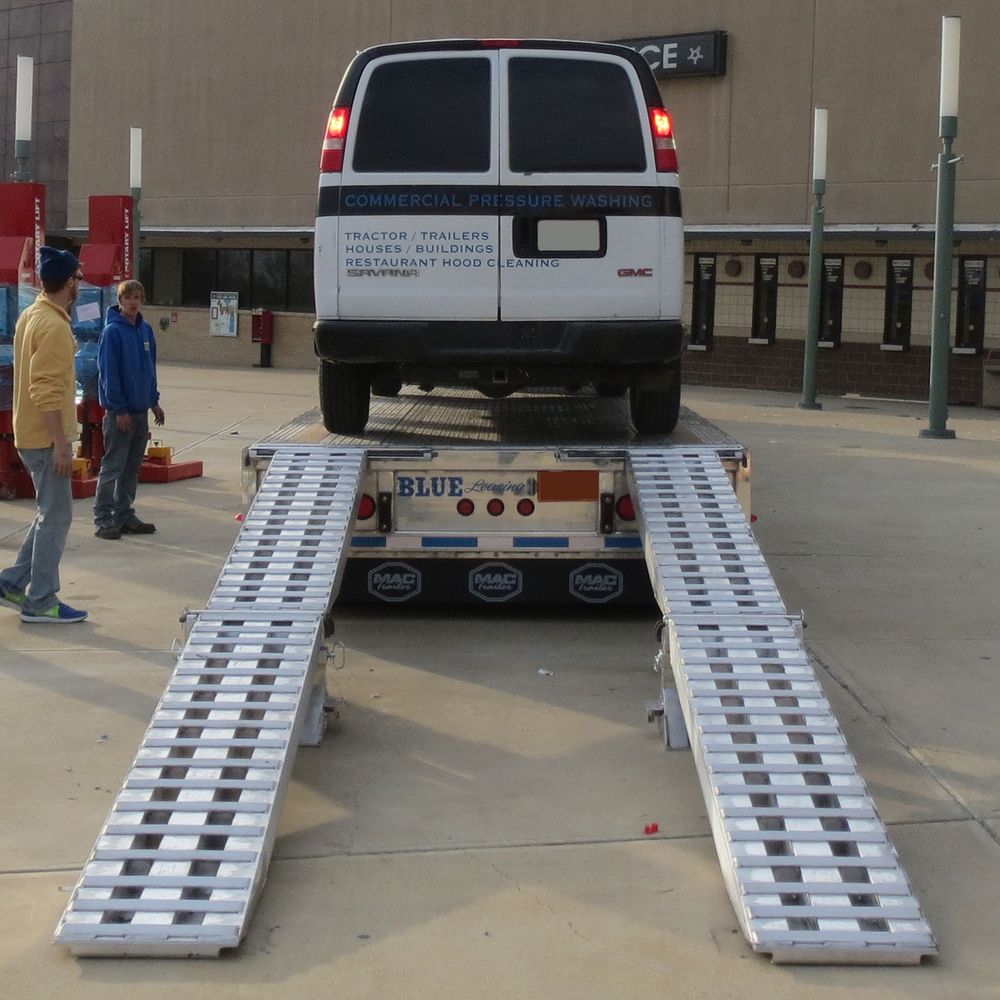

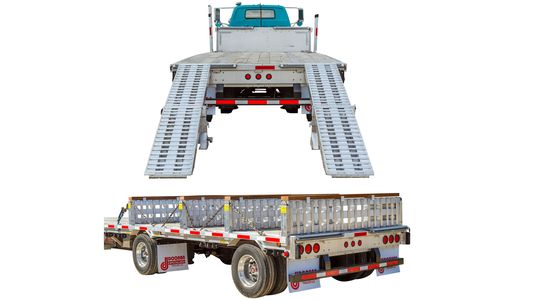

- Versatile compatibility Designed for trailers, step decks, and flatbeds; fits most standard loading configurations.
- Improved traction surface Engineered to reduce slippage even in wet or muddy loading conditions.
- Ideal for 23 HP hydraulic power systems Perfect balance between strength and hydraulic efficiency.
- Ergonomic handling design Rounded grip points and smooth edges reduce strain during setup.
- Anti-corrosion finish Durable aluminum resists rust and weathering for long-term outdoor use.
- Made in the USA Built under strict quality standards and patented design (#8347439, #7930788).
- Expandable system Combine multiple ramp sets for wider or longer configurations.
- Easy storage integration Compatible with optional ramp and stand hangers for under-trailer storage.
Detailed Specifications
| Specification | Detail |
|---|---|
| Brand | Heavy Duty Ramps |
| Model | 23-18-192-02-02M |
| Product Type | Modular Step Deck Trailer Ramp System |
| Material | High-strength aluminum |
| Ramp Length | 16 ft. total (two 8-ft. sections per side) |
| Ramp Width | 18 in. |
| Ramp Height | 5 in. |
| Total Weight (System) | 452 lbs. |
| Section Weight | 74 lbs. each |
| Load Capacity | 23,500 lbs. per axle |
| Required Hydraulic Power | 23 HP |
| Compatibility | Step Deck Trailers, Flatbed Trailers, Loading Docks |
| Connection Type | Double pin-on end, stub-foot toe |
| Adjustable Stands | Yes, height-adjustable for custom loading angles |
| Made In | USA |
| Patents | #8347439, #7930788 |
| Recommended Use | Loading tractors, skid steers, trucks, and heavy machinery |
