Product Description
Heavy Duty Ramps | Modular Yard Ramp System | Model 15-84-360-06-MYR | Width 84" Inches | Adjustable Height 15" To 60" | Horsepower 23 HP | For Trucks, Trailers & Loading Docks
DESCRIPTION
Boost your facility’s efficiency and loading versatility with the Heavy Duty Ramps 84" Aluminum Portable Modular Yard Ramp System a USA-made, professional-grade solution built for operations that demand strength, safety, and portability.
Engineered from high-tensile aluminum and designed for quick setup by just two people, this 30-foot modular yard ramp transforms any ground-level area into a fully functional loading dock in under 15 minutes no tools required. Its innovative EZ Traction™ punch plate surface ensures exceptional grip in rain, snow, or mud, keeping operators and equipment secure during heavy loading cycles.

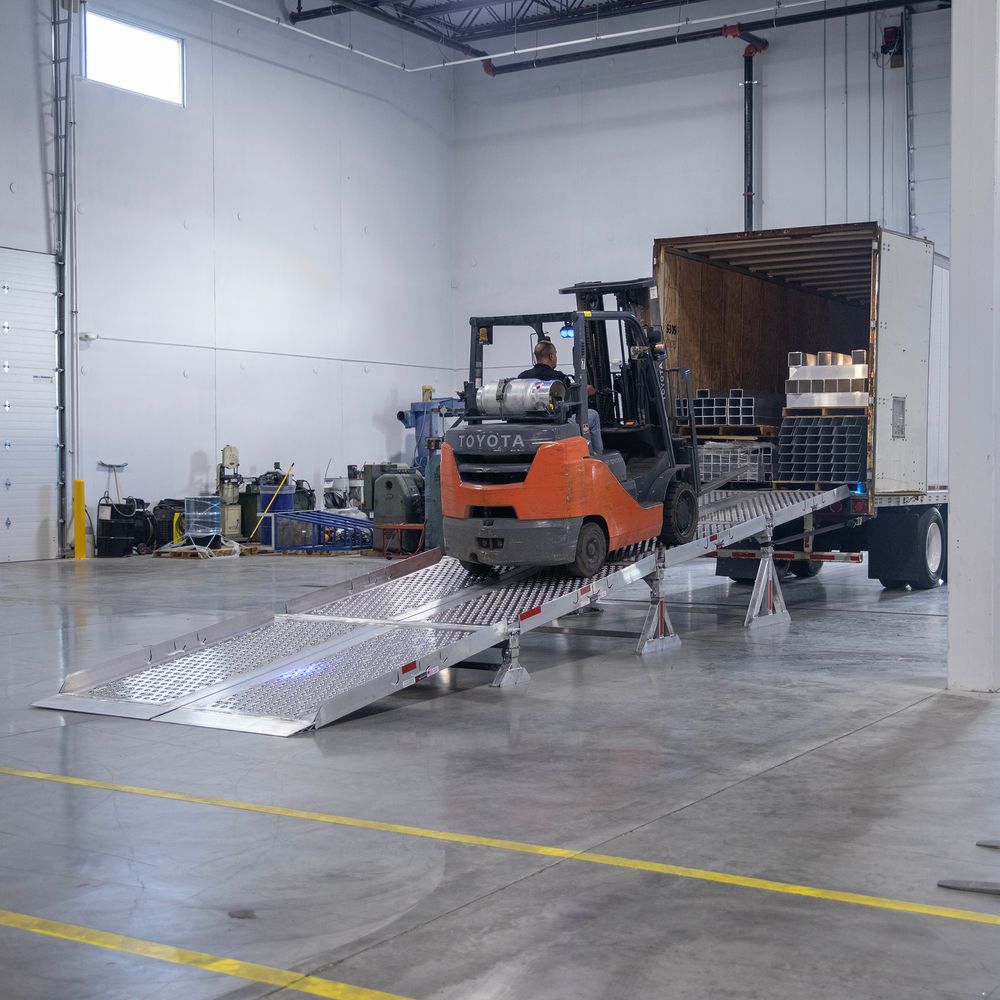

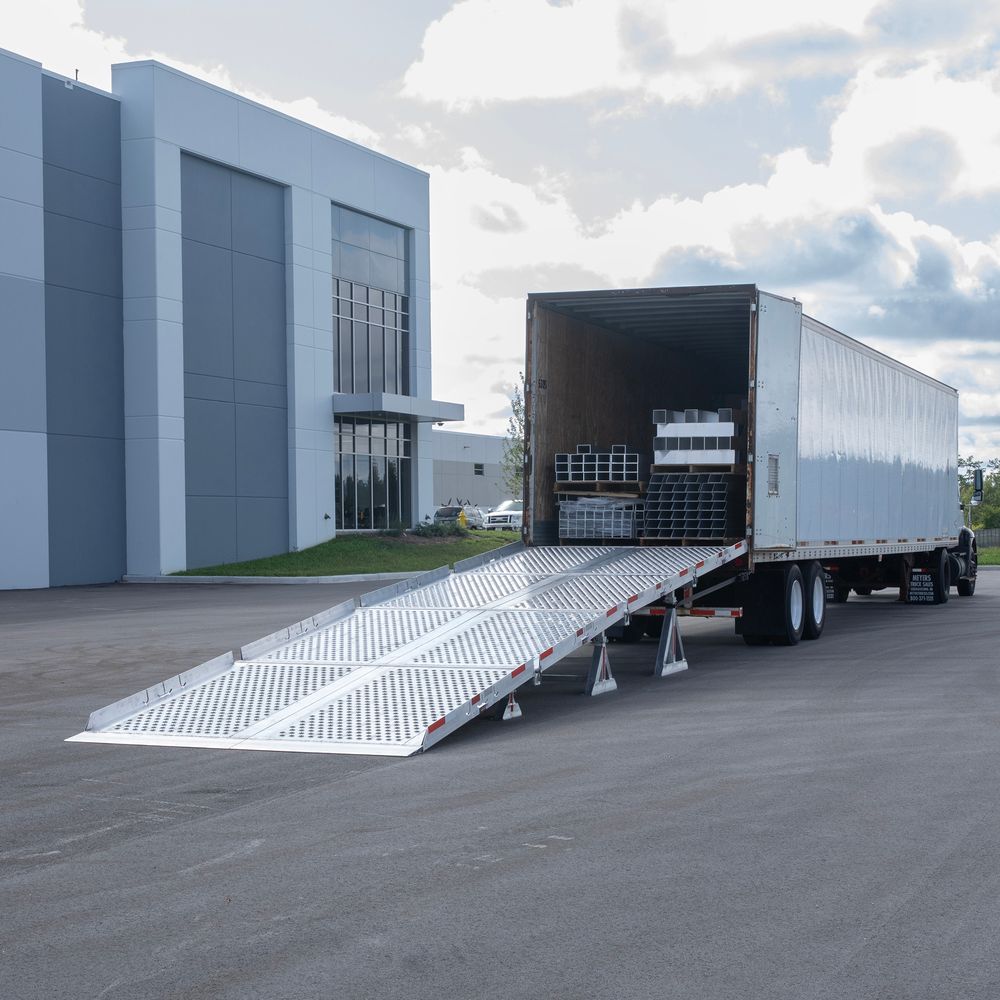

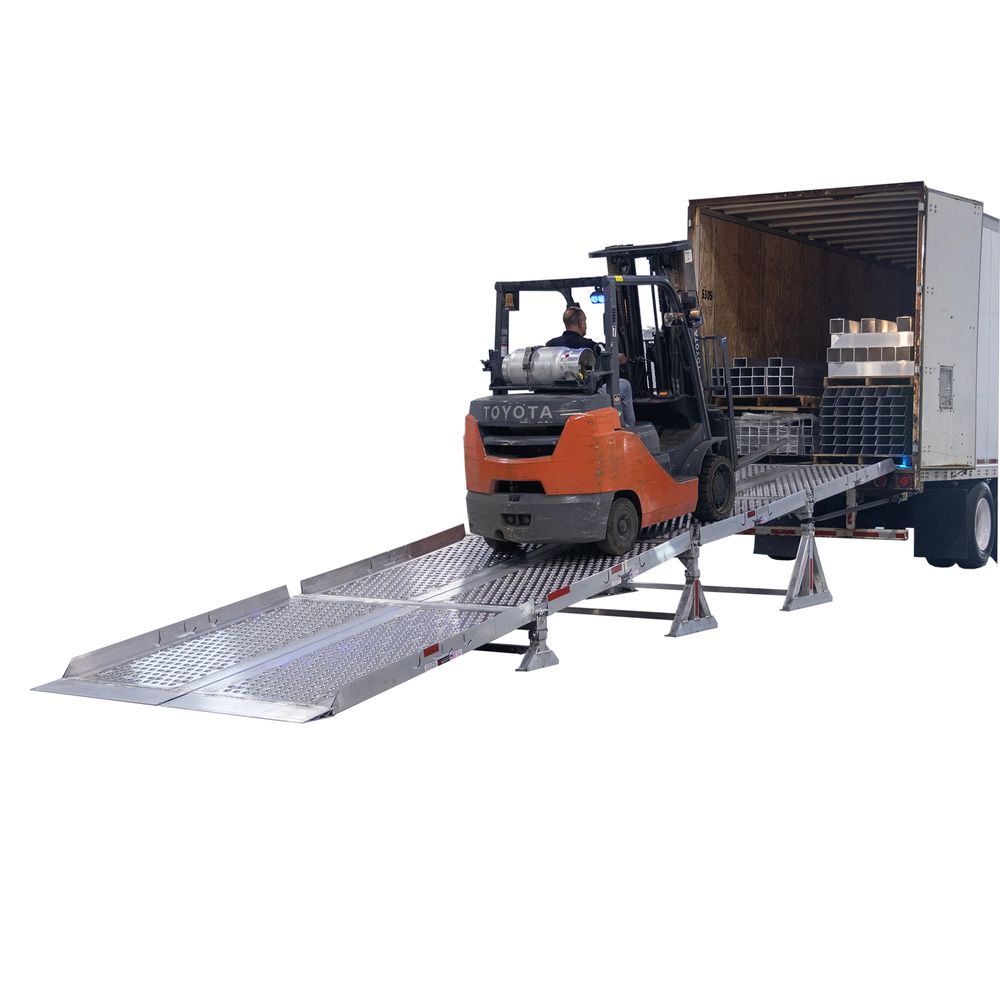

Perfect for warehouses, logistics hubs, farms, and fleet operations, this ramp system supports up to 25,000 lbs and is compatible with standard 23+ HP tractors, forklifts, skid steers, or utility vehicles. Whether you're bridging to semi-trailers, flatbeds, or fixed docks, the adjustable height range from 15" to 60" provides unmatched adaptability.
When the job’s done, the entire system disassembles into lightweight components that fit neatly onto a single pallet or in a pickup truck bed ready to move to the next site.
Key Features
- Modular Portable Design: Breaks down into sections for single-pallet transport ideal for multi-site operations.
- Quick Setup: Two-person assembly in under 15 minutes; no tools needed.
- Heavy-Duty Load Capacity: Handles up to 25,000 lbs for safe equipment and vehicle loading.

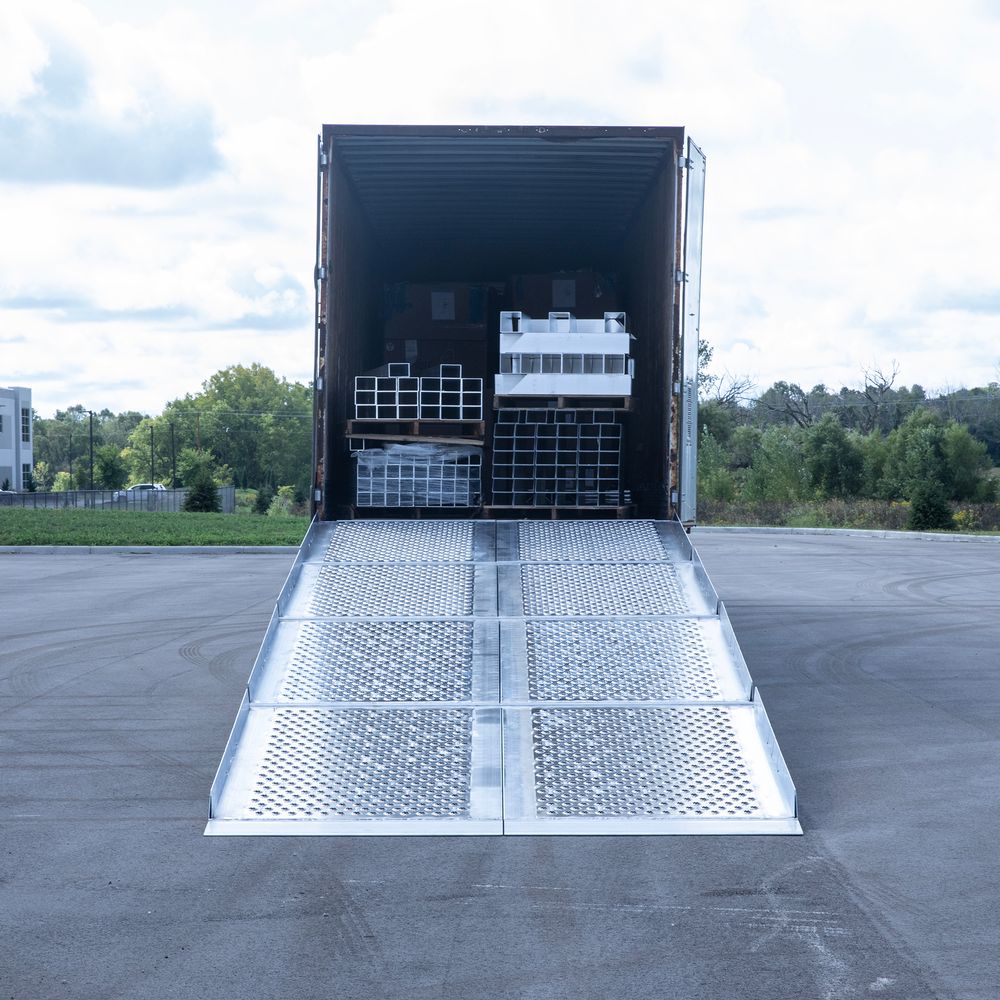

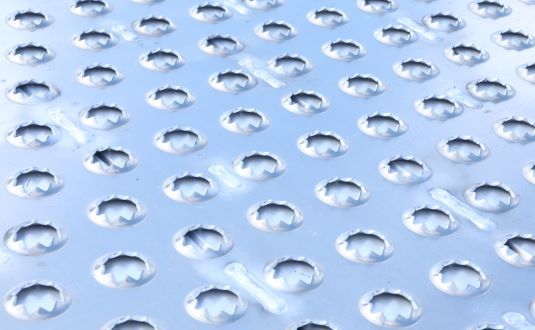

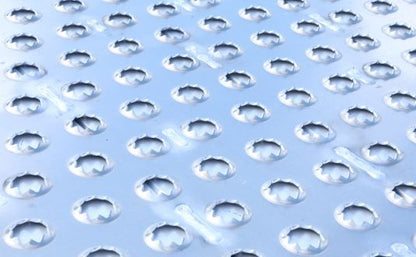

- EZ Traction™ Surface: Punch plate aluminum decking ensures superior grip in any weather.
- Adjustable Height: Ranges from 15" to 60" to accommodate varied dock and trailer levels.
- Extra-Wide 84” Platform: Offers stable loading for forklifts, pallet jacks, and compact tractors.
- High-Strength Aluminum Construction: Corrosion-resistant and lightweight for long-lasting durability.
- Integrated 6” Guard Rails: Added safety and load containment during ascent and descent.

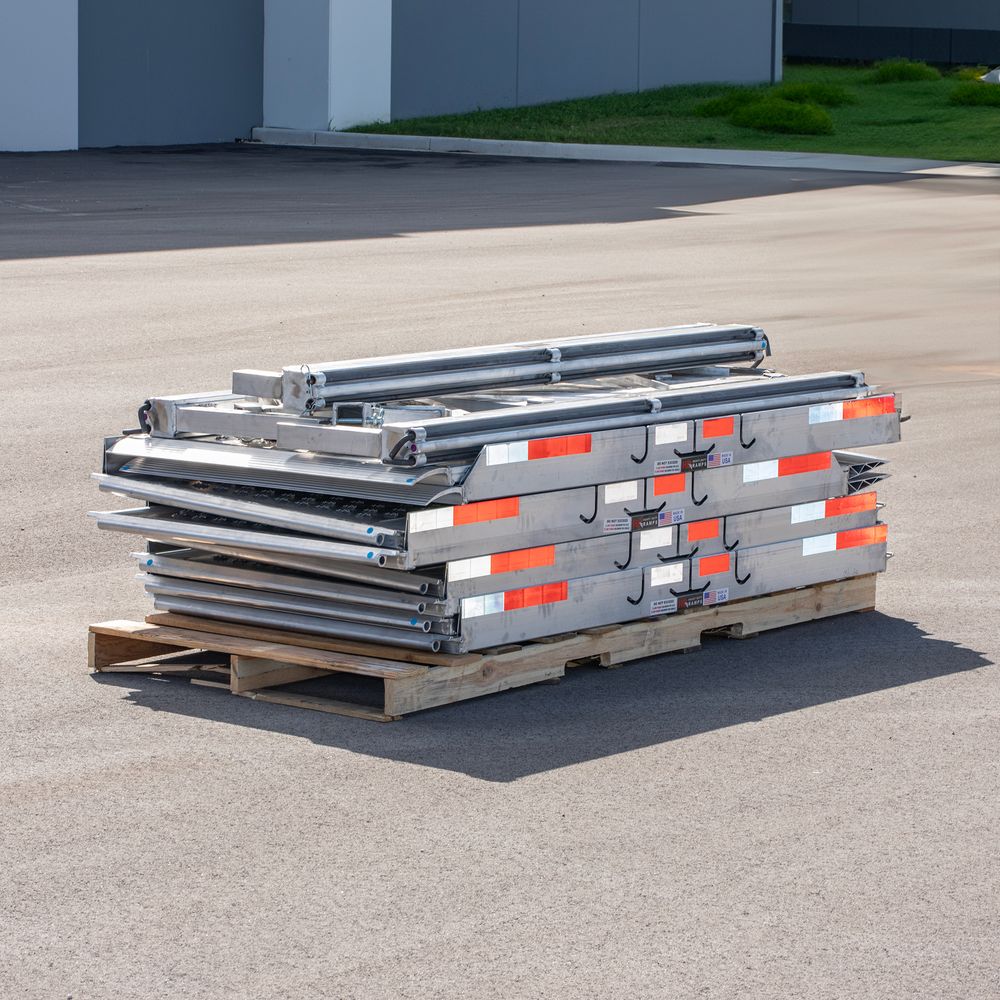

- Compact Transportability: Fits in a pickup truck bed or 4x8 trailer; ships on one pallet.

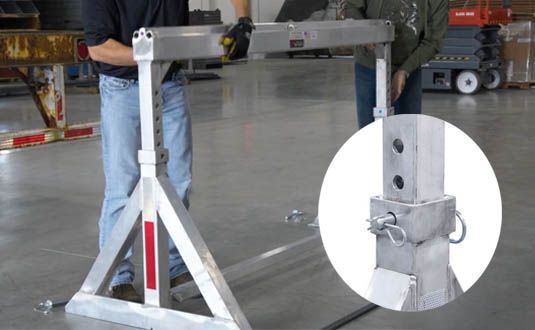

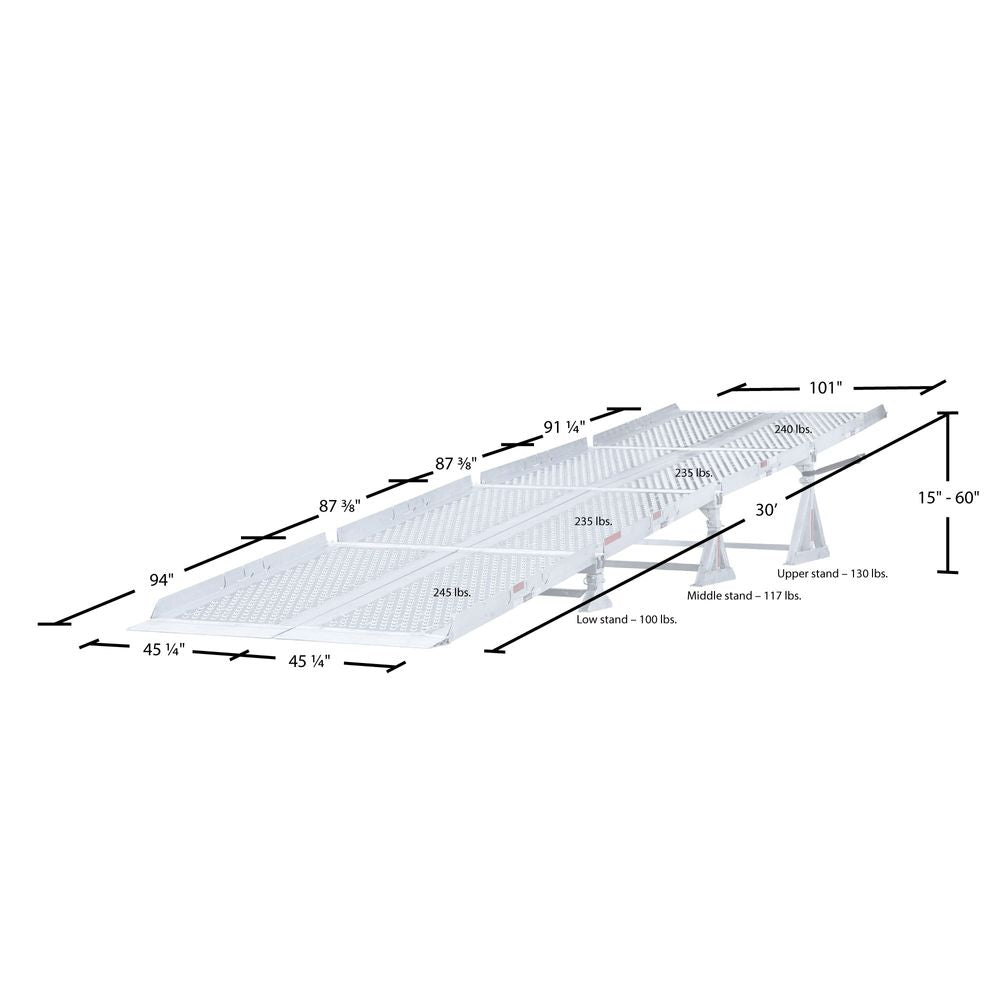

- Multi-Configuration System: Eight modular ramps and three adjustable stands for flexible setup lengths (8’–30’).

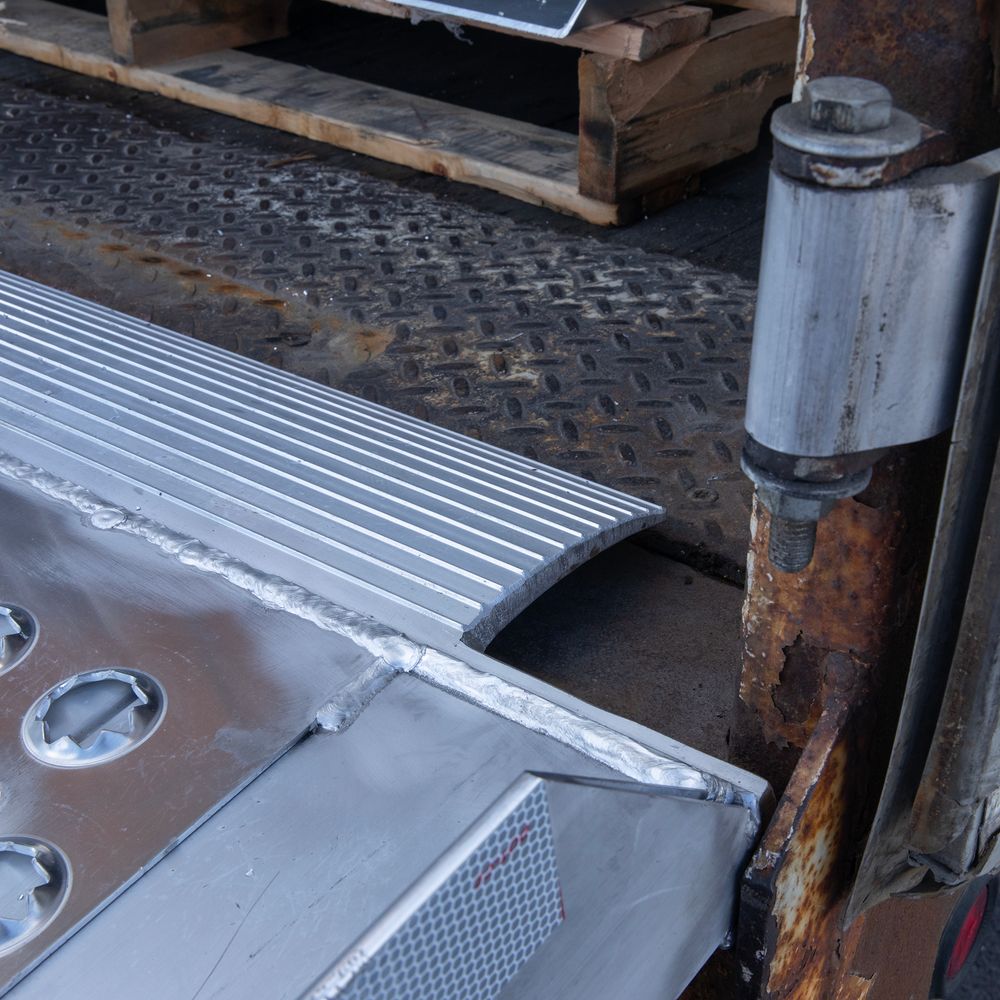

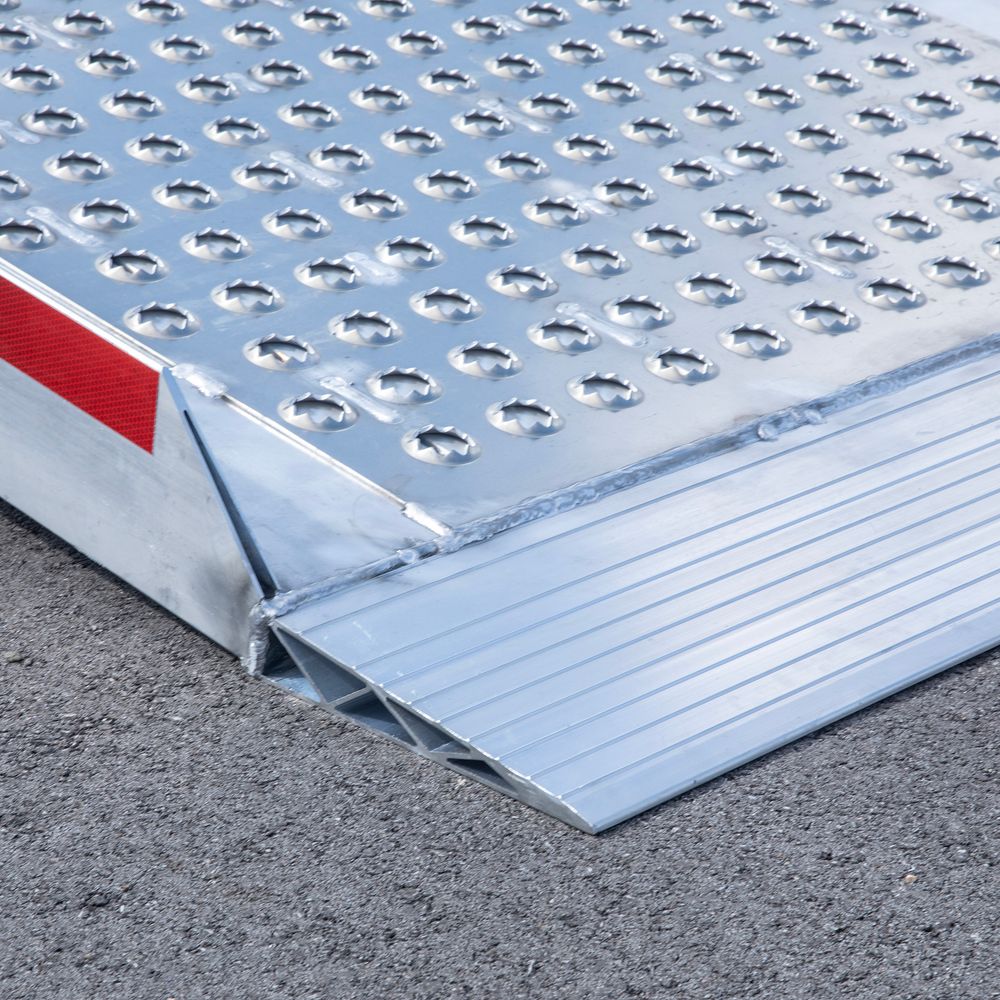

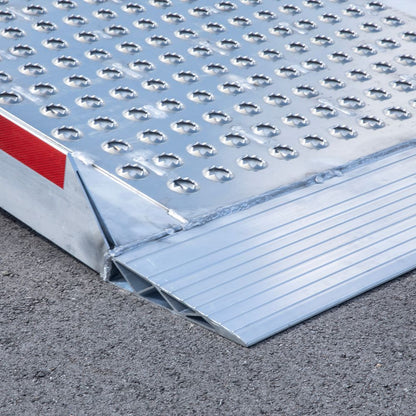

- Smooth Transitions: Knife foot and plate-end connectors eliminate bumps from ground to deck.
- USA-Made Craftsmanship: Precision-engineered in the United States for reliability and performance.
- Operator-Friendly Design: Engineered for 23+ HP tractors, forklifts, and yard equipment.
- Safety Straps Included: Comes with two 18’ tie-down straps for secure setup.
- Patent Pending Innovation: Exclusive Heavy Duty Ramps modular technology.
Detailed Specifications
| Specification | Detail |
|---|---|
| Brand | Heavy Duty Ramps |
| Model | 15-84-360-06-MYR |
| Product Type | Modular Aluminum Yard Ramp System |
| Material | High-Strength Aluminum |
| Length | 30 ft |
| Width | 84 in (Usable Width: 82 in) |
| Adjustable Height Range | 15 in – 60 in |
| Weight | 1,942 lbs |
| Load Capacity | 25,000 lbs |
| Guard Rail Height | 6 in |
| Surface Type | EZ Traction™ Punch Plate |
| Setup Time | Under 15 minutes (2-person) |
| Components | 8 modular ramp sections + 3 adjustable support stands |
| Compatibility | Trucks, trailers, forklifts, 23+ HP tractors, UTVs |
| Portability | Breaks down to fit in pickup bed or 4x8 trailer |
| Made In | USA |
