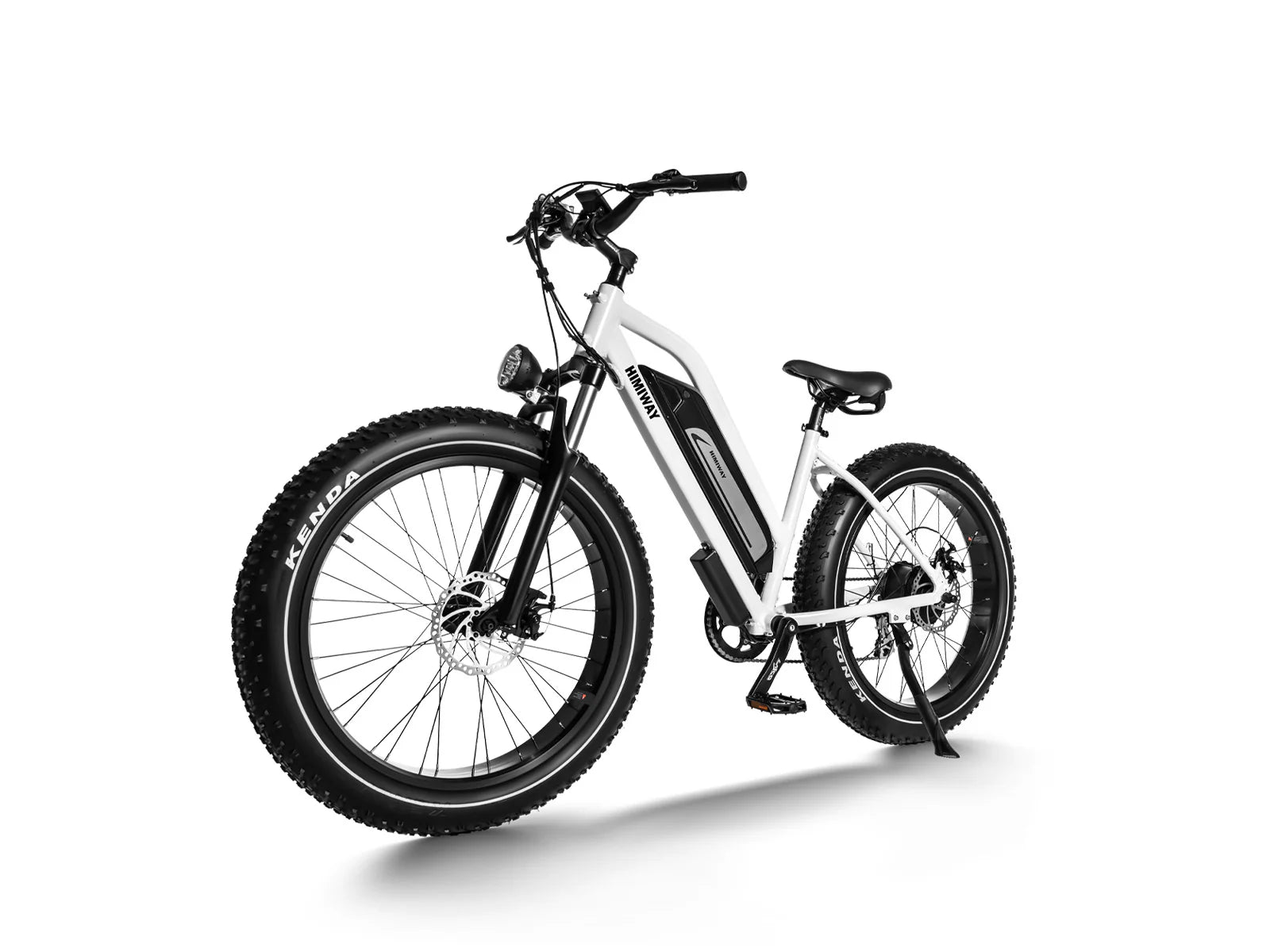

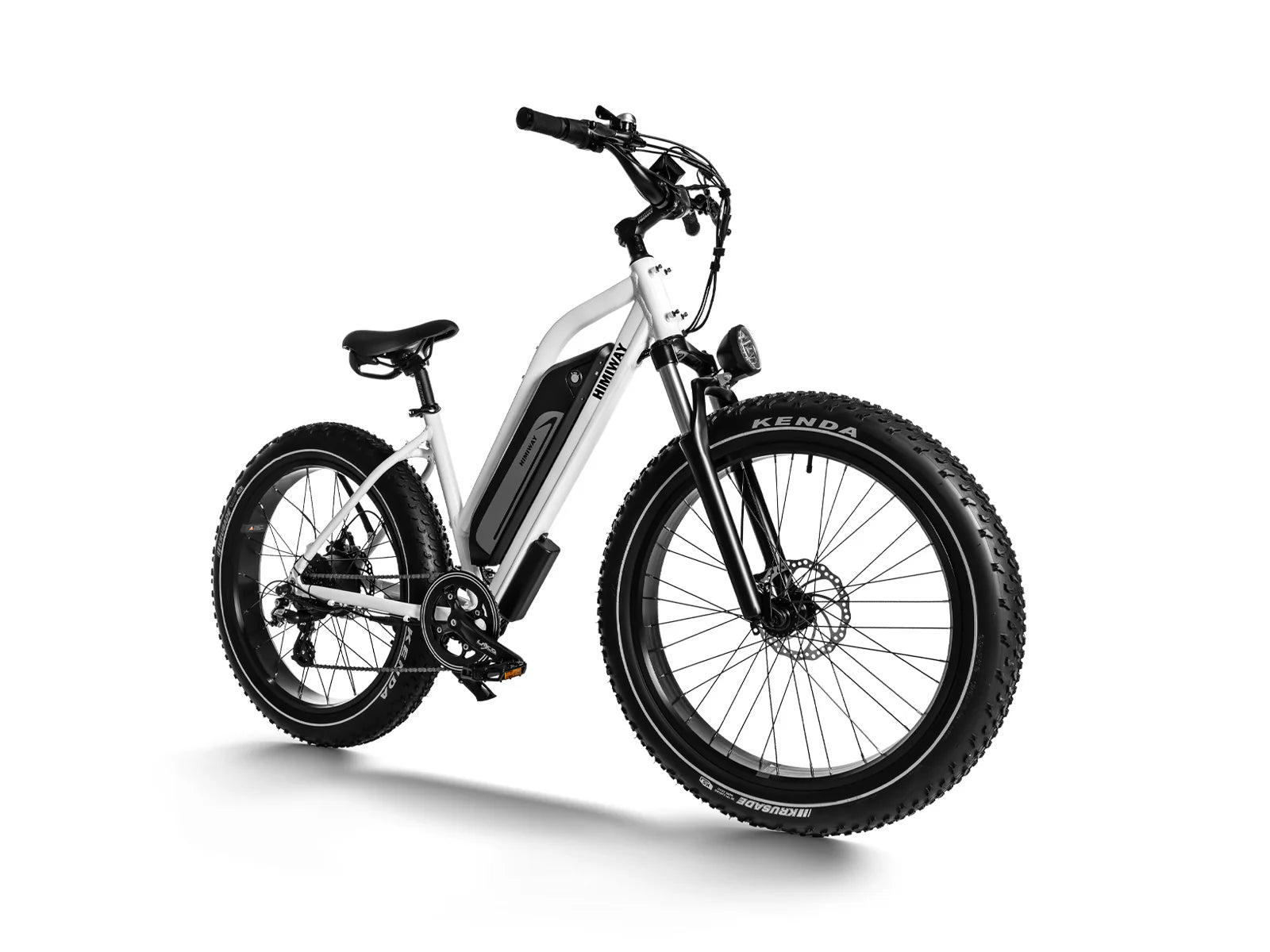

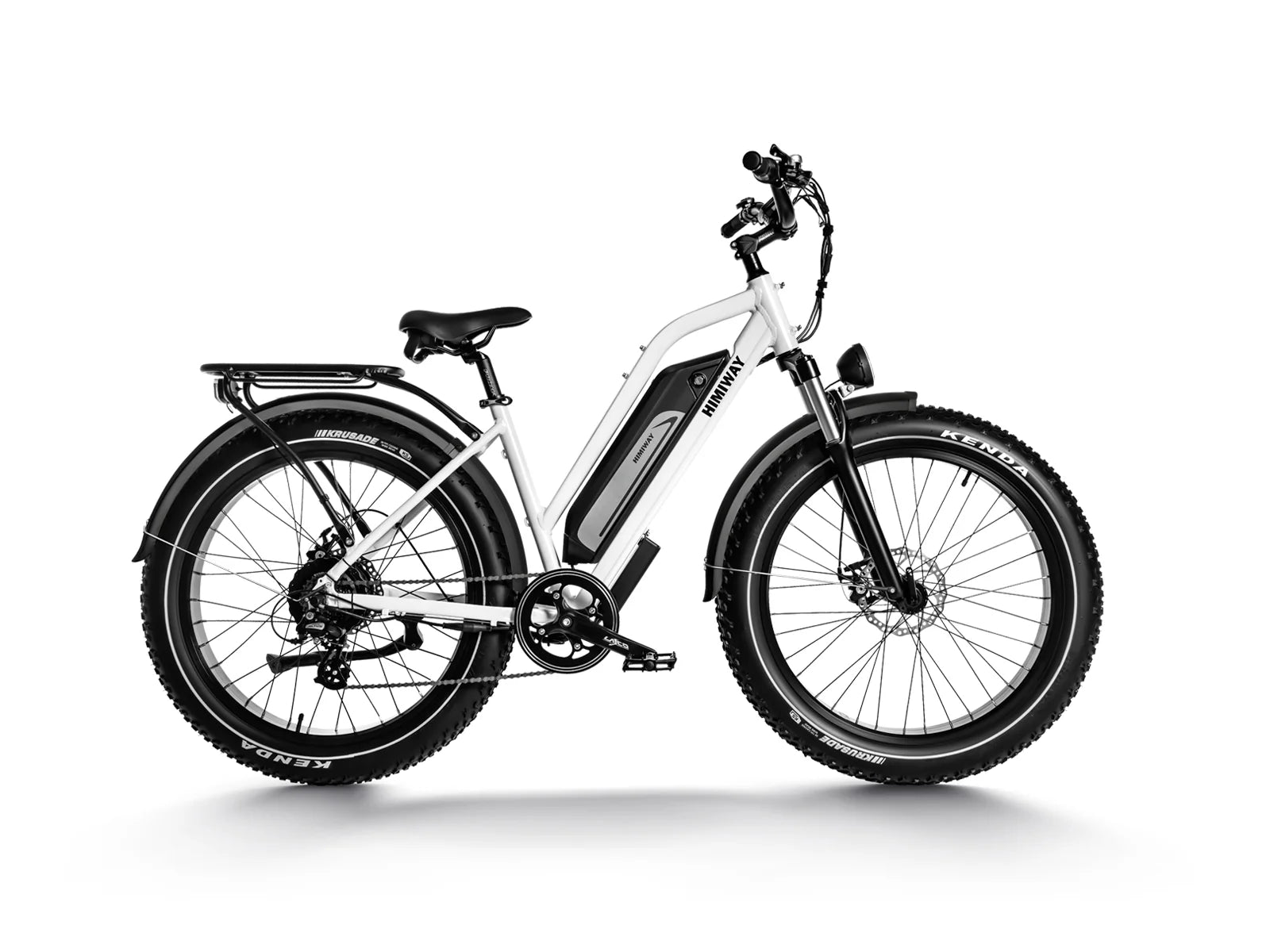

The Himiway D3 Cruiser is a versatile long-range electric bike designed to offer a smooth and comfortable ride across various terrains. Built with a 6061 aluminum frame, this bike is both sturdy and lightweight. It boasts a powerful 750W brushless gear motor and a Samsung/LG 48V 15Ah battery, delivering an impressive range of 35 to 60 miles per charge. The 26x4.0" fat tires provide excellent traction and stability, while the alloy front suspension fork with lockout and adjustment ensures a cushioned ride. With a Shimano Altus 7-speed groupset and Tektro ARIES MD-M300 mechanical disc brakes, this bike offers both reliable performance and safety. The Himiway D3 Cruiser is equipped with an LCD display with USB charging, heavy-duty aluminum kickstand, and 48V LED lights, making it a perfect choice for city roads, trails, or beach rides.
Product Description

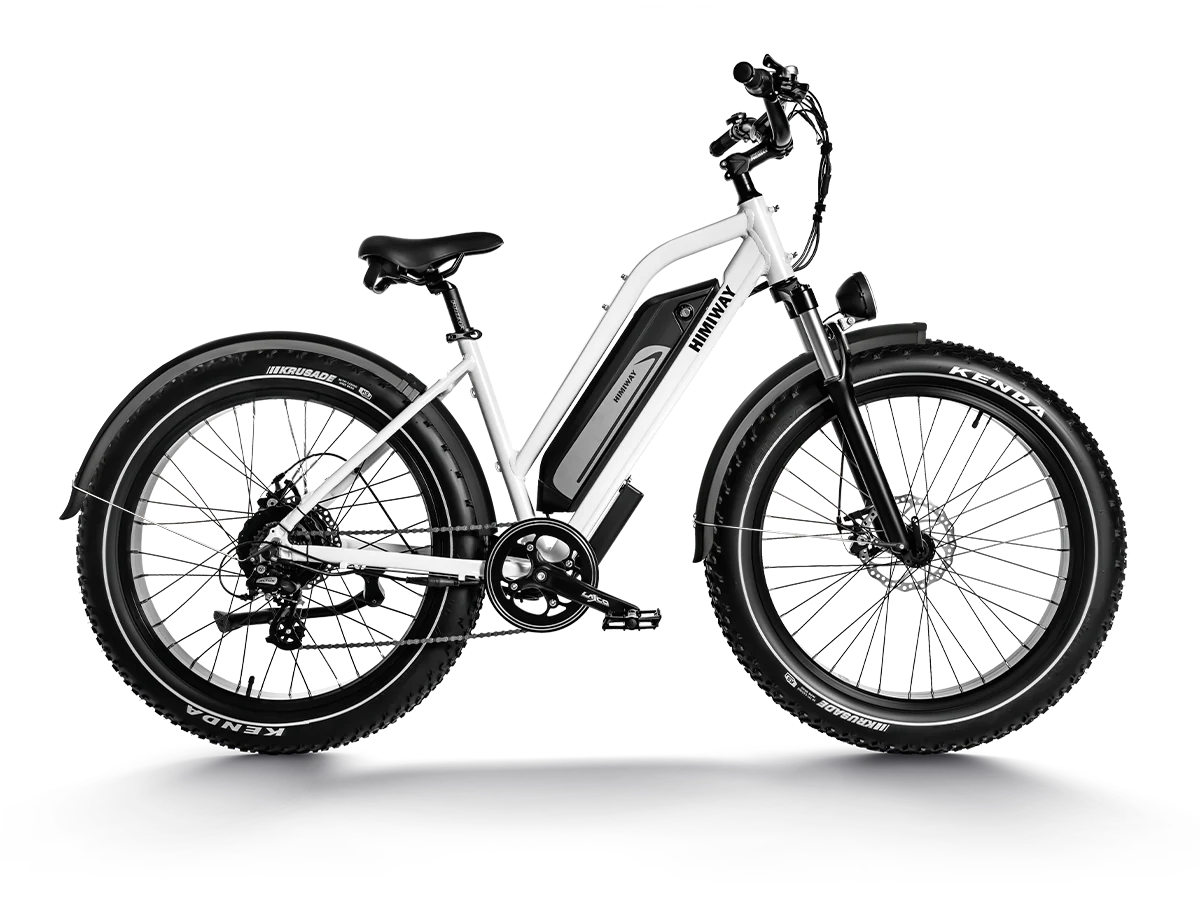

Himiway D3 ST (Cruiser ST) | All Terrain Step Thru Electric Bike | 750W Brushless Gear Motor | LCD Display With USB Charging
DESCIPTION
Key Features
- Motor: 750W brushless gear motor
- Battery: Samsung/LG 48V 15Ah
- Range: 35~60 miles
- Tires: 26x4.0" fat tires
- Brakes: Tektro ARIES MD-M300 mechanical disc brakes (180mm rotors)

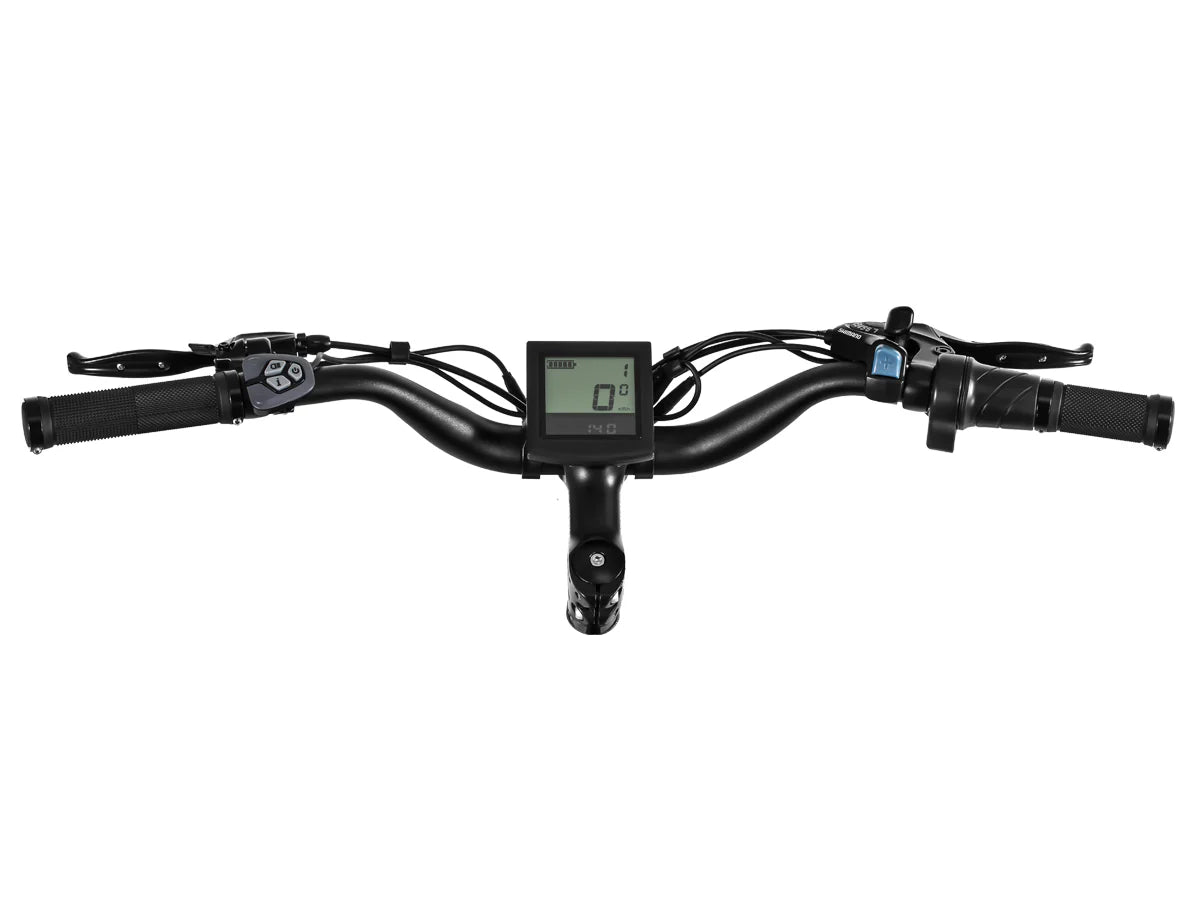

- Display: LCD with USB charging
- Frame: 6061 Aluminum
- Suspension: Alloy front suspension fork with lockout and adjustment
- Throttle: Half twist throttle
- Max Payload Capacity: 350 lbs
-
Weight: 72 lbs (with battery)
Detailed Specifications
Specification | Details |
---|---|
Recommended Height | 5'3" ~ 6'4" |
Total Length | 75" |
Handlebar Height | 46.5" |
Handlebar Length | 28" |
Wheelbase | 45" |
Wheel Diameter | 28.7" |
Minimum Seat Height | 22" |
Maximum Seat Height | 29" |
Chain Stay Length | 18.7" |
Effective Top Tube Length | 23" |
Head Tube Length | 6.1" |
Standover Height | ST 27.9" / SO 30.3" |
Headset | Neco H148 28.6×44*44×30mm |
Fork | Guide-26”-TNL-95 95mm travel |
Front Wheel | MB015-92 13G1359mm MD242 2687mm 12G36 |
Rear Wheel | Rim: 3G1359mm MD242 26*87mm Hub: 48v 750w |
Crankset | Crank arm: 4IXF-212FA 170mm Chain ring: 46T |
Freewheel | Shimano MF-TZ500-7 14-28T |
Chain | KMC Z8.3 EPT 120L |
Groupset | Shimano Altus M310 7 speed |
Stem | YC-C410 28.68031.8mm |
Handlebar | YC-B087 22.231.8700mm |
Seatpost | H202211DJ ISO-M 30.4*350mm |
Saddle | TTZ032X |
Pedal | Aluminum pedal |
Lights | 48V LED light |
Kickstand | Heavy-duty aluminum kickstand |
Controller | 48V/22A |
Charger | US standard 2.0 A smart charger |
Rider Height | 5'1" ~ 6'5" |
Weight | 72 lbs (with battery) |
Max. Payload Capacity | 350 lbs |
