The Himiway Electric Bike is designed to offer maximum performance and comfort, making it an ideal choice for both everyday commuting and adventurous rides. Built with a 6061 aluminum frame, this bike ensures durability and lightweight performance. Its 500W mid-drive motor combined with a Samsung/LG 48V 20Ah battery provides a range of 60-80 miles per charge, ensuring you can ride longer without worrying about recharging. The bike is equipped with Kenda 264.0" tires* and a TRAMA FAT34-PLS-26" fork with 100mm travel, offering excellent traction and a smooth ride on various terrains. Additionally, the Tektro HD-E350 hydraulic brakes ensure reliable stopping power, enhancing your safety on the road.

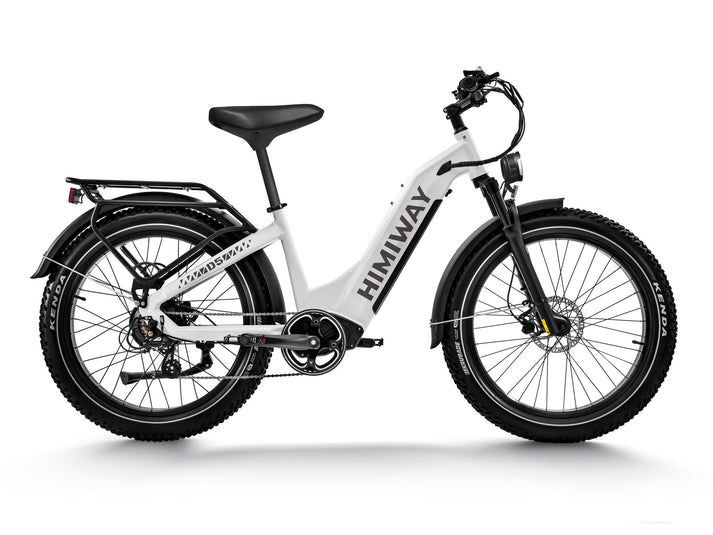

Himiway D5 ST (Zebra ST) | Premium All-terrain Electric Fat Bike | 500W Mid-Drive Motor | 60-80 Miles Per Charge
Himiway D5 ST (Zebra ST) | Premium All-terrain Electric Fat Bike | 500W Mid-Drive Motor | 60-80 Miles Per Charge
Regular price
$1,799.00
Regular price
Sale price
$1,799.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Himiway D5 ST (Zebra ST) | Premium All-terrain Electric Fat Bike | 500W Mid-Drive Motor | 60-80 Miles Per Charge
DESCIPTION
Key Features
- Motor: 500W mid-drive motor for powerful performance.
- Battery: Samsung/LG 48V 20Ah for long-range rides.
- Range: 60-80 miles on a single charge.
- Tires: Kenda 26*4.0" for excellent traction and stability.
- Brakes: Tektro HD-E350 hydraulic brakes for reliable stopping power.
- Display: KD718-P LCD display with Type-c charger for easy monitoring.
- Frame: 6061 Aluminum for durability and lightweight.
- Suspension: TRAMA FAT34-PLS-26" fork with 100mm travel for a smooth ride.
- Throttle: Thumb throttle and Zebra half twist throttle for easy acceleration.
- Max Payload Capacity: 400 lbs.
- Weight: 79 lbs (with battery).
Detailed Specifications
| Specification | Details |
|---|---|
| Recommended Height | 5'1" ~ 6'5" |
| Total Length | 78.7" |
| Handlebar Height | 47" |
| Handlebar Length | 28" |
| Wheelbase | 49.2" |
| Wheel Diameter | 28.7" |
| Minimum Seat Height | 20.9" |
| Maximum Seat Height | 31.4" |
| Chain Stay Length | 19" |
| Frame Stack | 24.6" |
| Frame Reach | 17.8" |
| Effective Top Tube Length | 24.4" |
| Head Tube Length | 5.5" |
| Head Angle | 65° |
| Standover Height | ST 22.4" / SO 31.1" |
| Headset | Neco H156EM 28.644-5630 |
| Fork | TRAMA FAT34-PLS-26" 100mm travel 15*135mm thru axle |
| Front Wheel | Rim: MD-147 264.0"36H12G A/V Spoke: 12G 255/256L stainless (304M) Hub: MB015-92 M912G135145W |
| Rear Wheel | Rim: MD-147 264.0"36H*12G A/V Spoke: 12G 256/257L stainless (304M) Hub: GSMB019R-190F-GM14 |
| Tires | Kenda 26*4.0 |
| Battery | Samsung/LG 48V 20Ah |
| Motor | 500W mid-drive motor |
| Display | KD718-P LCD display with Type-c charger |
| Throttle | Thumb throttle and Zebra half twist throttle |
| Sensors | Torque sensor, shifting sensor, speed sensor, brake sensor |
| Crankset | Crankarm: Prowheel 170mm / Chain ring: 44T BCD104 |
| Freewheel | Shimano CS-HG201-9 11-36T |
| Chain | KMC E9 EPT 124L |
| Groupset | Shimano Altus M2000 9 speed |
| Front Brake | Tektro HD-E350 hydraulic brake |
| Rear Brake | Tektro HD-E350 hydraulic brake |
| Rotors | Tektro TR180-52 F:180mm R:180mm |
| Stem | Zoom TDS-C269-8FOV 31.8*90mm |
| Handlebar | Promax HB-3188 22.231.8700mm |
| Seatpost | Himiway Seatpost |
| Saddle | Himiway Saddle |
| Pedal | Aluminum pedal |
| Lights | 48V LED light |
| Kickstand | Heavy-duty aluminum kickstand |
| Controller | 48V/22A |
| Charger | US standard 3.0 A smart charger |
| Rider Height | 5'1" ~ 6'5" |
| Weight | 79 lbs (with battery) |
| Max. Payload Capacity | 400 lbs |
