Product Description

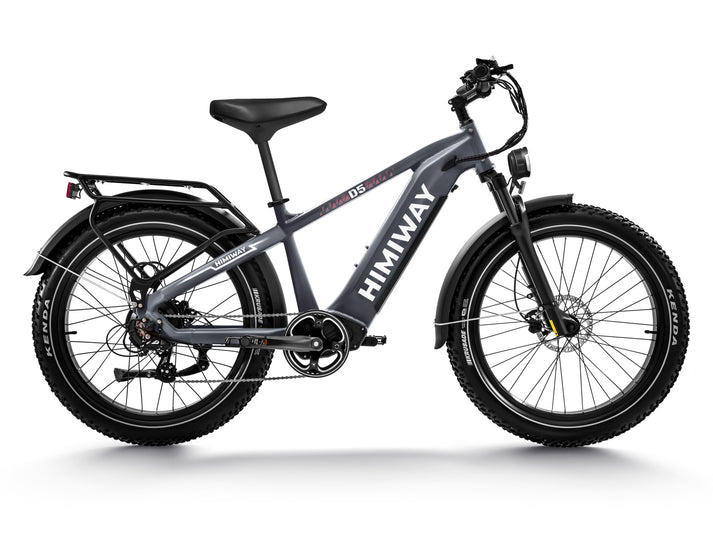

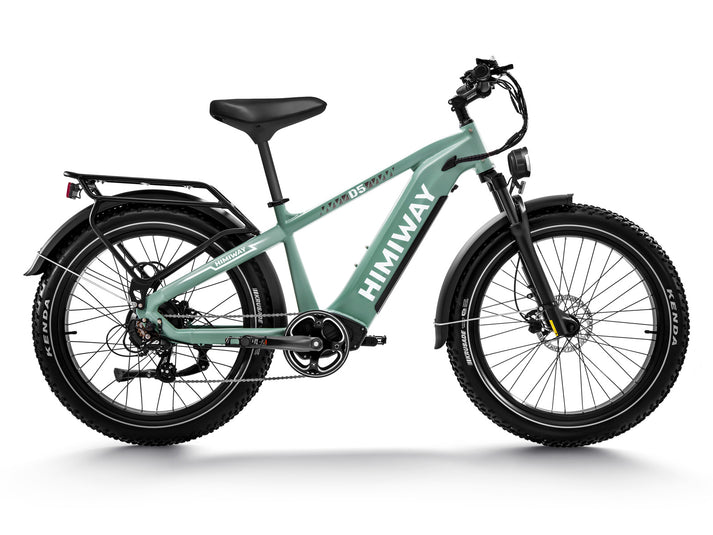

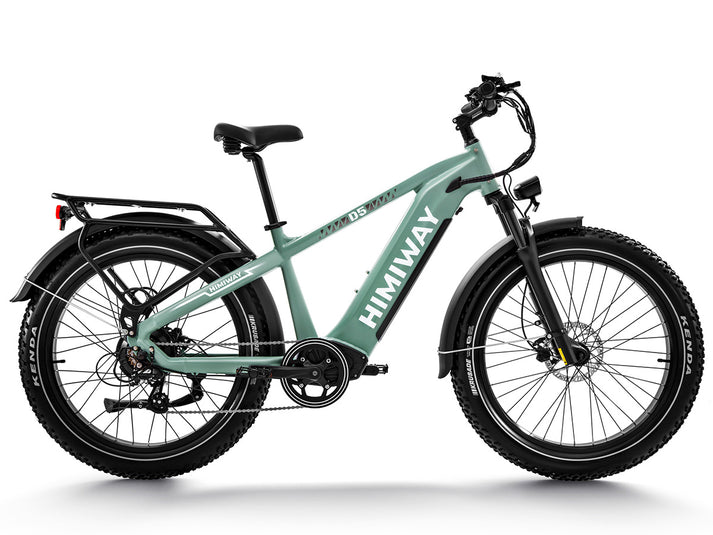

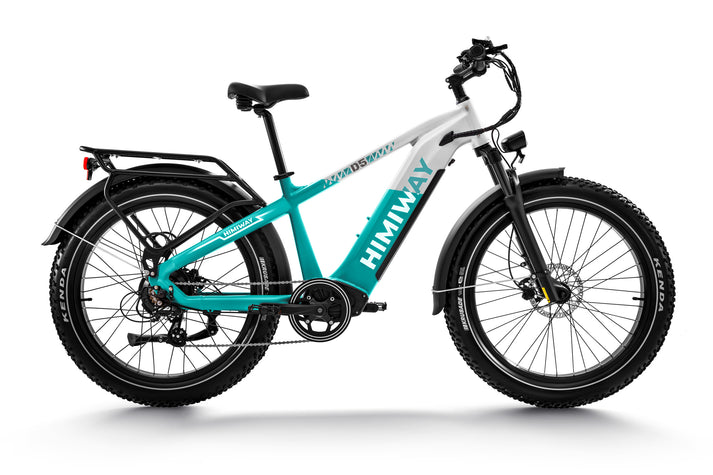

Himiway D5 (Zebra) | High Step | Premium All-terrain Electric Fat Bike
DESCRIPTION

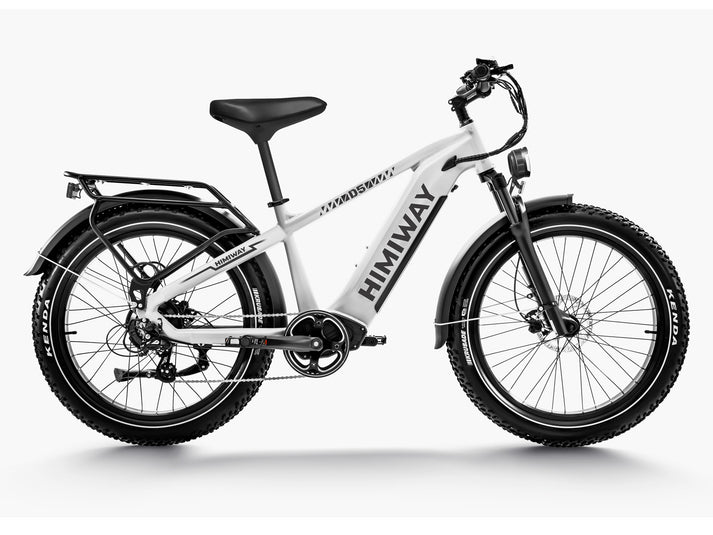

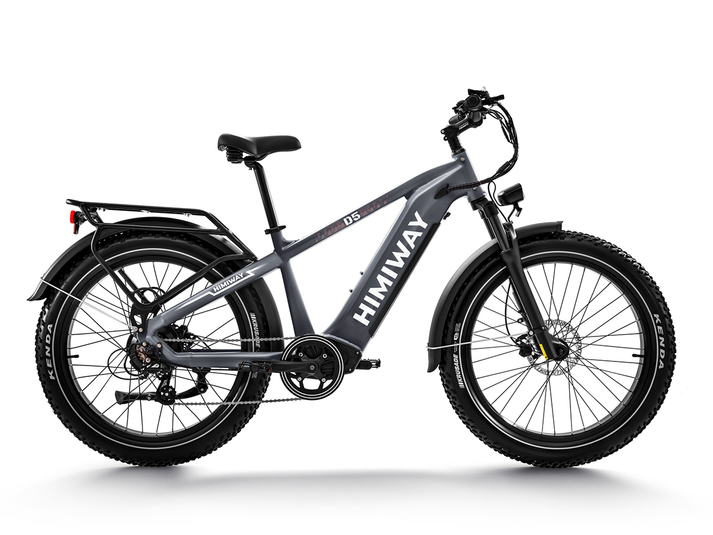

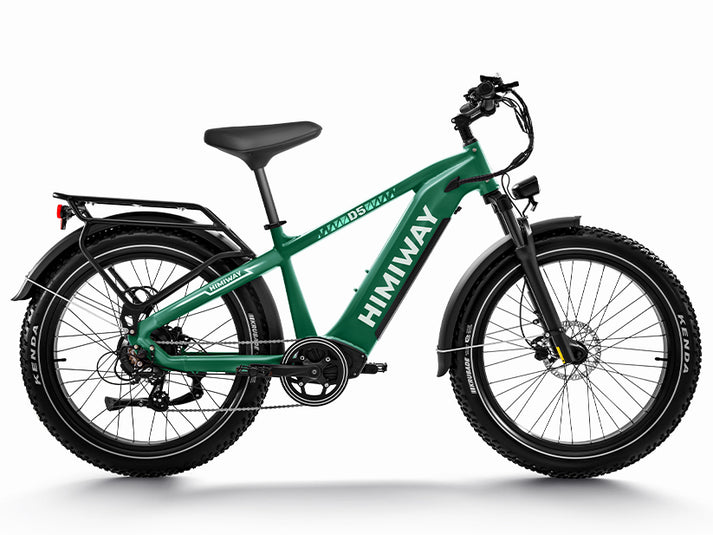

The Himiway D5 (Zebra) is the latest evolution of the Himiway D3 (Cruiser), designed to provide a premium all-terrain riding experience. Equipped with a powerful 750W brushless geared hub motor and a responsive torque sensor, the D5 Zebra adapts to your pedaling force for a natural, efficient ride. Its robust 6061 aluminum frame supports a payload capacity of 400 lbs, making it perfect for riders of all sizes.
The 960Wh Samsung/LG battery, with advanced safety features like short-circuit prevention and overcharging protection, ensures up to 80 miles of range with pedal assist. With Kenda 26"x4" fat tires and hydraulic brakes, the Zebra delivers stability, control, and confidence across diverse terrains, from snowy trails to sandy beaches. Its modern design, upgraded inner ring, and sleek LED lighting make it a versatile and stylish choice for adventurers and commuters alike.
Himiway D5 (Zebra), the updated version of Himiway D3 (Cruiser), is equipped with a powerful 750W gear hub motor, hydraulic Brakes, 400 lbs payload capacity, and upgraded inner ring. The design of 26-inch Kenda fat tire strengthens the traction, avoiding slipping on the ground and sinking in mud or snow. With removable 960Wh Samsung/LG battery capacity and 52 5000mAh cells, the riding mileage of the Zebra ebike is 80 miles with pedal assist and 60 miles range with pure electric power. Keep wild on Himiway.
Key Features
- Torque Sensor Efficiency: Provides real-time electric assist adjustments based on your pedaling effort, optimizing energy use.
- Long-Range Battery: Up to 80 miles of range per charge with advanced Samsung/LG technology.
- Enhanced Fat Tires: Kenda 26"x4" tires for all-weather and all-terrain grip and safety.
- Reliable Hydraulic Brakes: Tektro HD-E3520 brakes with 180mm rotors ensure powerful stopping ability.
- High Payload Capacity: Sturdy 6061 aluminum frame supports up to 400 lbs, perfect for heavy riders or cargo.
Geometry
| Spec Code | Measurement | Description |
|---|---|---|
| Recommended Height | 5'3" ~ 6'5" | Suitable rider height range |
| A | 78.7 in | Total length |
| B | 47 in | Handlebar height |
| C | 28 in | Handlebar length |
| D | 49.2 in | Wheelbase |
| E | 28.7 in | Wheel diameter |
| F | 20.9 in | Minimum seat height |
| G | 31.4 in | Maximum seat height |
| H | 19 in | Chain stay length |
| I | 24.6 in | Frame stack |
| J | 17.8 in | Frame reach |
| K | 24.4 in | Effective top tube length |
| L | 5.5 in | Head tube length |
| M | 65° | Head angle |
| N | ST 22.4 / SO 31.1 in | Standover height (Seat Tube / Overall) |
Detailed Specifications
| Feature | Specification |
|---|---|
| Frame | 6061 Aluminum |
| Motor | 750W Brushless Geared Hub Motor |
| Battery | Samsung/LG 48V 20Ah Lithium-Ion |
| Range | 60-80 Miles |
| Tires | Kenda K-shield 26"x4" |
| Brakes | Tektro HD-E3520 Hydraulic Brakes |
| Suspension | TRAMA 26"FAT34-26-HLO (95mm Travel) |
| Payload Capacity | 400 lbs |
| Display | LCD Display with USB Charger |
| Throttle | Half Twist Throttle |
| Weight | 79 lbs (with battery) |
| Rider Height | 5'3" - 6'5" |
Geometry
| Measurement | Value (inches) |
|---|---|
| Total Length | 78.7 |
| Handlebar Height | 47 |
| Wheelbase | 49.2 |
| Minimum Seat Height | 20.9 |
| Maximum Seat Height | 31.4 |
| Standover Height | 31.1 |
| Wheel Diameter | 28.7 |
| Head Angle | 65° |
E-Bike Comparison: D5 Zebra, D5 Pro, D3 Cruiser |
||||
|---|---|---|---|---|
Feature |
D5 Zebra (Cadence Sensor) |
D5 Zebra (Torque Sensor) |
D5 Pro |
D3 Cruiser |
| Type | Fat Tire E-Bike | Fat Tire E-Bike | Fat Tire E-Bike | Fat Tire E-Bike |
| Range | 60–80 Miles | 60–80 Miles | 60–80 Miles | 60 Miles |
| Battery | Samsung/LG 48V 20Ah | Samsung/LG 48V 20Ah | Samsung/LG 48V 20Ah | Samsung/LG 48V 15Ah |
| Max Speed | 20+ MPH | 20+ MPH | 20+ MPH | 20+ MPH |
| Motor | 750W Hub Motor | 750W Hub Motor | 500W Mid-Drive Motor | 750W Geared Hub Motor |
| Frame | 6061 Aluminum | 6061 Aluminum | 6061 Aluminum | 6061 Aluminum Frame |
| Sensor | Cadence Sensor | Torque Sensor | Torque Sensor | Cadence Sensor |
| Brakes | Hydraulic Brake | Hydraulic Brake | Hydraulic Brake | Mechanical Disc Brake |
| Weight | 79 lbs | 79 lbs | 79 lbs | 72 lbs |
| Power Mode | Aluminum Pedal & Half Twist Throttle | Aluminum Pedal & Thumb Throttle | Aluminum Pedal & Thumb Throttle | Aluminum Pedal & Half Twist Throttle |
| Group Set | 7 Speed | 7 Speed | 9 Speed | 7 Speed |
