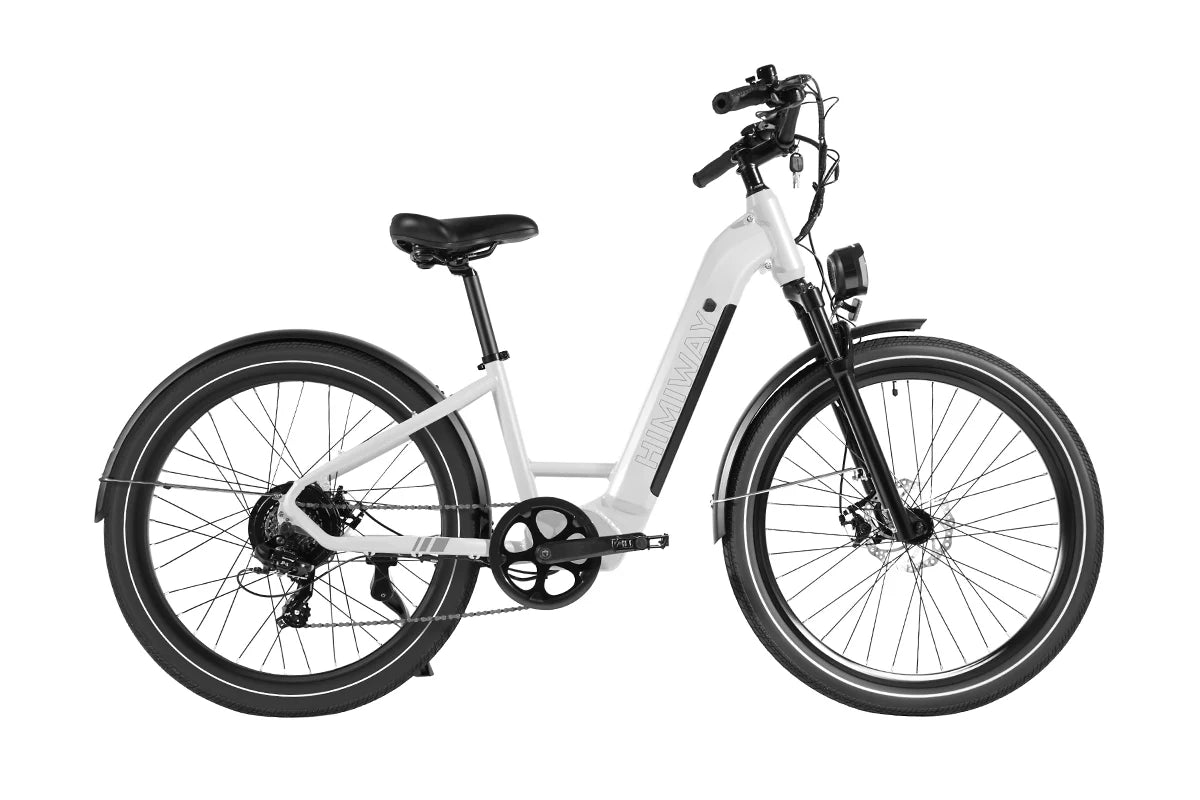

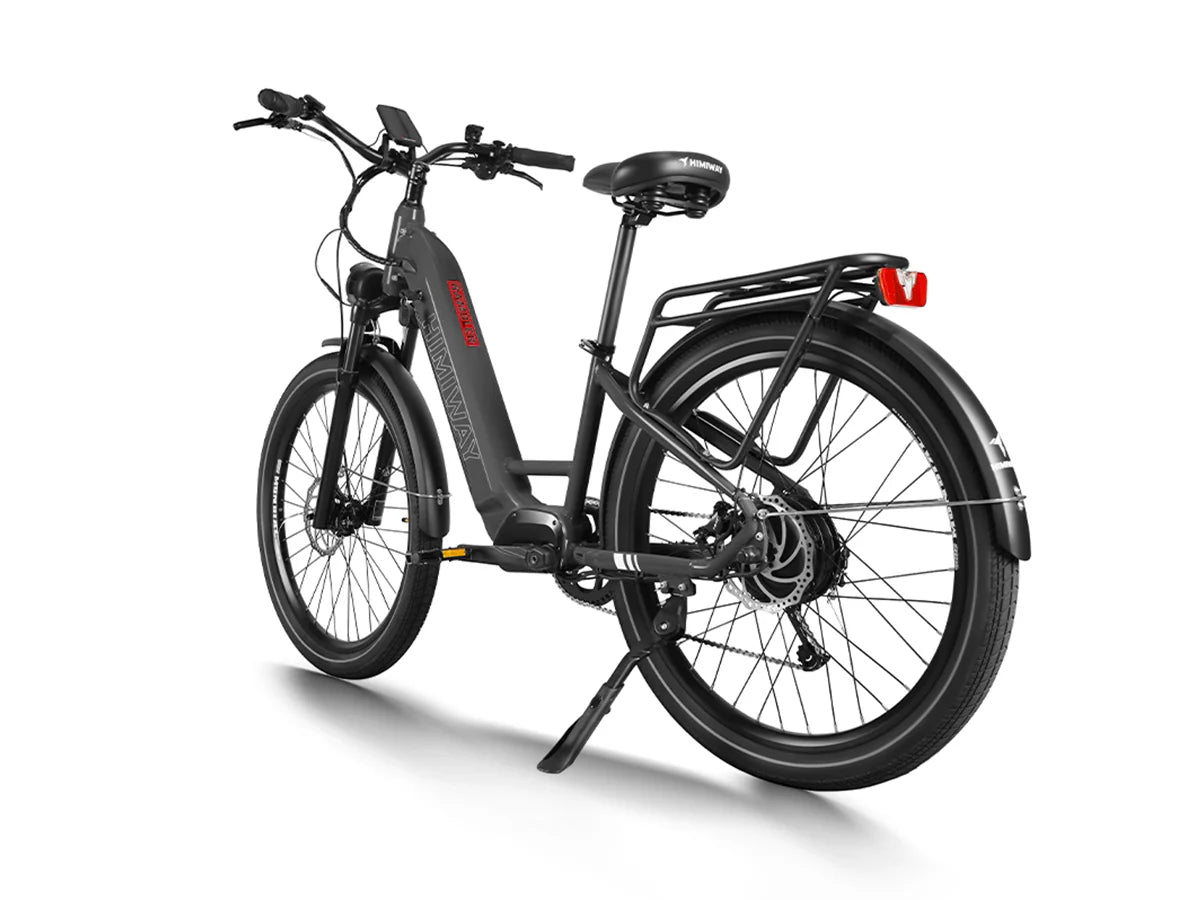

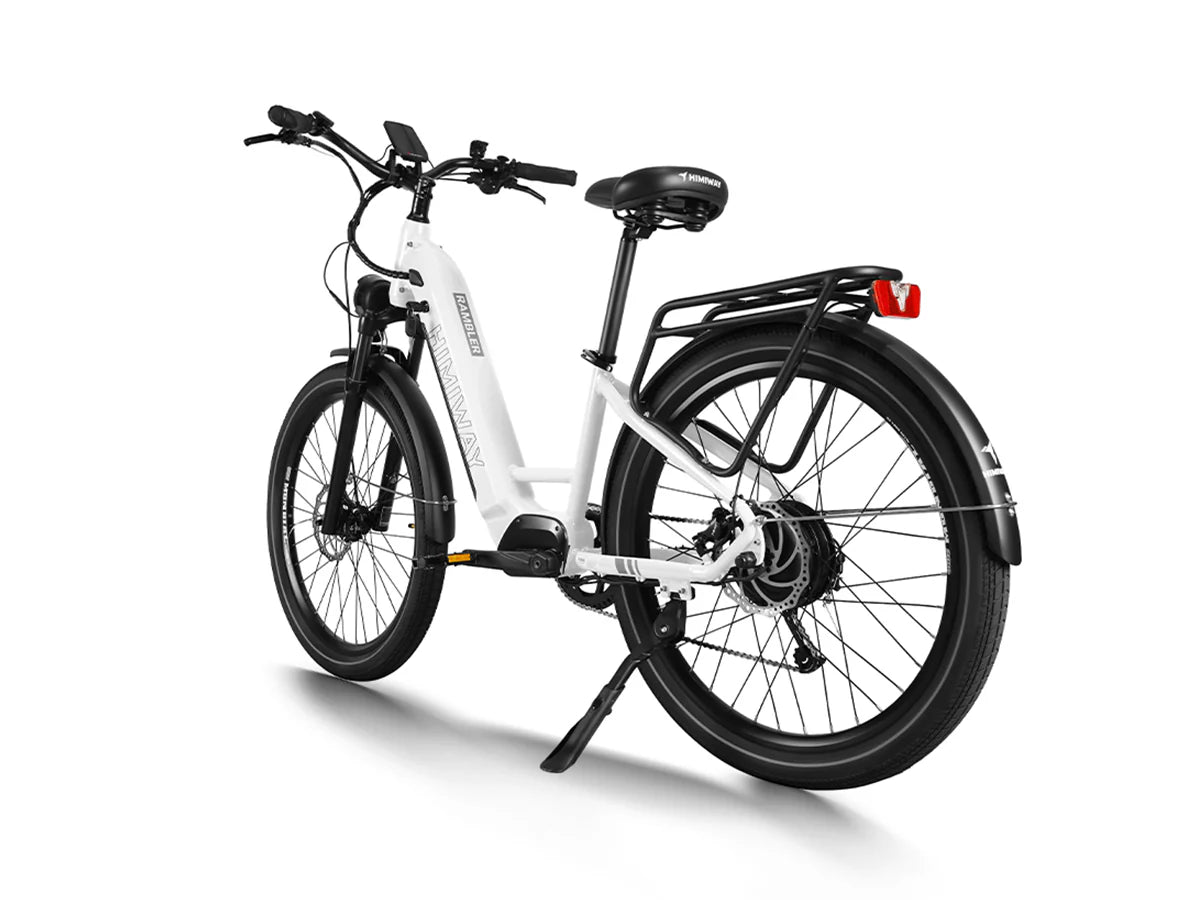

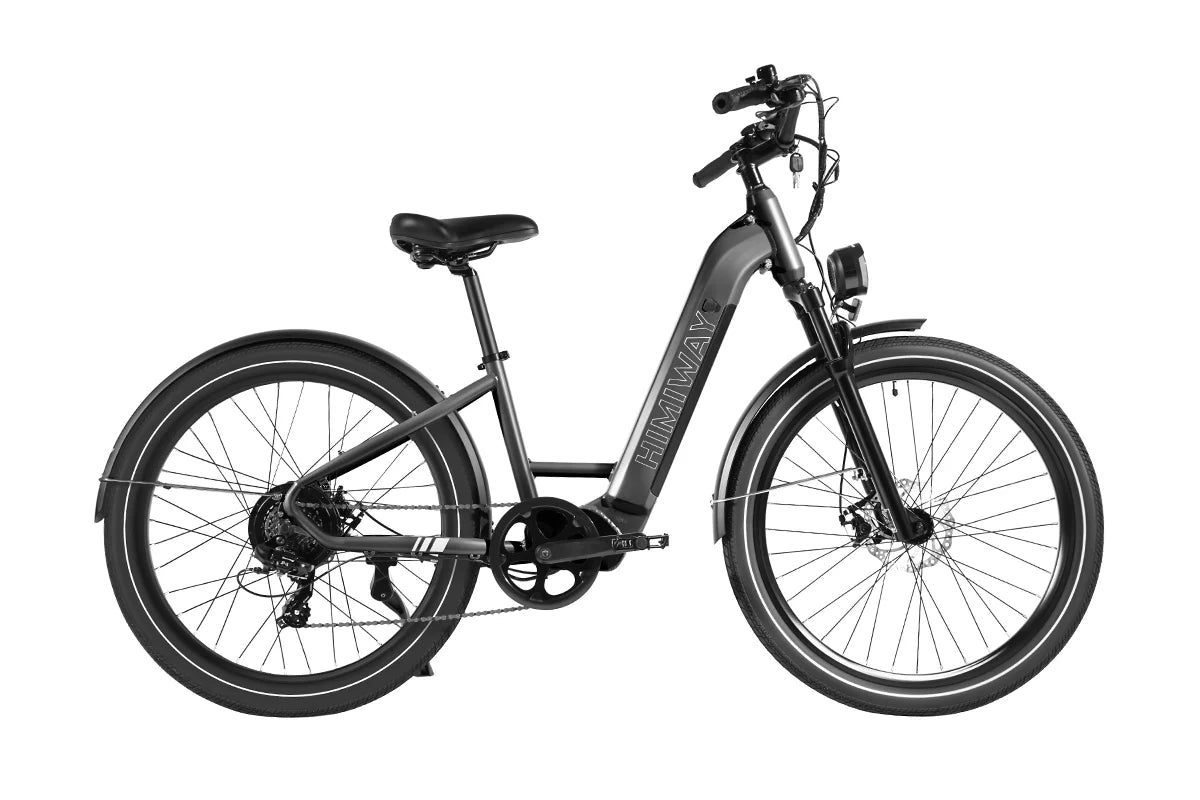

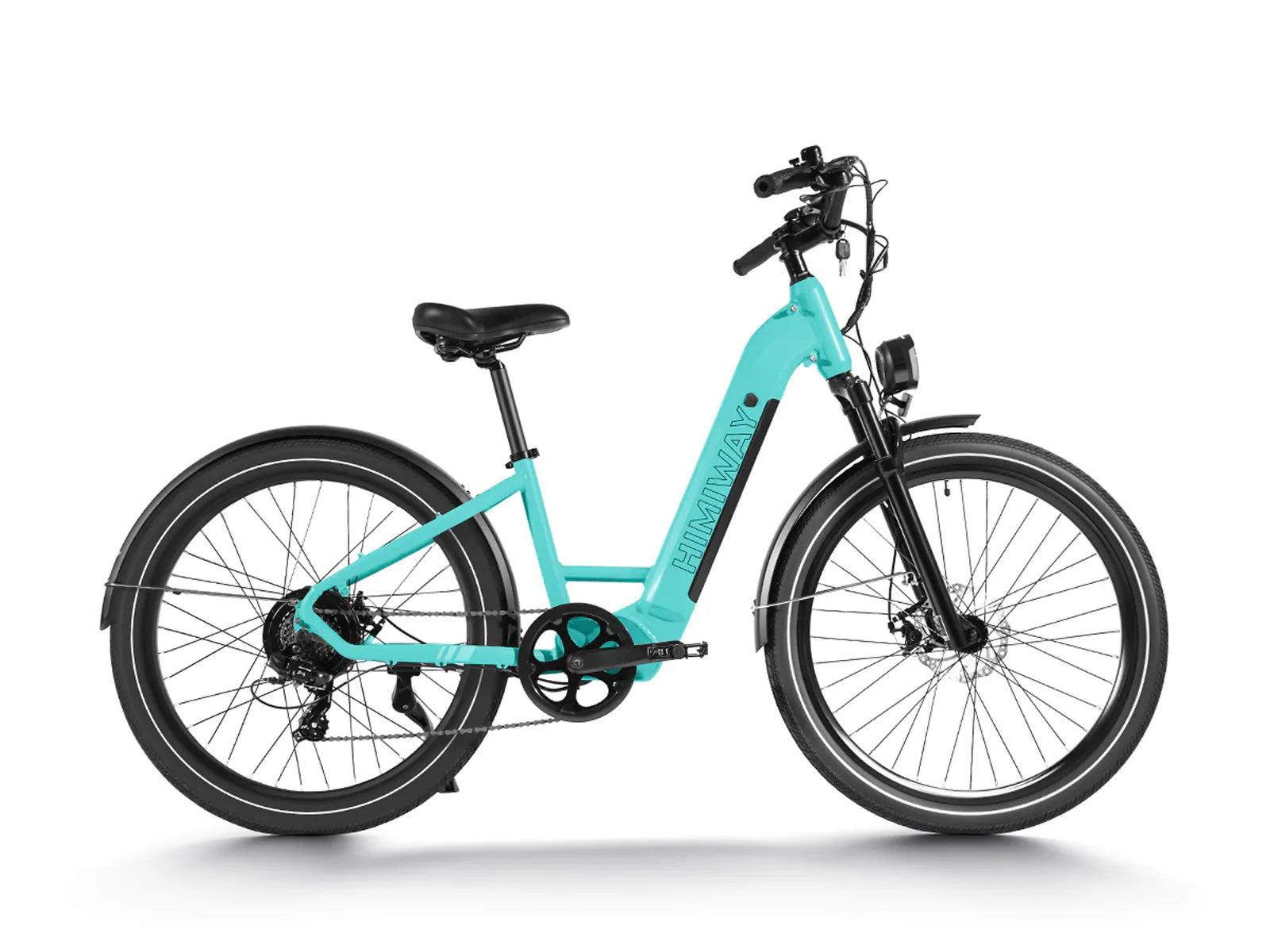

The Himiway Electric Bike is designed for riders who seek a blend of performance, comfort, and durability. Built with a 6061 aluminum frame, this bike is lightweight yet robust, ensuring a smooth ride across various terrains. The bike is equipped with a 500W mid-drive motor and a Samsung/LG 48V 15Ah battery, delivering a range of 40-55 miles on a single charge. The TRAMA FSDTOP 30-29HL air spring fork with 80mm travel provides exceptional shock absorption, enhancing your comfort on bumpy roads. With Innova IA-1283 27.52.4" tires*, the bike offers excellent traction and stability. The LCD display with Type-C charger allows you to monitor your ride effortlessly, while the thumb throttle ensures easy acceleration. For safety, the bike features Tektro HD-E350 hydraulic brakes on the front and Nutt Y-5A hydraulic brakes on the rear, providing reliable stopping power.
Product Description

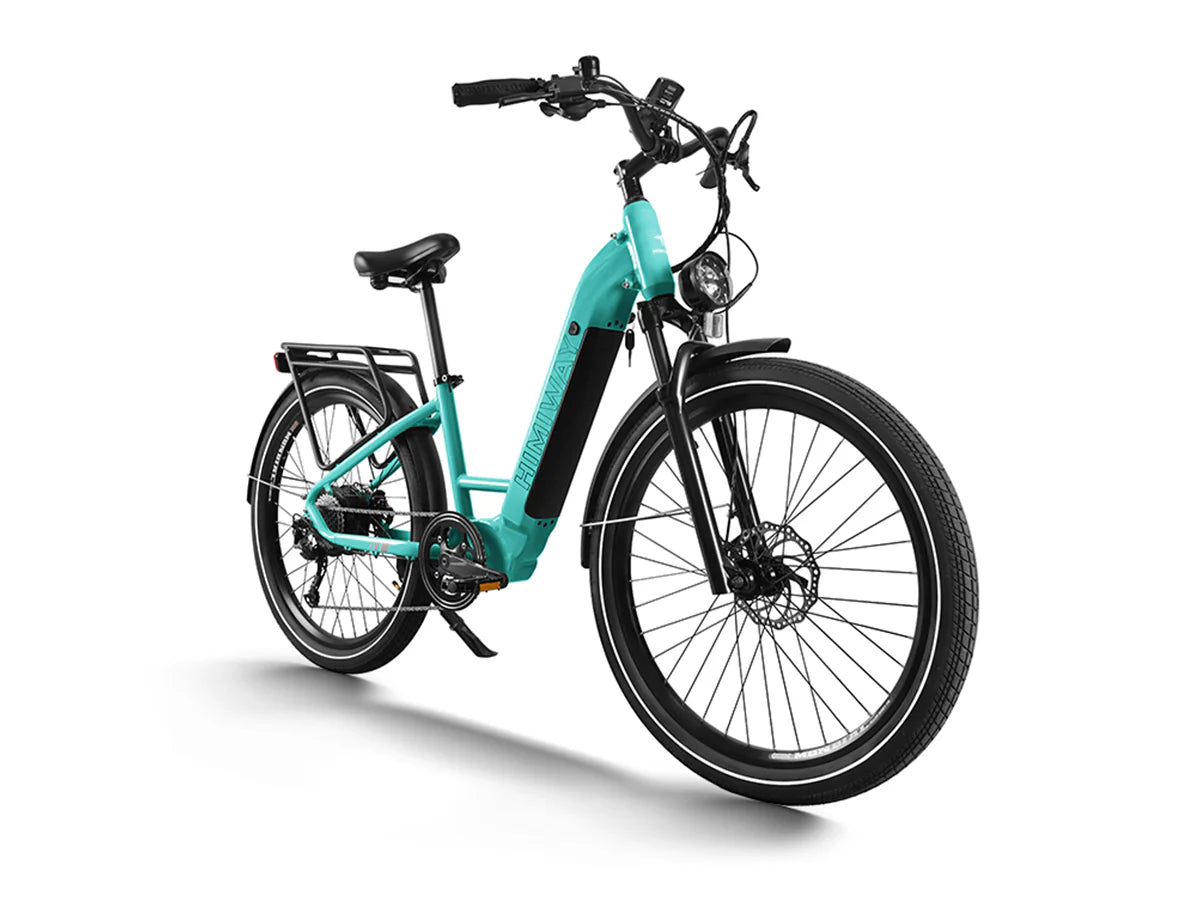

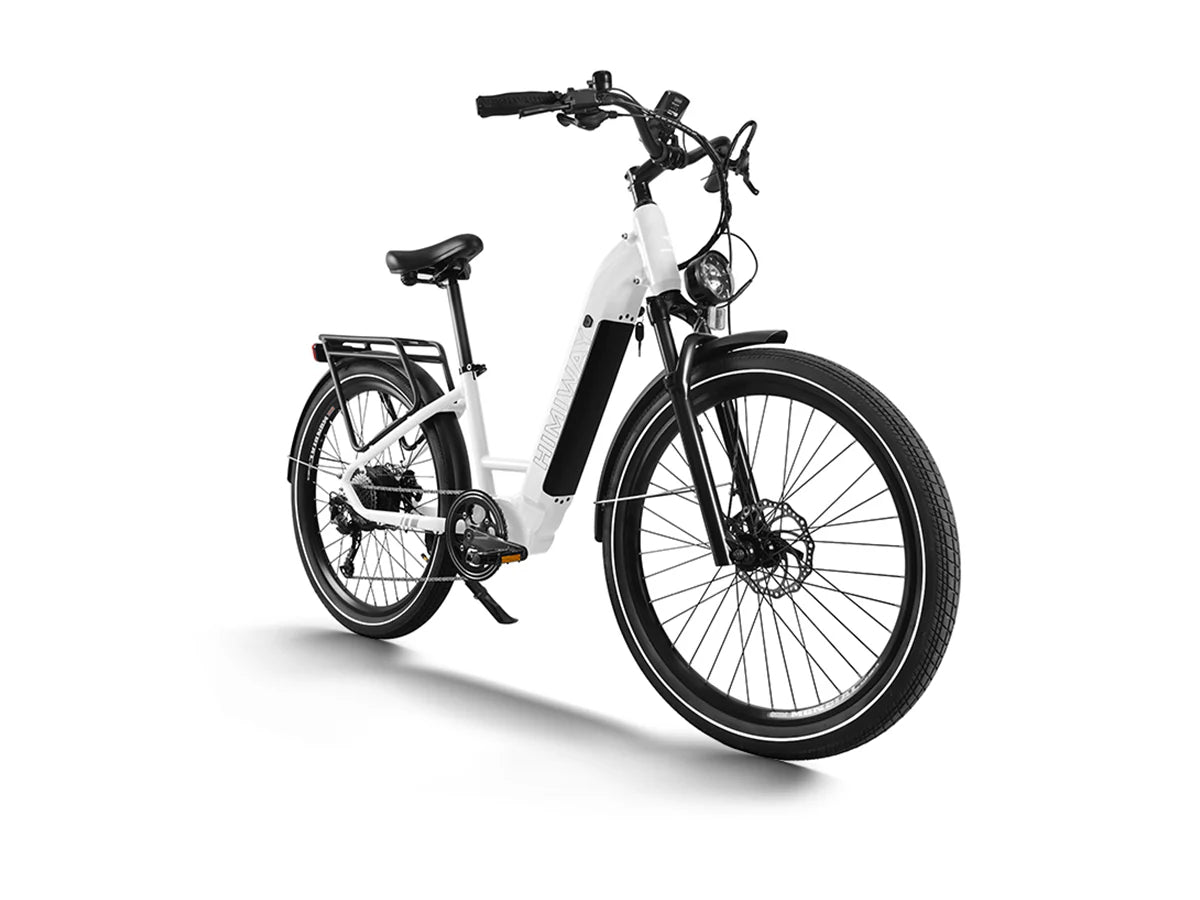

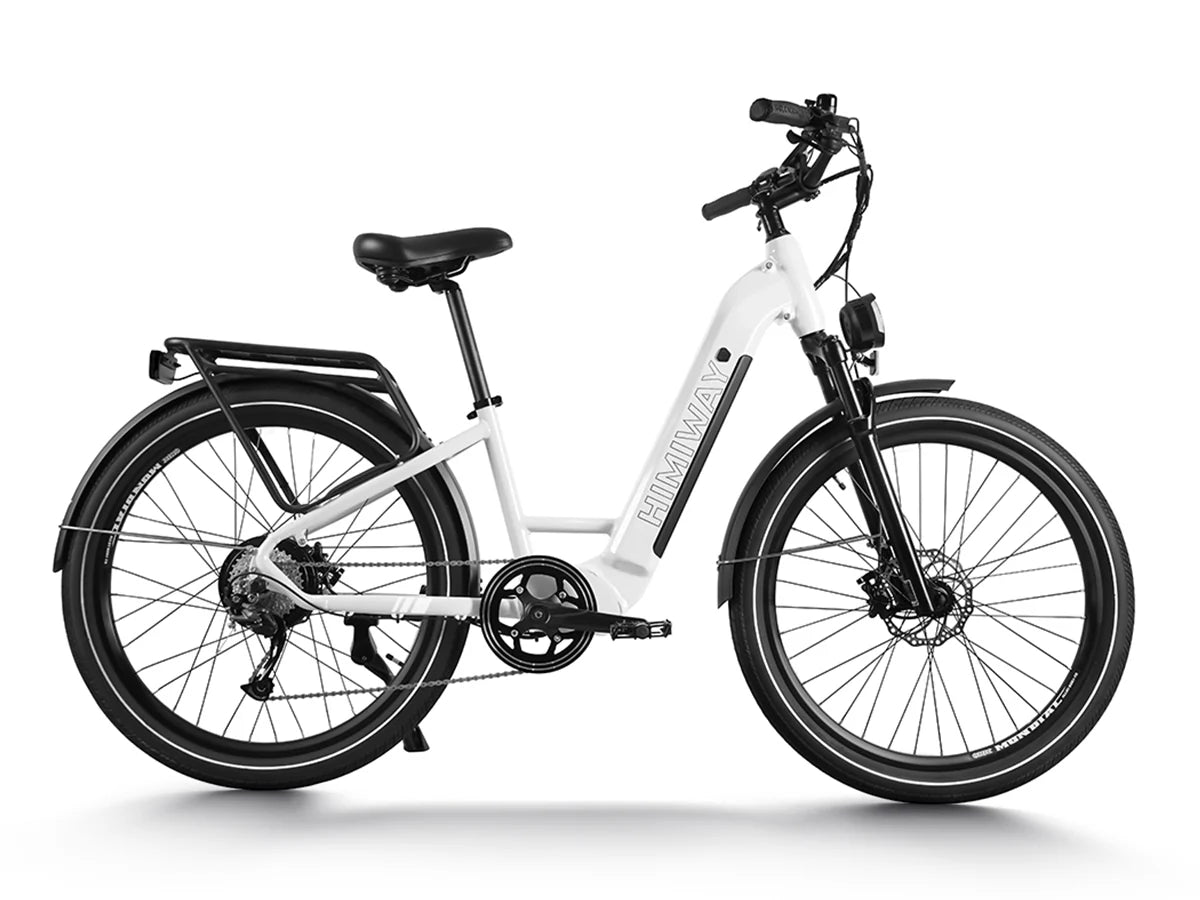

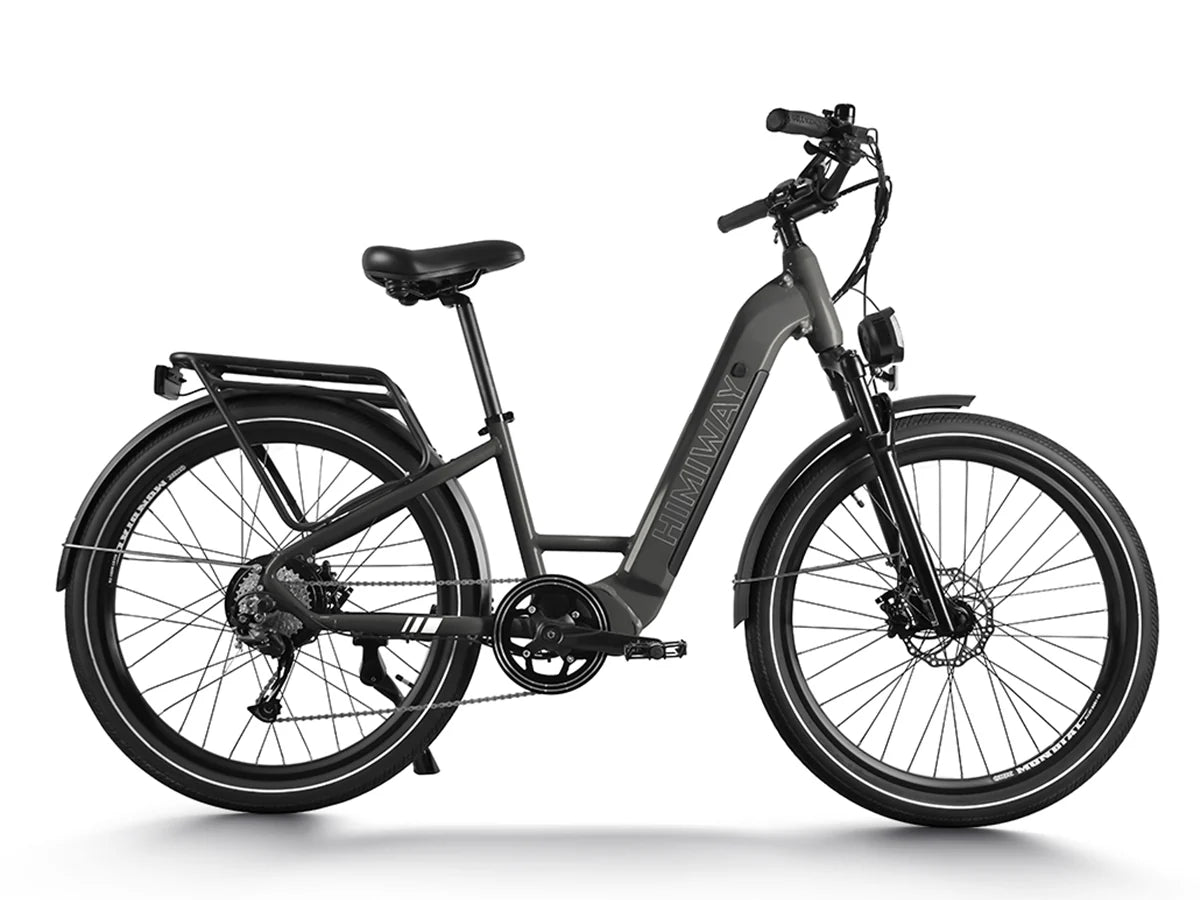

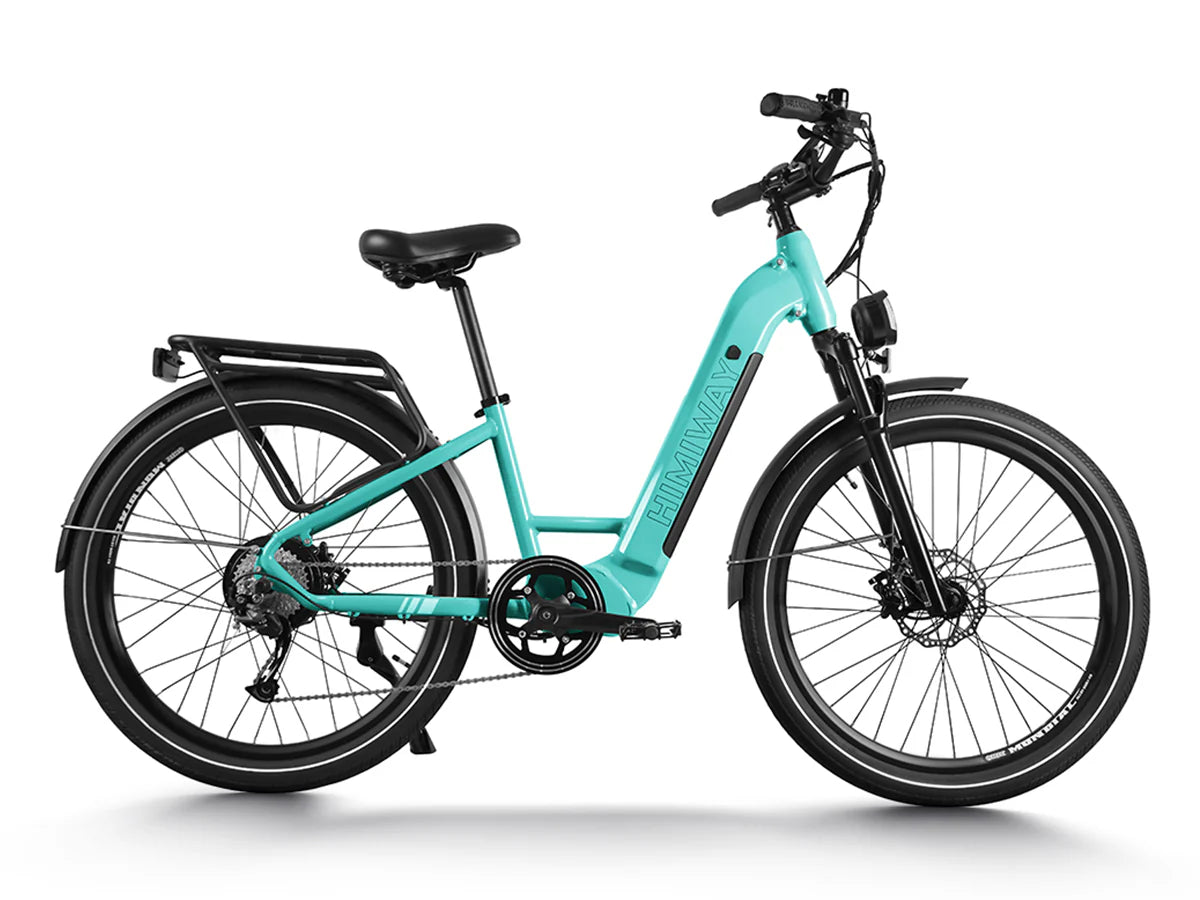

Himiway Rambler | Electric City Commuter Bike | 500W Mid-Drive Motor | 40-55 Miles Range On A Single Charge
Description
Key Features
- Motor: 500W mid-drive motor for powerful performance
- Battery: Samsung/LG 48V 15Ah for long-range rides
- Range: 40-55 miles on a single charge
- Tires: Innova IA-1283 27.5*2.4" for excellent traction and stability
- Brakes: Tektro HD-E350 hydraulic front brake and Nutt Y-5A hydraulic rear brake for reliable stopping power
- Display: LCD display with Type-C charger for easy monitoring
- Frame: 6061 Aluminum for durability and lightweight
- Suspension: TRAMA FSDTOP 30-29HL air spring fork with 80mm travel for a smooth ride
- Throttle: Thumb throttle for effortless acceleration
- Max Payload Capacity: 330 lbs
- Weight: 61 lbs (with battery)
Detailed Specifications
Specification | Details |
---|---|
Recommended Height | 5'2" ~ 6'4" |
Total Length | 74" |
Handlebar Height | 43.7" |
Handlebar Length | 27.6" |
Wheelbase | 46.4" |
Wheel Diameter | 28.1" |
Minimum Seat Height | 33" |
Maximum Seat Height | 38.5" |
Chain Stay Length | 18.5" |
Frame Stack | 19.2" |
Effective Top Tube Length | 22.2" |
Head Tube Length | 7.1" |
Standover Height | 18.1" |
Frame | 6061 Aluminum frame |
Headset | Neco H114 444430 |
Fork | TRAMA FSDTOP 30-29HL air spring 80mm travel 9*135mm quick release |
Shock | Alloy front suspension fork with lockout and adjustment |
Front Wheel | Rim: MD-239 27.536H13G Spoke: 13G*263L Hub: FH908-ZR |
Rear Wheel | Rim: MD-239 27.536H13G Spoke: 13G*261L Hub: RH982-ZR |
Tires | Innova IA-1283 27.5*2.4 |
Battery | Samsung/LG 48V 15Ah |
Motor | 500W mid-drive motor |
Display | LCD display with Type-C charger |
Throttle | Thumb throttle |
Sensors | Torque sensor, shifting sensor, speed sensor, brake sensor |
Crankset | Crank arm: Bafang 170mm Chain ring: 38T |
Cassette | Shimano CS-HG201-9 11-36T |
Chain | KMC E9-S EPT 118L |
Groupset | Shimano Altus M2000 9 speed |
Front Brake | Tektro HD-E350 hydraulic brake |
Rear Brake | Nutt Y-5A hydraulic brake |
Rotors | F:180mm R:180mm |
Stem | YC-C410 28.68031.8mm |
Handlebar | KW-AL124FOV 22.231.8700MM AL6061 T6 |
Seatpost | SP-C212(ISO-M) 30.4*350 |
Saddle | TTZ032X |
Pedal | Aluminum pedal |

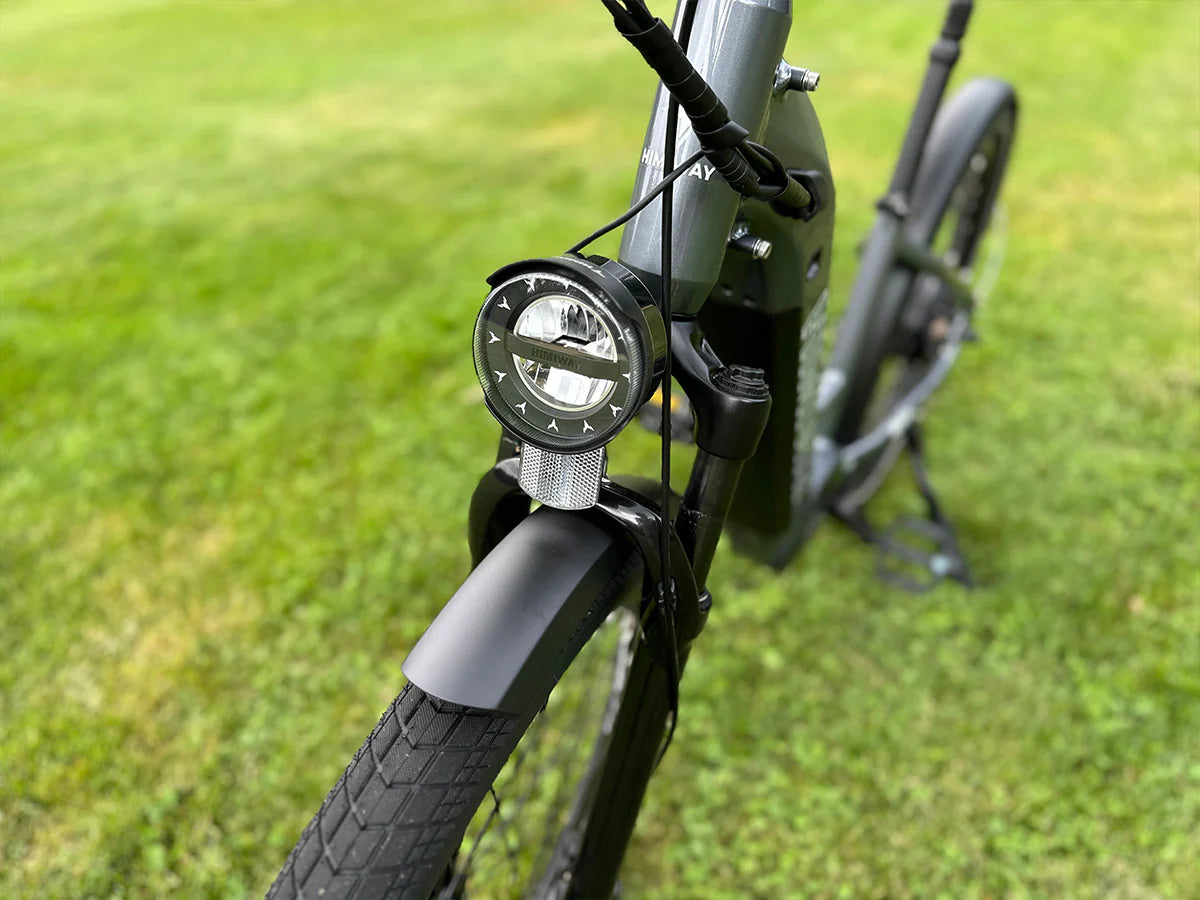

Lights | 48V LED light |
Kickstand | Heavy-duty aluminum kickstand |
Range | 40-55 miles |
Controller | 48V/18A |
Charger | US standard 3.0 A smart charger |
Rider Height | 5'2" ~ 6'4" |
Weight | 61 lbs (with battery) |
Max. Payload Capacity | 330 lbs |
