HitchDoc Outdoor | Eagle Snow Plow | 66″ Width | Steel Front-Mount Complete Plow System | 550 Bighorn UTV (2023-2024) | Horsepower 40 To 45 HP | For UTV
HitchDoc Outdoor | Eagle Snow Plow | 66″ Width | Steel Front-Mount Complete Plow System | 550 Bighorn UTV (2023-2024) | Horsepower 40 To 45 HP | For UTV
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
HitchDoc Outdoor | Eagle Snow Plow | 66″ Width | Steel Front-Mount Complete Plow System | 550 Bighorn UTV (2023-2024) | Horsepower 40 To 45 HP | For UTV
DESCRIPTION
Tackle winter head-on with confidence, control, and serious clearing power. The HitchDoc Outdoor Eagle Snow Plow 66″ Steel Front-Mount System is precision-engineered for the 550 Bighorn UTV (2023–2024), delivering heavy-duty snow removal performance right from the seat of your UTV. Whether you're clearing driveways, rural roads, or farm paths, this complete plow system is designed for rugged use and smooth operation.
Crafted with high-grade materials and a smart, easy-mount design, this snow plow system includes everything you need to get started a 66" wide straight blade, durable push tube, and a reinforced front-mount bracket made from 1/4" steel. Designed for UTVs with 40–45 horsepower, it's ideal for property owners, ranchers, homesteaders, and outdoor professionals who refuse to let snow slow them down.
From adjustable blade angles to surface-protecting skid shoes, every feature of this system supports maximum efficiency, durability, and user safety. And with its quick-attach system, you're on and off the job faster no hassle, no downtime.
Key Features

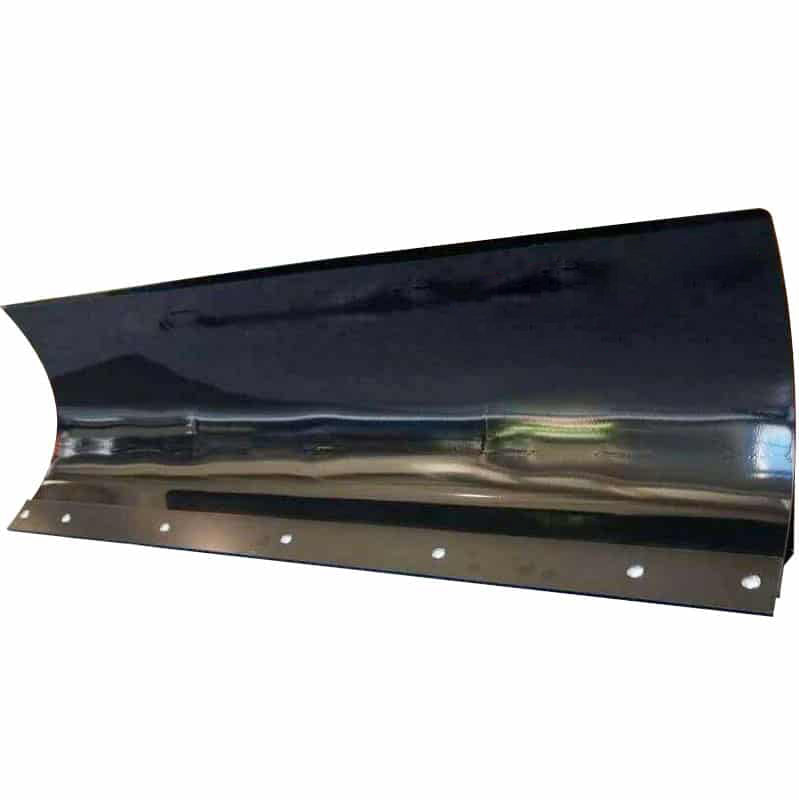

- Heavy-Duty Steel Blade 66″ wide, 15.75″ tall snow plow blade built for harsh winter conditions.

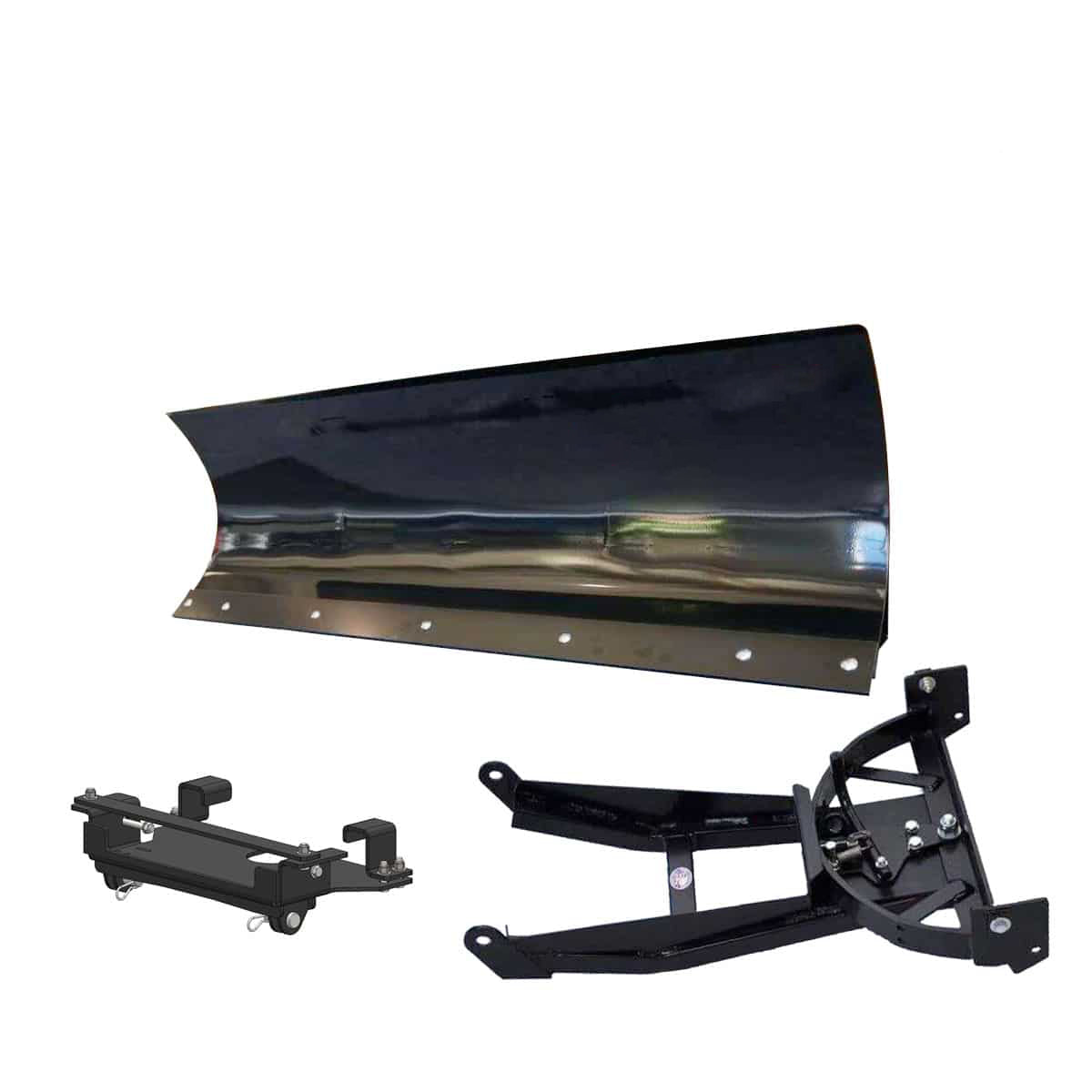

- Full Plow System Included Comes complete with plow blade, push tube, and front-mount bracket.
- Five Blade Angles Adjustable side-to-side blade positions for precision snow control.
- Blade Pitch Control 4 adjustable blade pitch positions with secure bolt-on stops.
- Reversible Wear Bar Extends the life of your blade with twice the wear surface.
- Surface-Friendly Skid Shoes Protect concrete, gravel, and delicate surfaces while plowing.
- Trip Springs + Rubber Flap Reduces shock and protects your UTV and plow in sudden stops.
- Plow Markers Included Improve visibility and alignment during use in low-light conditions.
- Quick-Mount System 1/2″ bolt connection for fast, secure mounting to the push tube.

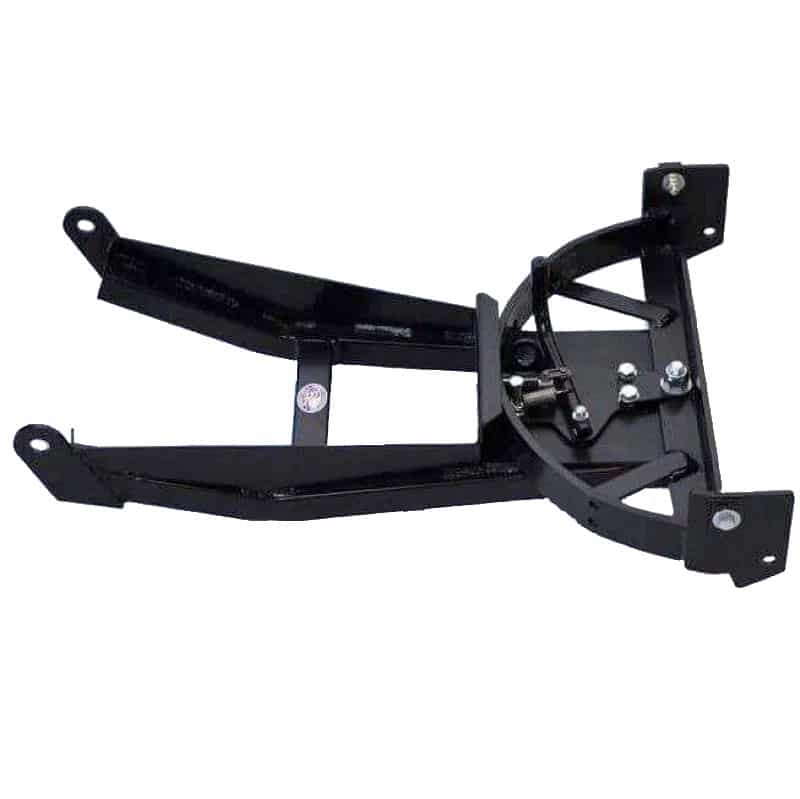

- V-Shaped Push Tube Built with 1.5″ formed tubing and internal cross members for added strength.
- Manual Angle Adjustment 30° rotation to either side for flexible snow direction control.
- Heavy-Duty Swivel Joint Uses 5/8″ bolt for secure pivoting under stress.
- Black Powder Coat Finish Corrosion-resistant coating protects metal from salt and weather.

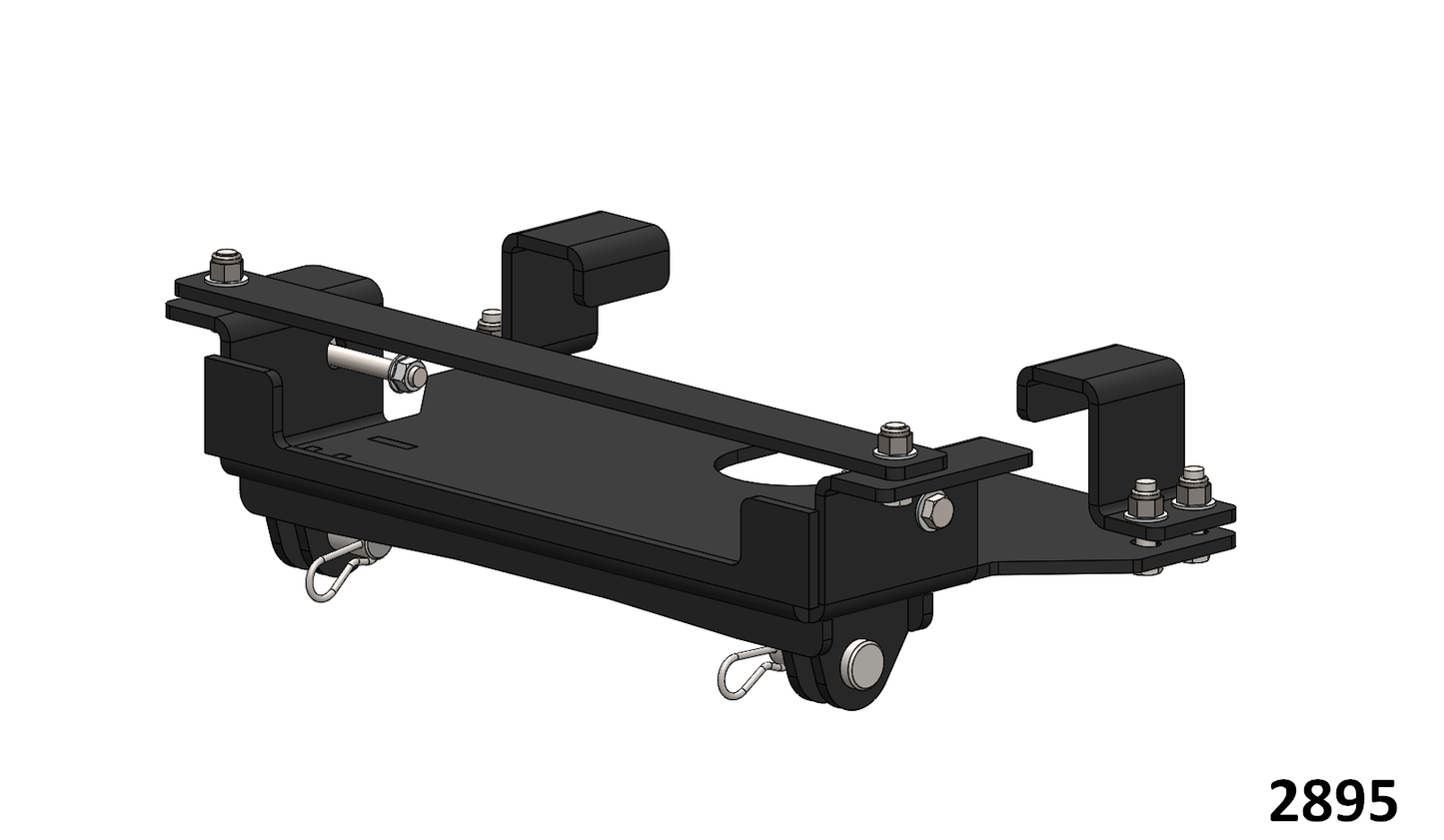

- Secure Front Mount Design Built from 1/4″ steel, attaches directly to the UTV frame.
- Made for 550 Bighorn (2023–2024) Perfect fit for modern UTVs with 40–45 HP output.
Detailed Specifications
| Specification | Details |
|---|---|
| Brand | HitchDoc Outdoor |
| Product Name | Eagle Snow Plow 66″ UTV Steel Front-Mount System |
| Compatibility | 550 Bighorn UTV (Model Years: 2023–2024) |
| Plow Blade Width | 66 inches |
| Plow Blade Height | 15.75 inches |
| Angled Cut Width | 57.75 inches |
| Required Horsepower | 40–45 HP |
| Mount Type | Front-Mount System |
| Plow Blade Material | High-Strength Steel |
| Push Tube Material | 1.5″ Formed Tubing with V-Shape Reinforcement |
| Blade Angle Positions | 5 Manual Adjustments (Up to 30° Each Side) |
| Swivel Bolt Size | 5/8″ Heavy-Duty Bolt |
| Mount Plate Thickness | 1/4″ Steel |
| Mounting Hardware | Grade 5 Hardware with Clevis Pins |
| Finish | Black Powder Coat |
| Weight (Approx.) | 120–140 lbs (System Total) |
