Product Description
HLA Attachment Snow Wing Edge Flex Less Frame | Model 5203 Series | 9'-16' Multiple Width | For Tractor
DESCRIPTION

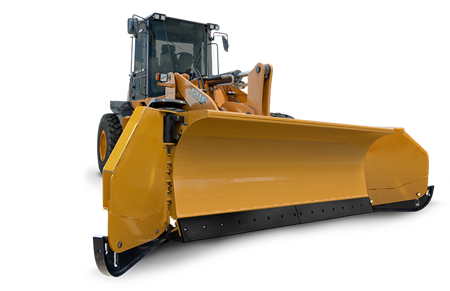

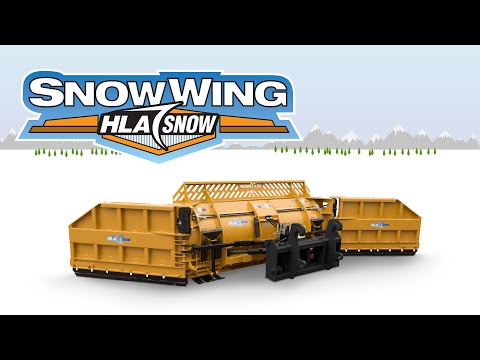

The HLA 5203 Snow Wing Series, including both Standard and Edge Flex models, is engineered to handle extreme winter conditions with maximum efficiency and control. Designed for tractors and wheel loaders in the 110–200 HP class, these industrial-grade snow plows are built to clear wide paths quickly while adapting effortlessly to narrow spaces, uneven terrain, and heavy snow loads.

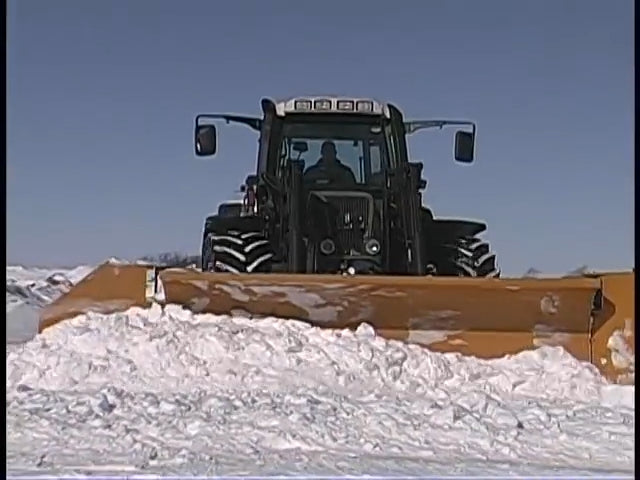

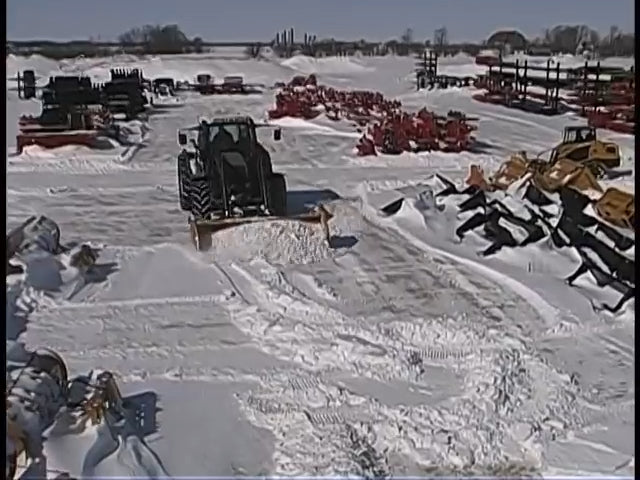

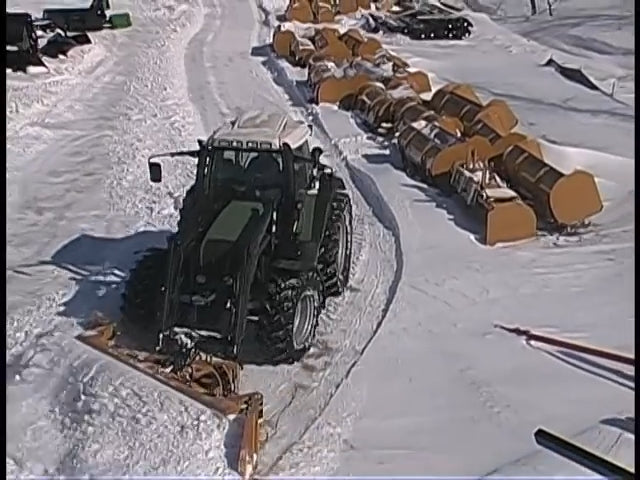

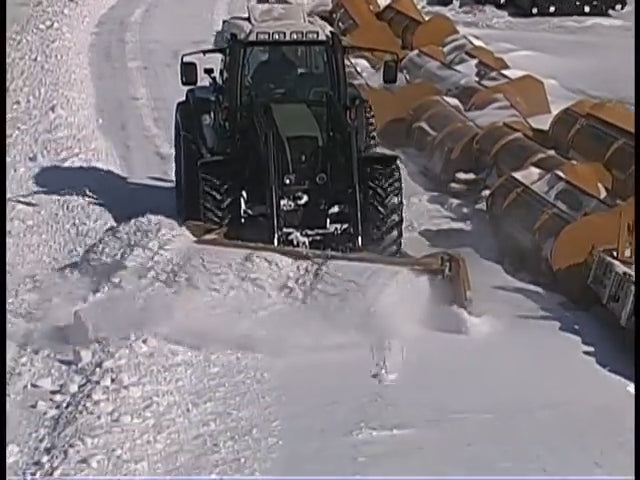

With working widths ranging from 9 feet (closed) to 22 feet (open), the 5203 Series delivers unmatched flexibility through independent hydraulic wings (0–180°) and ±35° hydraulic blade angling. The wings allow you to shift from windrowing to full containment in seconds ideal for parking lots, city streets, or rural roadways.
All models feature a robust 42-inch tall moldboard, spring trip cutting edges, and a lateral float system that keeps the blade firmly in contact with uneven surfaces for a cleaner finish. Built-in cross-over relief valves protect your equipment from unexpected impacts.
Edge Flex Upgrade (EF Models Only)
For contractors and municipalities that demand superior surface contouring, the Edge Flex series includes segmented floating cutting edges mounted on durable polyurethane pads. These adaptive sections move independently to match road curves, crowned surfaces, or frost-heaved pavement offering reduced wear, quieter operation, and a cleaner scrape on every pass.
Built to Fit Your Operation
Sold less frame/mount, the 5203 Snow Wing Series is compatible with a wide range of quick-attach loader mounts (John Deere, Cat, Euro, JRB, and more). Customize your mount separately to match your equipment type.
Key Features
- Variable Width (9–22 FT): Easily adjust blade width on the fly from 9 ft. when retracted to up to 22 ft. when fully deployed, perfect for tight areas or wide-open plowing.

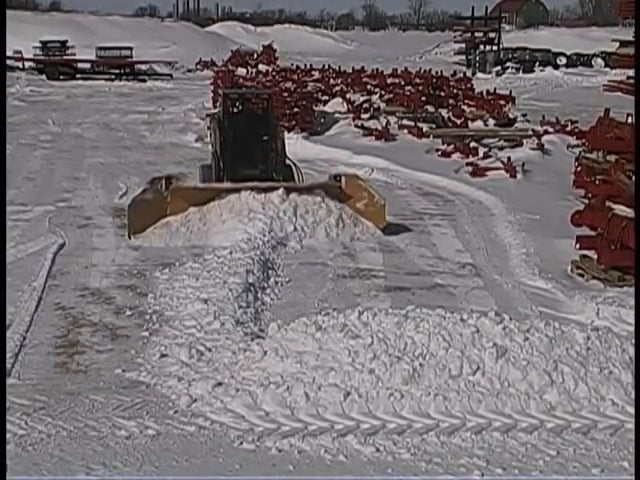

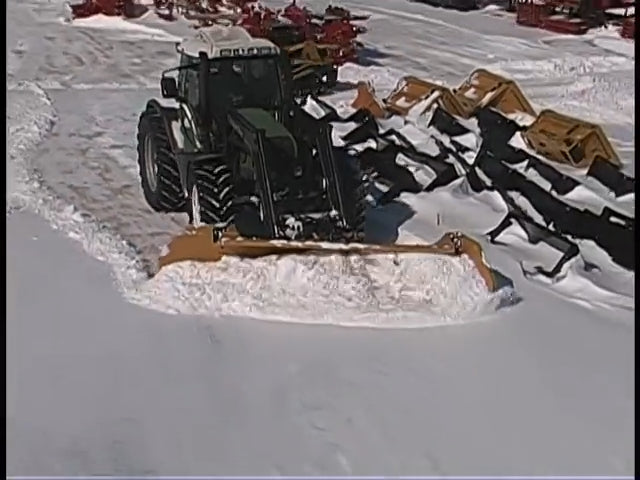

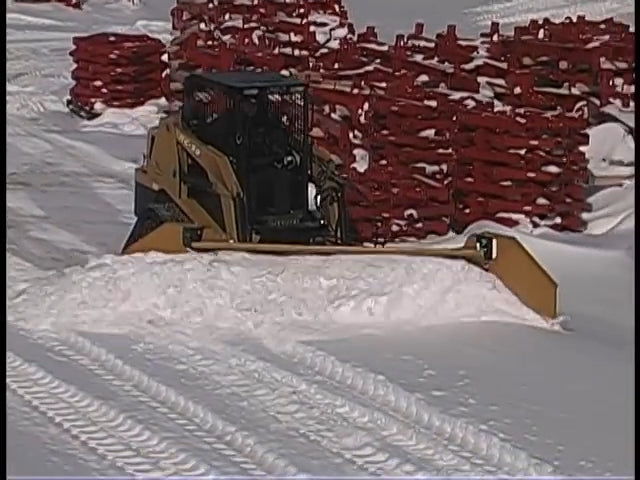

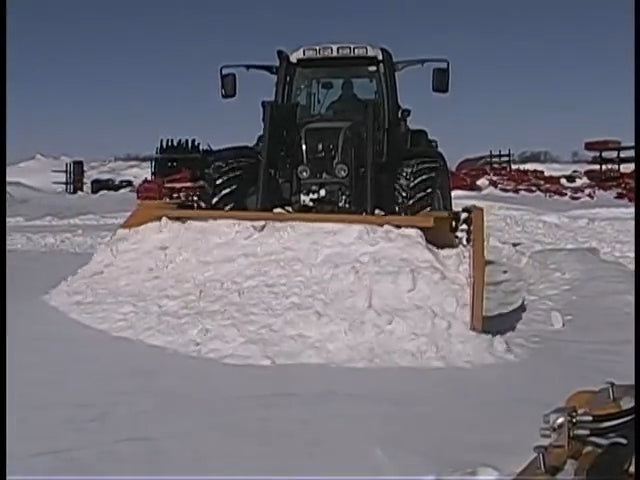

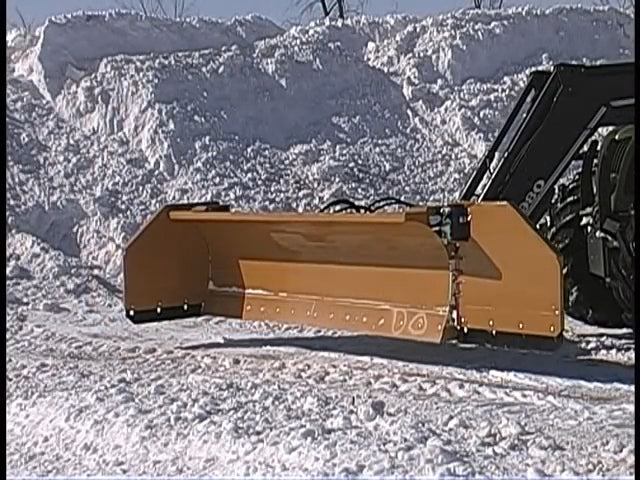

- Independent Hydraulic Wings (0–180°): Operate each wing separately to switch between straight blade, scoop, or windrow positions for maximum snow-handling versatility.

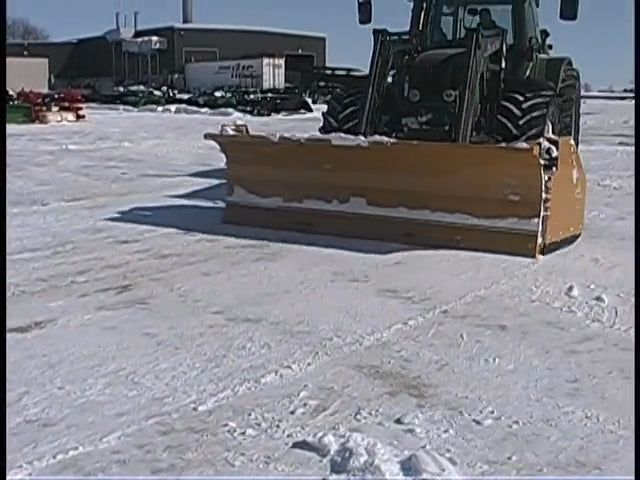

- ±35° Hydraulic Blade Angling: Dual hydraulic cylinders allow full blade tilt left or right to control snow direction and reduce back-and-forth passes.
- Heavy-Duty 42" Moldboard: Tall, reinforced blade stands up to deep drifts and heavy loads while maintaining aggressive snow-cutting performance.
- Spring Trip Cutting Edges: Standard cutting edges feature spring-trip protection to absorb impact with hidden obstacles and reduce damage.
- Lateral Float System: Blade float keeps constant contact with uneven terrain, delivering a cleaner scrape with less operator effort.
- Cross-Over Relief Valve Protection: Integrated hydraulic relief system prevents damage to cylinders and wings in case of sudden impact or overload.
- Edge Flex Technology (EF Models Only): Floating segmented cutting edges conform to changing surfaces for a quieter, smoother pass ideal for sensitive pavement and urban areas.
- High Horsepower Compatibility (110–200 HP): Built for demanding machines, including full-size tractors, wheel loaders, and telehandlers up to 40,000 lbs.
- Universal Mount Options (Sold Separately): Compatible with a wide range of quick attach mounts: John Deere, CAT, Euro/Global, JRB, and more for easy integration into your fleet.
Detailed Specifications
HLA 5203 Standard Snow Wing
| Specification | SB5203W915LF | SB5203W1016LF | SB5203W1218LF |
|---|---|---|---|
| Model Type | Standard | Standard | Standard |
| Closed Width | 9 ft | 10 ft | 12 ft |
| Open Width | 15 ft | 16 ft | 18 ft |
| Blade Height | 42 in | 42 in | 42 in |
| Edge Type | Moldboard | Moldboard | Moldboard |
| Cutting Edge | Spring Trip | Spring Trip | Spring Trip |
| Hydraulic Angling | ±35° | ±35° | ±35° |
| Wing Rotation Range | 0–180° | 0–180° | 0–180° |
| Weight (Approx.) | ~3,000 lbs | ~3,285 lbs | ~3,700 lbs |
| Horsepower Range | 110–200 HP | 110–200 HP | 110–200 HP |
| Max Operating Weight | 40,000 lbs | 40,000 lbs | 40,000 lbs |
| Mount Required | Yes | Yes | Yes |
| Specification | SB5203W1420LF | SB5203W1622LF |
|---|---|---|
| Model Type | Standard | Standard |
| Closed Width | 14 ft | 16 ft |
| Open Width | 20 ft | 22 ft |
| Blade Height | 42 in | 42 in |
| Edge Type | Moldboard | Moldboard |
| Cutting Edge | Spring Trip | Spring Trip |
| Hydraulic Angling | ±35° | ±35° |
| Wing Rotation Range | 0–180° | 0–180° |
| Weight (Approx.) | ~4,150 lbs | ~4,600 lbs |
| Horsepower Range | 110–200 HP | 110–200 HP |
| Max Operating Weight | 40,000 lbs | 40,000 lbs |
| Mount Required | Yes | Yes |
HLA 5203 Edge Flex Snow Wing
| Specification | SB5203WEF915LF | SB5203WEF1016LF | SB5203WEF1218LF |
|---|---|---|---|
| Model Type | Edge Flex | Edge Flex | Edge Flex |
| Closed Width | 9 ft | 10 ft | 12 ft |
| Open Width | 15 ft | 16 ft | 18 ft |
| Blade Height | 42 in | 42 in | 42 in |
| Edge Type | Segmented | Segmented | Segmented |
| Cutting Edge | Floating Segmented | Floating Segmented | Floating Segmented |
| Hydraulic Angling | ±35° | ±35° | ±35° |
| Wing Rotation Range | 0–180° | 0–180° | 0–180° |
| Weight (Approx.) | ~3,100 lbs | ~3,400 lbs | ~3,800 lbs |
| Horsepower Range | 110–200 HP | 110–200 HP | 110–200 HP |
| Max Operating Weight | 40,000 lbs | 40,000 lbs | 40,000 lbs |
| Mount Required | Yes | Yes | Yes |
| Specification | SB5203WEF1420LF | SB5203WEF1622LF |
|---|---|---|
| Model Type | Edge Flex | Edge Flex |
| Closed Width | 14 ft | 16 ft |
| Open Width | 20 ft | 22 ft |
| Blade Height | 42 in | 42 in |
| Edge Type | Segmented | Segmented |
| Cutting Edge | Floating Segmented | Floating Segmented |
| Hydraulic Angling | ±35° | ±35° |
| Wing Rotation Range | 0–180° | 0–180° |
| Weight (Approx.) | ~4,250 lbs | ~4,700 lbs |
| Horsepower Range | 110–200 HP | 110–200 HP |
| Max Operating Weight | 40,000 lbs | 40,000 lbs |
| Mount Required | Yes | Yes |
