HLA Attachment Snow Blade Less Frame | Model 6000 Series | 10'-20' Multiple Width | For Tractor

HLA Attachment Snow Blade Less Frame | Model 6000 Series | 10'-20' Multiple Width | For Tractor

$17,808.00
$17,808.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Heavy-Duty Construction: Designed for equipment weighing up to 60,000 lbs, with replaceable, reversible cutting edges.
  • Flexible Width Options: Available in 10 ft. to 20 ft. models to match different snow-clearing needs.
  • Spring Trip Protection: Replaceable, reversible cutting edge includes spring trip protection for extended durability.
  • Enhanced Control: Lateral float and floating blade hinge for smooth performance on uneven surfaces.
  • Robust Angle Cylinders: Equipped with nitrate rod angle cylinders and a crossover relief valve for reliable, safe operation.
View full details

Product Description

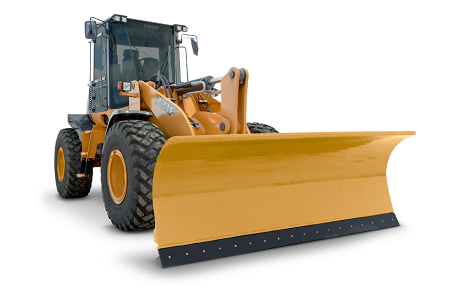

HLA Attachment Snow Blade Less Frame | Model 6000 Series | 10'-20' Multiple Width | For Tractor



DESCRIPTION

Built for the most demanding snow removal jobs, the HLA 6000 Series Snow Blade is engineered for performance, reliability, and compatibility with equipment up to 60,000 lbs. Whether you’re clearing large commercial lots, airport runways, or long stretches of road, this heavy-duty snow blade delivers unmatched durability and precision.

Each model features a replaceable, reversible cutting edge with spring trip protection, ensuring your investment lasts through even the harshest conditions. The blade’s lateral float system and floating blade hinge adapt to uneven terrain, reducing wear and maximizing surface contact.

Also available in the Edge Flex model, HLA’s revolutionary segmented cutting edge offers superior surface contouring, minimizing damage to roadways and boosting clearing efficiency.

Key Features

  • Heavy-Duty Build for Commercial Use Designed for machines weighing up to 60,000 lbs; ideal for contractors, municipalities, and industrial sites.
  • Spring Trip Cutting Edge Replaceable and reversible blade provides both protection and longevity.
  • Floating Blade Hinge & Lateral Float Enhances performance on uneven surfaces.
  • Hydraulic Angle Cylinders Equipped with nitrate rods and standard crossover relief valve.
  • Adjustable Skid Shoes Helps protect surfaces and control blade height.
  • Edge Flex Option Available Segmented cutting edge reduces impact stress and conforms to surfaces more precisely.
  • Quick Attach Compatibility Wide range of mounts available including CAT Fusion, JRB, Volvo, and more.

Detailed Specifications

HLA 6000 Series Snow Blade

Specification SB600010LF SB600012LF SB600014LF
Blade Width 10 ft 12 ft 14 ft
Approximate Weight 2,735 lbs 3,060 lbs 3,335 lbs
Mount Type Frame/Mount Sold Separately Frame/Mount Sold Separately Frame/Mount Sold Separately
Maximum Operating Weight 60,000 lbs 60,000 lbs 60,000 lbs
Edge Type Reversible Spring Trip Reversible Spring Trip Reversible Spring Trip
Float System Lateral & Floating Hinge Lateral & Floating Hinge Lateral & Floating Hinge
Ideal For Municipal, Industrial & Commercial Snow Removal Large Parking Lots, Roadways Commercial Sites
Compatible Equipment Wheel Loaders, Industrial Tractors Wheel Loaders, Industrial Tractors Wheel Loaders, Industrial Tractors



Specification SB600016LF SB600018LF SB600020LF
Blade Width 16 ft 18 ft 20 ft
Approximate Weight 3,785 lbs 4,090 lbs 4,445 lbs
Mount Type Frame/Mount Sold Separately Frame/Mount Sold Separately Frame/Mount Sold Separately
Maximum Operating Weight 60,000 lbs 60,000 lbs 60,000 lbs
Edge Type Reversible Spring Trip Reversible Spring Trip Reversible Spring Trip
Float System Lateral & Floating Hinge Lateral & Floating Hinge Lateral & Floating Hinge
Ideal For City & Rural Road Maintenance Airport & Heavy-Duty Use Highway and Regional Snow Clearing
Compatible Equipment Wheel Loaders, Industrial Tractors Wheel Loaders, Industrial Tractors Wheel Loaders, Industrial Tractors



HLA 6000 Series Edge Flex Snow Blade

Specification SB6000EF10LF SB6000EF12LF SB6000EF14LF
Blade Width 10 ft 12 ft 14 ft
Approximate Weight 2,635 lbs 3,060 lbs 3,235 lbs
Mount Type Frame/Mount Sold Separately Frame/Mount Sold Separately Frame/Mount Sold Separately
Maximum Operating Weight 60,000 lbs 60,000 lbs 60,000 lbs
Edge Type Edge Flex Segmented Edge Flex Segmented Edge Flex Segmented
Float System Lateral & Floating Hinge Lateral & Floating Hinge Lateral & Floating Hinge
Edge Flex Advantage Better Ground Contour & Reduced Vibration Cleaner Snow Scraping Less Blade Damage
Compatible Equipment Wheel Loaders, Compact Wheel Loaders, Tractors Wheel Loaders, Compact Wheel Loaders, Tractors Wheel Loaders, Compact Wheel Loaders, Tractors



Specification SB6000EF16LF SB6000EF18LF SB6000EF20LF
Blade Width 16 ft 18 ft 20 ft
Approximate Weight 3,685 lbs 3,990 lbs 4,345 lbs
Mount Type Frame/Mount Sold Separately Frame/Mount Sold Separately Frame/Mount Sold Separately
Maximum Operating Weight 60,000 lbs 60,000 lbs 60,000 lbs
Edge Type Edge Flex Segmented Edge Flex Segmented Edge Flex Segmented
Float System Lateral & Floating Hinge Lateral & Floating Hinge Lateral & Floating Hinge
Edge Flex Advantage Better Performance on Uneven Terrain Ideal for Urban Snow Management Premium Control for Pro Operators
Compatible Equipment Wheel Loaders, Compact Wheel Loaders, Tractors Wheel Loaders, Compact Wheel Loaders, Tractors Wheel Loaders, Compact Wheel Loaders, Tractors



Manuals & Documents

LOADER MOUNTS

HLA EDGE FLEX BROCHURE

General Warranty Info:

  • Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
  • The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
  • Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
  • Please reach out to us for any specific warranty information neededabout products and parts you can’t find!
