Product Description
HLA Attachment Snow Blade Less Frame | Model 5000 Series | 9'-18' Multiple Width | For Tractor
DESCRIPTION

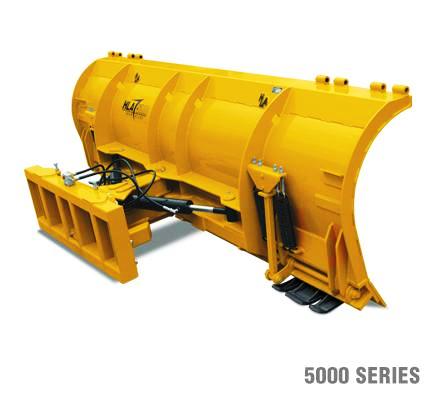

The HLA 5000 Series Snow Blade and Edge Flex Series Snow Blade are engineered to take on the toughest snow removal jobs in commercial, municipal, and agricultural settings. Whether you’re clearing long rural drives, busy parking lots, or urban streets, this lineup provides superior versatility in sizes ranging from 9 to 18 feet wide.
Each blade is built for reliability, featuring hydraulic angling, spring trip cutting edges, and adjustable skid shoes. The Edge Flex models go even further with advanced floating blade sections that contour to uneven terrain for a cleaner scrape with reduced surface damage. With compatibility across leading loader brands John Deere, Caterpillar, Kubota, Westendorf, Volvo, and more this series offers unmatched flexibility.
Key Features
- Widths from 9 to 18 Feet Choose the perfect snow blade size to match your job requirements and equipment.
- 35° Hydraulic Angle (Left/Right) Dual-cylinder system allows precise snow displacement and directional control.
- Spring Trip Cutting Edge Absorbs impacts from hidden obstacles, protecting both the blade and machine.
- 42" Moldboard Height High-profile moldboard optimizes snow rolling and visibility.
- Lateral Float System Enables blade to follow contours of uneven ground for consistent results.
- Edge Flex Blade Technology (Select Models) Segmented cutting edge for superior surface contact and reduced blade bounce.
- Adjustable Skid Shoes Customize blade clearance for gravel, concrete, asphalt, and varied terrains.
- Cross-Over Relief Valve Protection Guards hydraulics from shock loads and pressure surges.
- Frame/Mount Required Compatible with a wide variety of quick attach loader mounts (sold separately).
- Rated for 90 200 HP Equipment Built tough for large tractors, loaders, and skid steers with up to 40,000 lbs operating weight.
Detailed Specifications
HLA 5000 Series Snow Blades
| Specification | SB500009LF | SB500010LF | SB500012LF |
|---|---|---|---|
| Series | 5000 Series | 5000 Series | 5000 Series |
| Part Number | SB500009LF | SB500010LF | SB500012LF |
| Blade Width | 9 ft | 10 ft | 12 ft |
| Moldboard Height | 42 in | 42 in | 42 in |
| Blade Type | Straight | Straight | Straight |
| Edge Type | Spring Trip Steel Edge | Spring Trip Steel Edge | Spring Trip Steel Edge |
| Blade Angle (Hydraulic) | 35° Left/Right | 35° Left/Right | 35° Left/Right |
| Float Function | Lateral Float | Lateral Float | Lateral Float |
| Skid Shoes | Adjustable | Adjustable | Adjustable |
| Relief Valve Protection | Yes (Crossover) | Yes (Crossover) | Yes (Crossover) |
| Mount Compatibility | Sold Separately | Sold Separately | Sold Separately |
| Weight (Approx.) | 2,110 lbs | 2,215 lbs | 2,480 lbs |
| Recommended HP Range | 90–200 HP | 90–200 HP | 90–200 HP |
| Max Operating Weight | 40,000 lbs | 40,000 lbs | 40,000 lbs |
| Ideal Use | Commercial, Agricultural, Municipal | Commercial, Agricultural, Municipal | Commercial, Agricultural, Municipal |
| Specification | SB500014LF | SB500016LF | SB500018LF |
|---|---|---|---|
| Series | 5000 Series | 5000 Series | 5000 Series |
| Part Number | SB500014LF | SB500016LF | SB500018LF |
| Blade Width | 14 ft | 16 ft | 18 ft |
| Moldboard Height | 42 in | 42 in | 42 in |
| Blade Type | Straight | Straight | Straight |
| Edge Type | Spring Trip Steel Edge | Spring Trip Steel Edge | Spring Trip Steel Edge |
| Blade Angle (Hydraulic) | 35° Left/Right | 35° Left/Right | 35° Left/Right |
| Float Function | Lateral Float | Lateral Float | Lateral Float |
| Skid Shoes | Adjustable | Adjustable | Adjustable |
| Relief Valve Protection | Yes (Crossover) | Yes (Crossover) | Yes (Crossover) |
| Mount Compatibility | Sold Separately | Sold Separately | Sold Separately |
| Weight (Approx.) | 2,760 lbs | 3,070 lbs | 3,365 lbs |
| Recommended HP Range | 90–200 HP | 90–200 HP | 90–200 HP |
| Max Operating Weight | 40,000 lbs | 40,000 lbs | 40,000 lbs |
| Ideal Use | Commercial, Agricultural, Municipal | Commercial, Agricultural, Municipal | Commercial, Agricultural, Municipal |
HLA Edge Flex Snow Blades
| Specification | SB5000EF09LF | SB5000EF10LF | SB5000EF12LF |
|---|---|---|---|
| Series | Edge Flex | Edge Flex | Edge Flex |
| Part Number | SB5000EF09LF | SB5000EF10LF | SB5000EF12LF |
| Blade Width | 9 ft | 10 ft | 12 ft |
| Moldboard Height | 42 in | 42 in | 42 in |
| Blade Type | Edge Flex | Edge Flex | Edge Flex |
| Edge Type | Segmented Poly Cutting Edge | Segmented Poly Cutting Edge | Segmented Poly Cutting Edge |
| Blade Angle (Hydraulic) | 35° Left/Right | 35° Left/Right | 35° Left/Right |
| Float Function | Lateral Float | Lateral Float | Lateral Float |
| Skid Shoes | Adjustable | Adjustable | Adjustable |
| Relief Valve Protection | Yes (Crossover) | Yes (Crossover) | Yes (Crossover) |
| Mount Compatibility | Sold Separately | Sold Separately | Sold Separately |
| Weight (Approx.) | 2,010 lbs | 2,115 lbs | 2,380 lbs |
| Recommended HP Range | 90–200 HP | 90–200 HP | 90–200 HP |
| Max Operating Weight | 40,000 lbs | 40,000 lbs | 40,000 lbs |
| Ideal Use | High-precision snow removal, Commercial, Urban | High-precision snow removal, Commercial, Urban | High-precision snow removal, Commercial, Urban |
| Specification | SB5000EF14LF | SB5000EF16LF | SB5000EF18LF |
|---|---|---|---|
| Series | Edge Flex | Edge Flex | Edge Flex |
| Part Number | SB5000EF14LF | SB5000EF16LF | SB5000EF18LF |
| Blade Width | 14 ft | 16 ft | 18 ft |
| Moldboard Height | 42 in | 42 in | 42 in |
| Blade Type | Edge Flex | Edge Flex | Edge Flex |
| Edge Type | Segmented Poly Cutting Edge | Segmented Poly Cutting Edge | Segmented Poly Cutting Edge |
| Blade Angle (Hydraulic) | 35° Left/Right | 35° Left/Right | 35° Left/Right |
| Float Function | Lateral Float | Lateral Float | Lateral Float |
| Skid Shoes | Adjustable | Adjustable | Adjustable |
| Relief Valve Protection | Yes (Crossover) | Yes (Crossover) | Yes (Crossover) |
| Mount Compatibility | Sold Separately | Sold Separately | Sold Separately |
| Weight (Approx.) | 2,660 lbs | 2,970 lbs | 3,265 lbs |
| Recommended HP Range | 90–200 HP | 90–200 HP | 90–200 HP |
| Max Operating Weight | 40,000 lbs | 40,000 lbs | 40,000 lbs |
| Ideal Use | High-precision snow removal, Commercial, Urban | High-precision snow removal, Commercial, Urban | High-precision snow removal, Commercial, Urban |
Manuals & Documents
SB5000 MANUAL
LOADER MOUNTS
HLA EDGE FLEX BROCHURE
HLA SNOW BROCHURE
