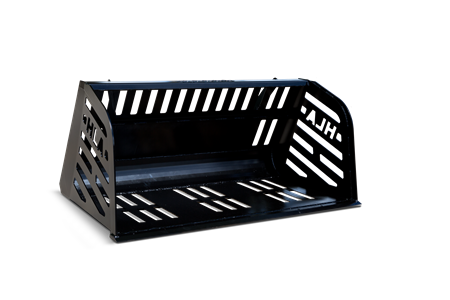

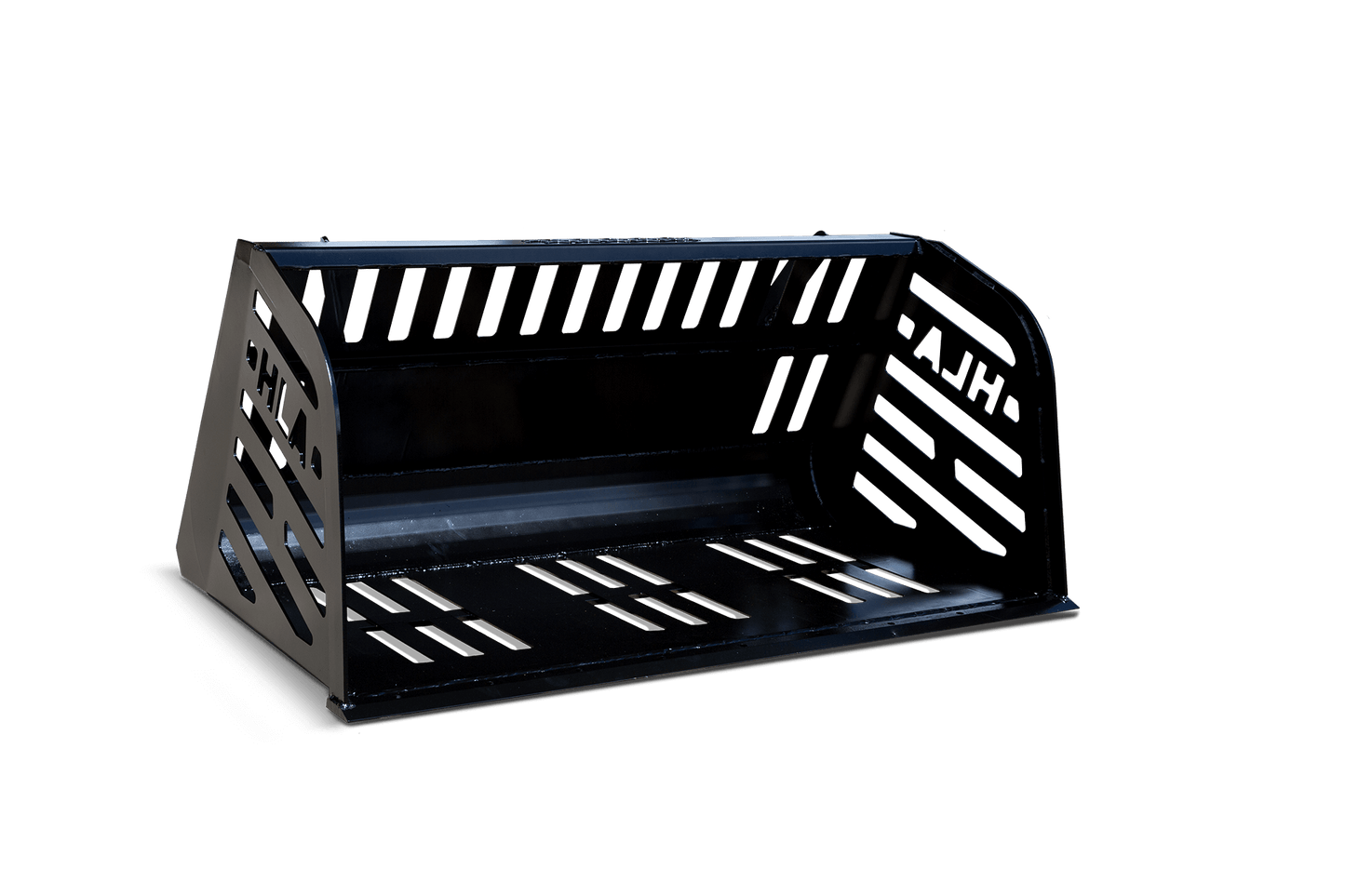

HLA Attachments | High Volume Skid Steer Snow Basket | Models SBSB Series | Widths 60" To 120" | Capacity Up To 64.2 cu.ft. | Horsepower 65-120 HP | For Tractor
DESCRIPTION
The HLA High Volume Skid Steer Snow Basket Series is engineered to make winter cleanup faster, cleaner, and more efficient. With models ranging from 60 inches to 120 inches wide, this line of heavy-duty snow baskets offers serious capacity moving up to 64.2 cu.ft. of snow in a single scoop.
Whether you're maintaining commercial properties, large municipal lots, or rural roads, these baskets are built for maximum efficiency and operator comfort. Each unit features a universal skid steer quick attach mount for fast setup and solid connectivity, letting you get to work without delays.
With a 39" deep profile, tall rounded endplates, and tapered sides for easy discharge, this snow bucket series is ideal for high-volume snow hauling. Its design also ensures excellent operator visibility, even when fully loaded, making it the go-to solution for professionals who need power and precision in extreme winter conditions.
Key Features
- Universal Skid Steer Quick Attach Mount Compatible with most skid steers; connect and go in seconds.
- Extra-Large Heaped Capacities Move up to 64.2 cu.ft. of snow with the 120" model.
- Deep 39" Profile Holds more snow per pass, reducing downtime and increasing productivity.
- Tapered Endplates Promotes cleaner dumps and efficient snow discharge with less sticking.
- Horsepower Range: 65–120 HP Compatible with mid- to high-power skid steers and tractors—ensures optimal performance across fleet sizes.
- Tall Rounded Sidewalls Maximizes loading without spilling while improving structural strength.
- Optimized Visibility 32" basket height maintains a clear line of sight for better control and safety.
- Heavy-Duty Steel Build Engineered for rugged environments, including commercial, municipal, and agricultural applications.
- Model Options for Every Job From tight urban lots to wide open industrial zones.
Detailed Specifications
Specification | High Volume Skid Steer Snow Basket SBSB60 | High Volume Skid Steer Snow Basket SBSB66 | High Volume Skid Steer Snow Basket SBSB72 |
---|---|---|---|
Part # | SBSB60-BO500 | SBSB66-BO500 | SBSB72-BO500 |
Width | 60" | 66" | 72" |
Struck Capacity | 23.7 cu.ft. | 25.5 cu.ft. | 27.5 cu.ft. |
Heaped Capacity | 28.4 cu.ft. | 30.9 cu.ft. | 33.6 cu.ft. |
Height | 32" | 32" | 32" |
Depth | 39" | 39" | 39" |
Approx. Weight | 575 lbs | 605 lbs | 635 lbs |
Compatible Bolt-On Edge Options | 62" Double/Single Bevel | 68" Single Bevel | 74" Single Bevel |
Specification | High Volume Skid Steer Snow Basket SBSB78 | High Volume Skid Steer Snow Basket SBSB84 | High Volume Skid Steer Snow Basket SBSB90 |
---|---|---|---|
Part # | SBSB78-BO500 | SBSB84-BO500 | SBSB90-BO500 |
Width | 78" | 84" | 90" |
Struck Capacity | 29.6 cu.ft. | 31.8 cu.ft. | 34.5 cu.ft. |
Heaped Capacity | 36.6 cu.ft. | 39.5 cu.ft. | 43.3 cu.ft. |
Height | 32" | 32" | 32" |
Depth | 39" | 39" | 39" |
Approx. Weight | 670 lbs | 705 lbs | 750 lbs |
Compatible Bolt-On Edge Options | 80" Single Bevel | 86" Single Bevel | 92" Single Bevel |
Specification | High Volume Skid Steer Snow Basket SBSB96 | High Volume Skid Steer Snow Basket SBSB108 | High Volume Skid Steer Snow Basket SBSB120 |
---|---|---|---|
Part # | SBSB96-BO500 | SBSB108-BO500 | SBSB120-BO500 |
Width | 96" | 108" | 120" |
Struck Capacity | 36.8 cu.ft. | 42.5 cu.ft. | 49.2 cu.ft. |
Heaped Capacity | 46.4 cu.ft. | 54.6 cu.ft. | 64.2 cu.ft. |
Height | 32" | 32" | 32" |
Depth | 39" | 39" | 39" |
Approx. Weight | 785 lbs | 870 lbs | 970 lbs |
Compatible Bolt-On Edge Options | 98" Single Bevel | 110" Single Bevel | 122" Single Bevel |
