HLA Attachment Snow Blade Less Frame | Model 4000 Series | 9'-14' Multiple Width | 60-125 HP | For Tractor
HLA Attachment Snow Blade Less Frame | Model 4000 Series | 9'-14' Multiple Width | 60-125 HP | For Tractor
Regular price
$8,038.00
Regular price
Sale price
$8,038.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description

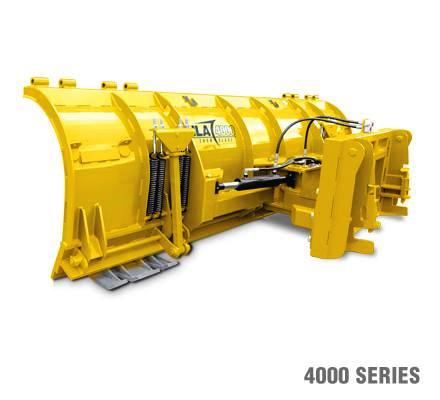

HLA Attachment Snow Blade Less Frame | Model 4000 Series | 9'-14' Multiple Width | 60-125 HP | For Tractor
DESCRIPTION
When snow piles up fast, the HLA 4000 Series Snow Blade powers through with industrial strength and precision. Built for loaders and tractors ranging from 60 to 125 horsepower, this premium-grade snow plow offers unmatched performance across large lots, roadways, farms, and commercial properties.
Available in both standard spring-trip cutting edge and Edge Flex articulating edge models, the 4000 Series features a massive 34-inch high moldboard, dual hydraulic cylinders for 35° angling, and lateral float for perfect ground contouring. Whether you're clearing heavy drifted snow or icy build-up, this blade is designed to handle operating weights up to 25,000 lbs without flinching.
Designed for customization, the HLA 4000 Series supports a variety of loader mounts and includes optional hose kits and wiring harnesses for plug-and-play installation. From municipalities to snow removal contractors, this blade delivers season after season of relentless, professional-grade performance.
Key Features
- Massive Snow Clearing Widths Available in 9, 10, 12, and 14 ft sizes for wide, efficient snow displacement.
- Edge Flex Technology (Optional) Independently articulating edge segments conform to the ground for reduced salt use and better scrape quality.
- 34" High Moldboard Handles deep drifts and heavy snowfall effortlessly.
- 35° Hydraulic Angling Two heavy-duty cylinders for smooth left/right pivoting; includes cross-over relief protection.
- Spring Trip Steel Cutting Edge Reduces shock load on equipment from hidden curbs and obstructions.
- Adjustable Skid Shoes Keeps blade level and protects surfaces from damage.
- Lateral Float Automatically adjusts to ground variations for optimal snow contact.
- Compatible with Most Loaders Customizable mount options for skid steers, wheel loaders, ag tractors, and more.
Detailed Specifications
Snow Blade Less Frame Standard Models
| Specification | 9 ft (Standard)SB400009LF | 10 ft (Standard)SB400010LF |
|---|---|---|
| Blade Width | 108 in | 120 in |
| Moldboard Height | 34 in | 34 in |
| Blade Edge Type | Spring Trip | Spring Trip |
| Hydraulic Angle (L/R) | 35° | 35° |
| Lateral Float | Yes | Yes |
| Skid Shoes | Adjustable | Adjustable |
| Tractor HP Rating | 60–125 HP | 60–125 HP |
| Max Machine Op. Weight | 25,000 lbs | 25,000 lbs |
| Approx. Weight | 1665 lbs | 1765 lbs |
| Mount Required | Yes | Yes |
| Hydraulics Required | Yes | Yes |
| Edge Flex Option | No | No |
| Specification | 12 ft (Standard)SB400012LF | 14 ft (Standard)SB400014LF |
|---|---|---|
| Blade Width | 144 in | 168 in |
| Moldboard Height | 34 in | 34 in |
| Blade Edge Type | Spring Trip | Spring Trip |
| Hydraulic Angle (L/R) | 35° | 35° |
| Lateral Float | Yes | Yes |
| Skid Shoes | Adjustable | Adjustable |
| Tractor HP Rating | 60–125 HP | 60–125 HP |
| Max Machine Op. Weight | 25,000 lbs | 25,000 lbs |
| Approx. Weight | 1955 lbs | 2235 lbs |
| Mount Required | Yes | Yes |
| Hydraulics Required | Yes | Yes |
| Edge Flex Option | No | No |
Snow Blade Edge Flex Less Frame
| Specification | 9 ft (Edge Flex)SB4000EF09LF | 10 ft (Edge Flex)SB4000EF10LF |
| Blade Width | 108 in | 120 in |
| Moldboard Height | 34 in | 34 in |
| Blade Edge Type | Edge Flex | Edge Flex |
| Hydraulic Angle (L/R) | 35° | 35° |
| Lateral Float | Yes | Yes |
| Skid Shoes | Adjustable | Adjustable |
| Tractor HP Rating | 60–125 HP | 60–125 HP |
| Max Machine Op. Weight | 25,000 lbs | 25,000 lbs |
| Approx. Weight | 1565 lbs | 1665 lbs |
| Mount Required | Yes | Yes |
| Hydraulics Required | Yes | Yes |
| Edge Flex Option | Yes | Yes |
| Specification | 12 ft (Edge Flex)SB4000EF12LF | 14 ft (Edge Flex)SB4000EF14LF |
| Blade Width | 144 in | 168 in |
| Moldboard Height | 34 in | 34 in |
| Blade Edge Type | Edge Flex | Edge Flex |
| Hydraulic Angle (L/R) | 35° | 35° |
| Lateral Float | Yes | Yes |
| Skid Shoes | Adjustable | Adjustable |
| Tractor HP Rating | 60–125 HP | 60–125 HP |
| Max Machine Op. Weight | 25,000 lbs | 25,000 lbs |
| Approx. Weight | 1855 lbs | 2135 lbs |
| Mount Required | Yes | Yes |
| Hydraulics Required | Yes | Yes |
| Edge Flex Option | Yes | Yes |
Manuals & Documents
SB4000 MANUAL
LOADER MOUNTS
HLA EDGE FLEX BROCHURE
HLA SNOW BROCHURE
