HLA Attachment Snow Wing (Edge Flex) Less Frame | Model 5205 Series | 9'-16' Multiple Width | 110-200 HP | For Tractors

HLA Attachment Snow Wing (Edge Flex) Less Frame | Model 5205 Series | 9'-16' Multiple Width | 110-200 HP | For Tractors

$29,221.00
$29,221.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Variable Widths: Choose from models ranging from 9 ft. to 16 ft. closed, expanding to 26 ft. for maximum snow coverage.
  • Hydraulic Wing Angling: Angles up to 35 degrees left or right for precise snow control, with built-in cross-over relief protection.
  • Durable Moldboard and Wing Construction: 42" high moldboard and wings built for demanding applications, featuring a spring trip cutting edge.
  • Versatile Mounting Options: Compatible with popular tractor models, with multiple frame and mount kits available.
  • High Capacity: Supports tractors and loaders up to 40,000 lbs and 110-200 HP.
View full details

Product Description

HLA Attachment Snow Wing (Edge Flex) Less Frame | Model 5205 Series | 9'-16' Multiple Width | 110-200 HP | For Tractors

DESCRIPTION

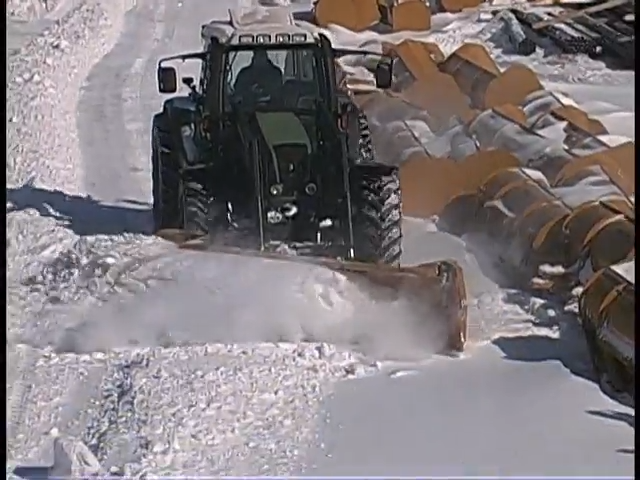

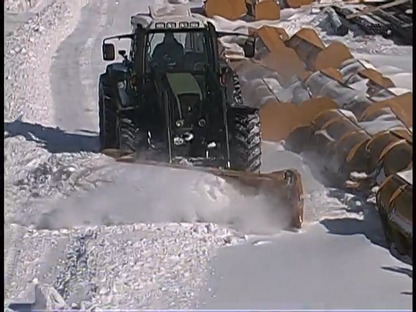

The HLA 5205 Series Snow Wing (Edge Flex) is designed for powerful and versatile snow clearing. Available in widths from 9 ft. to 16 ft. when closed, extending up to 26 ft. when fully open, it’s ideal for heavy-duty applications. The wings operate independently, adjusting from 0 to 180 degrees for customized control. Featuring a durable 42" high moldboard and 42" deep wings with a spring trip cutting edge, this snow wing supports tractors and loaders up to 40,000 lbs and 110-200 hp.

Equipped with two cylinders for angling 35 degrees left or right and cross-over relief for added protection, this snow wing is built to handle demanding conditions. Mount selection is required and includes options for popular tractor and loader models.

Key Features

  • Adjustable Widths: Models available from 9 ft. to 16 ft. closed, extending to 26 ft. for greater snow coverage.
  • Hydraulic Angling: Two cylinders for angling wings 35 degrees right or left with cross-over relief protection.
  • Heavy-Duty Moldboard: 42" high moldboard with a spring trip cutting edge for effective snow handling.

9 FT. / 19 FT. 5205 SNOW WING (EDGE FLEX) LESS FRAME/MOUNT

  • FRAME/MOUNT SELECTION IS REQUIRED - see options
  • 9' width closed, 19' width open, wings operate independently from 0 to 180 degrees for maximum versatility
  • Two cylinders for hydraulic angling 35 degrees right or left, with cross-over relief protection and lateral float
  • 42" high moldboard and wings with reversible spring trip cutting edge
  • Rated for 110 - 200 hp and 40,000# maximum operating weight
  • Weight approx. 3680#
  • Maximum Operating Weight 40,000 lbs

10 FT. / 20 FT. 5205 SNOW WING (EDGE FLEX) LESS FRAME/MOUNT

  • FRAME/MOUNT SELECTION IS REQUIRED - see options
  • 10' width closed, 20' width open, wings operate independently from 0 to 180 degrees for maximum versatility
  • Two cylinders for hydraulic angling 35 degrees right or left, with cross-over relief protection and lateral float
  • 42" high moldboard and wings with reversible spring trip cutting edge
  • Rated for 110 - 200 hp and 40,000# maximum operating weight
  • Weight approx. 3810#
  • Maximum Operating Weight 40,000 lbs

12 FT. / 22 FT. 5205 SNOW WING (EDGE FLEX) LESS FRAME/MOUNT

  • FRAME/MOUNT SELECTION IS REQUIRED - see options
  • 12' width closed, 22' width open, wings operate independently from 0 to 180 degrees for maximum versatility
  • Two cylinders for hydraulic angling 35 degrees right or left, with cross-over relief protection and lateral float
  • 42" high moldboard and wings with reversible spring trip cutting edge
  • Rated for 110 - 200 hp and 40,000# maximum operating weight
  • Weight approx. 4075#
  • Maximum Operating Weight 40,000 lbs

14 FT. / 24 FT. 5205 SNOW WING (EDGE FLEX) LESS FRAME/MOUNT

  • FRAME/MOUNT SELECTION IS REQUIRED - see options
  • 14' width closed, 24' width open, wings operate independently from 0 to 180 degrees for maximum versatility
  • Two cylinders for hydraulic angling 35 degrees right or left, with cross-over relief protection and lateral float
  • 42" high moldboard and wings with reversible spring trip cutting edge
  • Rated for 110 - 200 hp and 40,000# maximum operating weight
  • Weight approx. 4365#
  • Maximum Operating Weight 40,000 lbs

16 FT. / 26 FT. 5205 SNOW WING (EDGE FLEX) LESS FRAME/MOUNT

  • FRAME/MOUNT SELECTION IS REQUIRED - see options
  • 16' width closed, 26' width open, wings operate independently from 0 to 180 degrees for maximum versatility
  • Two cylinders for hydraulic angling 35 degrees right or left, with cross-over relief protection and lateral float
  • 42" high moldboard and wings with reversible spring trip cutting edge
  • Rated for 110 - 200 hp and 40,000# maximum operating weight
  • Weight approx. 4685#
  • Maximum Operating Weight 40,000 lbs

Detailed Specifications

Specification 9 FT. / 19 FT. 10 FT. / 20 FT. 12 FT. / 22 FT.
Part #: SB5205WEF919LF SB5205WEF1020LF SB5205WEF1222LF
Closed Width 9 ft 10 ft 12 ft
Open Width 19 ft 20 ft 22 ft
Wing Operation 0° to 180° (independent operation) 0° to 180° (independent operation) 0° to 180° (independent operation)
Hydraulic Angling 35° (right/left) 35° (right/left) 35° (right/left)
Moldboard Height 42 in 42 in 42 in
Loader Rating 110-200 hp, 40,000# 110-200 hp, 40,000# 110-200 hp, 40,000#
Weight (Approx.) 3,680 lbs 3,810 lbs 4,075 lbs
Max Operating Weight 40,000 lbs 40,000 lbs 40,000 lbs



Specification 14 FT. / 24 FT. 16 FT. / 26 FT.
Part #: SB5205WEF1424LF SB5205WEF1626LF
Closed Width 14 ft 16 ft
Open Width 24 ft 26 ft
Wing Operation 0° to 180° (independent operation) 0° to 180° (independent operation)
Hydraulic Angling 35° (right/left) 35° (right/left)
Moldboard Height 42 in 42 in
Loader Rating 110-200 hp, 40,000# 110-200 hp, 40,000#
Weight (Approx.) 4,365 lbs 4,685 lbs
Max Operating Weight 40,000 lbs 40,000 lbs
