Product Description

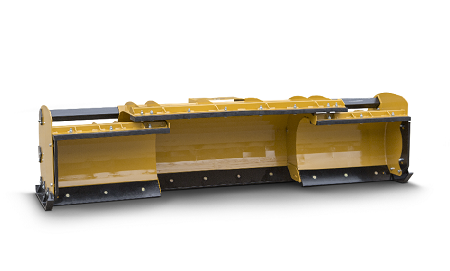

HLA Attachments | Expandable Snow Pusher | Model 3500X Series | Width 6'/10' To 8'/12' | Horsepower 50-100 HP | For Tractor
DESCRIPTION
Clear your snow challenges with unmatched efficiency and control using the Expandable 3500X Series Snow Pusher by HLA Attachments. Designed with versatility in mind, this snow pusher adapts seamlessly to your needs with adjustable widths ranging from 6 to 12 feet across its models perfect for loaders and skidsteers.
Whether you're tackling residential driveways or commercial parking lots, the 3500X delivers reliable, powerful snow removal with built-in trip protection and adjustable compression springs to safeguard the cutting edge. The bolt-on frame with multiple angle settings lets you customize your blade angle for precise snow pushing in any situation.
Its innovative back drag system and flow divider valve ensure smooth operation and uniform wear, while the fixed side skid shoes keep the blade level for consistent results. Lightweight yet durable, this snow pusher is rated for maximum operating weights up to 15,000 lbs, making it a dependable partner through every winter season.
Experience greater productivity, durability, and flexibility with the Expandable 3500X Series Snow Pusher your ultimate solution for effective snow management.
Key Features
- Expandable Width: Adjust working width easily between 6' to 12' depending on model, with independent control of left and right moldboard extensions for precise snow clearing.
- Horsepower Range: 50–100 HP Designed for compact and utility tractors—ideal for farms, acreages, and municipal snow removal.
- Trip Protection: Cutting edge equipped with adjustable compression springs to protect against impacts and extend durability.
- Multi-Angle Bolt-On Frame: Choose from three angle settings (90°, +10°, -10°) for optimized blade positioning and maneuverability.
- Durable Skid Shoes: Fixed side skid shoes maintain blade level and promote even wear on cutting edges, enhancing lifespan.
- Built-in Back Drag System: Efficiently redistributes snow for smooth, consistent clearing without excess buildup.
- Flow Divider Valve Included: Ensures even hydraulic flow and control for safer, smoother operation.
- Lightweight Design: Weighs between 1,355 to 1,520 lbs, minimizing added load on your equipment while delivering powerful performance.
- High Capacity: Rated for maximum operating weight up to 15,000 lbs, compatible with a variety of loaders and skidsteers.
- Wide Mount Compatibility: Supports multiple loader mounts including Euro style, Skidsteer universal, John Deere, Kubota, Bush Hog, Westendorf, and more.
Detailed Specifications
| Specification | SP3500X610LF (6'-10') | SP3500X711LF (7'-11') | SP3500X812LF (8'-12') |
|---|---|---|---|
| Model | SP3500X610LF | SP3500X711LF | SP3500X812LF |
| Working Width | 6 ft. to 10 ft. | 7 ft. to 11 ft. | 8 ft. to 12 ft. |
| Cutting Edge | Trip protected, adjustable compression springs | Trip protected, adjustable compression springs | Trip protected, adjustable compression springs |
| Frame Angle Settings | Bolt-on frame, 90°, ±10° | Bolt-on frame, 90°, ±10° | Bolt-on frame, 90°, ±10° |
| Skid Shoes | Fixed side skid shoes | Fixed side skid shoes | Fixed side skid shoes |
| Back Drag System | Built-in | Built-in | Built-in |
| Flow Divider Valve | Included | Included | Included |
| Weight (Approx.) | 1,355 lbs | 1,435 lbs | 1,520 lbs |
| Max Operating Weight | 15,000 lbs | 15,000 lbs | 15,000 lbs |
| Compatible Mounts | Euro style, Skidsteer, John Deere, Kubota, Bush Hog, Westendorf, etc. | Euro style, Skidsteer, John Deere, Kubota, Bush Hog, Westendorf, etc. | Euro style, Skidsteer, John Deere, Kubota, Bush Hog, Westendorf, etc. |
