Product Description
HLA Attachments 3600 Series Six-Way Blade | Width 54" to 84" Inches | Mouldboard Height 30" inches | For Tractor
DESCRIPTION

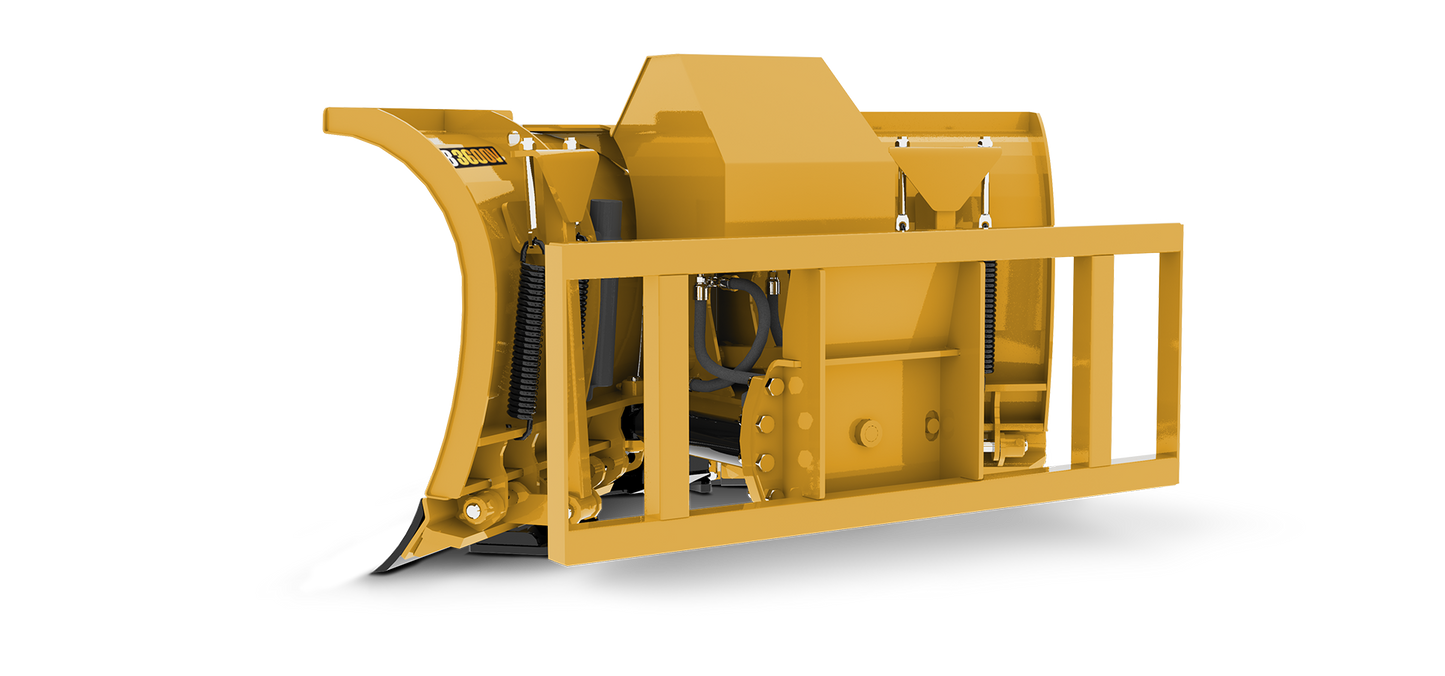

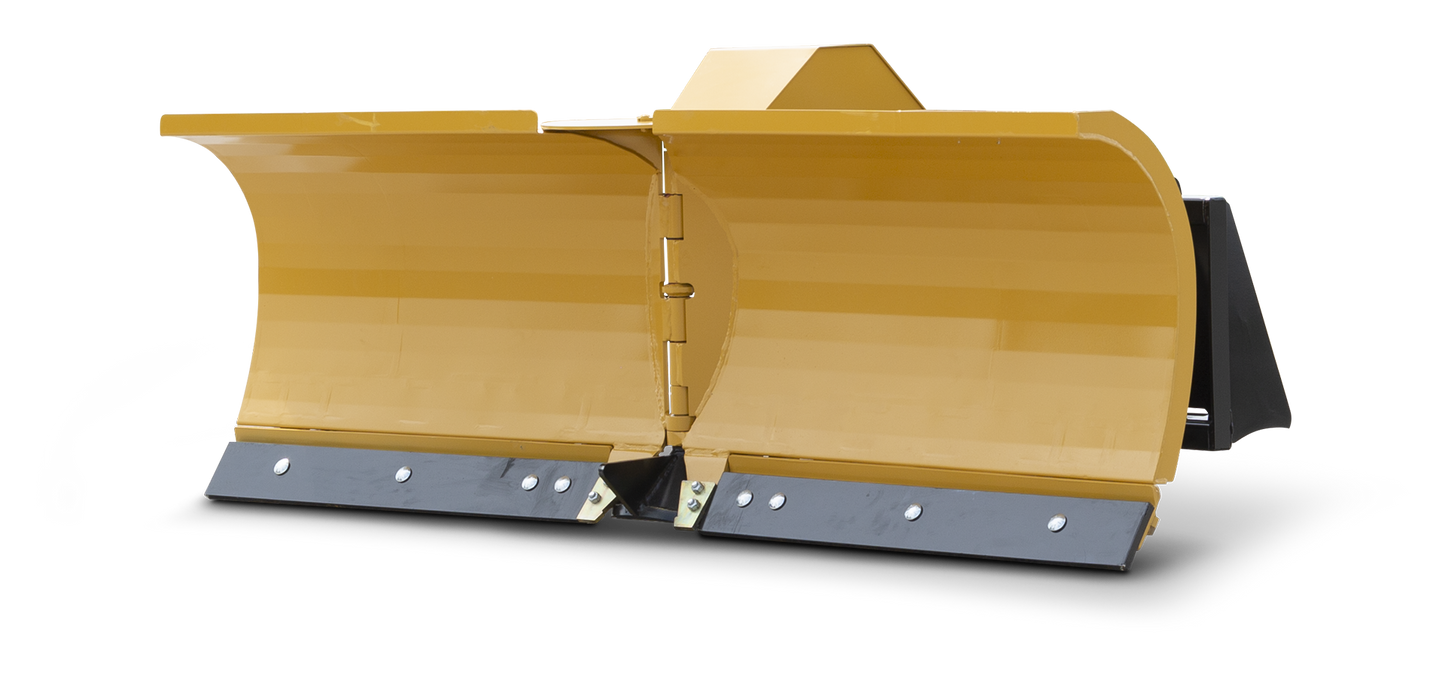

Engineered for precision and durability, the Stout SB3600V Series 6-Way Snow Blades deliver professional-grade snow removal for skid steers and compact loaders. Available in versatile widths ranging from 54" to 84", these blades feature full hydraulic control for angling up to 35 degrees left or right, plus V forward or rear positions giving you unmatched flexibility in tough winter conditions. The 30-inch high moldboard with lateral float adapts to uneven terrain while the reversible AR400 steel cutting edge with spring trip ensures long-lasting wear resistance and safety. Ideal for sidewalks, small roads, parking lots, and commercial sites, these snow blades provide reliable and efficient snow clearing performance in any setting.
Key Features
- 6-Way Hydraulic Control Tilt, angle, lift, and V-position capabilities for versatile snow management.
- Durable AR400 Steel Cutting Edge Reversible with spring trip to protect against impact and extend service life.
- High Moldboard Design 30" tall blade height with lateral float for smooth operation over uneven surfaces.
- Skid Shoes Included Protects moldboard and maintains blade height on rough terrain.
- Universal Mount Compatibility Mounts sold separately to fit a wide range of skid steer and compact loader models.
- Robust Build Engineered for up to 10,000 lbs operating weight for heavy-duty use.
- Hydraulic Selector & Relief Valves Included for system safety and precise blade control.
Detailed Specifications
Specification | SB3600V54 | SB3600V60 | SB3600V66 |
---|---|---|---|
Part Number | SB3600V54 | SB3600V60 | SB3600V66 |
Blade Width | 54" | 60" | 66" |
Moldboard Height | 30" | 30" | 30" |
Approximate Weight | 695 lbs | 720 lbs | 740 lbs |
Max Operating Weight | 10,000 lbs | 10,000 lbs | 10,000 lbs |
Hydraulic Control | 6-Way (35° Angling, V-Position) | 6-Way (35° Angling, V-Position) | 6-Way (35° Angling, V-Position) |
Cutting Edge | Reversible AR400 Steel with Spring Trip | Reversible AR400 Steel with Spring Trip | Reversible AR400 Steel with Spring Trip |
Skid Shoes | Included | Included | Included |
Mount Compatibility | Mount Sold Separately | Mount Sold Separately | Mount Sold Separately |
Specification | SB3600V72 | SB3600V78 | SB3600V84 |
---|---|---|---|
Part Number | SB3600V72 | SB3600V78 | SB3600V84 |
Blade Width | 72" | 78" | 84" |
Moldboard Height | 30" | 30" | 30" |
Approximate Weight | 765 lbs | 785 lbs | 805 lbs |
Max Operating Weight | 10,000 lbs | 10,000 lbs | 10,000 lbs |
Hydraulic Control | 6-Way (35° Angling, V-Position) | 6-Way (35° Angling, V-Position) | 6-Way (35° Angling, V-Position) |
Cutting Edge | Reversible AR400 Steel with Spring Trip | Reversible AR400 Steel with Spring Trip | Reversible AR400 Steel with Spring Trip |
Skid Shoes | Included | Included | Included |
Mount Compatibility | Mount Sold Separately | Mount Sold Separately | Mount Sold Separately |
Manuals & Documents
SB3600V MANUAL
LOADER MOUNTS
HLA SNOW BROCHURE
