HLA Attachments

HLA Attachments | Bale Knife (Less Frame) | Models BK48LF, BK60LF & BK72LF | Bale Diameter 48" To 72" | Hydraulic Clamp | For Tractor

HLA Attachments | Bale Knife (Less Frame) | Models BK48LF, BK60LF & BK72LF | Bale Diameter 48" To 72" | Hydraulic Clamp | For Tractor

$9,711.00
$9,711.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Available Sizes: 72", 60", and 48" models to handle bales of varying diameters.
  • Bolt-On Kit Included: Each model comes with the BOKBF Bolt-On Kit; mount selection is required.
  • Efficient Slicing Mechanism: Cuts through plastic and net wrap with ease, retaining material securely.
  • Top Clamp Control: Prevents plastic from dropping into the mixer with secure top clamping.
  • High-Quality Steel Tines: Equipped with Kverneland forged steel tines for enhanced durability.
View full details

Product Description

HLA Attachments | Bale Knife (Less Frame) | Models BK48LF, BK60LF & BK72LF | Bale Diameter 48" To 72" | Hydraulic Clamp | For Tractor

DESCRIPTION

Take complete control of your bale feeding operation with the HLA Bale Knife Models BK48LF, BK60LF & BK72LF. Whether you're managing round bales up to 72" in diameter or preparing feed in cold, wet conditions, this heavy-duty bale slicer is engineered to cut through dense bales cleanly, efficiently, and safely without the need to manually remove net wrap or plastic film.

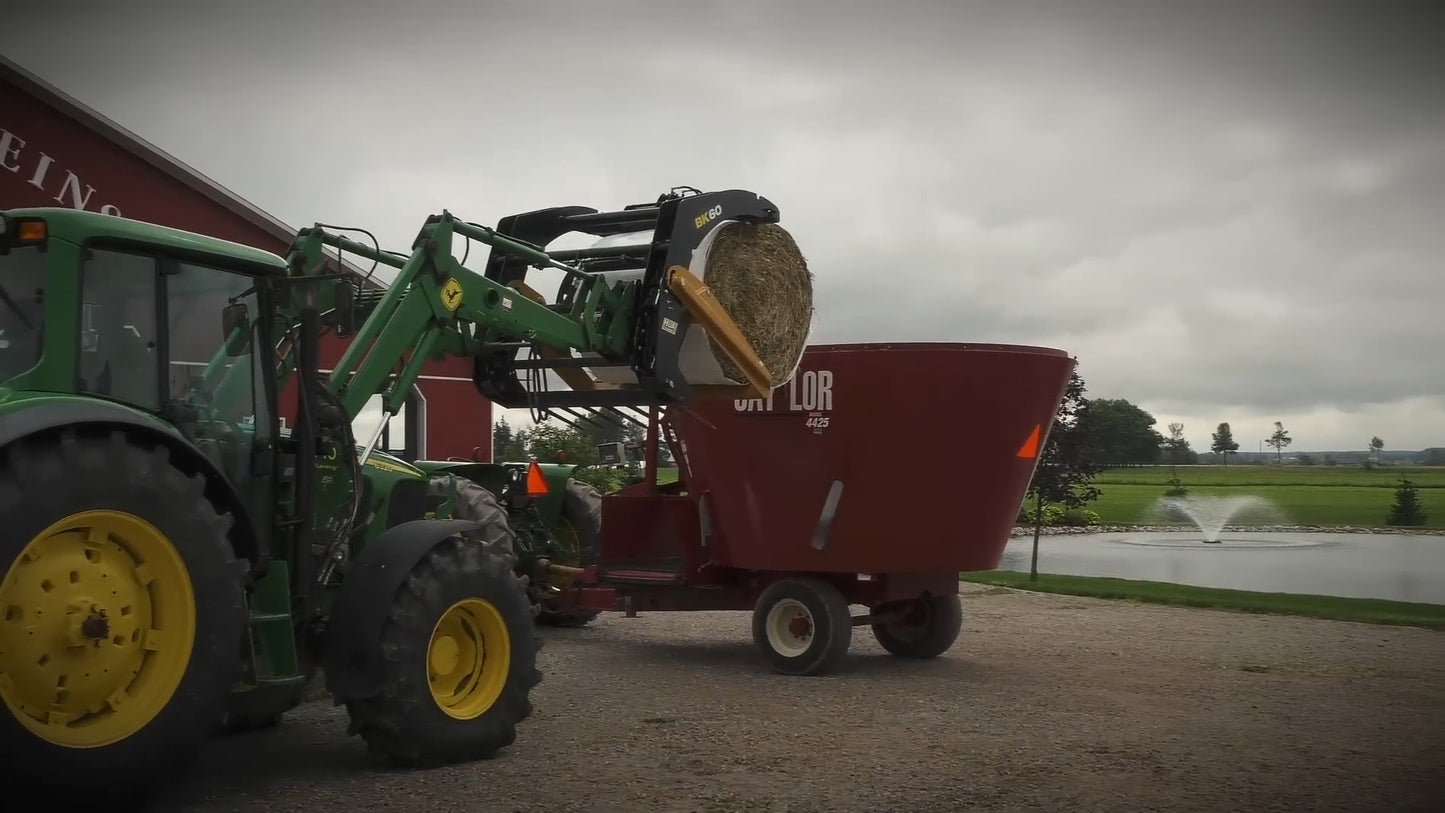

Ideal for livestock producers, dairy farms, and feedlot operations, this bale knife integrates an upward slicing design for precise placement into mixers while its hydraulic top clamp grabs and retains netting and plastic. You get cleaner bales, less contamination in the mixer, and quicker feeding all from the seat of your cab.

With a rugged construction that includes Kverneland forged bale tines and compatibility with multiple loader mount types, this tool transforms a labor-intensive chore into a seamless, operator-friendly task.

Key Features

  • Powerful Bale Slicing Easily slices round bales up to 48", 60", or 72" in diameter.
  • Net & Wrap Retention Hydraulic clamp holds onto plastic or netting, preventing mixer contamination.
  • Upward Cutting Action Promotes better control and placement of feed material.
  • Durable Build Equipped with high-tensile Kverneland forged steel tines.
  • Versatile Mounting Options Compatible with Skid Steers, Euro/Global, John Deere 600 Series, and more.
  • Auxiliary Hydraulic Valve Required For powered clamp operation.
  • Mounting Kits Available Multiple bolt-on mounts to match your loader type.
  • Sized for Your Operation Choose from 48", 60", or 72" models to suit your bale size and equipmen.

Detailed Specifications

Specification Bale Knife (Less Frame) BK48LF Bale Knife (Less Frame) BK60LF Bale Knife (Less Frame) BK72LF

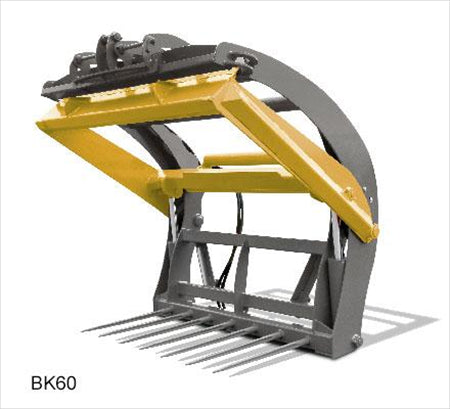

Model Number BK48LF BK60LF BK72LF
Manufacturer HLA Attachments HLA Attachments HLA Attachments
Bale Size Compatibility Up to 48" Round Bales Up to 60" Round Bales Up to 72" Round Bales
Mount Included None (Mount required; sold separately) None (Mount required; sold separately) None (Mount required; sold separately)
Mount Options Bolt-On Kits: Euro/Global, JD 600, Skid Steer, Global Carrier 2 Bolt-On Kits: Euro/Global, JD 600, Skid Steer, Global Carrier 2 Bolt-On Kits: Euro/Global, JD 600, Skid Steer, Global Carrier 2
Clamp Type Hydraulic Top Clamp Hydraulic Top Clamp Hydraulic Top Clamp
Hydraulic Requirements 1 Auxiliary Hydraulic Valve 1 Auxiliary Hydraulic Valve 1 Auxiliary Hydraulic Valve
Cutting Action Upward Slicing Upward Slicing Upward Slicing
Net & Plastic Wrap Handling Clamp Retains Wrap During Slicing Clamp Retains Wrap During Slicing Clamp Retains Wrap During Slicing
Tine Type Kverneland Forged Steel Bale Tines Kverneland Forged Steel Bale Tines Kverneland Forged Steel Bale Tines
Construction Heavy-Duty Welded Frame (Frame sold separately) Heavy-Duty Welded Frame (Frame sold separately) Heavy-Duty Welded Frame (Frame sold separately)
Overall Width Approx. 48" Approx. 60" Approx. 72"
Weight Approx. 1,605 lbs Approx. 1,715 lbs Approx. 2,170 lbs
Mounting Hardware Bolt-On Kit (BOKBF) Included Bolt-On Kit (BOKBF) Included Bolt-On Kit (BOKBF) Included
Application Bale Processing, Feeding, Mixer Loading Bale Processing, Feeding, Mixer Loading Bale Processing, Feeding, Mixer Loading
Ideal Users Livestock Producers, Feedlots, Dairy Farms Livestock Producers, Feedlots, Dairy Farms Livestock Producers, Feedlots, Dairy Farms
