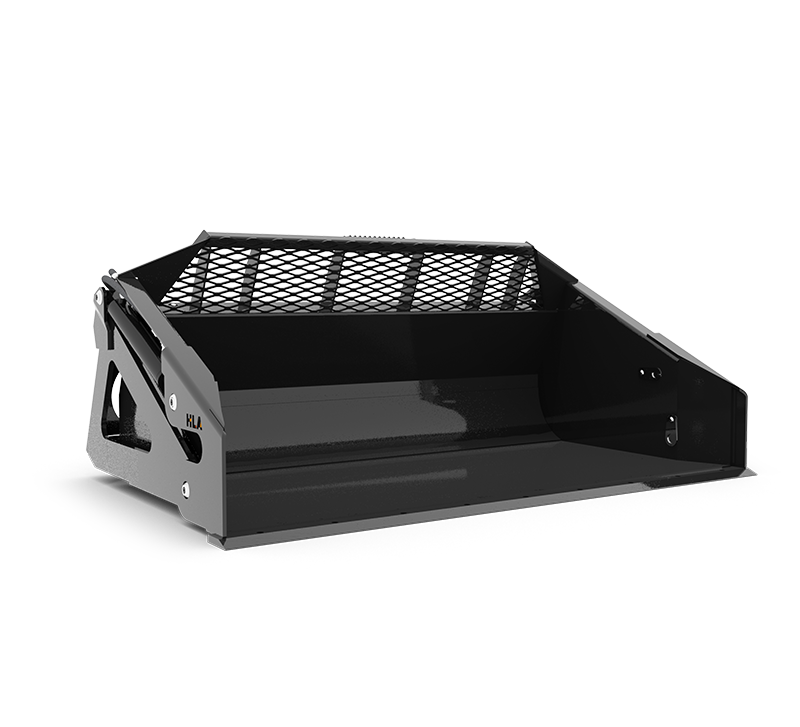

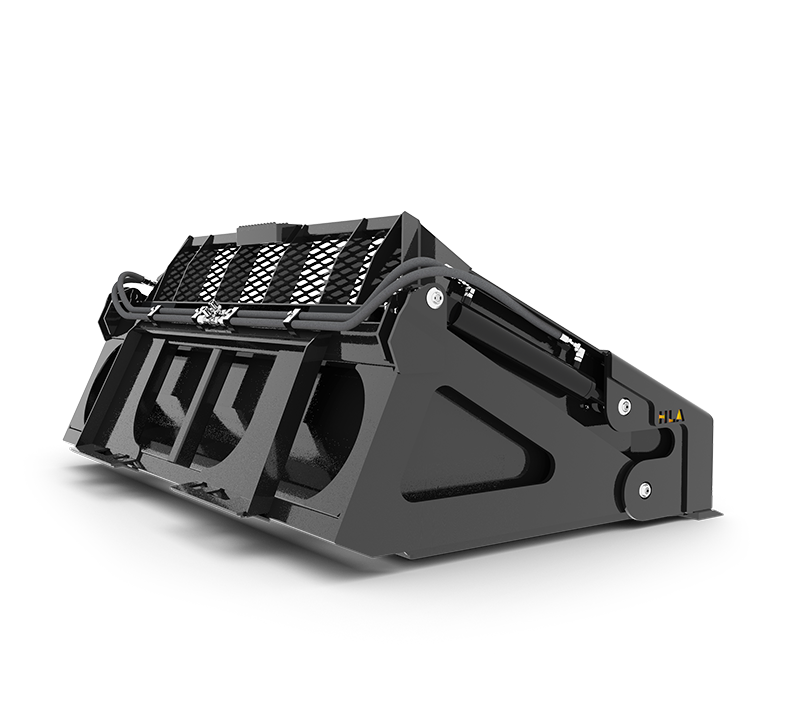

HLA Attachments High Dump Bucket with Skid Steer Mount | Width 72", 78", 84" & 96" Hydraulic Flow Range 12-18 GPM | For Skid Steer

HLA Attachments High Dump Bucket with Skid Steer Mount | Width 72", 78", 84" & 96" Hydraulic Flow Range 12-18 GPM | For Skid Steer

$4,610.00
$4,610.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Dump Height Boost: Up to 48″ — enables elevated discharge into trucks, bins, or hoppers
  • Struck Capacity Range: 17.9–29.9 cu.ft.. — engineered for dense materials like gravel, soil, or silage
  • Heaped Capacity Range: 23.2–39.9 cu.ft.. — optimized for bulk loading; tapered shell design prevents spillage and maximizes fill.
  • Hydraulic Flow Range: 12–18 GPM — designed for standard-flow skid steers
View full details

Product Description

HLA Attachments High Dump Bucket with Skid Steer Mount | Width 72", 78", 84" & 96" Hydraulic Flow Range 12-18 GPM | For Skid Steer

DESCRIPTION

Tackle high-clearance material loading with confidence using the HLA High Dump Bucket Series, engineered to enhance the versatility and dump height of your skid steer. Whether you're clearing debris, loading bulk materials into tall truck boxes, or stacking in confined areas, this bucket delivers unmatched performance with ease and precision.

With a hydraulic high-lift mechanism, reinforced structure, and a design focused on material flow, the HLA High Dump Bucket makes every load faster, cleaner, and more productive. Its exclusive flat-bottom design maximizes struck capacity and simplifies cleanout, while the tapered sides allow for quick unloading perfect for professionals in agriculture, landscaping, construction, and municipal applications.

Key Features

  • Dump Height Boost: Up to 48″ — enables elevated discharge into trucks, bins, or hoppers; ideal for material handling, feedlots, and construction sites.
  • Struck Capacity Range: 17.9–29.9 cu.ft.. — engineered for dense materials like gravel, soil, or silage; select by loader size and job volume.
  • Heaped Capacity Range: 23.2–39.9 cu.ft.. — optimized for bulk loading; tapered shell design prevents spillage and maximizes fill.
  • Weight Class: 870–1,190 lbs — compatible with compact to mid-size skid steers; balances lift height with bucket mass for safe operation.
  • ¾″ x 4″ Beveled Cutting Edge — built for aggressive digging and clean scraping; replaceable edge extends service life in abrasive conditions.
  • Reinforced Build — 3⁄16″ shell with ¼″ end plates; resists flexing and fatigue under repeated dump cycles and heavy payloads.
  • Universal Skid Steer Mount — Quick Attach system fits most major brands; fast swap-out between bucket and forks or grapple.
  • Hydraulic Flow Range: 12–18 GPM — designed for standard-flow skid steers; no high-flow plumbing required to achieve full dump height and cycle speed.

Detailed Specifications

High Dump Bucket Series Comparison
Specification HRB60 HRB66 HRB72 HRB78 HRB84 HRB96
Model Number HRB60-BO500 HRB66-BO500 HRB72-BO500 HRB78-BO500 HRB84-BO500 HRB96-BO500
Width 60" 66" 72" 78" 84" 96"
Struck Capacity 17.9 cu. ft. 19.9 cu. ft. 21.9 cu. ft. 23.9 cu. ft. 25.9 cu. ft. 29.9 cu. ft.
Heaped Capacity 23.2 cu. ft. 25.9 cu. ft. 28.7 cu. ft. 31.5 cu. ft. 34.3 cu. ft. 39.9 cu. ft.
Approximate Weight 870 lbs 905 lbs 955 lbs 1,050 lbs 1,085 lbs 1,190 lbs
Dump Height Increase Up to 48" Up to 48" Up to 48" Up to 48" Up to 48" Up to 48"
Cutting Edge ¾" x 4" beveled ¾" x 4" beveled ¾" x 4" beveled ¾" x 4" beveled ¾" x 4" beveled ¾" x 4" beveled
Material Thickness 3/16" shell, ¼" ends 3/16" shell, ¼" ends 3/16" shell, ¼" ends 3/16" shell, ¼" ends 3/16" shell, ¼" ends 3/16" shell, ¼" ends
Mount Type Skid Steer Quick Attach Skid Steer Quick Attach Skid Steer Quick Attach Skid Steer Quick Attach Skid Steer Quick Attach Skid Steer Quick Attach
