Product Description
HLA Attachments High Dump High Volume Bucket Less Mount | Width 60", 66", 72", 78", 84" & 96" | For Excavator/Skid Steer
DESCRIPTION

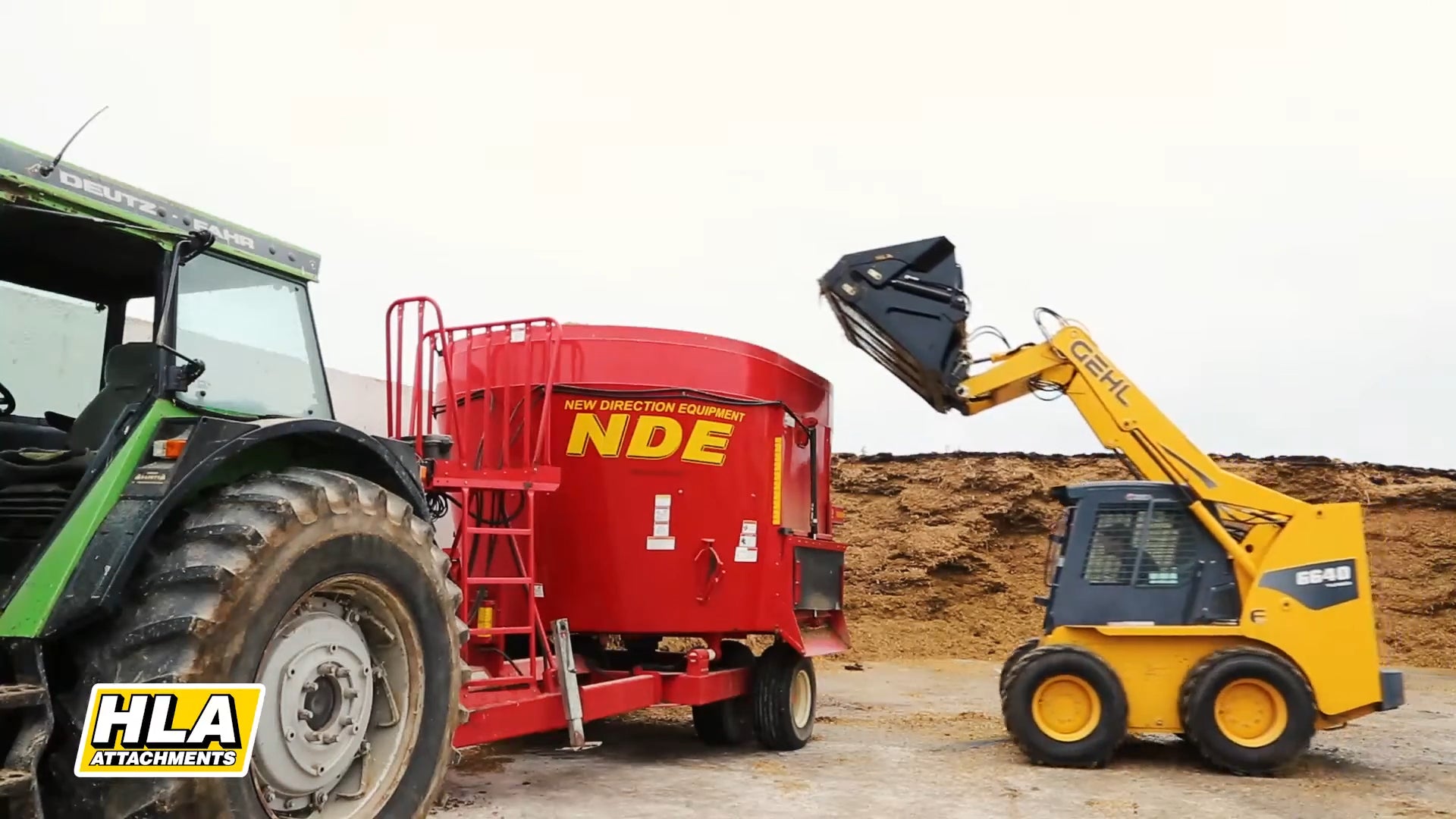

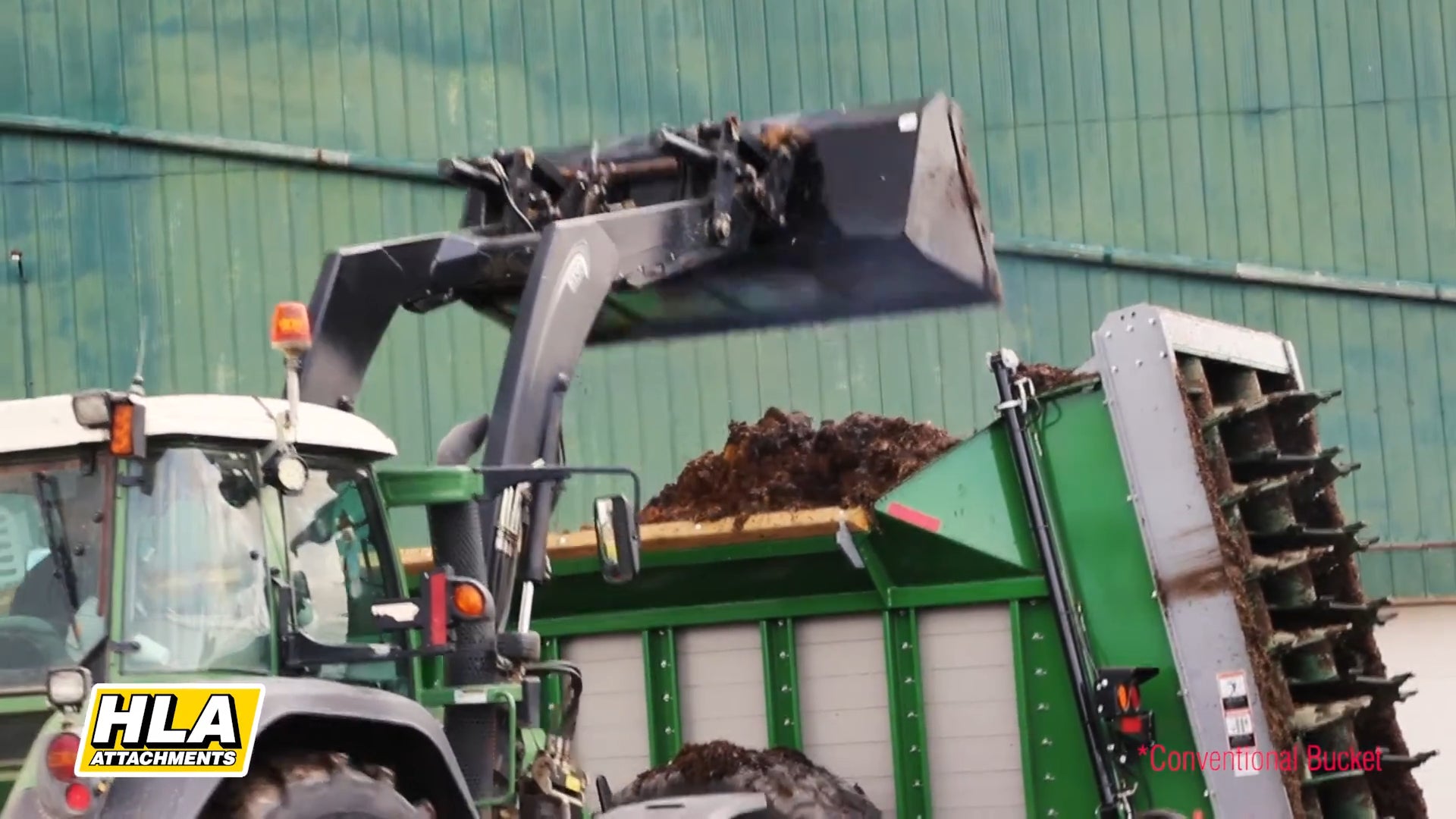

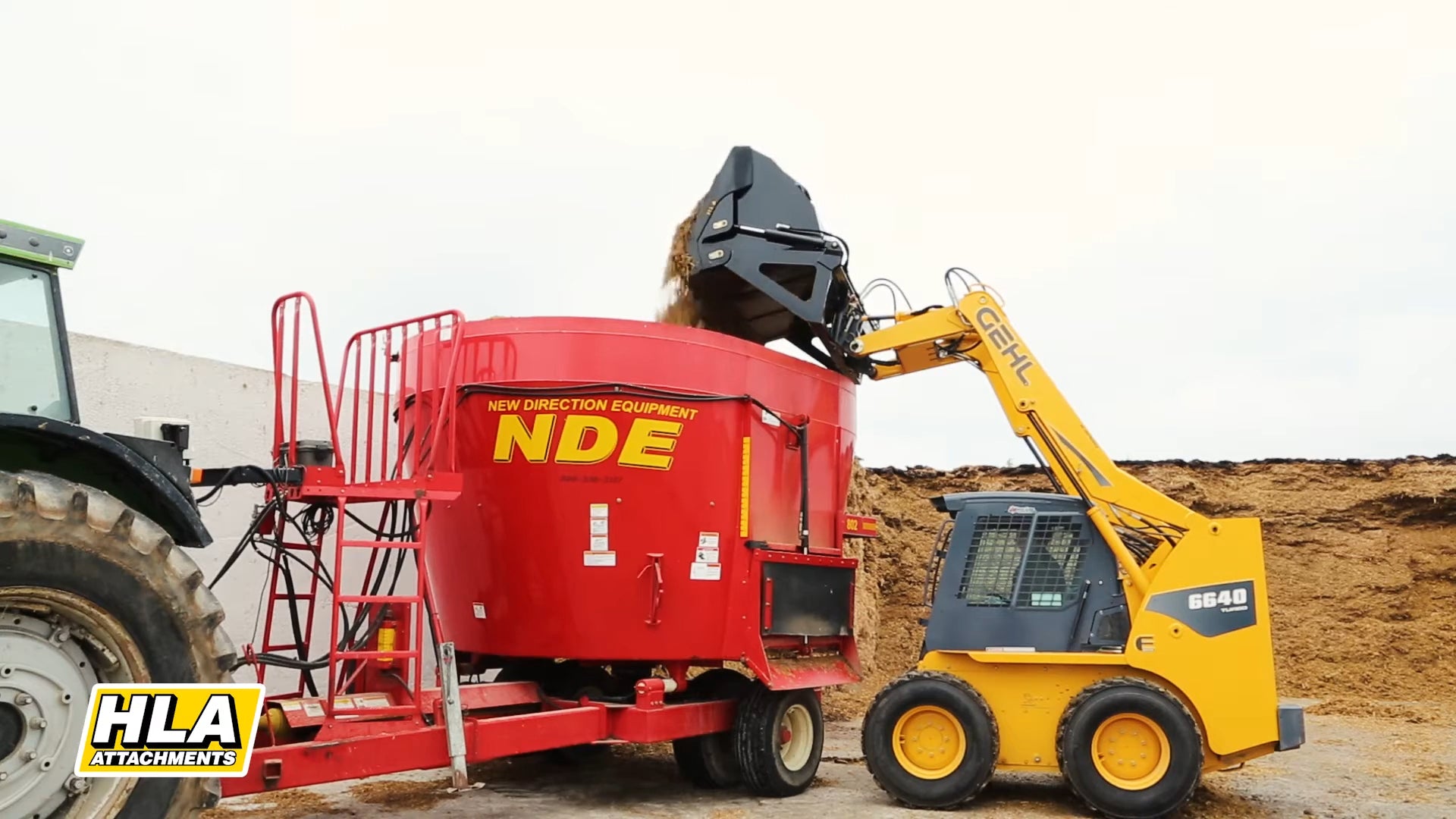

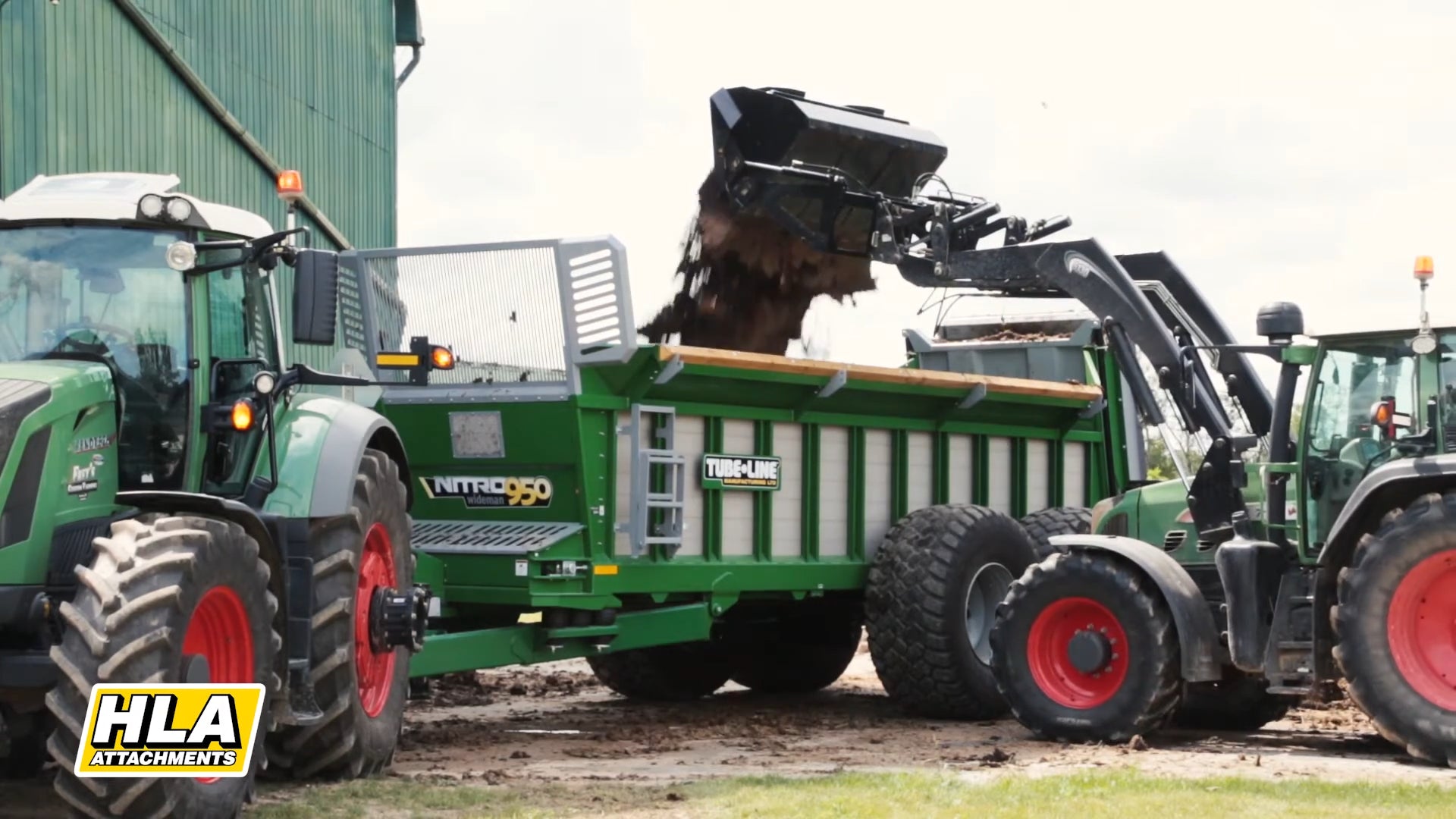

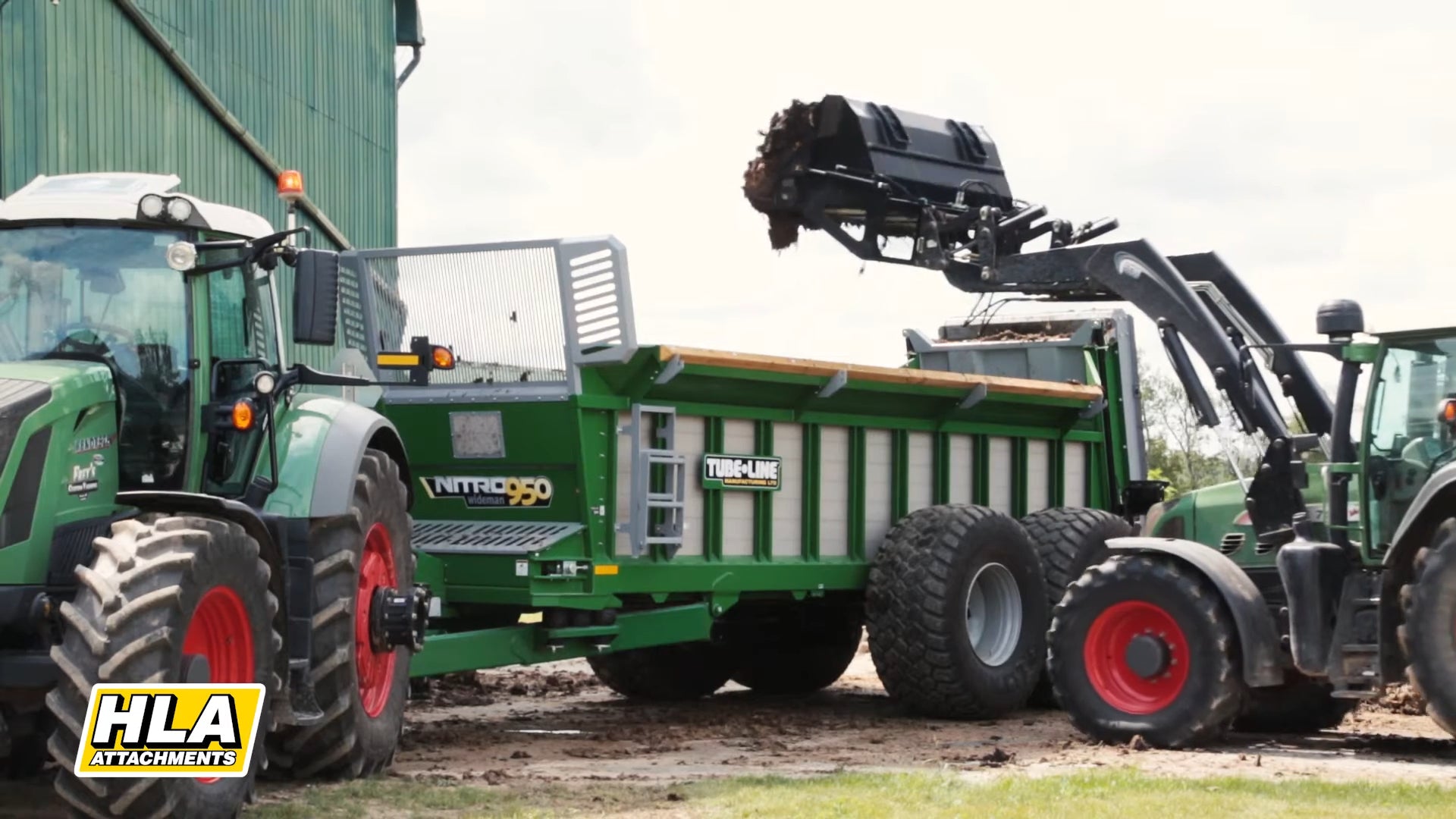

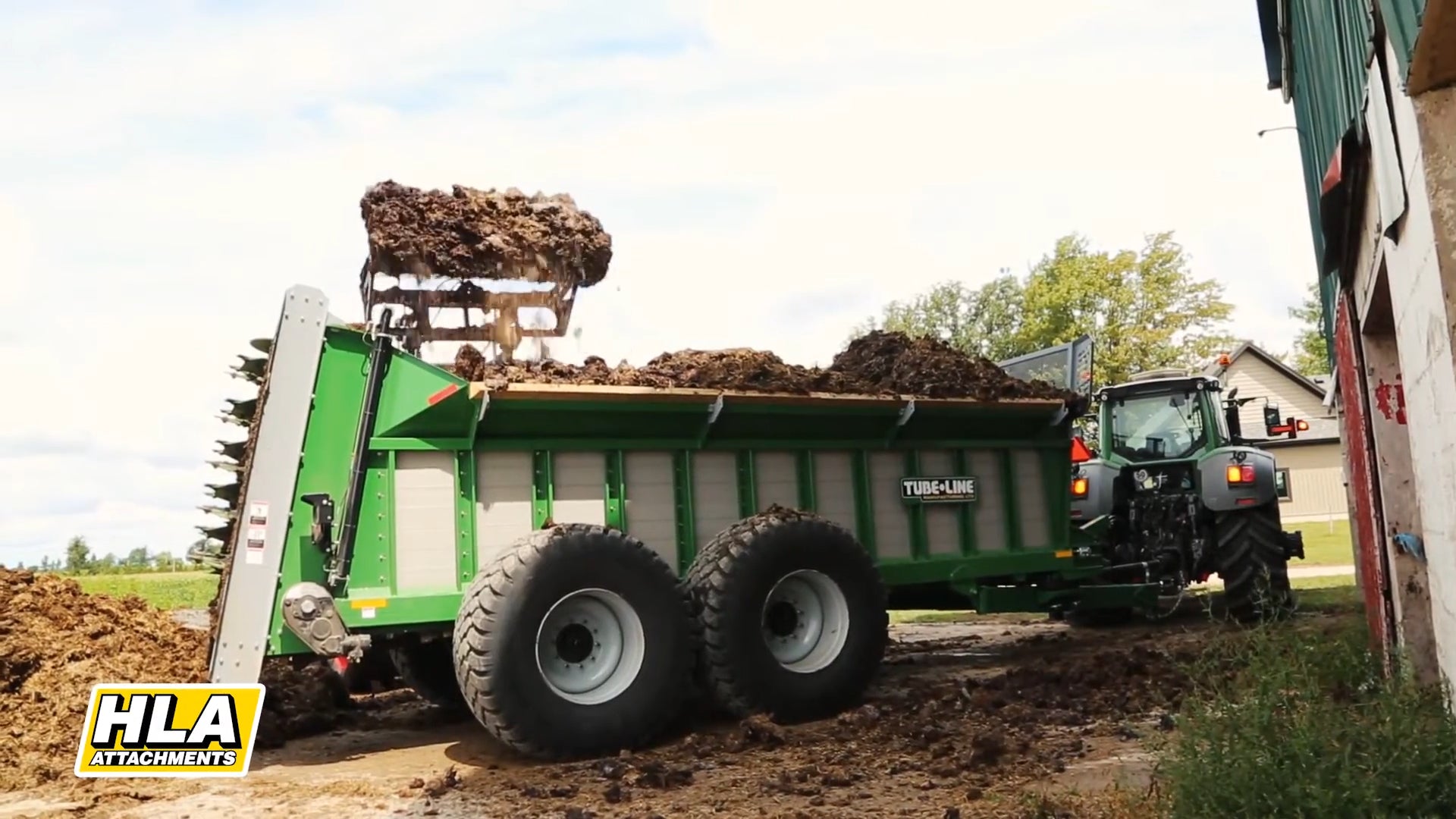

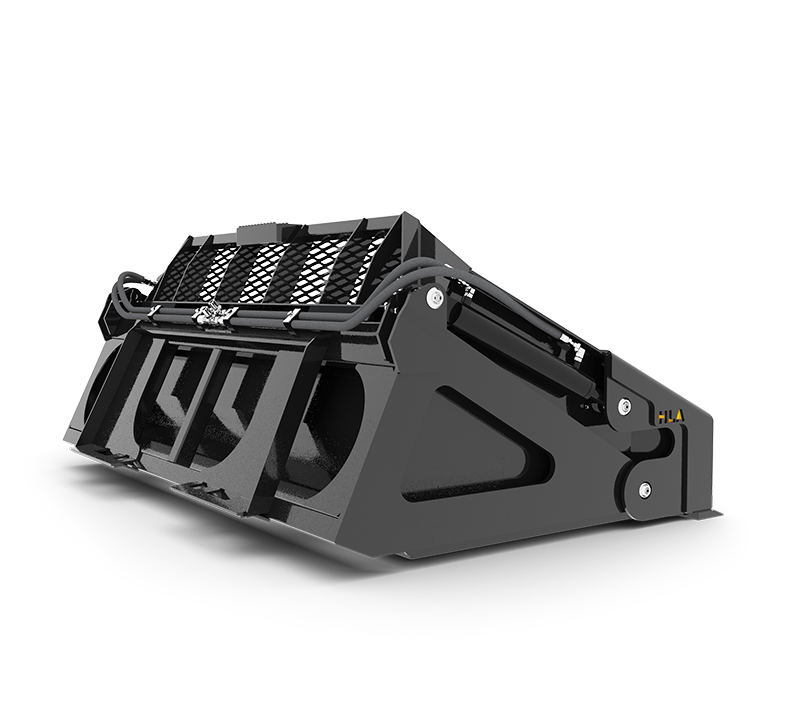

Take your material handling to new heights literally with the HLA HRBHV High Dump High Volume Bucket Series. Engineered for professional contractors, landscapers, farmers, and municipalities, this high-dump bucket is the ideal solution for fast, efficient loading and dumping into high-sided trucks, wagons, or bins.

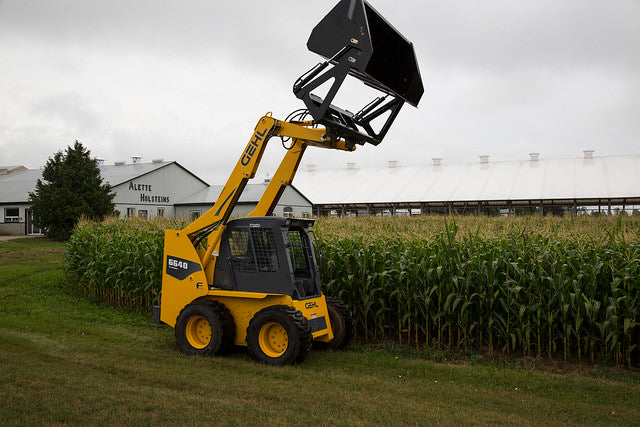

With a massive heaped capacity ranging up to 49 cubic feet, the HRBHV Series helps you move more material with fewer trips. Designed to dump up to 48" higher than standard buckets, this attachment is perfect for operations that demand maximum volume, reach, and productivity.

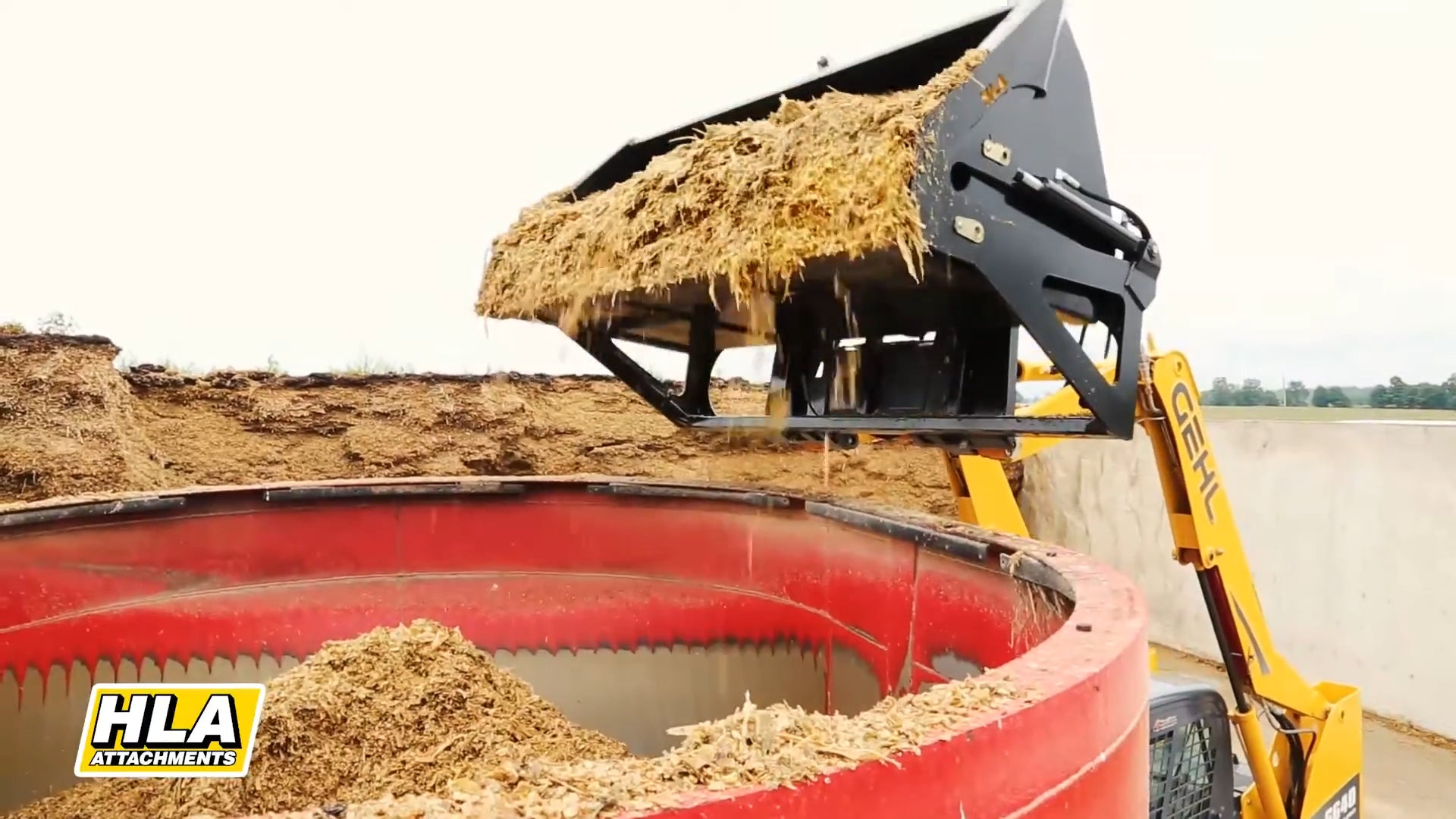

Whether you’re moving silage, compost, mulch, or loose gravel, the tapered bucket profile, beveled cutting edge, and reinforced steel construction ensure reliable performance and clean dumping every time.
With multiple mount options available including Euro, Skid Steer, John Deere, Kubota, and Westendorf this high-capacity bucket fits most loaders for seamless integration into your operation.
Key Features
- Dump Height Increased by 48" Effortlessly clears high-sided trucks, wagons, or bins for fast and efficient unloading.
- Massive Heaped Capacity Move up to 49 cu. ft. of material at once, reducing cycle time and increasing productivity.

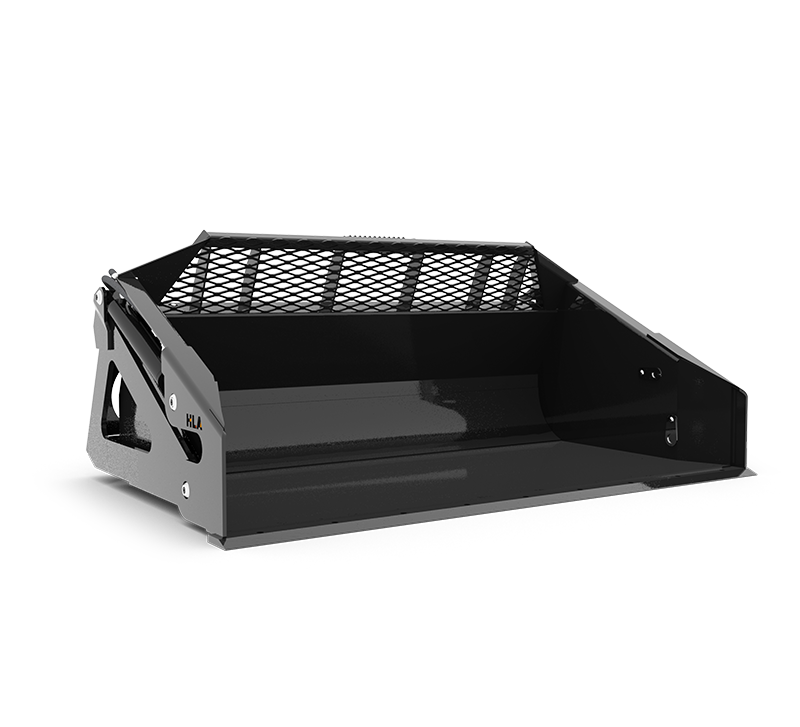

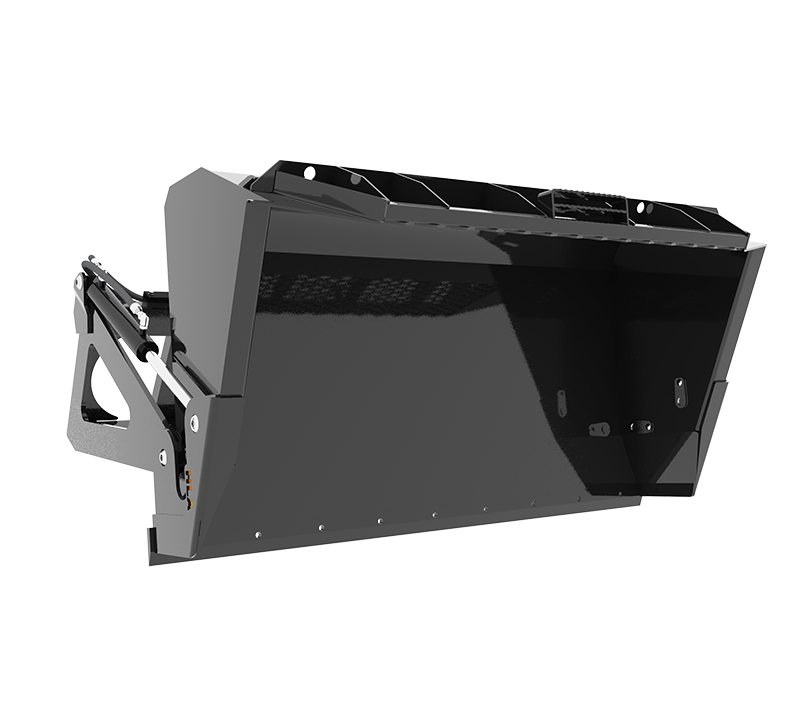

- Heavy-Duty Construction Built with 3/16" thick steel, ¼" end plates, and a reinforced top lip for unmatched durability.
- Flat Bottom & Tapered Profile Maximizes load capacity while promoting fast, clean material discharge.
- ¾" x 4" Beveled Cutting Edge Ideal for tough scraping jobs and long-lasting edge retention.
- Universal & Brand-Specific Mounts Available Compatible with Euro, John Deere, Skid Steer, Kubota, Bush Hog, and more.
Detailed Specifications
| Specification | HRBHV60 | HRBHV66 |
|---|---|---|
| Model | HRBHV60 | HRBHV66 |
| Bucket Width | 60" | 66" |
| Struck Capacity | 24.2 cu. ft. | 26.9 cu. ft. |
| Heaped Capacity | 28.8 cu. ft. | 32.2 cu. ft. |
| Approx. Weight | 980 lbs | 1,030 lbs |
| Dump Height Increase | Up to 48" | Up to 48" |
| Cutting Edge | ¾" x 4" beveled | ¾" x 4" beveled |
| Material Thickness | 3/16" shell, ¼" ends | 3/16" shell, ¼" ends |
| Specification | HRBHV72 | HRBHV78 |
|---|---|---|
| Model | HRBHV72 | HRBHV78 |
| Bucket Width | 72" | 78" |
| Struck Capacity | 29.5 cu. ft. | 32.2 cu. ft. |
| Heaped Capacity | 35.5 cu. ft. | 38.9 cu. ft. |
| Approx. Weight | 1,100 lbs | 1,205 lbs |
| Dump Height Increase | Up to 48" | Up to 48" |
| Cutting Edge | ¾" x 4" beveled | ¾" x 4" beveled |
| Material Thickness | 3/16" shell, ¼" ends | 3/16" shell, ¼" ends |
| Specification | HRBHV84 | HRBHV96 |
|---|---|---|
| Model | HRBHV84 | HRBHV96 |
| Bucket Width | 84" | 96" |
| Struck Capacity | 34.9 cu. ft. | 40.3 cu. ft. |
| Heaped Capacity | 42.3 cu. ft. | 49.0 cu. ft. |
| Approx. Weight | 1,230 lbs | 1,340 lbs |
| Dump Height Increase | Up to 48" | Up to 48" |
| Cutting Edge | ¾" x 4" beveled | ¾" x 4" beveled |
| Material Thickness | 3/16" shell, ¼" ends | 3/16" shell, ¼" ends |
Manuals & Documents
BROCHURE HIGH DUMP BUCKET
OPERATION MANUAL HRB
LOADER MOUNTS
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information neededabout products and parts you can’t find!

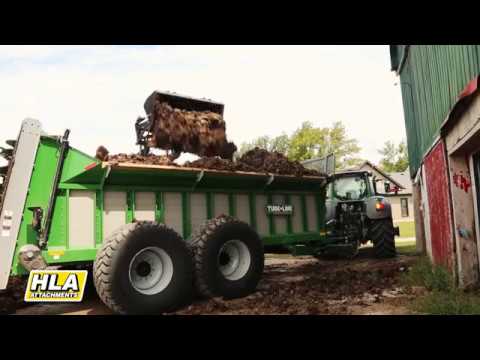

Videos
