HLA Attachments

HLA Attachments Hydraulic Rotary Pick-Up Broom Less Loader Mount (Required) | Width 72", 84" & 96" Inches | For Skid Steer

HLA Attachments Hydraulic Rotary Pick-Up Broom Less Loader Mount (Required) | Width 72", 84" & 96" Inches | For Skid Steer

Regular price $10,103.00
Regular price Sale price $10,103.00
Sale Sold out
Machine Compatibility
Customizable
Fast
24/7 Support
  • Available Sizes: 72", 84", and 96" (Loader mount selection required).
  • Includes: Hydraulic hoses and flat-faced couplers.
  • Applications: Cleaning up parking lots, construction sites, streets, curbs, gutters, and parks.
View full details

Product Description

HLA Attachments Hydraulic Rotary Pick-Up Broom Less Loader Mount (Required) | Width 72", 84" & 96" Inches | For Skid Steer

DESCRIPTION

Clean streets, job sites, and parking lots faster, easier, and smarter with the HLA Hydraulic Rotary Pick-Up Broom a rugged, high-performance attachment built for commercial-duty sweeping. Available in 72", 84", and 96" widths, this broom system is perfect for contractors, municipalities, and property managers who demand efficiency and durability in every pass.

Each model is engineered with a powerful direct-drive hydraulic motor, heavy-duty 26" poly/steel wafer brushes, and a built-in debris hopper that collects waste for quick and clean disposal. Whether you're cleaning up after construction, tackling fall leaves, or maintaining paved trails, this broom adapts to your loader with multiple Quick Attach Mount options including Skid Steer, Euro/Global, John Deere, Kubota, Westendorf, and more.

Designed to handle everything from gravel to grime with ease, the HLA pick-up broom will quickly become one of your go-to attachments for year-round cleanup.

Key Features

  • Commercial-Grade Sweeping Power Tackle tough debris with 26" diameter poly/steel wafer brushes designed for demanding environments like construction zones, municipalities, and industrial parks.
  • Built-In Debris Collection Hopper Say goodbye to back-and-forth sweeping collect and dump debris in one efficient pass with the integrated hopper system.
  • Hydraulic Direct-Drive Motor Delivers reliable performance with fewer moving parts, reducing maintenance and maximizing uptime in the field.
  • Mount-Ready Versatility Compatible with most loaders and tractors via a wide selection of Quick Attach mounts including Skid Steer, John Deere, Euro/Global, Kubota, Westendorf, and more.
  • Durable Design with Floating Gauge Wheel Included front gauge wheel improves ground contour following and reduces brush wear during operation.
  • Ideal Flow Range Operates smoothly with hydraulic systems delivering 12–20 GPM at 1500–3000 PSI, suitable for most utility loaders and compact machines.
  • Perfect For: Parking lots, roadways, farmyards, trails, curbs, gutters, parks, and recreation areas.

Detailed Specifications

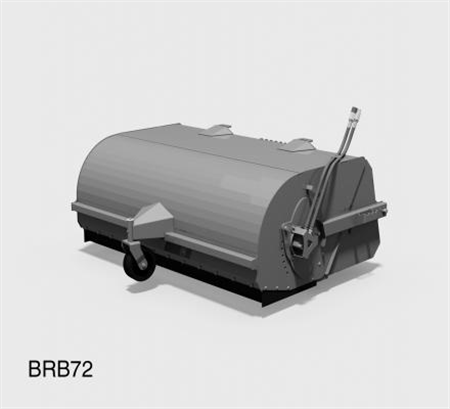

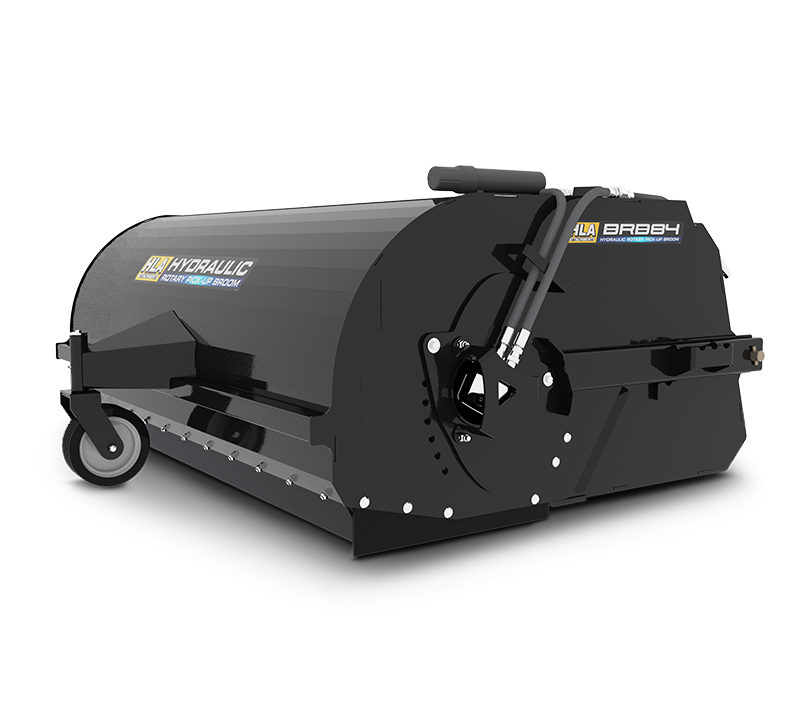

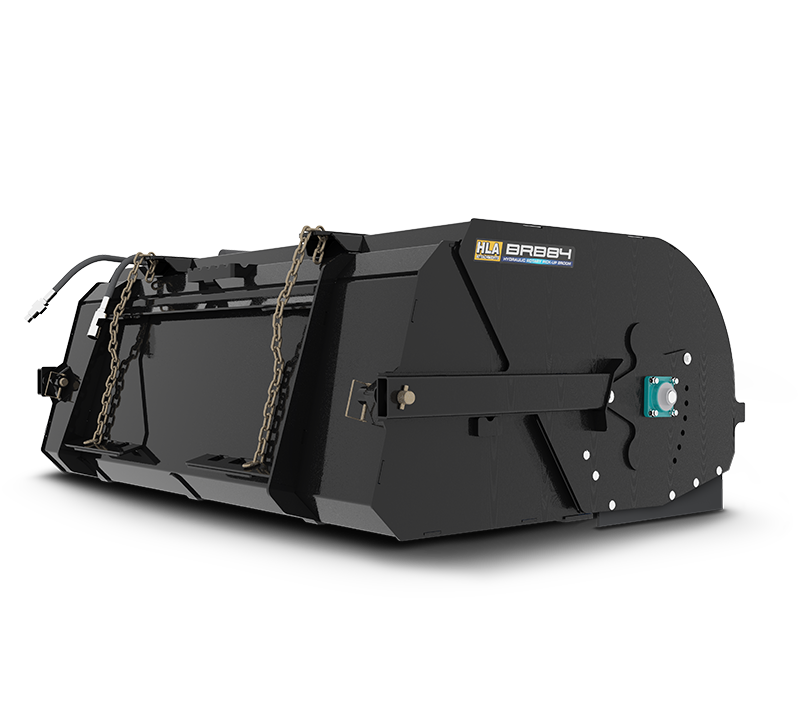

Secification BRB72 (72") BRB84 (84") BRB96 (96")
Sweeping Width 72 inches 84 inches 96 inches
Brush Diameter 26" Poly/Steel Wafers 26" Poly/Steel Wafers 26" Poly/Steel Wafers
Hydraulic Requirements 12–20 GPM @ 1500–3000 PSI 12–20 GPM @ 1500–3000 PSI 12–20 GPM @ 1500–3000 PSI
Drive System Direct Hydraulic Motor Direct Hydraulic Motor Direct Hydraulic Motor
Hopper Included Yes Yes Yes
Gauge Wheel Included Yes Yes Yes
Approximate Weight 1,010 lbs 1,130 lbs 1,260 lbs
Mounting Options Skid Steer, JD QA, Euro/Global, Kubota, Allied, Westendorf & more Skid Steer, JD QA, Euro/Global, Kubota, Allied, Westendorf & more Skid Steer, JD QA, Euro/Global, Kubota, Allied, Westendorf & more
Mount Requirement Loader Mount Sold Separately Loader Mount Sold Separately Loader Mount Sold Separately
