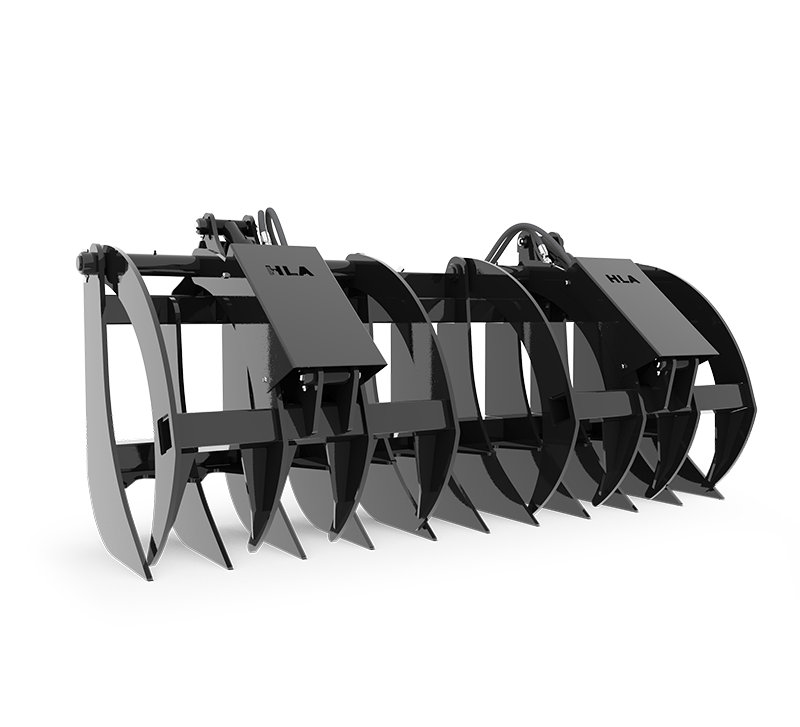

HLA Attachments Root Rake Grapple Less Mount | 66" to 96" Width | For Skid Steer

HLA Attachments Root Rake Grapple Less Mount | 66" to 96" Width | For Skid Steer

Regular price $5,026.00
Regular price Sale price $5,026.00
Sale Sold out
Machine Compatibility
Customizable
Fast
24/7 Support
  • Heavy-Duty Build: Crafted with ½" thick 400 Brinnell high-tensile steel tines for maximum durability in rugged conditions.
  • Dual Grapples: Independent grapples provide superior clamping and control over irregular, heavy loads.
  • Multiple Width Options: Available in 66", 78", 88", and 96" models to match specific job requirements.
  • Customizable Mounts: Compatible with various mounts (sold separately) to fit Euro, John Deere, Kubota, Allied, and more.
  • Optimized Design: 34" closed height and 7-3/8" tine spacing for effective material handling and load security.
View full details

Product Description

HLA Attachments Root Rake Grapple Less Mount | 66" to 96" Width | For Skid Steer

DESCRIPTION

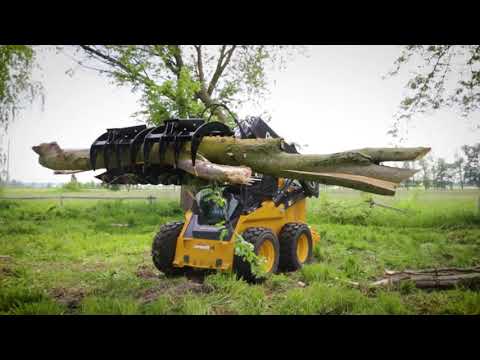

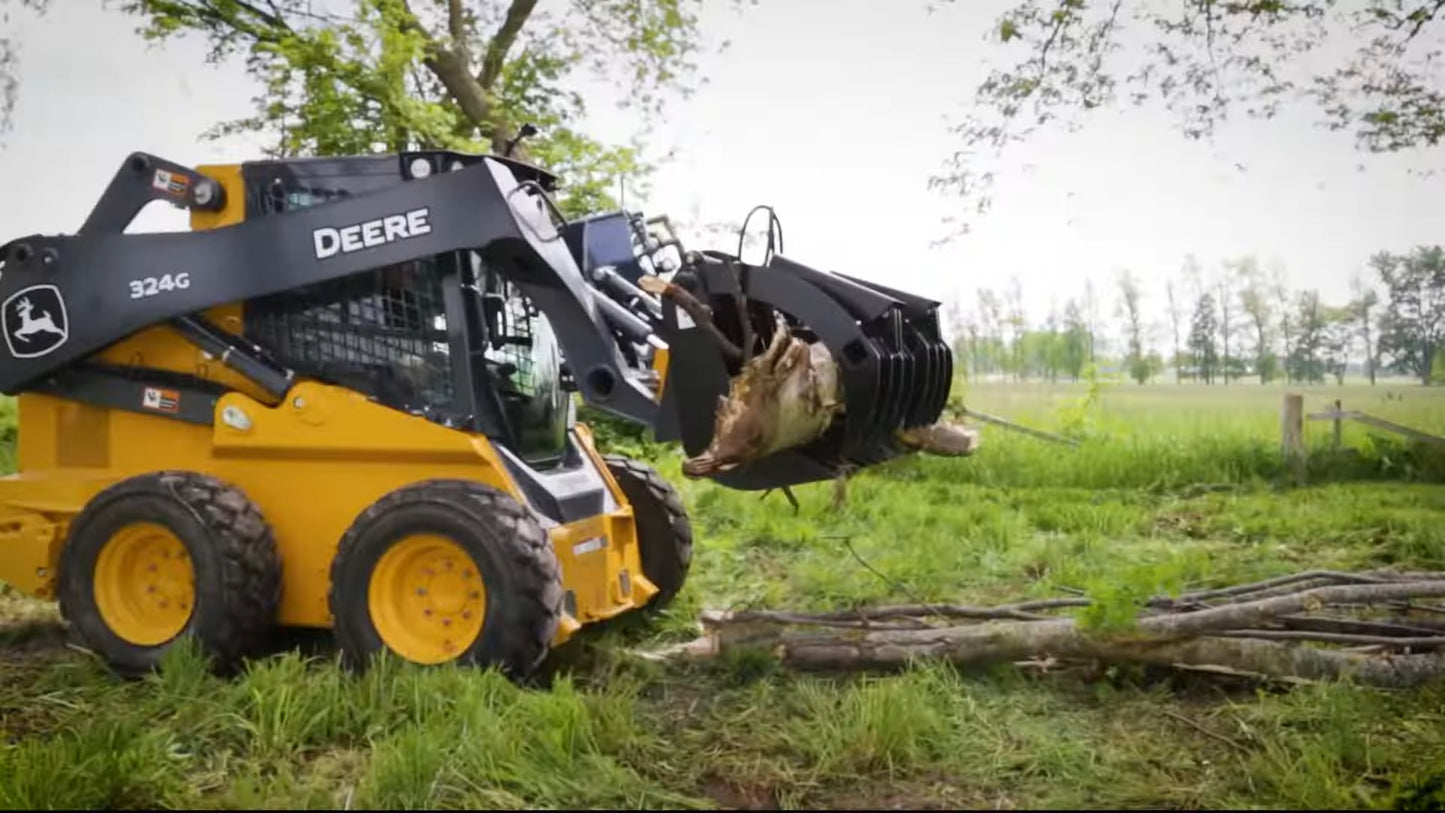

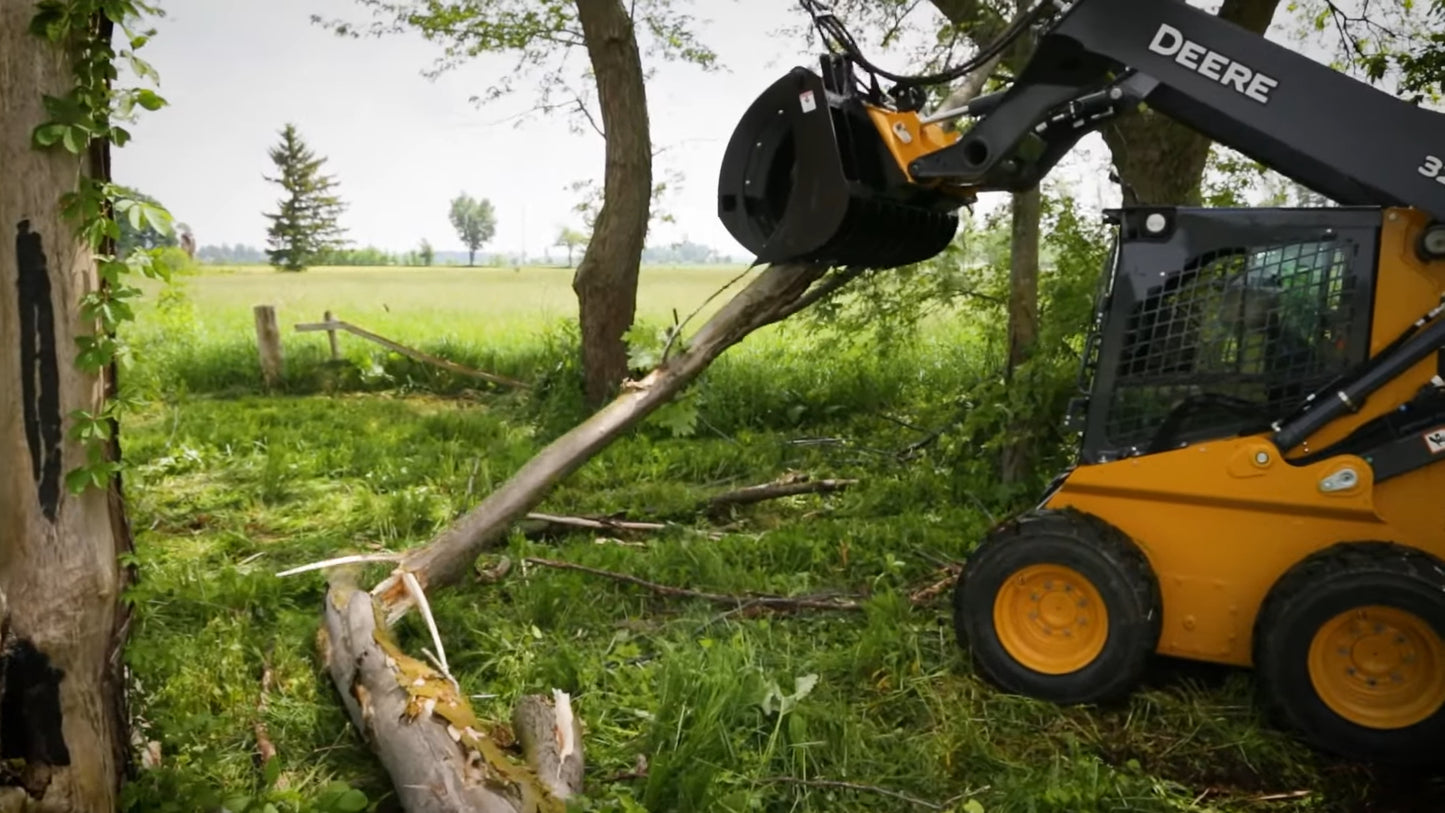

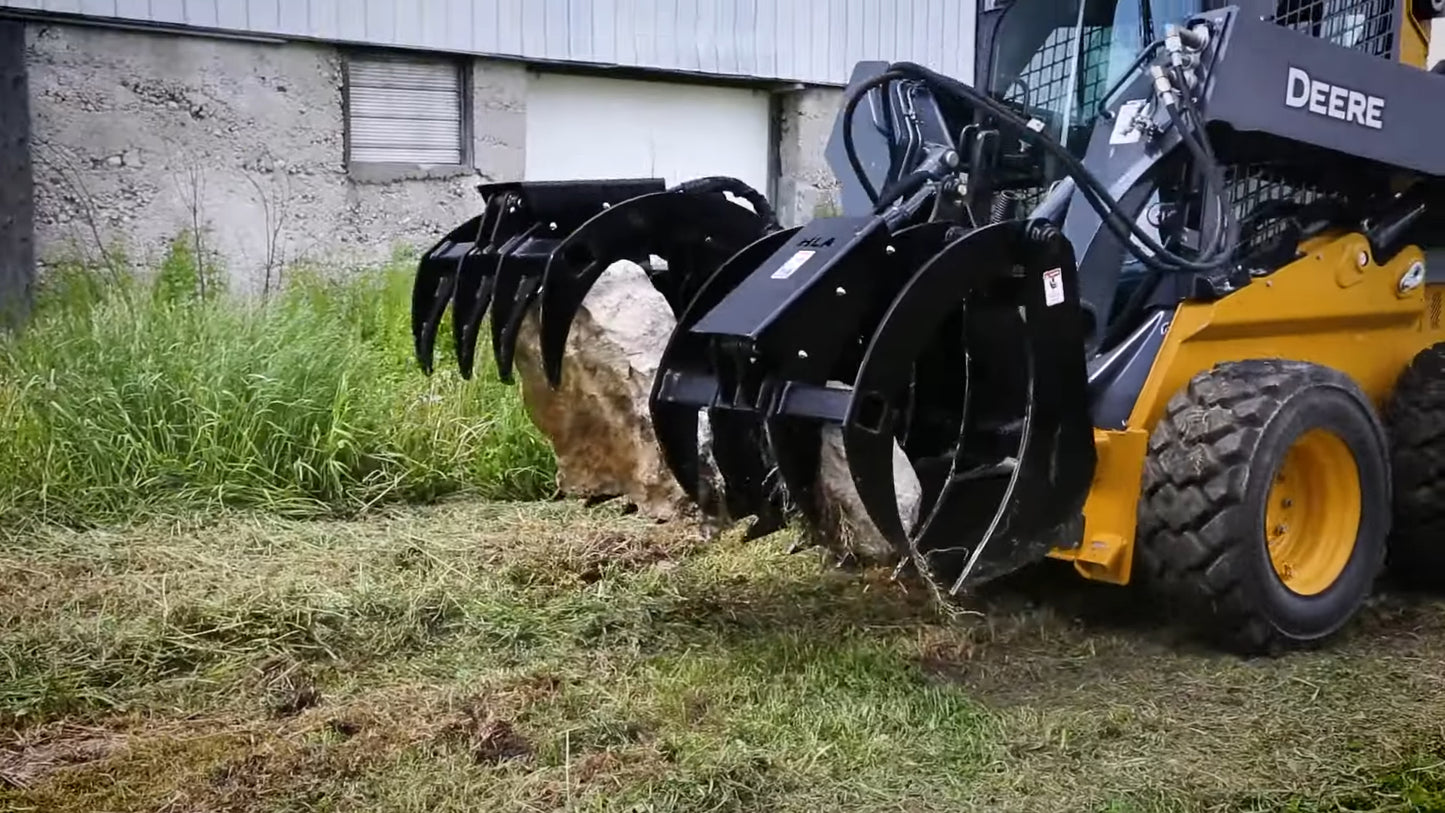

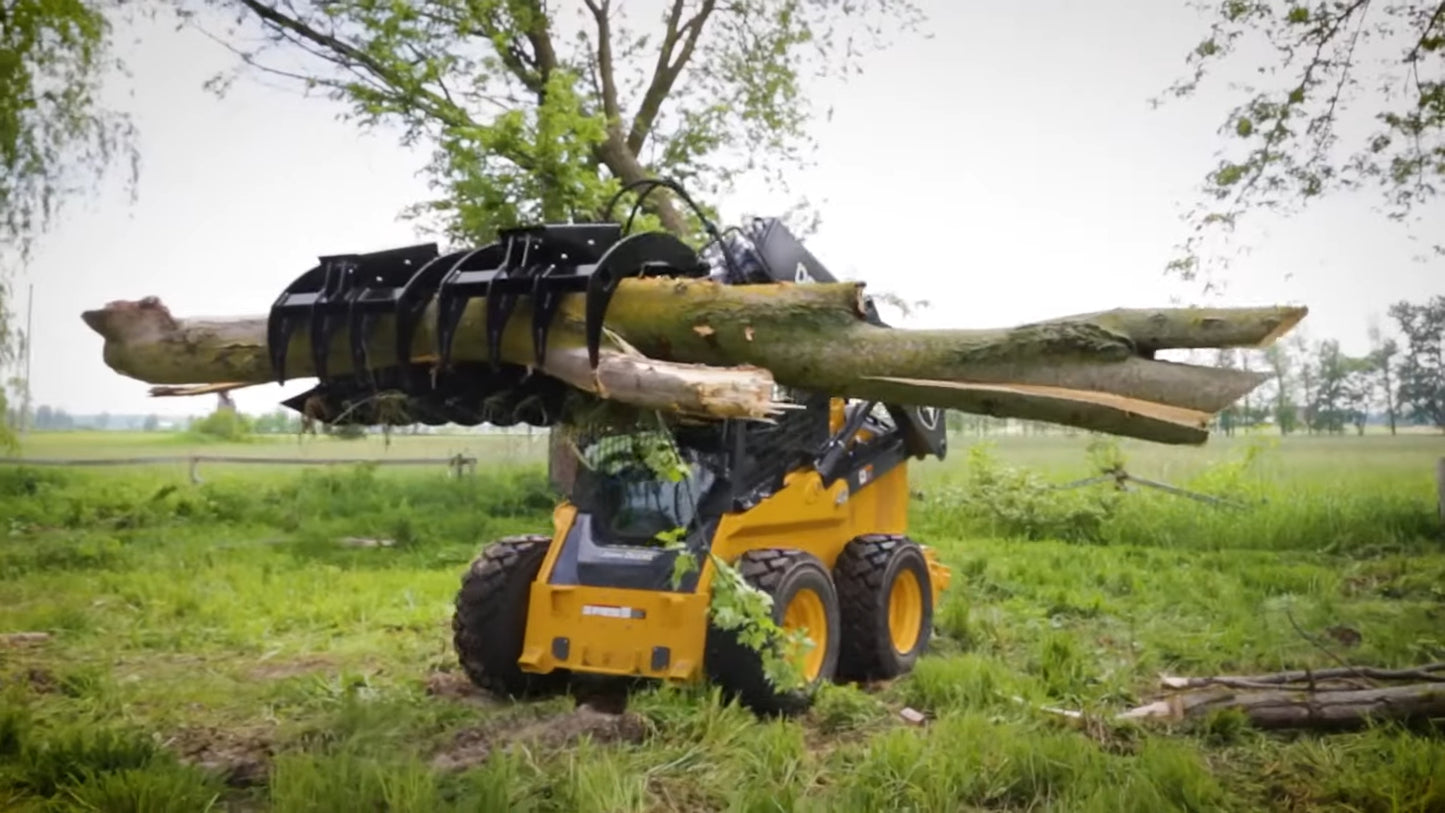

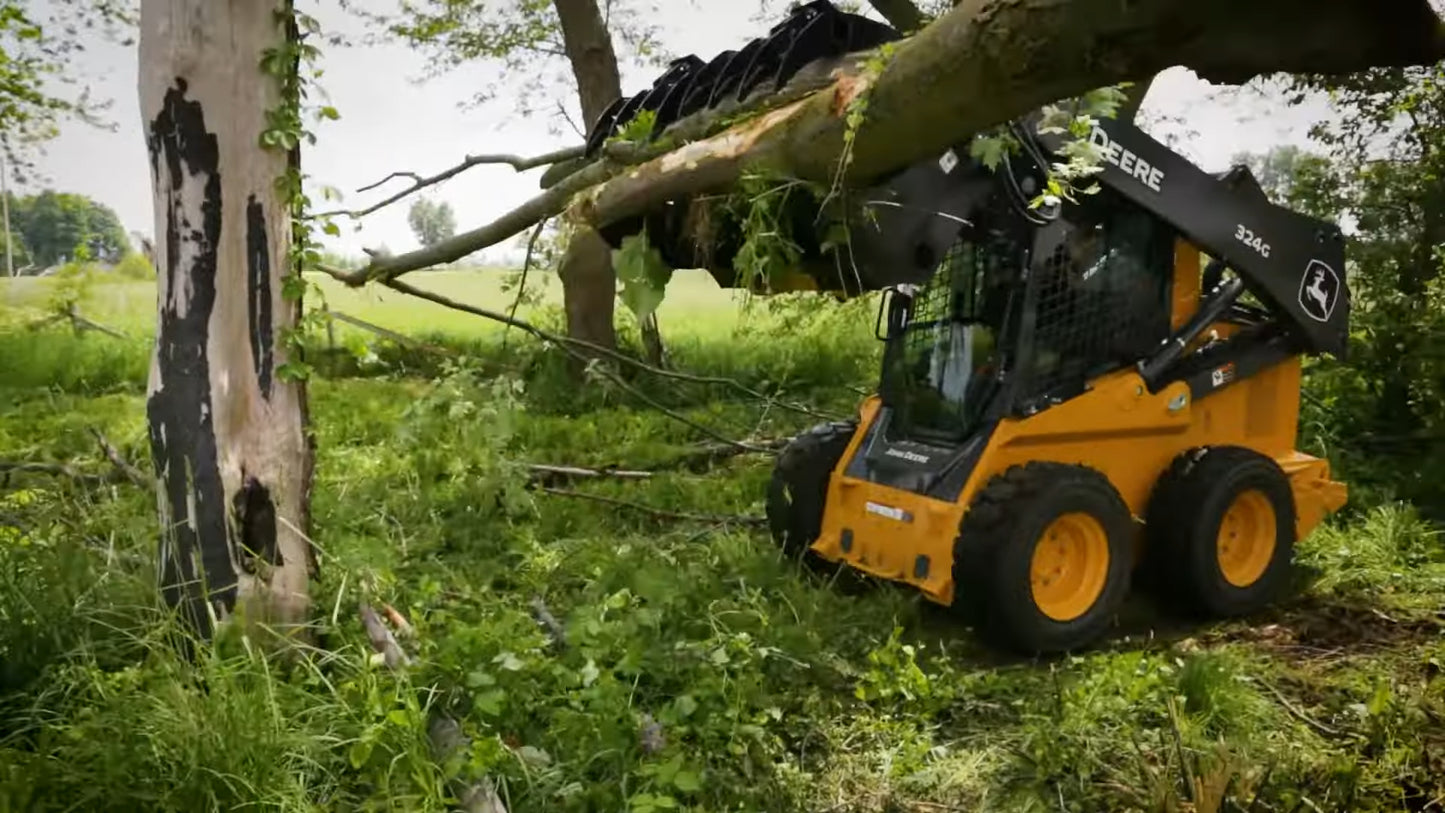

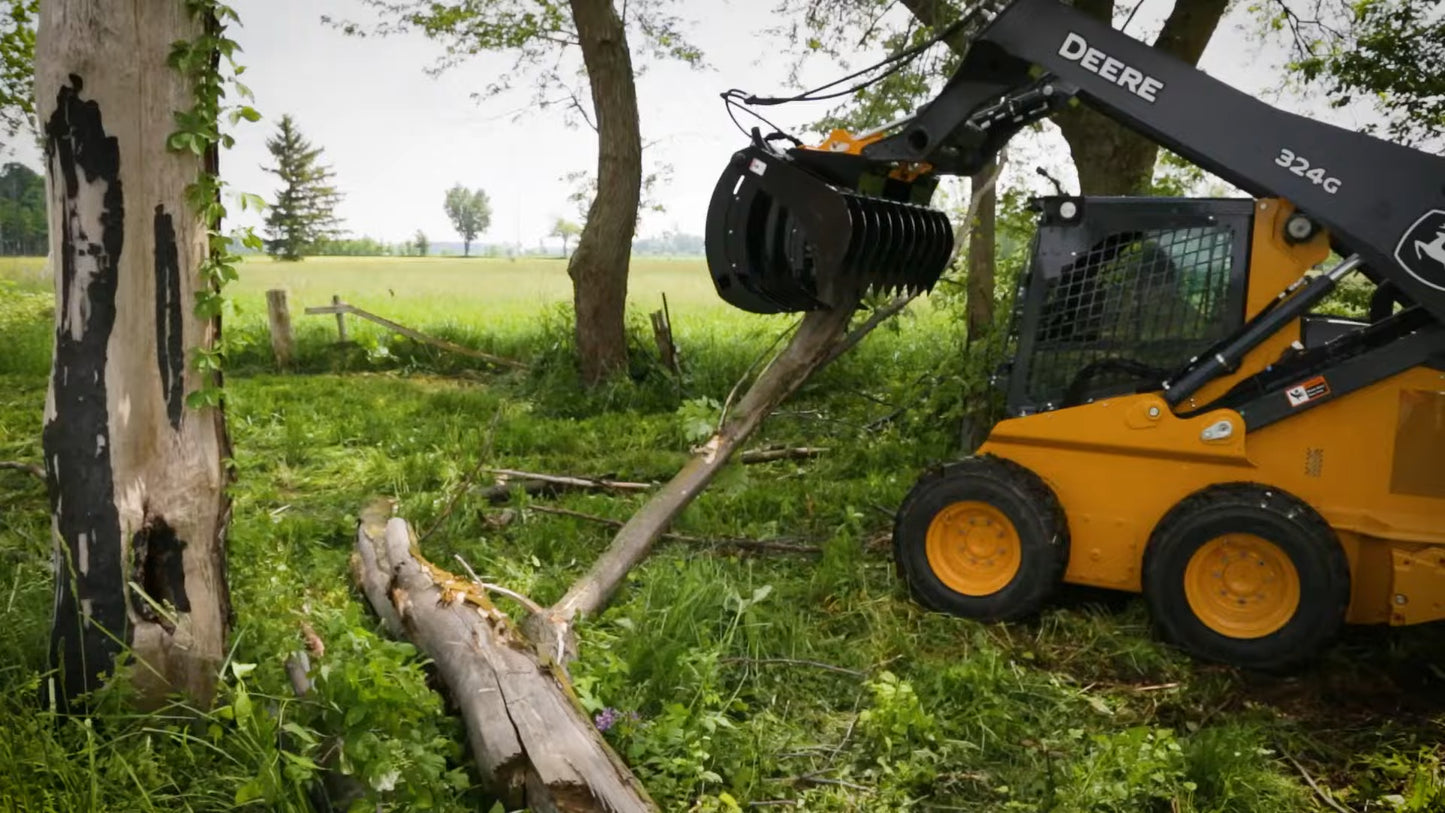

Tear through roots, brush, and stubborn debris like a pro. The HLA Root Rake Grapple is purpose-built for serious land clearing, excavation, and construction jobs. Whether you're reclaiming overgrown fields, lifting stumps, or managing demolition cleanup, this heavy-duty grapple combines brute strength with smart engineering.

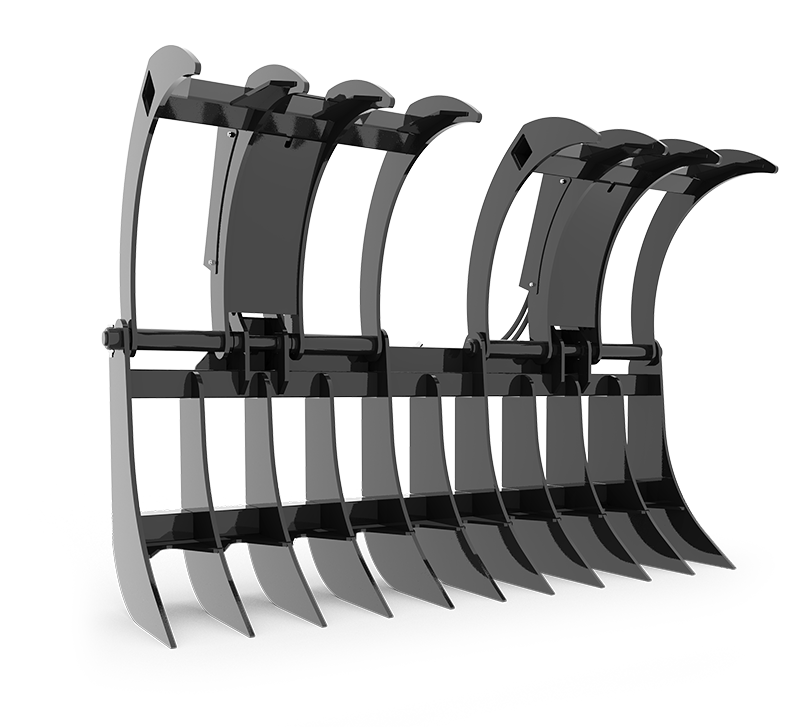

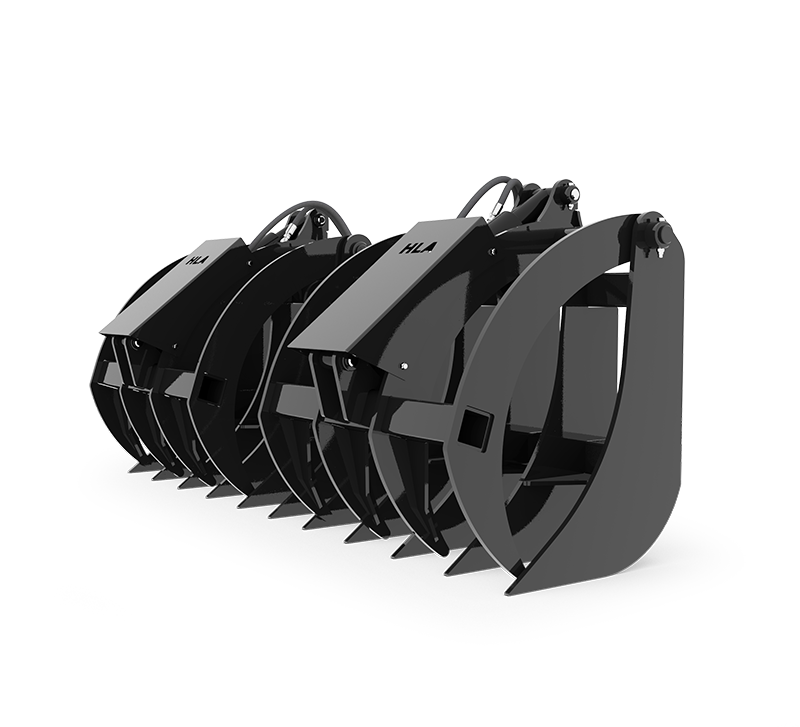

With widths ranging from 66″ to 96″, each model features two independently controlled grapples that clamp uneven, awkward loads securely. The retainer-style tines are forged from ½″ thick, 400 Brinell high-tensile steel, while 7-3/8″ tine spacing ensures effective sorting of large material while allowing dirt and fine debris to fall through. Standing 34″ tall when closed, it offers excellent visibility and ground engagement without compromising grapple reach or power.

Compatible with a wide range of loader and skid steer mounts (sold separately), this grapple becomes the ultimate tool for forestry, excavation, landscaping, and storm cleanup. Powerfully built. Operator approved. Ready to rip it outdoors.

Key Features

  • Dual Independent Hydraulic Grapples Tackle irregular loads confidently with separate grapple movement for each side perfect for logs, stumps, and debris piles.
  • Heavy-Duty 400 Brinell Steel Tines Forged from high-tensile ½″ thick material that’s built to withstand the abuse of root-ripping and demolition.
  • Optimized Tine Spacing (7-3/8") Holds large material firmly while letting fine debris sift through no unnecessary weight, no mess.
  • Large Profile (34" Overall Height) Deep grapple design provides excellent clamping force and capacity without sacrificing visibility or control.
  • Mount Compatibility Across Platforms Supports Euro/Global, John Deere, Skid Steer, Westendorf, Kubota, Bush Hog, and more (mounts sold separately).
  • Hydraulic Ready Comes pre-configured for hydraulic operation. Hose kits and quick couplers available for all common machines.
  • Ideal for Land Clearing and Forestry Perfect for contractors, municipalities, farmers, and landowners handling serious brush and root removal tasks.
  • High-Capacity Load Handling Handles trees, logs, concrete chunks, and demolition debris without flex or fail.
  • Designed for Skid Steers & Tractors Engineered to balance weight and strength, ideal for compact track loaders and utility tractors.
  • Rugged Build. Field Proven. HLA is trusted by professionals who demand performance and depend on it daily.

Detailed Specifications

Specification RRG66 RRG78
Grapple Width 66″ 78″
Grapple Height (Closed) 34″ 34″
Grapple Depth ~44″ (est.) ~44″ (est.)
Tine Spacing 7-3/8″ 7-3/8″
Tine Thickness ½″ ½″
Steel Hardness 400 Brinell 400 Brinell
Grapple Type Dual independent Dual independent
Hydraulic Ready Yes Yes
Approx. Weight ~985 lb ~1,070 lb
Mount Type Less Mount (optional) Less Mount (optional)
Compatible Mounts Euro, JD, Kubota, etc. Euro, JD, Kubota, etc.



Specification RRG88 RRG96
Grapple Width 88″ 96″
Grapple Height (Closed) 34″ 34″
Grapple Depth ~44″ (est.) ~44″ (est.)
Tine Spacing 7-3/8″ 7-3/8″
Tine Thickness ½″ ½″
Steel Hardness 400 Brinell 400 Brinell
Grapple Type Dual independent Dual independent
Hydraulic Ready Yes Yes
Approx. Weight ~1,125 lb ~1,200 lb
Mount Type Less Mount (optional) Less Mount (optional)
Compatible Mounts Euro, JD, Kubota, etc. Euro, JD, Kubota, etc.
