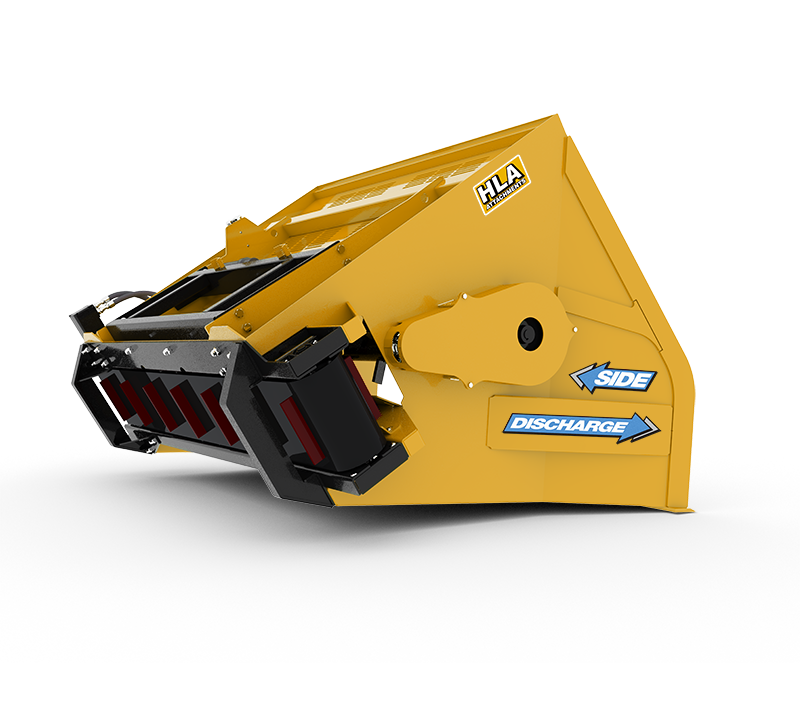

HLA Attachments Side Discharge Straw/Lime Bucket Less Mount | Width 60", 72", 84", and 96" | For Skid Steer

HLA Attachments Side Discharge Straw/Lime Bucket Less Mount | Width 60", 72", 84", and 96" | For Skid Steer

$8,372.00
$8,372.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Size Options: Available in 60", 72", 84", and 96" widths.
  • High-Capacity Handling: Equipped to handle straw, lime, and other loose materials with ease, up to 2-3/4 cubic yards (depending on width).
  • Efficient Discharge: Hydraulic-driven, high-abrasion rubber belt with 1.5" paddles to ensure consistent material flow and reduce clogging.

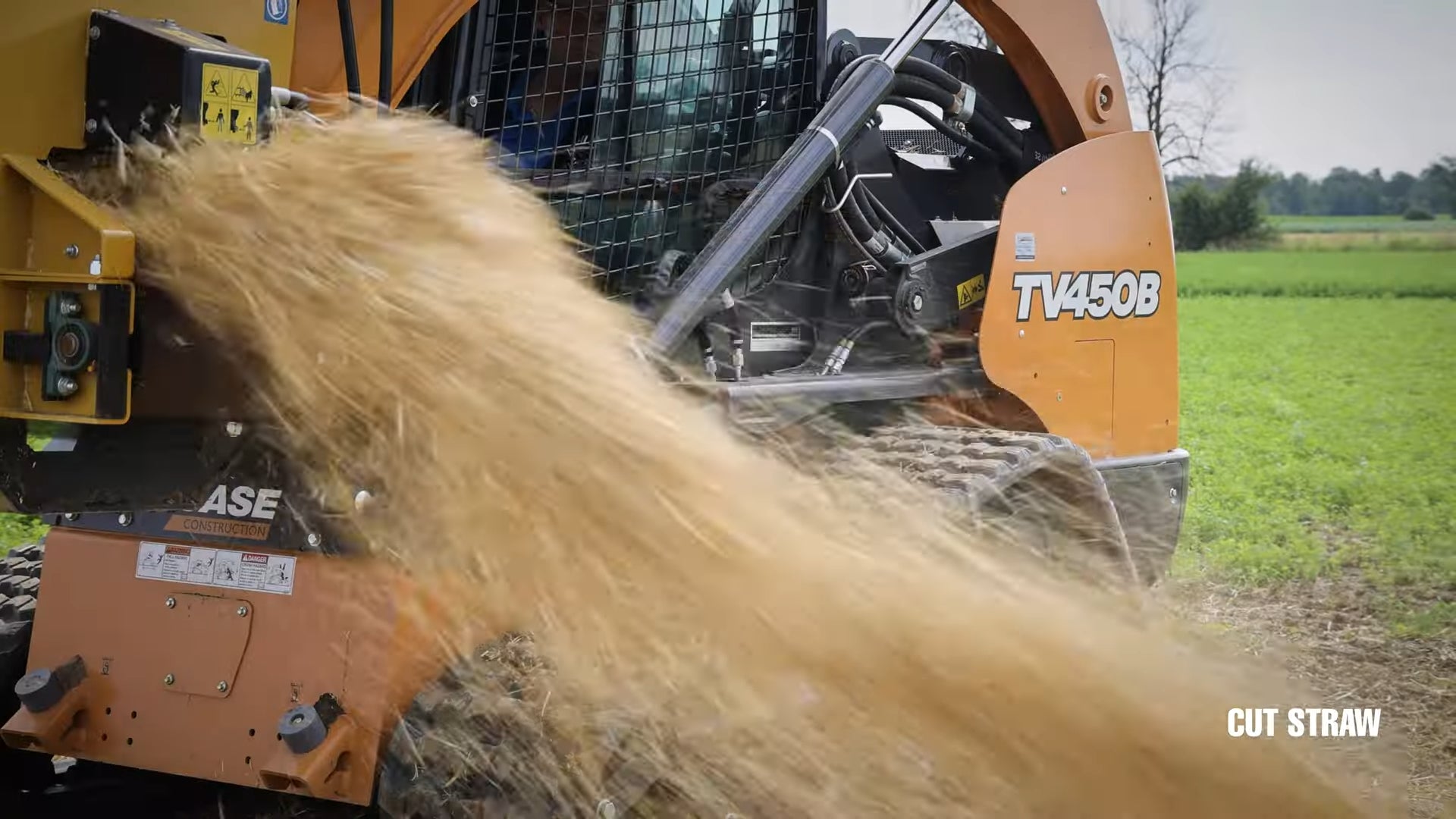

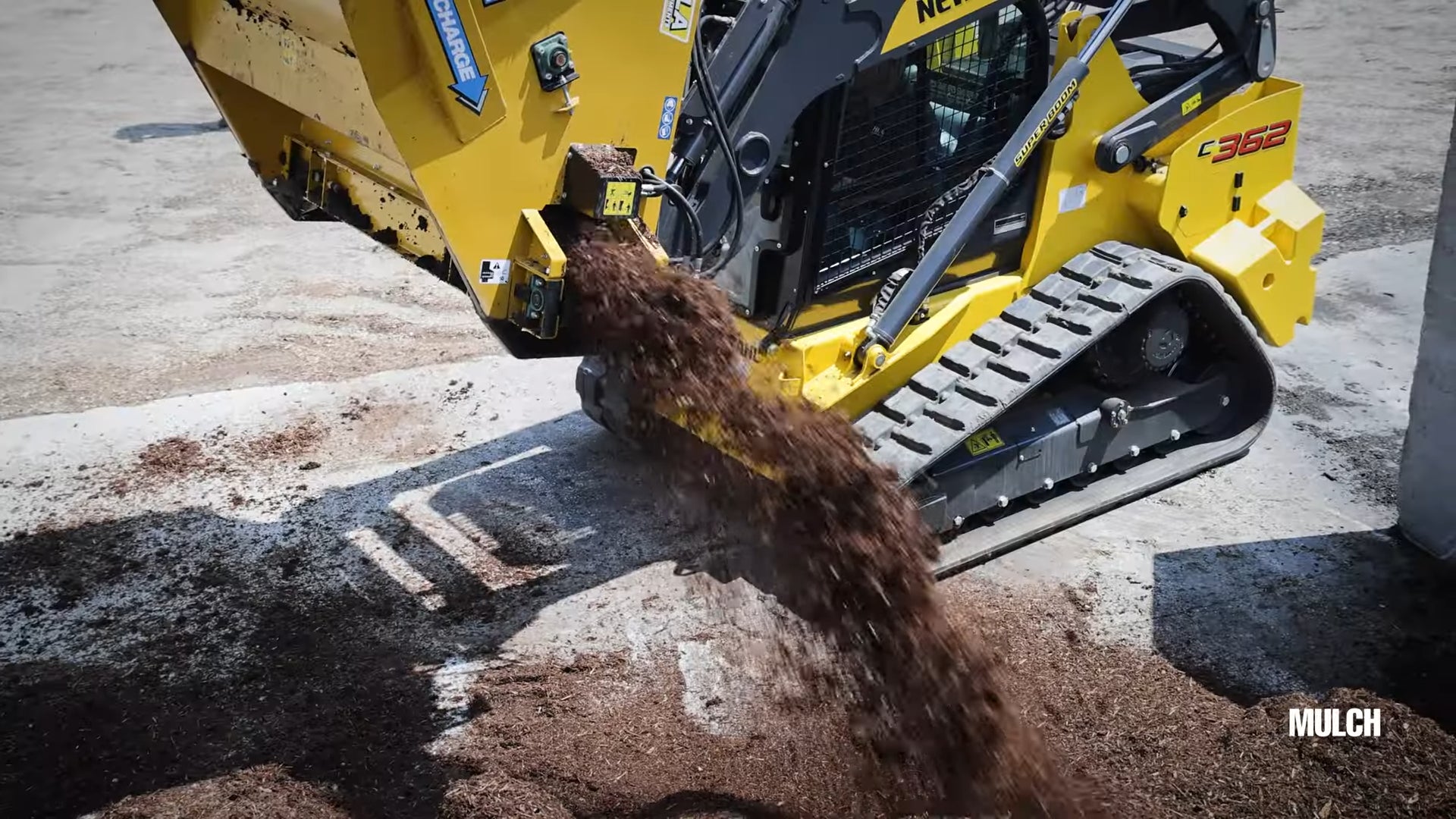

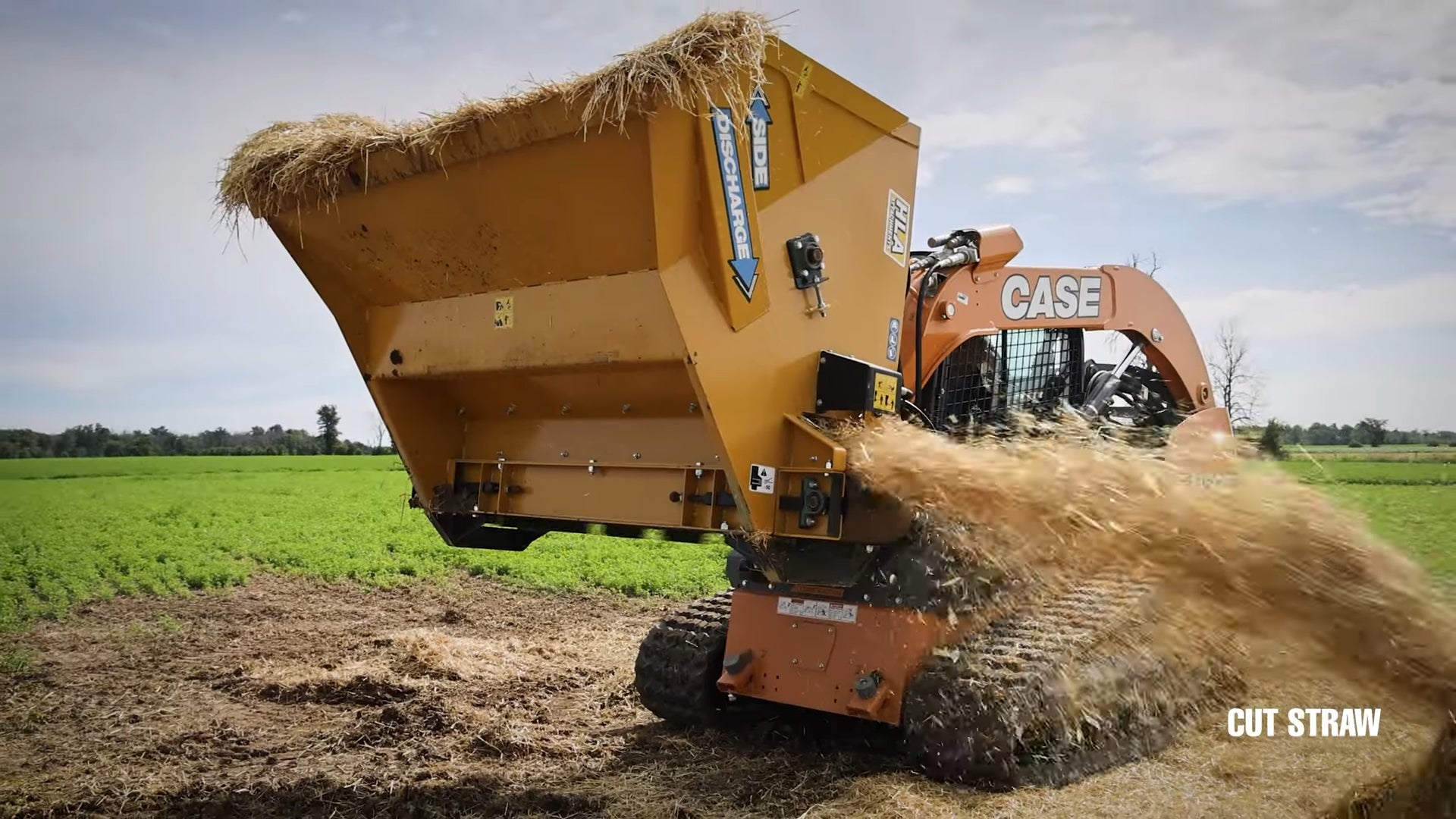

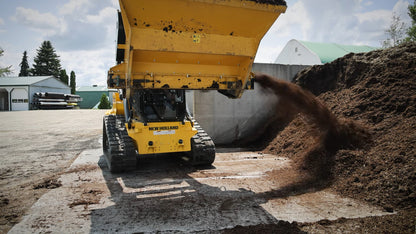

  • Versatile Discharge: Side discharge capability on both the right and left.
  • Mount Required: Mounting options available for compatibility with various loaders.
View full details

Product Description

HLA Attachments Side Discharge Straw/Lime Bucket Less Mount | Width 60", 72", 84", and 96" | For Skid Steer

DESCRIPTION

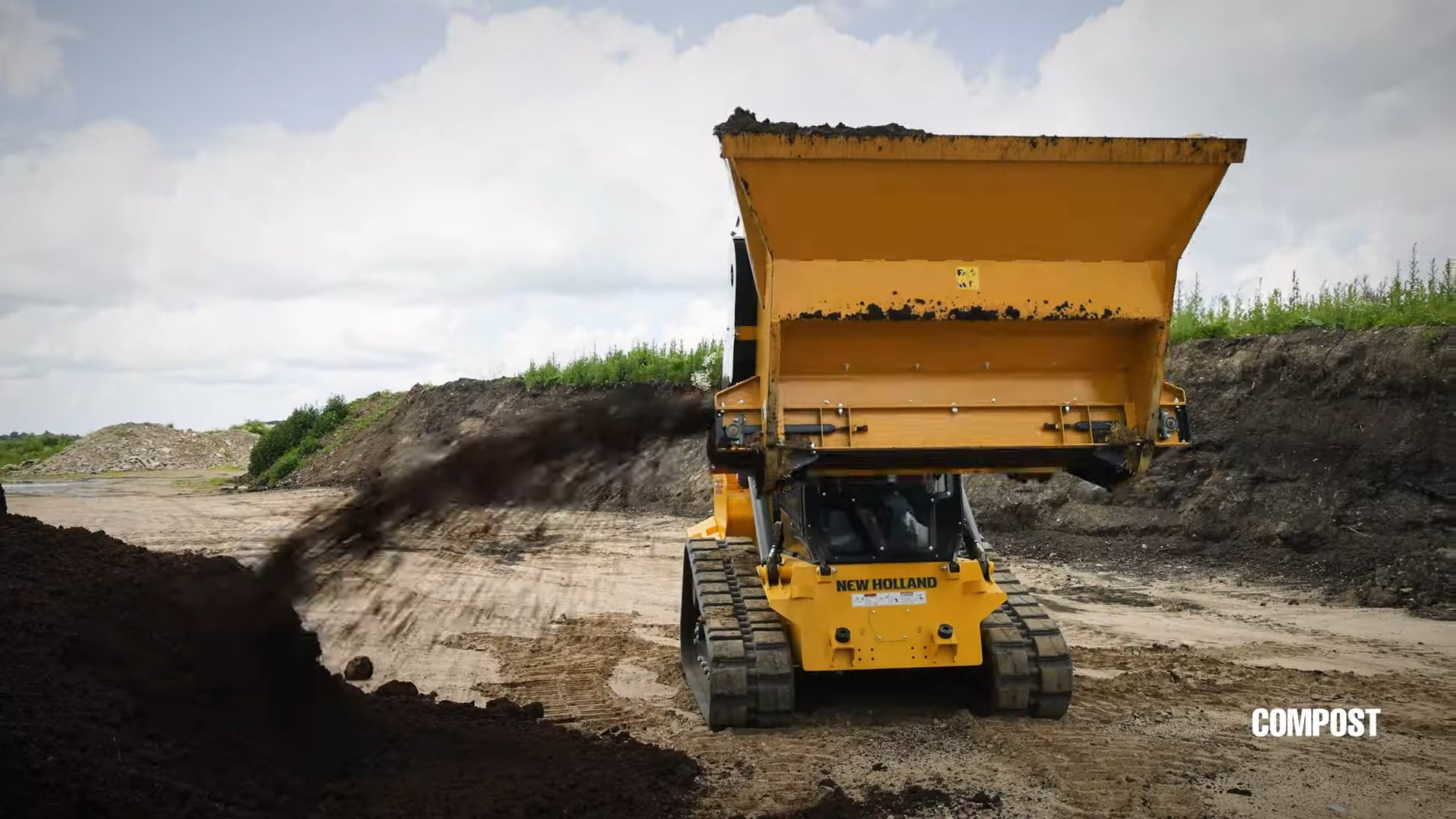

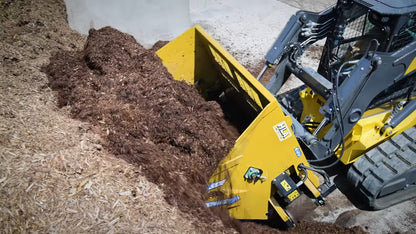

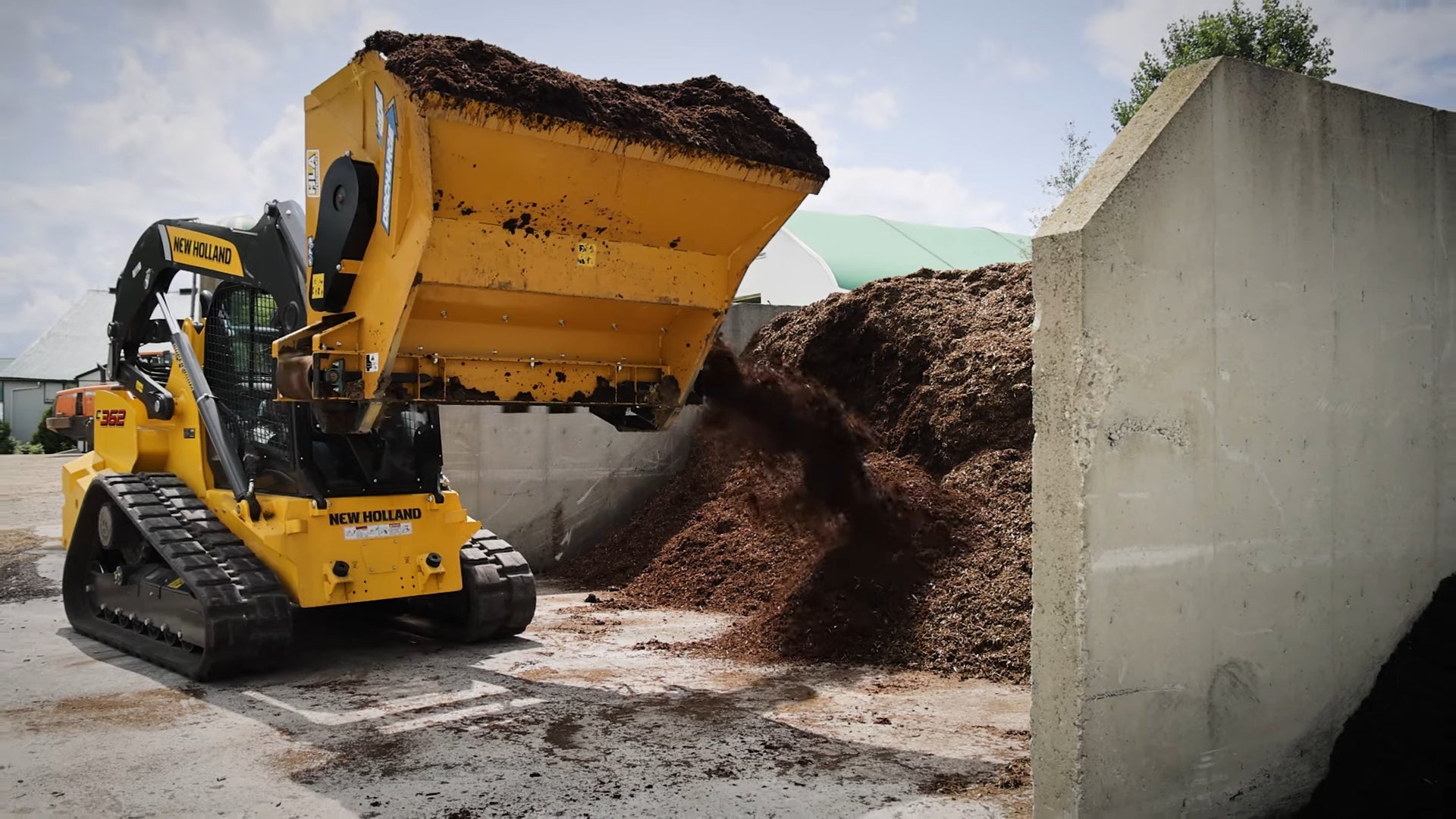

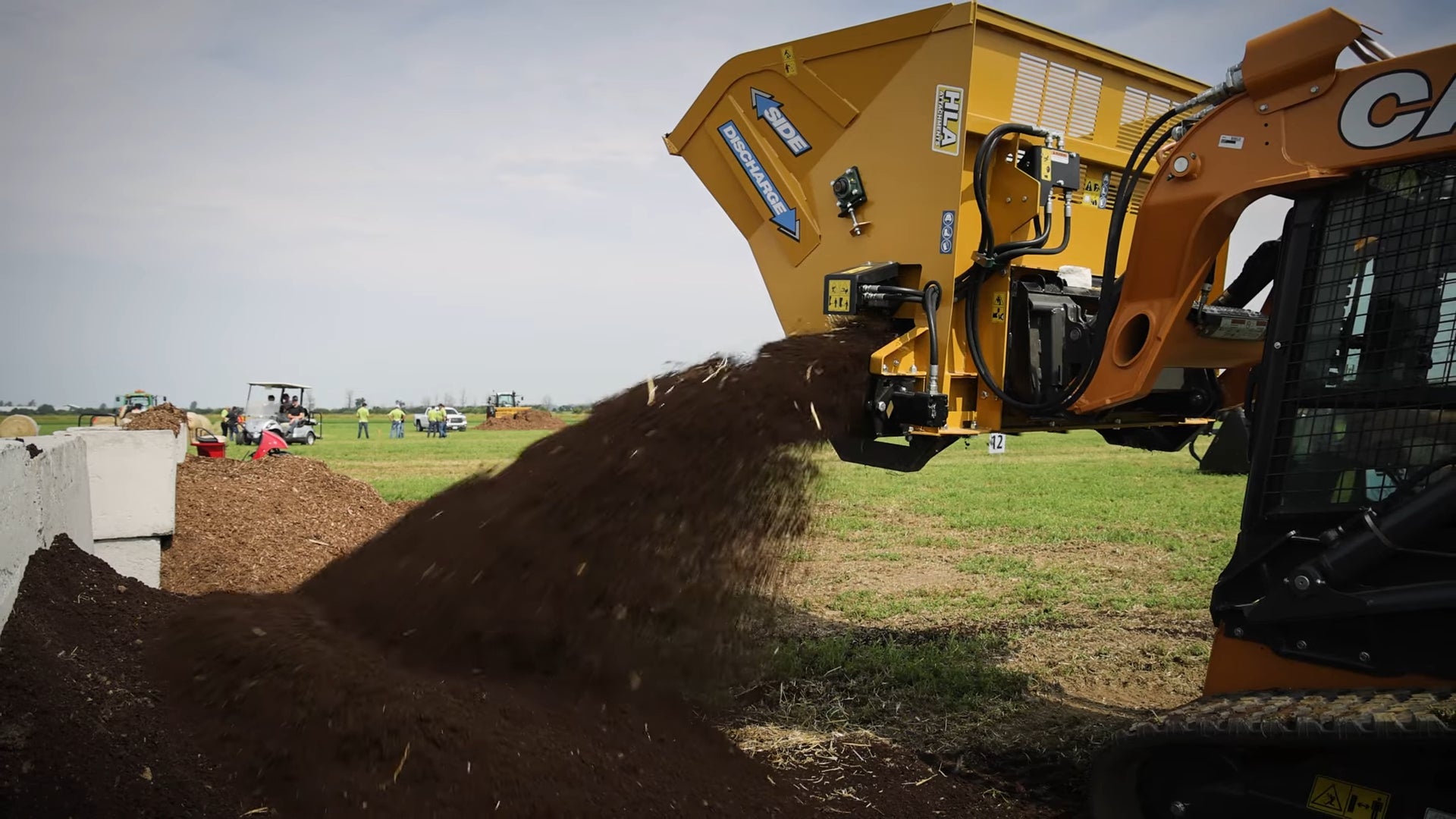

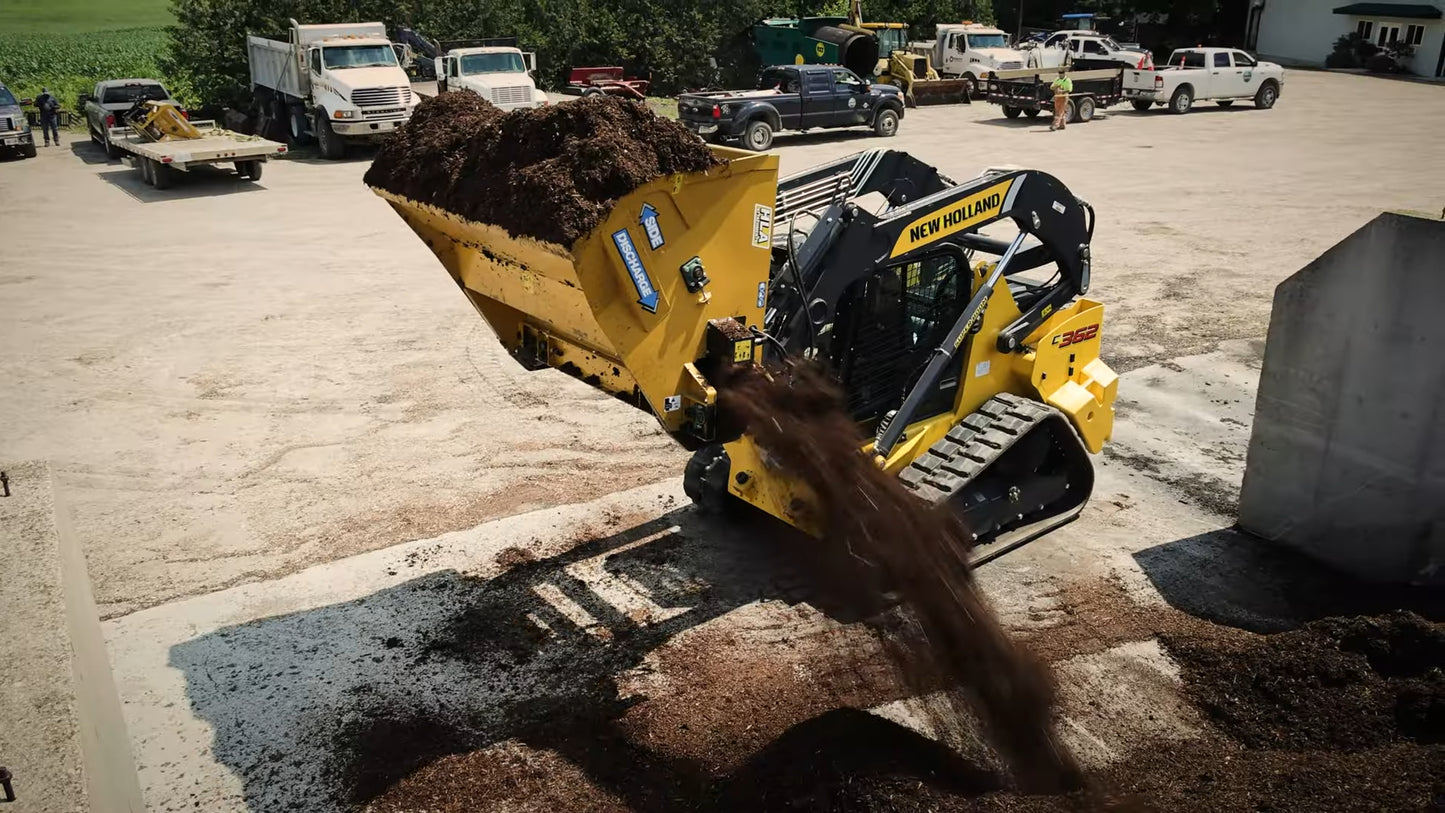

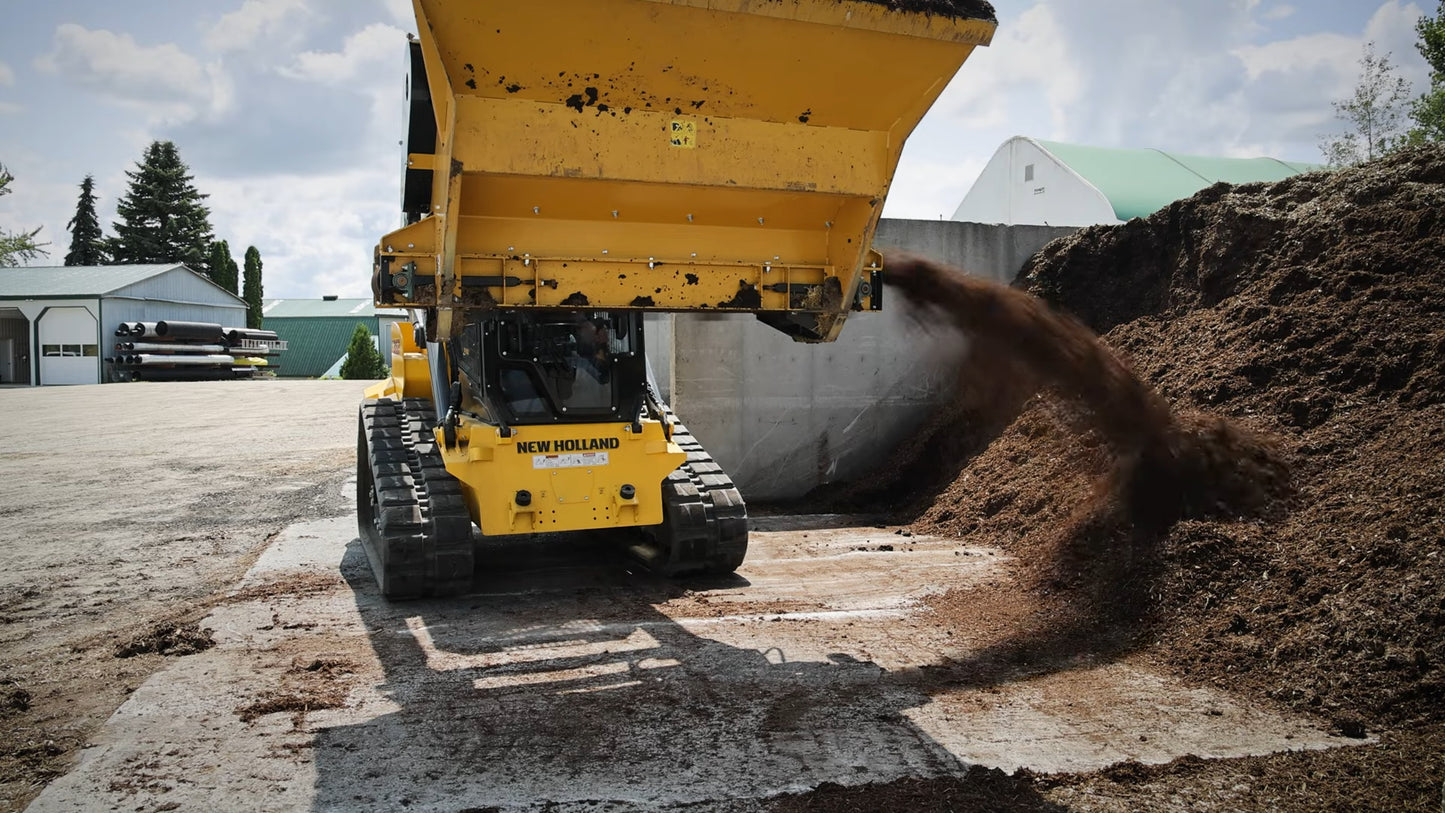

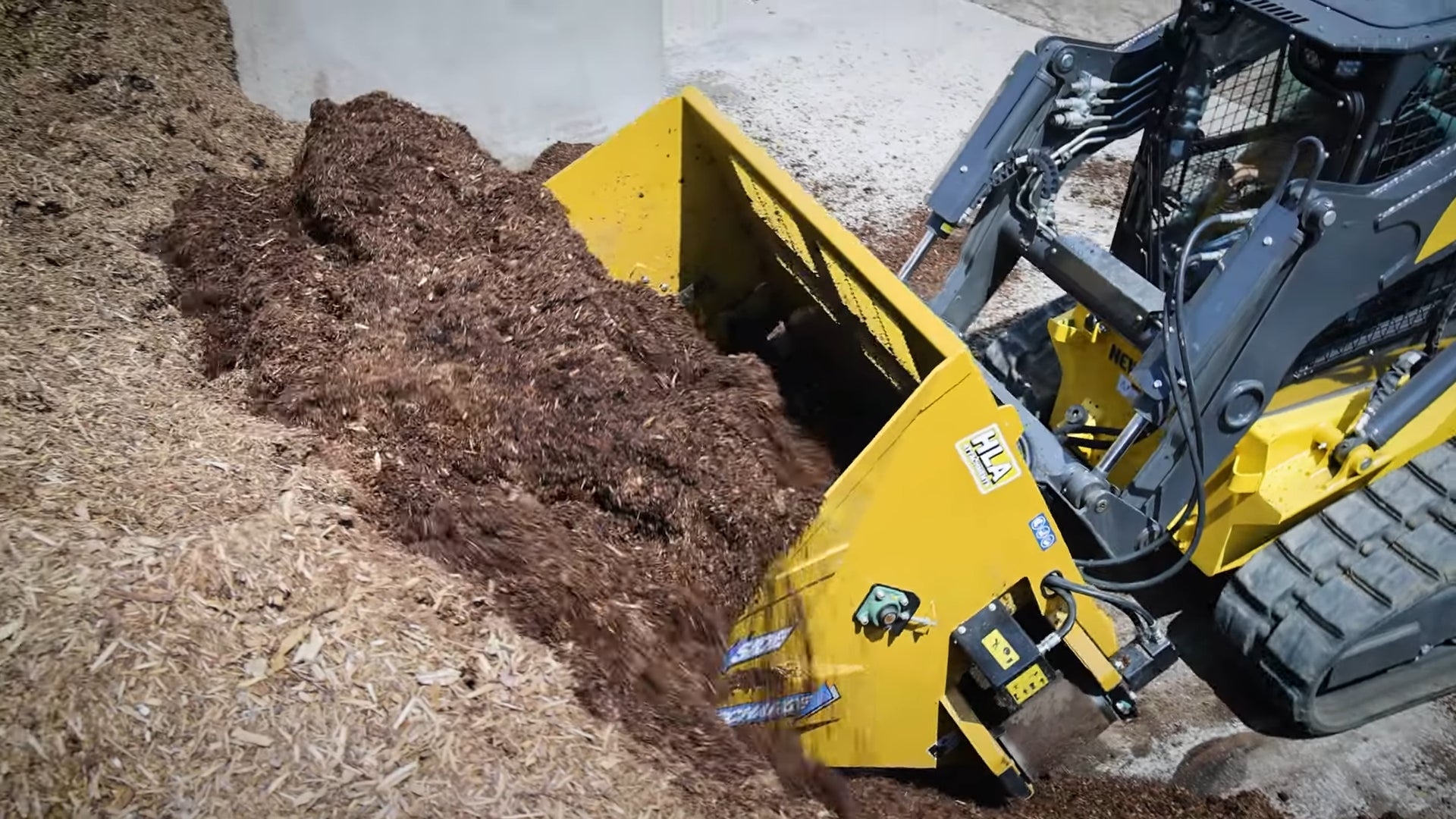

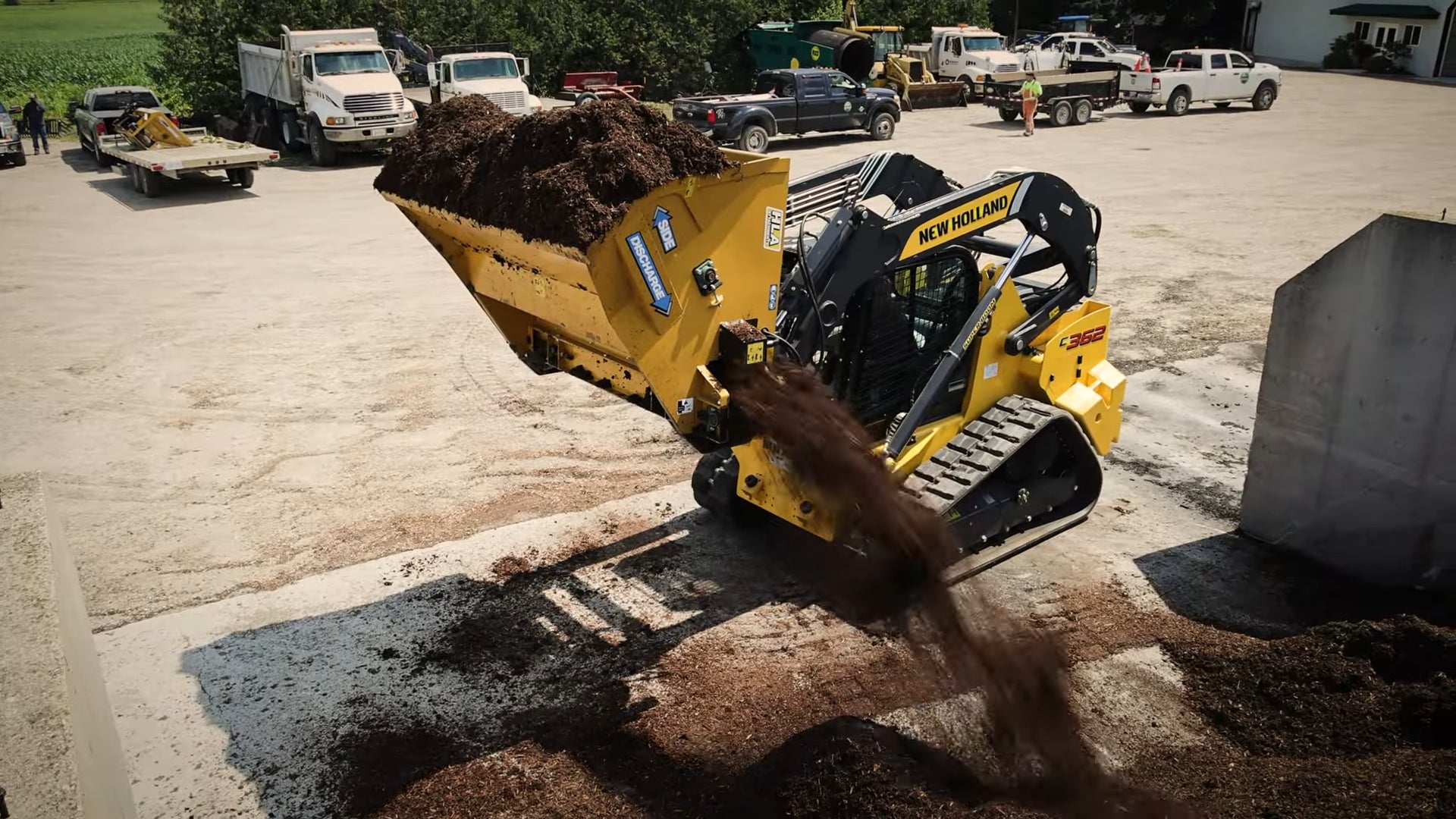

Experience unmatched productivity and versatility with the full line of HLA Attachments Side Discharge Buckets, engineered to handle straw, lime, compost, and more with ease. Available in widths ranging from 60" up to 96", these durable buckets are designed to boost your loader’s performance in agricultural, landscaping, and construction applications.

Each bucket features a direct-coupled hydraulic drive system powering a high-abrasion conveyor belt, ensuring consistent material flow and reliable side discharge to either left or right. Equipped with agitators and beaters to prevent material bridging, these buckets allow for smooth handling of bulky and fine materials alike.

Whether you need a compact 60" bucket for tight spaces or a large 96" unit for maximum capacity, HLA Attachments offers a model to fit your specific loader and job requirements. Choose from straw-only or combined straw/lime models to maximize the utility of your equipment.

Designed with operator visibility, serviceability, and versatile mounting options in mind, the HLA Side Discharge Buckets seamlessly adapt to skid steers, tractors, and loaders from major brands like John Deere, Kubota, Bush Hog, and more.

Key Features

  • Variety of Sizes (60" - 96") – Select the perfect bucket width to match your loader and job demands, from compact to high-capacity units.
  • Dual Discharge Direction – Easily discharge materials to the left or right side for flexible operation.
  • Direct Coupled Hydraulic Drive – Powerful, efficient 12" wide conveyor belt system with minimum 12 GPM hydraulic flow required.
  • Anti-Bridging Agitator & Beater Drum – Ensures smooth material flow with no clogs or jams.
  • High Abrasion Resistant Components – Durable rubber belt with paddles designed to withstand harsh materials.
  • Enhanced Operator Visibility – Mesh panels (on straw/lime models) improve line-of-sight behind the bucket.
  • Easy Mount Compatibility – Quick attach or bolt-on mounts available for most major loaders and skid steers.
  • Removable Conveyor Assembly – Simplifies maintenance, cleaning, and repairs.

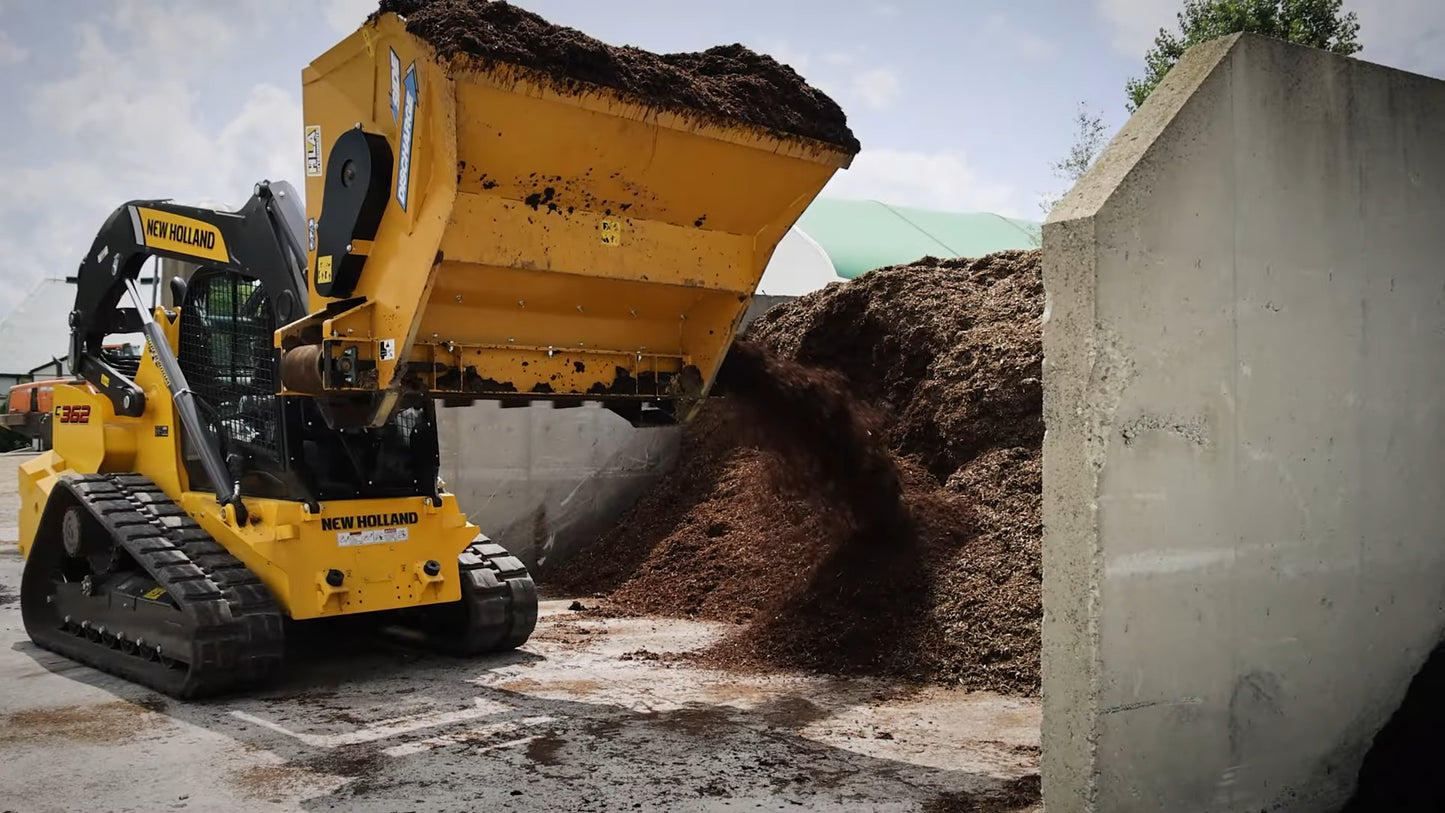

  • Flared Design (Straw/Lime Models) – Prevents material spillage and ensures smooth loading along walls or bunk edges.
  • Heavy-Duty Construction – Built to endure rigorous farm and job site conditions, extending service life.

Detailed Specifications

Specification SSC60 SSC72 SSC84 SSC96
Model Number SSC60 SSC72 SSC84 SSC96
Bucket Width 60" 72" 84" 96"
Heaped Capacity 1⅔ cubic yards 2 cubic yards 2⅓ cubic yards 2⅔ cubic yards
Approximate Weight 1,020 lbs 1,205 lbs 1,300 lbs 1,560 lbs
Hydraulic Flow Requirement Minimum 12 GPM Minimum 12 GPM Minimum 12 GPM Minimum 12 GPM
Drive Type Direct Coupled Hydraulic Drive Direct Coupled Hydraulic Drive Direct Coupled Hydraulic Drive Direct Coupled Hydraulic Drive
Conveyor Belt Type 12" wide belt with ¾" cleats 12" wide belt with ¾" cleats 12" wide belt with ¾" cleats 12" wide belt with ¾" cleats
Agitator / Beater Beater to prevent bridging Beater to prevent bridging Beater to prevent bridging Beater to prevent bridging
Discharge Direction Left or Right Left or Right Left or Right Left or Right
Operator Visibility Standard Standard Standard Standard
Mount Compatibility Multiple loader mounts available* Multiple loader mounts available* Multiple loader mounts available* Multiple loader mounts available*
Mount Required Yes, sold separately Yes, sold separately Yes, sold separately Yes, sold separately
Applications Straw handling & discharge Straw handling & discharge Straw handling & discharge Straw handling & discharge
Design Features Scoop & load like regular bucket Scoop & load like regular bucket Scoop & load like regular bucket Scoop & load like regular bucket

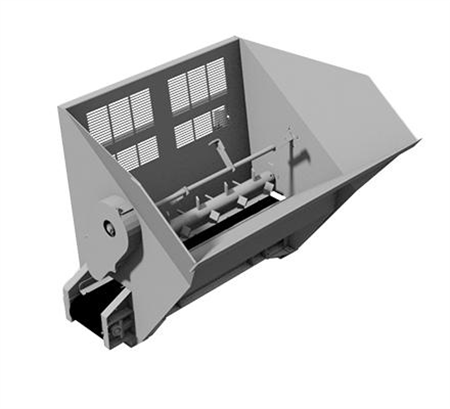

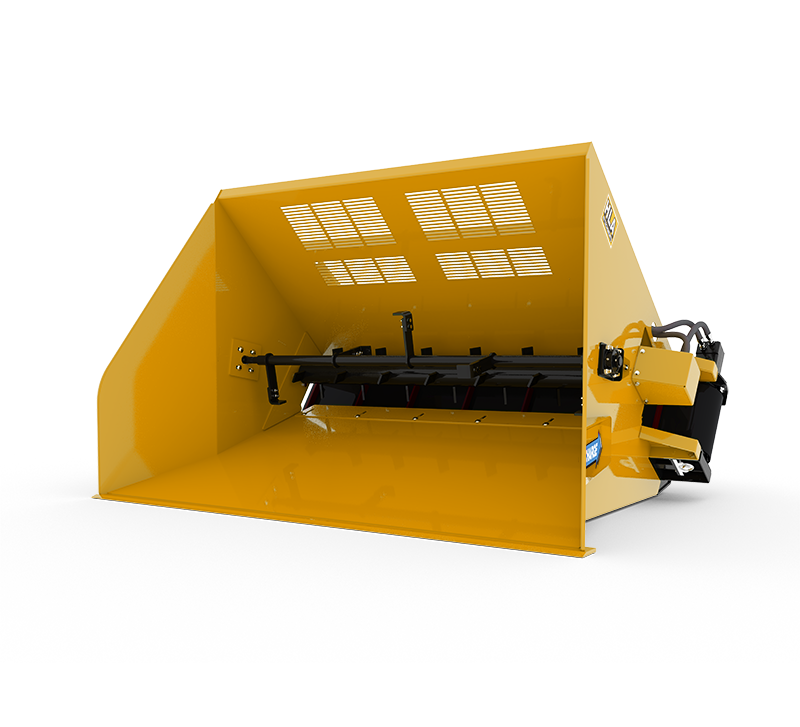

Specification SST72 SST84 SST96
Model Number SST72 SST84 SST96
Bucket Width 72" 84" 96"
Heaped Capacity 2 cubic yards 2⅓ cubic yards 2¾ cubic yards
Approximate Weight 1,365 lbs 1,535 lbs 1,700 lbs
Hydraulic Flow Requirement Minimum 12 GPM Minimum 12 GPM Minimum 12 GPM
Drive Type Direct Coupled Hydraulic Drive Direct Coupled Hydraulic Drive Direct Coupled Hydraulic Drive
Conveyor Belt Type 12" wide high-abrasion rubber belt with 1.5" paddles 12" wide high-abrasion rubber belt with 1.5" paddles 12" wide high-abrasion rubber belt with 1.5" paddles
Agitator / Beater Agitator prevents bridging; secondary beater drum Agitator prevents bridging; secondary beater drum Agitator prevents bridging; secondary beater drum
Discharge Direction Left or Right Left or Right Left or Right
Operator Visibility Mesh back panel for improved visibility Mesh back panel for improved visibility Mesh back panel for improved visibility
Mount Compatibility Multiple loader mounts available* Multiple loader mounts available* Multiple loader mounts available*
Mount Required Yes, sold separately Yes, sold separately Yes, sold separately
Applications Straw and lime handling & discharge Straw and lime handling & discharge Straw and lime handling & discharge
Design Features Flared design for loading along walls; removable conveyor Flared design for loading along walls; removable conveyor Flared design for loading along walls; removable conveyor





Manuals & Documents

SIDE DISCHARGE BUCKET BROCHURE

SIDE DISCHARGE MANUAL

LOADER MOUNTS

General Warranty Info:

  • Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
  • The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
  • Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
  • Please reach out to us for any specific warranty information needed about products and parts you can’t find!

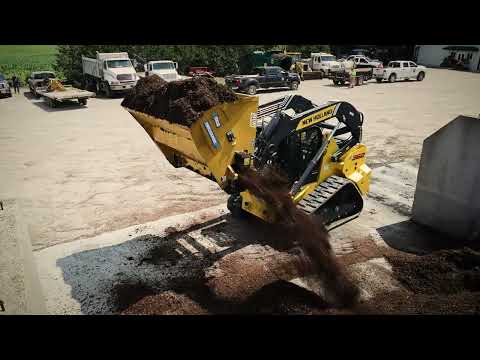

Videos
