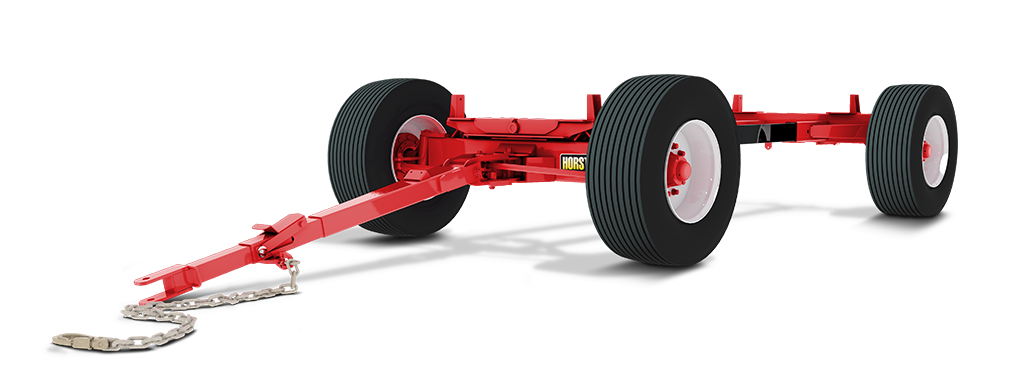

Horst Wagons 4-Wheel Heavy-Duty Wagon Gears | Model 365 & 365E | Capacity 20 Tons | Wheelbase Adjustable 10' 7" - 12' 1"
Horst Wagons 4-Wheel Heavy-Duty Wagon Gears | Model 365 & 365E | Capacity 20 Tons | Wheelbase Adjustable 10' 7" - 12' 1"
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Horst Wagons 4-Wheel Heavy-Duty Wagon Gears | Model 365 & 365E | Capacity 20 Tons | Wheelbase Adjustable 10' 7" - 12' 1"
DESCRIPTION
The Horst 20 4-Wheel Heavy Duty Wagon Gears are engineered for maximum durability and reliability in demanding agricultural and industrial environments. Featuring an adjustable wheelbase, retractable tongue, and a rocking bolster for stability on uneven terrain, these wagon gears offer exceptional load-bearing capacity and smooth trailering. The 20-ton model (365) and the 24-ton model built with heavy-duty automotive-style tie rod ends and tapered roller bearings, ensuring no-sway performance and long-lasting use.
Designed to allow full customization, these wagon gears come without wheels or tires, enabling you to select your preferred rim and tire configuration. The standard finish is red, with an optional green color choice. Additional upgrades such as brake systems and extended reach lengths are available to enhance functionality and adaptability.
Key Features
- High Capacity: Supports 20-ton (40,000 lbs) loads.
- Adjustable Wheelbase: Customizable for a variety of operational needs.
- Heavy-Duty Hubs: 8-bolt hubs rated at 12,000 lbs (20-ton)
- Retractable Tongue: Quick-hitch retractable tongue for effortless attachment.
- Rocking Bolster: Ensures stability on uneven terrain.
- Tapered Bearings: Reduces wear and ensures smooth operation.
- Durable Tie Rods: Automotive-style tie rod ends for reliable no-sway trailering.
- Customizable Rims/Tires: Choose from a wide selection of rim and tire options.
- Optional Upgrades: Available for enhanced functionality, including brake systems and extended reach lengths.
- Color Choices: Standard red finish with optional green color.
Detailed Specifications
| Feature | 485 (24 Ton) | 365E (20 Ton) | 365 (20 Ton) |
|---|---|---|---|
| Capacity (20 mph) | 48,000 lbs. | 40,000 lbs. | 40,000 lbs. |
| Capacity (30 mph) | 48,000 lbs. | 36,000 lbs. | 36,000 lbs. |
| Spindles | 4" Dia., C1045 Cold Rolled | 3" Dia., 1144 Stress Proof | 3" Dia., 1144 Stress Proof |
| Hubs | 10 Stud | 8 Stud | 8 Stud |
| Front Axle | 10 x 4 x .500 Wall | 10 x 4 x .250 Wall | 10 x 4 x .250 Wall |
| Rear Axle | 10 x 4 x .375 Wall | 10 x 4 x .188 Wall | 10 x 4 x .188 Wall |
| Weight (Approx.) | 2,210 lbs. | 1,495 lbs. | 1,595 lbs. |
| Height (Top of Bunk) | 34" with 18 x 22.5 Tires | 34" with 18 x 22.5 Tires | 34" with 18 x 22.5 Tires |
| Special Features | Rocking Bolster | Economical Design | Rocking Bolster |
Manuals & Documents
- OPS MANUAL WAGONS
- PARTS MANUAL 485
- PARTS MANUAL 365
- HLA WARRANTY
- HORST WAGONS RUNNING GEAR BROCHURE
- REACH LENGTH CHART
- ASSEMBLY INSTRUCTIONS
- HORST WAGONS CATALOGUE
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!
