Horst Wagons 4-Wheel Heavy-Duty Wagon Gears | Model 485 | Capacity 24 Tons | Standard Reach Length 10' | Wheelbase Adjustable 10' 7" - 12' 1" | For Agricultural & Heavy Transport Applications
Horst Wagons 4-Wheel Heavy-Duty Wagon Gears | Model 485 | Capacity 24 Tons | Standard Reach Length 10' | Wheelbase Adjustable 10' 7" - 12' 1" | For Agricultural & Heavy Transport Applications
Regular price
$8,183.00
Regular price
Sale price
$8,183.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Horst Wagons 4-Wheel Heavy-Duty Wagon Gears | Model 485 | Capacity 24 Tons | Standard Reach Length 10' | Wheelbase Adjustable 10' 7" - 12' 1" | For Agricultural & Heavy Transport Applications
DESCRIPTION

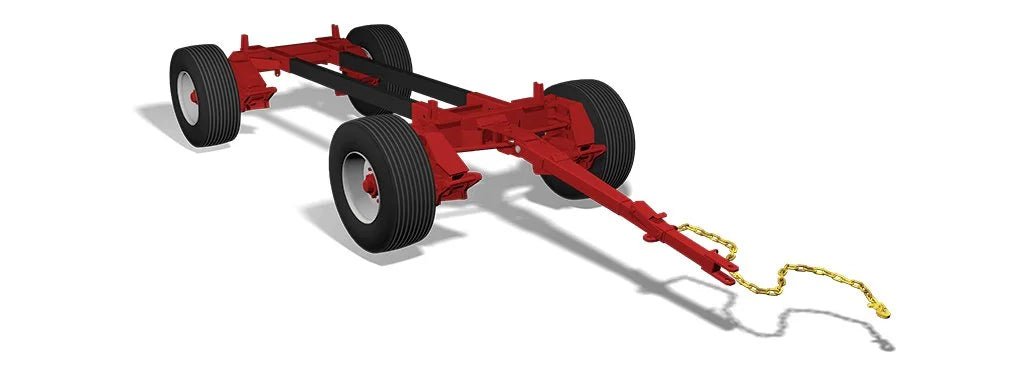

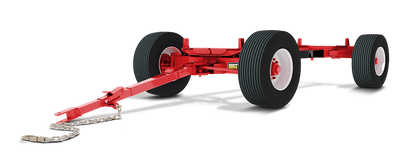

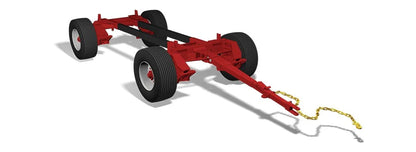

The Horst 4-Wheel Heavy-Duty Wagon Gears are designed for exceptional strength and dependability in rigorous agricultural and industrial conditions. They include an adjustable wheelbase, retractable tongue, and a rocking bolster to maintain stability on rough terrain. Model 485 supports a 24-ton capacity and features heavy-duty automotive-style tie rod ends along with tapered roller bearings to deliver sway-free performance and durability. These wagon gears are shipped without wheels or tires, allowing complete customization of rim and tire options. The standard color is red, with green available as an alternative. Optional enhancements like brake systems and extended reach lengths increase versatility and functionality.
Key Features
- Impressive Load Capacity: Can handle up to 48,000 lbs, making it ideal for heavy-duty operations at speeds of up to 30 mph.
- Model: 485 — 24‑Ton Heavy‑Duty Tandem Wagon Gear.
- Robust Build: Equipped with a 4" diameter C1045 cold-rolled spindles and 10-stud hubs for exceptional strength and reliability.
- Quick Hitch Tongue: Streamlines attachment and detachment for added convenience.
- Rocking Bolster: Ensures optimal load stability even on uneven terrain.
- Adjustable Wheelbase: Configurable between 10' 7" and 12' 1" to meet varied operational needs.
- Heavy‑Wall Axles: Front 10″ × 4″ × .500 wall; Rear 10″ × 4″ × .375 wall.
- Adjustable Bolster Stakes: Positions at 38.5″, 40.5″, or 42.5″.
- Custom Reach Tubes: Standard 10′, optional 8′–20′ for specific applications.
- Safety Chain: 5/8″ Grade 70 for secure towing.
- Multiple Track Widths: Narrow to 60″; wide to 90″ or over 90″.
- Disc Brake Flanges: Integrated features to prioritize safety during operation.
- Greasable Automotive Ball Joints: For smooth and durable automotive-style steering.
- Practical Design: Ground clearance of 34", making it suitable for rugged terrains, paired with sturdy bolster stakes for secure hauls.
Detailed Specifications
| Attribute | Specification |
|---|---|
| Brand | Horst Wagons |
| Model | 485 |
| Type | Heavy‑Duty Tandem Wagon Gear |
| Capacity (30 kph / 20 mph) | 48,000 lb. |
| Capacity (50 kph / 30 mph) | 48,000 lb. |
| Hubs | 10‑stud |
| Spindles | 4″ dia., C1045 cold‑rolled steel |
| Steering | Automotive type |
| Front Axle | 10″ × 4″ × .500 wall |
| Rear Axle | 10″ × 4″ × .375 wall |
| Reach Tubes | 6″ × 4″ × .188 |
| Standard Reach Length | 10′ |
| Optional Reach Lengths | 8′, 10′, 12′, 14′, 16′, 18′, 20′ |
| Wheelbase | Adjustable 10′ 7″ – 12′ 1″ |
| Tongue Bolt Diameter | 1‑1/2″ |
| Tongue Latch | Retractable automatic relock |
| Tie Rod Ends | Greasable automotive‑style ball joints |
| Bolster Stakes | Adjustable: 38.5″ / 40.5″ / 42.5″ |
| Tongue Bracket Mounting | 1‑1/2″ bolt bearing mounted |
| Approximate Weight | 2,210 lb. (less rims & tires) |
| Height to Top of Bunk | 34″ (with 18 × 22.5 tires) |
| Bearings (Bore Size Inner/Outer) | Taper roller (2.165″ / 1.625″) |
| Track Width (Standard) | 86″–92″ (varies by tire selection) |
| Optional Track Widths | Narrow to 60″; wide track to 90″ or over 90″ |
| Brake Options | 2‑wheel HD hydraulic disc brakes |
| Optional Features | Double spring balancer, riser kits |
| Primary Use | Agricultural hauling — forage & grain boxes |
Tire/Rim Options:
| Tire Size | Tire Type | Rim Size | Track Width | Capacity (lbs./Tire) |
|---|---|---|---|---|
| 425 × 22.5 | Used Truck | 22.5 × 13 × 10 | 86″ | 12,000 |
| 425 × 22.5 | New Recap | 22.5 × 13 × 10 | 86″ | 12,000 |
| 425 × 22.5 | New Truck | 22.5 × 13 × 10 | 86″ | 12,000 |
| 445 × 22.5 | Used Truck | 22.5 × 13 × 10 | 86″ | 12,000 |
| 445/50 × 22.5 | New Recap | 22.5 × 13 × 10 | 86″ | 12,000 |
| 445 × 22.5 | New Truck | 22.5 × 13 × 10 | 86″ | 12,000 |
| 400/55 × 22.5 | 16‑ply | 22.5 × 13 × 10 | 86″ | 7,820 |
| 560/45 × 22.5 | 16‑ply | 22.5 × 16 × 10 | 92″ | 9,640 |
