Horst Wagons

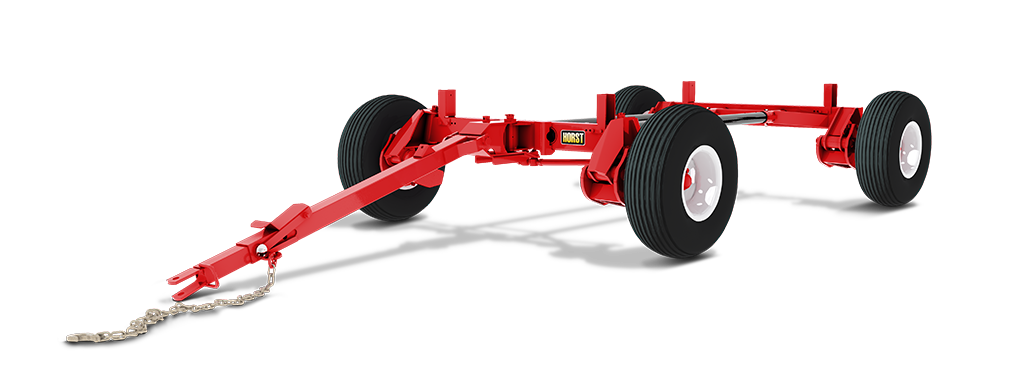

Horst Wagons 4-Wheel Road Flex Wagon Gears | Model 185RF & 205RF | Capacity 10-12 Tons | Wheelbase Adjustable 8' 8" - 11' 2" | For Agricultural Hauling & Forage/Grain Box Applications

Horst Wagons 4-Wheel Road Flex Wagon Gears | Model 185RF & 205RF | Capacity 10-12 Tons | Wheelbase Adjustable 8' 8" - 11' 2" | For Agricultural Hauling & Forage/Grain Box Applications

Regular price $5,520.00
Regular price Sale price $5,520.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Wheelbase Adjustable 8' 8" - 11' 2".
  • Capacities: 10-ton (185RF) and 12-ton (205) options for versatile agricultural needs.
  • Models: 185RF (10?Ton) & 205RF (12?Ton) — 4?Wheel Road Flex Suspension Wagon Gears.
  • Adjustable Wheelbase: Wheelbase can be set from 8' 8" to 11' 2" for enhanced flexibility.
  • Heavy?Duty Build: 185RF: 2? dia. C1045 hot?rolled spindles, 6?bolt hubs, 6? ×?3? ×?.250 wall axles, 205RF: 2?1/4? dia. C1045 cold?rolled spindles, 8?bolt hubs, 7? ×?3? ×?.250 wall axles.
  • Custom Options: Reach lengths up to 26 ft, multiple tire/rim configurations, and color choices.
View full details

Product Description

Horst Wagons 4-Wheel Road Flex Wagon Gears | Model 185RF & 205RF | Capacity 10-12 Tons | Wheelbase Adjustable 8' 8" - 11' 2" | For Agricultural Hauling & Forage/Grain Box Applications

DESCRIPTION

The Horst 205 and 185RF Road Flex Suspension Wagons provide durability and flexibility for heavy-duty agricultural tasks, with capacities of 10 and 12 tons. The 205 Wagon boasts a 12-ton capacity and is equipped with an adjustable wheelbase and a quick hitch tongue, making it ideal for easy attachment and secure handling. Its automotive-type steering with tapered roller bearings and ball joint tie rod ends offers smooth maneuvering. The 185RF 10-ton wagon features heavy-duty tie rod ends for no-sway trailering and long-lasting performance. Both wagons allow for custom tire and rim selections, offering flexibility for specific applications.

The adjustable reach length, retractable tongue, and multiple rim/tire options make these wagons adaptable to various agricultural needs, ensuring reliable transportation and stability on uneven terrains. With high-quality engineering, these wagons are built to withstand rigorous farm environments and provide hassle-free performance for years.

Key Features

  • Quick Hitch Tongue: Easily attach and detach with the quick hitch retractable tongue.
  • Models: 185RF (10‑Ton) & 205RF (12‑Ton) — 4‑Wheel Road Flex Suspension Wagon Gears.
  • Adjustable Wheelbase: Wheelbase can be set from 8' 8" to 11' 2" for enhanced flexibility.
  • Heavy‑Duty Build: 185RF: 2″ dia. C1045 hot‑rolled spindles, 6‑bolt hubs, 6″ × 3″ × .250 wall axles, 205RF: 2‑1/4″ dia. C1045 cold‑rolled spindles, 8‑bolt hubs, 7″ × 3″ × .250 wall axles.
  • Heavy-Duty Tie Rod Ends: Automotive-grade greasable tie rod ends provide no-sway trailering.
  • 8 Bolt Hubs (12 Ton Model): Rated at 6,500 lbs, providing strength and durability.
  • 6 Bolt Hubs (10 Ton Model): Rated at 6,000 lbs, offering stability under load.
  • Customizable Reach Length: Choose from 11 ft. to 26 ft. reach options based on specific needs.
  • Less Wheels/Tires: Select from a wide range of rim and tire options for customization.
  • Color Selection: Available in multiple color options in the options tab.
  • Enhanced Stability: Road Flex suspension ensures smooth operation on rugged terrain.

Detailed Specifications

Feature 185RF (10 Ton) 205RF (12 Ton)
Load Capacity (20 mph) 20,000 lbs. 24,000 lbs.
Load Capacity (30 mph) 18,000 lbs. 18,000 lbs.
Spindles 2" Dia., C1045 Hot Rolled 2-1/4" Dia., C1045 Cold Rolled
Hubs 6 Bolt 8 Bolt
Height (Top of Bunk) 26" (11L x 15 Tires) 27"-31" (Tire Dependent)
Front Axle 6 x 3 x .250 Wall 7 x 3 x .250 Wall
Rear Axle 6 x 3 x .250 Wall 7 x 3 x .250 Wall
Weight (Approx.) 1,150 lbs. 1,270 lbs.
