HORST WAGONS 4‑Wheel Steer Draper Header Wagons | CHCFX JDHD Series | Top Rail Lengths 36′–52′ | Horsepower ~100–130 HP Recommended | For Tractor

Product Description

HORST WAGONS 4‑Wheel Steer Draper Header Wagons | CHCFX JDHD Series | Top Rail Lengths 36′–52′ | Horsepower ~100–130 HP Recommended | For Tractor

DESCRIPTION

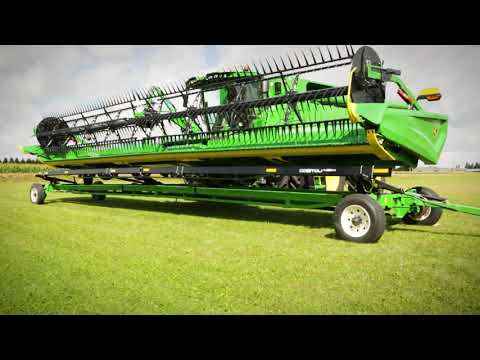

The Horst Wagons 4WS Cross-Country Header Carriers are specially designed to transport John Deere HD Series Headers, including HD35R, HD40R, HD45R, and HD50R models. Built with precision engineering, these carriers offer top rails ranging from 36 ft to 52 ft and wheelbases from 35 ft to 48 ft. The four-wheel steering ensures perfect cornering by tracking the path of the towing vehicle, enhancing maneuverability and stability during transit. With 12,000 lbs high-speed axles, tapered roller bearings, and 235/55 R17.5 tires on heavy-duty rims, these carriers are engineered for durability and smooth operation across various terrains.

Safety and ease of use are prioritized with features such as electric drum brakes, adjustable hitches with auto-lock, and rear lights equipped with brake and turn signals. Six ratchet straps and universal mounting brackets ensure headers are securely positioned during transport, providing peace of mind for agricultural professionals.

Key Features

• Four-Wheel Steering: Ensures perfect tracking behind the towing vehicle for precise cornering.
• Models & Sizes: CHCFX35JDHD (36′ rail), CHCFX40JDHD (42′ rail), CHCFX45JDHD (46′ rail), CHCFX50JDHD (52′ rail).
• JD‑Specific Mounting: Four custom pads designed for John Deere Hinged Draper heads (HD35R/F/X, HD40R/F/X, HD45R/F/X, HD50R/F).
• Top Rail Compatibility: Adjustable rails ranging from 36 ft to 52 ft for JD HD Series Headers.
• Electric Drum Brakes: Four-wheel braking system for enhanced safety and control.
• Heavy-Duty Axles: 12,000 lbs capacity with 8-bolt high-speed automotive hubs.
• Durable Tires: 235/55 R17.5 (16-ply) tires mounted on 17.5 x 6.75 heavy-duty rims.
• Secure Mounting: Includes six ratchet straps and universal pivoting brackets for header stability.
• Adjustable Hitch: Length-adjustable hitch with auto-lock for easy coupling.
• Tapered Bearings: Tapered roller bearings ensure no-sway trailering.
• Rear Lighting System: Integrated brake and turn signals with a 7-pin RV plug.
• Color Options: Available in multiple color choices for customization.
• Tractor Recommendation: ~100 HP for CHCFX35JDHD, ~110 HP for CHCFX40JDHD, ~120 HP for CHCFX45JDHD, ~130 HP for CHCFX50JDHD.

Detailed Specifications

Horst Wagons CHCFX35JDHD

Horst Wagons CHCFX40JDHD

Horst Wagons CHCFX45JDHD

Horst Wagons CHCFX50JDHD
