Horst Wagons 4-Wheel Wagon Gear | Model 285RF (15 Ton) | Standard Reach Length 10' Ft | Wheelbase Adjustable 10' 7" - 12' 1" | For Agricultural Hauling & Forage/Grain Box Applications
DESCRIPTION
The Horst Wagons 4-Wheel Wagon Gear Model 285RF (15 Ton) is engineered for exceptional durability and performance in agricultural hauling and forage or grain box applications. Featuring a robust heavy-duty frame and an advanced Road Flex Suspension system, it ensures smoother rides over rough terrain, reducing wear and tear on both the wagon and cargo. With a standard reach length of 10 feet and an adjustable wheelbase ranging from 10' 7" to 12' 1", this wagon gear offers precise handling and adaptability to various towing requirements. Its design prioritizes safety and reliability, making it an ideal choice for demanding transport tasks in agriculture.
Key Features

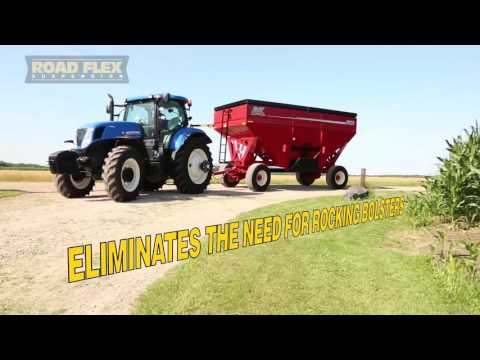

- Road Flex Suspension: Enhanced stability and vibration dampening for seamless transport on rugged terrain.
- Model: 285RF — 15‑Ton Heavy‑Duty Wagon Gear with Road Flex Suspension.
- 15-Ton Capacity: Carries up to 30,000 lbs (13,607 kg) at lower speeds and 24,000 lbs (10,886 kg) at higher speeds.
- Quick Hitch Tongue: Allows for effortless hitching, saving time and effort during operations.
- Adjustable Wheelbase: Ranges from 10' 7" to 12' 1", providing versatile load handling.
- Disc Brake Flanges: Reliable stopping power for increased safety and control.
- Safety Chain: Equipped with a 1/2" Grade 70 chain for added security during use.
- Precision Steering: Automotive-style steering with greasable tie rod ends ensures durability and smooth operation.
- Rim & Tire Versatility: Offers a range of configurations to meet specific needs and terrain requirements.
Detailed Specifications
| Attribute | Specification |
|---|---|
| Brand | Horst Wagons |
| Model | 285RF |
| Type | Heavy‑Duty Tandem Wagon Gear |
| Capacity (30 kph / 20 mph) | 30,000 lb. |
| Capacity (50 kph / 30 mph) | 24,000 lb. |
| Suspension | Road Flex |
| Hubs (20 mph rating) | 8‑stud, 8,000 lb. each |
| Hubs (30 mph rating) | 8‑stud, 6,000 lb. each |
| Spindles | 2.75″ dia., C1045 cold‑rolled steel |
| Steering | Automotive type |
| Front Axle | 8″ × 4″ × .250 wall |
| Rear Axle | 8″ × 4″ × .188 wall |
| Reach Poles | 3″ O.D. × .188 wall, round tube |
| Reach Tubes | 6″ × 4″ × .188 |
| Standard Reach Length | 10′ |
| Optional Reach Lengths | 8′, 10′, 12′, 14′, 16′, 18′, 20′ |
| Wheelbase | Adjustable 10′ 7″ – 12′ 1″ |
| Tongue Bolt Diameter | 1‑1/8″ |
| Tongue Latch | Retractable automatic relock |
| Tie Rod Ends | Greasable automotive‑style ball joints |
| Bolster Stakes | 42.5″ fixed |
| Tongue Bracket Mounting | 1‑1/2″ bolt bearing mounted |
| Approximate Weight | 3,085 lb. (less rims & tires) |
| Height to Top of Bunk | 39″ (with 445/65 × 22.5 tires) |
| Bearings (Bore Size Inner/Outer) | Taper roller (1.80″ / 1.38″) |
| Track Width (Standard) | 86″–93″ (varies by tire) |
| Optional Track Widths | Narrow 60″; wide track up to 90″+ |
| Brake Options | 2‑wheel or 4‑wheel HD hydraulic disc brakes (22.5 rim) |
| Optional Features | Single/double spring balancer, riser kits |
| Primary Use | Agricultural hauling — forage & grain boxes |
Rim & Tire Options
| Tire Size | Type | Rim Size | Track Width | Capacity (lbs/tire) |
|---|---|---|---|---|
| 16.5 x 16.1 | 10 Ply | 16.1 x W14C x 8 | 93" | 5,200 |
| 11 x 22.5 | Used Truck | 22.5 x 8.25 x 8 HD | 89" | 8,000 |
| 385 x 22.5 | Used Truck | 22.5 x 11.75 x 8 | 89" | 10,000 |
| 425 x 22.5 | New Truck | 22.5 x 13 x 8 | 86" | 12,000 |
| 445 x 22.5 | New Truck | 22.5 x 13 x 8 | 86" | 12,000 |
| 400 / 55 x 22.5 | 16 Ply | 22.5 x 13 x 8 | 86" | 7,820 |
| 560 / 45 x 22.5 | 16 Ply | 22.5 x 16 x 8 | 92" | 9,640 |
