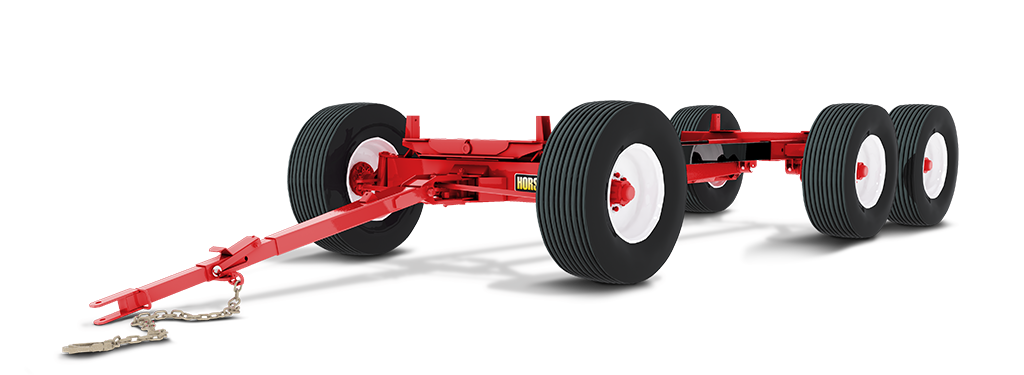

Horst Wagons 6-Wheel HD Tandem Wagon Gear | Model 605 (30 Ton) | Wheelbase Adjustable 10' 7" - 12' 1" | For Agricultural Heavy Hauling & Forage/Grain Box Applications
Horst Wagons 6-Wheel HD Tandem Wagon Gear | Model 605 (30 Ton) | Wheelbase Adjustable 10' 7" - 12' 1" | For Agricultural Heavy Hauling & Forage/Grain Box Applications
Regular price
$11,380.00
Regular price
Sale price
$11,380.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Horst Wagons 6-Wheel HD Tandem Wagon Gear | Model 605 (30 Ton) | Wheelbase Adjustable 10' 7" - 12' 1" | For Agricultural Heavy Hauling & Forage/Grain Box Applications
DESCRIPTION
The Horst Wagons Model 605 is a 30-ton capacity, heavy-duty six-wheel running gear engineered for maximum durability, stability, and versatility in demanding agricultural and industrial hauling applications. Designed with a rear tandem walking beam and rocking bolster, it ensures smooth load distribution and superior ground contact over uneven terrain. Its adjustable wheelbase (10'7" to 12'1") and quick hitch retractable tongue make it adaptable to various load sizes and towing configurations. The tapered roller bearings on the kingpins and steering pivots, combined with automotive-style heavy-duty tie rod ends, deliver precise steering control, reduced sway, and extended service life. Built with 10-bolt hubs rated at 16,000 lbs each, the Model 605 is ready for extreme-duty use. The gear is sold without wheels/tires, allowing you to customize rim and tire options to match your specific operational needs.
Key Features
- Impressive Load Capacity: Handles 60,000 lbs effortlessly at speeds of 20 mph or 30 mph, ensuring reliability for the heaviest jobs.
- 30 Ton HD Tandem Wagon Gear: Provides unparalleled stability and durability, designed for rigorous use.
- Quick Hitch Tongue: Enables fast and efficient attachment, reducing setup time and increasing productivity.
- Adjustable Wheelbase: Adjustable between 10' 7" and 12' 1", allowing customization for various operational needs.
- Rocking Bolster Design: Ensures stability on uneven terrain, safeguarding your load during transport.
- Advanced Safety Features: Includes disc brake flanges and a 5/8" GR. 70 safety chain, offering top-notch safety and peace of mind.
- Automotive-Style Steering: Incorporates greasable automotive-style ball joints and tie rod ends for smooth and controlled maneuvering.
- Model: 605 — 30‑Ton Heavy‑Duty Tandem Wagon Gear for agricultural transport.
- Load Capacity: 60,000 lb. at 20 or 30 mph for serious heavy hauling.
- Rocking Bolster: Improves stability and load distribution on uneven ground.
- Custom Reach Options: Standard 10′; optional 8′–20′ reach tubes available.
- Brake‑Ready: Disc brake flanges standard; 2‑wheel or 4‑wheel hydraulic disc systems optional.
- Safety Chain: 5/8″ Grade 70 heavy‑duty chain included.
- Bolster Stakes: Fixed at 42.5″ for secure load retention.
- Multiple Track Widths: Narrow to 60″; wide track up to 90″+ available.
- Heavy-Duty Construction: Features 4" Dia. C1045 cold-rolled spindles, 10 x 4 x .500 wall axles, and rugged 6 x 4 x .188 reach tubes for long-lasting reliability under maximum load stress.
- Enhanced Height Design: Provides a 34" height (top of the bunk) for ease of handling with 18 x 22.5 tires.
Detailed Specifications
| Attribute | Specification |
|---|---|
| Brand | Horst Wagons |
| Model | 605 |
| Type | Heavy‑Duty Tandem Wagon Gear |
| Capacity (30 kph / 20 mph) | 60,000 lb. |
| Capacity (50 kph / 30 mph) | 60,000 lb. |
| Hubs | 10‑stud |
| Spindles | 4″ dia., C1045 cold‑rolled steel; 2‑3/4″ front variant |
| Steering | Automotive type |
| Front Axle | 10″ × 4″ × .500 wall |
| Rear Axle | 10″ × 4″ × .500 wall |
| Standard Reach Length | 10′ |
| Optional Reach Lengths | 8′, 10′, 12′, 14′, 16′, 18′, 20′ |
| Wheelbase | Adjustable 10′ 7″ – 12′ 1″ |
| Tongue Bolt Diameter | 1‑1/2″ |
| Tongue Latch | Retractable automatic relock |
| Tie Rod Ends | Greasable automotive‑style ball joints |
| Bolster Stakes | Fixed 42.5″ |
| Tongue Bracket Mounting | 1‑1/2″ bolt bearing mounted |
| Approximate Weight | 3,295 lb. (less rims & tires) |
| Height to Top of Bunk | 34″ (with 18 × 22.5 tires) |
| Bearings (Bore Size Inner/Outer) | Taper roller 1.80″ / 1.38″ |
| Track Width (Standard) | 86″–92″ (varies by tire) |
| Optional Track Widths | Narrow to 60″; wide track to 90″ or over 90″ |
| Brake Options | 2‑wheel or 4‑wheel HD hydraulic disc brakes |
| Optional Features | Double spring balancer, 4″ bolt‑on riser kit |
| Primary Use | Agricultural heavy hauling — forage & grain boxes |
Tire/Rim Options:
| Tire Size | Tire Type | Rim Size | Track Width | Capacity (lbs./Tire) |
|---|---|---|---|---|
| 425 × 22.5 | Used Truck | 22.5 × 13 × 10 | 86″ | 12,000 |
| 425 × 22.5 | New Recap | 22.5 × 13 × 10 | 86″ | 12,000 |
| 425 × 22.5 | New Truck | 22.5 × 13 × 10 | 86″ | 12,000 |
| 445 × 22.5 | Used Truck | 22.5 × 13 × 10 | 86″ | 12,000 |
| 445/50 × 22.5 | New Recap | 22.5 × 13 × 10 | 86″ | 12,000 |
| 445 × 22.5 | New Truck | 22.5 × 13 × 10 | 86″ | 12,000 |
| 400/55 × 22.5 | 16‑ply | 22.5 × 13 × 10 | 86″ | 7,820 |
| 560/45 × 22.5 | 16‑ply | 22.5 × 16 × 10 | 92″ | 9,640 |
