Horst Wagons

HORST WAGONS Tandem Wagon Gear – 18 Ton | Model 325RF | Track Widths 86″–95″ | Adjustable Wheelbase 8′ 8″ – 11′ 2″ | For Agricultural Hauling & Forage/Grain Box Applications

HORST WAGONS Tandem Wagon Gear – 18 Ton | Model 325RF | Track Widths 86″–95″ | Adjustable Wheelbase 8′ 8″ – 11′ 2″ | For Agricultural Hauling & Forage/Grain Box Applications

$9,310.00
$9,310.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Wheelbase Adjustable 8' 8" - 11' 2" & Model 325RF (18 Ton).
  • Model: 325 — 18‑Ton Tandem Wagon Gear for agricultural hauling.
  • Custom Reach Tubes: Standard 11′, optional 8′–20′ lengths available.
  • Track Width Flexibility: Narrow (60″) to extra‑wide (90″+) custom builds..
  • Impressive Load Capacity: Capable of transporting 36,000 lbs at speeds of 20 mph or 30 mph, combining efficiency and reliability.
View full details

Product Description

HORST WAGONS Tandem Wagon Gear – 18 Ton | Model 325RF | Track Widths 86″–95″ | Adjustable Wheelbase 8′ 8″ – 11′ 2″ | For Agricultural Hauling & Forage/Grain Box Applications

DESCRIPTION

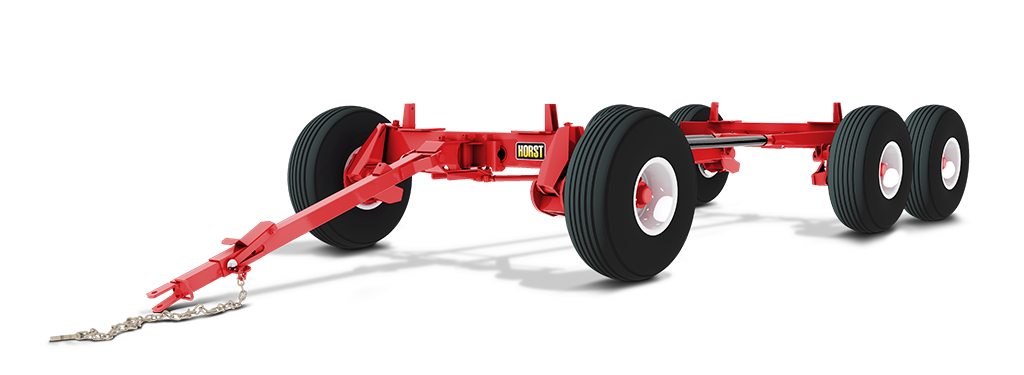

The HORST WAGONS 325RF Tandem Wagon Gear, designed for an 18-ton capacity, sets a new standard in agricultural hauling and forage or grain box applications. This 6-wheel wagon gear features adjustable track widths between 86″ and 95″, allowing seamless integration with a variety of equipment. Its adjustable wheelbase, spanning from 8′ 8″ to 11′ 2″, offers enhanced flexibility to meet diverse operational needs while maintaining stability and balance. Engineered with advanced suspension systems, the 325RF ensures smooth transport over uneven ground, minimizing soil disturbance and protecting valuable crops. Built from high-strength materials, it delivers long-lasting durability even under intensive use. Ideal for demanding farming environments, this wagon gear combines precision engineering with robust construction to improve efficiency, vehicle control, and load management in your agricultural operations.

Key Features

  • Road Flex Suspension: Enhanced suspension system ensures smooth handling and improved turning, making it ideal for uneven terrains.
  • Impressive Load Capacity: Capable of transporting 36,000 lbs at speeds of 20 mph or 30 mph, combining efficiency and reliability.
  • Model: 325RF — 18‑Ton Tandem Wagon Gear with Road Flex Suspension.
  • Quick Hitch Tongue with Automatic Relock: Simplifies attachment with a retractable automatic relocking mechanism, saving time and effort.
  • Adjustable Wheelbase: Ranges from 8' 8" to 11' 2", offering versatility for different applications and tasks.
  • Custom Reach Tubes: Standard 11′, optional 8′–20′ lengths available.
  • Track Width Flexibility: Narrow (60″) to extra‑wide (90″+) custom builds.
  • Superior Engineering: Equipped with 3" O.D. round reach poles, taper roller bearings, and C1045 cold-rolled spindles for strength and long-term durability.
  • Height Advantage: Features a 33" bunk height with 11 x 22.5 tires, ensuring convenient handling and load stability.
  • Heavy-Duty Safety Chain: Includes a 1/2" GR. 70 safety chain, providing enhanced security during transport.
  • Automotive-Style Steering: With greasable ball joints and tie rod ends, steering is responsive and smooth, ensuring optimal control.

Detailed Specifications

Attribute Specification
Brand Horst Wagons
Model 325
Type Tandem Wagon Gear
Capacity (30 kph / 20 mph) 36,000 lb.
Capacity (50 kph / 30 mph) 36,000 lb.
Hubs 8‑bolt
Spindles 3″ dia., C1045 cold‑rolled steel
Steering Automotive type
Front Axle 8″ × 3.5″ × .250 wall
Rear Axle 8″ × 4″ × .250 wall
Reach Poles 3″ O.D. × .188 wall, round tube
Standard Reach Length 11′
Optional Reach Lengths 9′, 11′, 12′, 14′, 16′, 18′, 20′, 22′
Wheelbase Adjustable 8′ 8″ – 11′ 2″
Tongue Bolt Diameter 1‑1/8″
Tongue Latch Retractable automatic relock
Tie Rod Ends Greasable automotive‑style ball joints
Bolster Stakes 42.5″ fixed
Tongue Bracket Mounting 1‑1/2″ bolt bearing mounted
Approximate Weight 1,495 lb. (less rims & tires)
Height to Top of Bunk 33″ (with 11 × 22.5 tires)
Bearings (Bore Size Inner/Outer) Taper roller 1.80 / 1.38
Track Widths (Standard) 86″–95″ (varies by tire)
Optional Track Widths Narrow 60″; wide track up to 90″+
Brake Options 2‑wheel or 4‑wheel hydraulic disc
Optional Features Single/double spring balancer, rocking bolster, riser kits
Primary Use Agricultural hauling — forage & grain boxes
