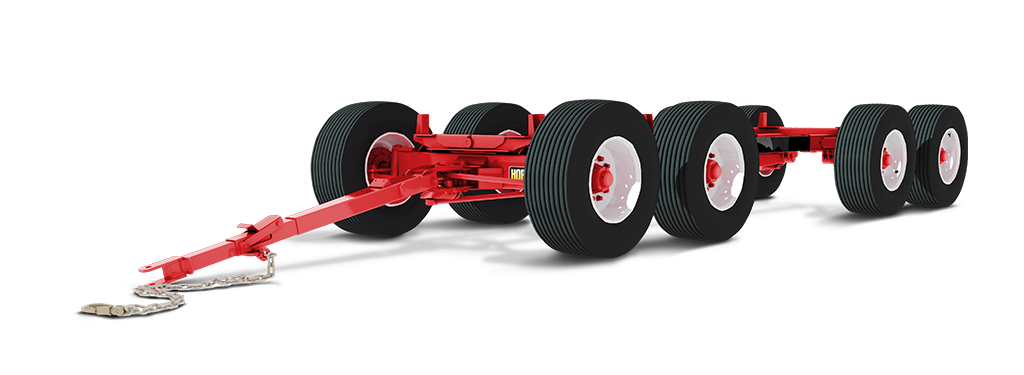

Horst Wagons 8 Wheel Quadsteer Wagon | Model 608 (40 Ton) | Bolster Stakes 42.5" Fixed | Wheelbase Adjustable 15' 2" - 16' 8" | For Agricultural Heavy Hauling & Forage/Grain Box Applications

Horst Wagons 8 Wheel Quadsteer Wagon | Model 608 (40 Ton) | Bolster Stakes 42.5" Fixed | Wheelbase Adjustable 15' 2" - 16' 8" | For Agricultural Heavy Hauling & Forage/Grain Box Applications

$18,786.00
$18,786.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Bolster Stakes 42.5" Fixed & Wheelbase Adjustable 15' 2" - 16' 8".
  • Model: 608 — 40‑Ton Double Tandem Wagon Gear for large‑scale agricultural hauling.
  • 8-Wheel Quadsteer Model: Enhanced maneuverability with front tandem quad steering and bearings on kingpins.
  • Heavy-Duty Capacity: Handles up to 80,000 lbs (36,287 kg) at speeds up to 50 kph (30 mph).
  • Quick Hitch Tongue: Ensures fast and hassle-free connections.
  • Rugged Design: Rocking bolster for stability on uneven terrain.
View full details

Product Description

Horst Wagons 8 Wheel Quadsteer Wagon | Model 608 (40 Ton) | Bolster Stakes 42.5" Fixed | Wheelbase Adjustable 15' 2" - 16' 8" | For Agricultural Heavy Hauling & Forage/Grain Box Applications

DESCRIPTION

The Horst Wagons 8 Wheel Quadsteer Wagon Model 608 is a high-capacity, 40-ton double tandem wagon engineered to optimize heavy hauling in agricultural settings. Featuring an innovative quadsteer system, this wagon offers exceptional maneuverability and reduced soil compaction, making it easier to navigate challenging terrain. Its adjustable wheelbase, spanning from 15' 2" to 16' 8", allows for customization based on specific load requirements and field conditions. Fixed 42.5" bolster stakes provide sturdy side support, ideal for securing forage or grain boxes during transport. Built with durable materials and precision craftsmanship, the Model 608 ensures long-lasting performance and reliability. Designed with safety in mind, it incorporates features that enhance operator control and minimize risk, making it a dependable choice for professionals seeking efficient and secure heavy-duty hauling solutions.

Key Features

  • 8-Wheel Quadsteer Model: Enhanced maneuverability with front tandem quad steering and bearings on kingpins.
  • Model: 608 — 40‑Ton Double Tandem Wagon Gear for large‑scale agricultural hauling.
  • Heavy-Duty Capacity: Handles up to 80,000 lbs (36,287 kg) at speeds up to 50 kph (30 mph).
  • Quick Hitch Tongue: Ensures fast and hassle-free connections.
  • Rugged Design: Rocking bolster for stability on uneven terrain.
  • Adjustable Wheelbase: Ranges from 15’ 2” to 16’ 8” for customized applications.
  • Safety First: Equipped with disc brake flanges and a 5/8" Grade 70 safety chain.
  • Automotive-Style Steering: Featuring greasable tie rod ends and ball joints for reliability.
  • Versatile Rim & Tire Options: Choose from a range of sizes and types to suit your needs.

Detailed Specifications

Attribute Specification
Brand Horst Wagons
Model 608
Type Double Tandem Heavy‑Duty Wagon Gear
Capacity (30 kph / 20 mph) 80,000 lb.
Capacity (50 kph / 30 mph) 80,000 lb.
Front Tandem Quad‑steer with bearings on king pins
Hubs 10‑stud
Spindles 4″ dia., C1045 cold‑rolled steel
Steering Automotive type
Front Axle 10″ × 4″ × .500 wall
Rear Axle 10″ × 4″ × .500 wall
Reach Poles 3″ O.D. × .188 wall, round tube
Standard Reach Length 10′
Optional Reach Lengths 8′, 10′, 12′, 14′, 16′, 18′, 20′
Wheelbase Adjustable 15′ 2″ – 16′ 8″
Tongue Bolt Diameter 1‑1/2″
Tongue Latch Retractable automatic relock
Tie Rod Ends Greasable automotive‑style ball joints
Bolster Stakes Adjustable: 38.5″ / 40.5″ / 42.5″
Tongue Bracket Mounting 1‑1/2″ bolt bearing mounted
Approximate Weight 3,020 lb. (less rims & tires)
Height to Top of Bunk 24″ (with 18 × 22.5 tires)
Bearings (Bore Size Inner/Outer) Taper roller 2.165″ / 1.625″
Track Width (Standard) 86″; 92″ with certain tire setups
Brake Options 2‑wheel or 4‑wheel HD hydraulic disc brakes
Optional Features Double spring balancer, riser kits
Primary Use Agricultural heavy hauling — forage & grain boxes

Rim & Tire Options

Tire Size Type Rim Size Track Width Capacity (lbs/tire)
425 x 22.5 Used Truck 22.5 x 13 x 10 86" 12,000
425 x 22.5 New Truck 22.5 x 13 x 10 86" 12,000
445 x 22.5 New Truck 22.5 x 13 x 10 86" 12,000
400 / 55 x 22.5 16 Ply 22.5 x 13 x 10 86" 7,820
560 / 45 x 22.5 16 Ply 22.5 x 16 x 10 92" 9,640
