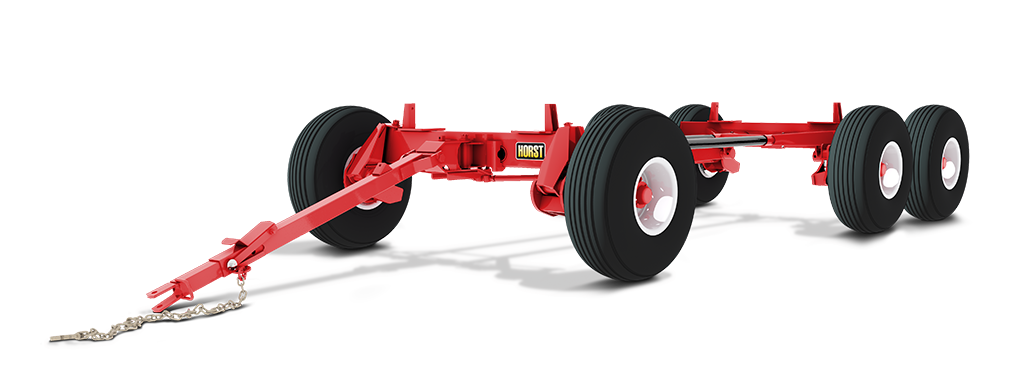

Horst Wagons Tandem Wagon Gear – 18 Ton | Model 325 | 11′ Reach Length | Track Width 86″–95″ | Adjustable Wheelbase 8' 8" - 11' 2" | For Agricultural Hauling & Forage/Grain Box Applications

Product Description

Horst Wagons Tandem Wagon Gear – 18 Ton | Model 325 | 11′ Reach Length | Track Width 86″–95″ | Adjustable Wheelbase 8' 8" - 11' 2" | For Agricultural Hauling & Forage/Grain Box Applications

DESCRIPTION

The HORST WAGONS Model 325 is a rugged, high‑capacity 18‑ton tandem wagon gear built for agricultural transport efficiency and durability. Featuring an automotive‑style steering system and adjustable wheelbase (8′ 8″ – 11′ 2″), this gear is engineered to handle a wide range of forage boxes, grain boxes, and other high‑volume agricultural bodies. A quick‑hitch tongue with retractable automatic relock speeds hookup, while 3″ diameter C1045 cold‑rolled spindles and heavy‑wall axles deliver superior load‑bearing strength. The standard 11′ reach length can be tailored with optional reach poles from 9′ to 22′, and the frame can be configured for narrow or wide track widths to suit field or road requirements. The Model 325 also offers multiple tire and rim packages, disc brake readiness with hydraulic brake options, and practical features like a 1/2″ Grade 70 safety chain, 42.5″ fixed bolster stakes, and a compact 33″ load height (with 11 × 22.5 tires). Backed by Horst’s reputation for quality, it’s a proven choice for farms needing a tough, adaptable running gear.

Key Features

• Reliable Load Capacity: Handles up to 36,000 lbs effortlessly at speeds of 20 mph or 30 mph, ensuring efficiency and reliability for lighter yet demanding loads.
• Model: 325 — 18‑Ton Tandem Wagon Gear for agricultural hauling.

• 18 Ton Tandem Wagon Gear: Provides excellent load stability and durability for continuous heavy use.
• Custom Reach Lengths: Optional poles from 9′ to 22′.
• Track Width Options: Narrow (60″) to wide track (90″+).
• Quick Hitch Tongue with Automatic Relock: Streamlines the attachment process with a retractable automatic relocking tongue latch, enhancing operational convenience.
• Flexible Wheelbase: Adjustable from 8' 8" to 11' 2", allowing versatility to accommodate various operational requirements.
• Heavy-Duty Suspension: Features robust construction, including C1045 cold-rolled spindles and taper roller bearings, for smooth operation and increased durability.
• Height Efficiency: Designed with a 33" bunk height, compatible with 11 x 22.5 tires, ensuring effective handling during operations.
• Enhanced Safety Features: Equipped with a 1/2" GR. 70 safety chain, providing dependable safety during transport.
• Smooth Steering: The automotive-style steering system with greasable ball joints and tie rod ends offers precision and ease of control.

Detailed Specifications

Manuals & Documents

• OPS MANUAL WAGONS

• HLA WARRANTY
• HORST WAGONS RUNNING GEAR BROCHURE
• REACH LENGTH CHART
• ASSEMBLY INSTRUCTIONS
• HORST WAGONS CATALOGUE
