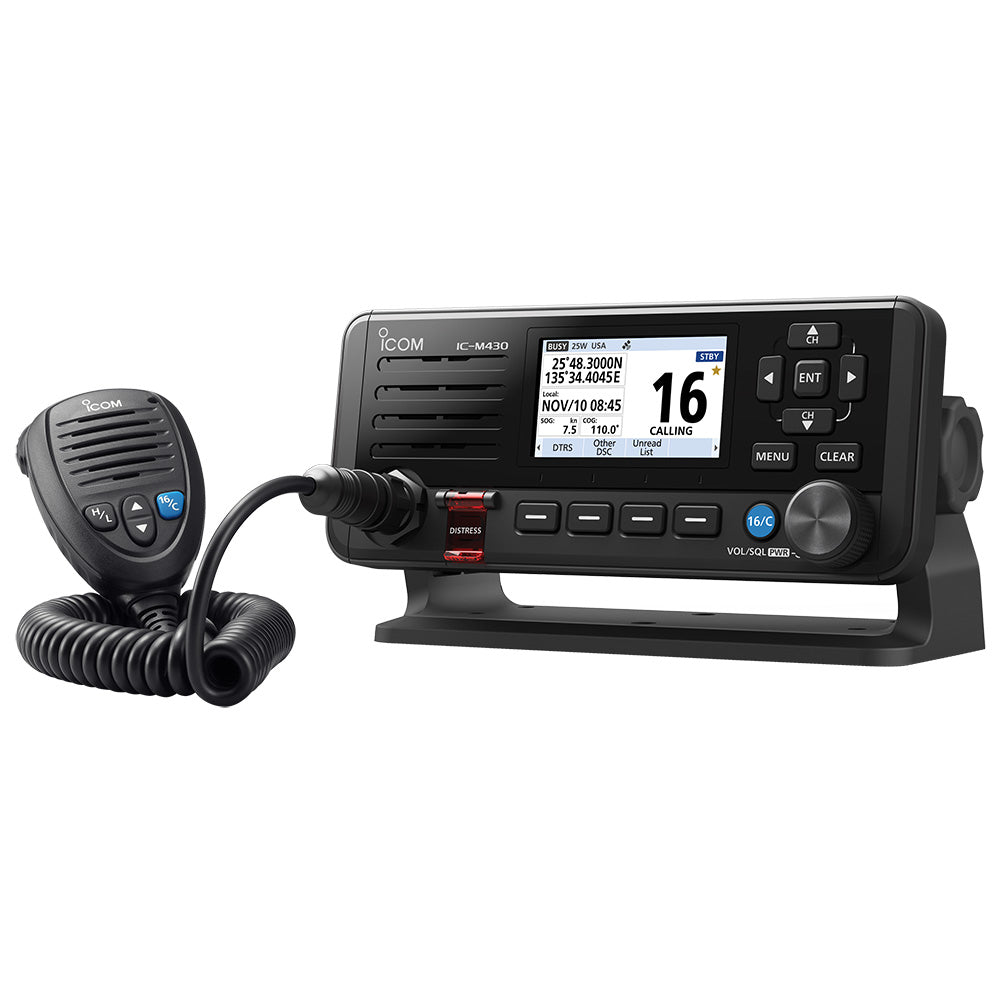

IC-M430 Fixed Mount VHF Radio with Built-In GPS - Black
Compact, Stylish, & Packed with Features: Color TFT LCD and NMEA 2000™ Connectivity
The IC-M430 is a stylish and compact VHF marine transceiver designed for modern vessels. Its slimmer body and sleek new flush-mount design blend seamlessly into any helm layout. The color TFT LCD with a wide viewing angle and three display modes — Light, Dark, and Night — ensures clear visibility in any condition. With NMEA 2000™ and NMEA 0183-HS connectivity, the IC-M430 integrates effortlessly into your onboard network.
25W RF Output with Class D DSC
For safety on the water, the IC-M430 offers 25 watts of transmit power. It includes built-in Class D DSC for the distress-calling button and direct calling.
Slimmer Body Fits in Tight Spaces
The compact 202 x 82 x 52.6 mm (8.0 x 3.2 x 2.1 inch) body provides exceptional installation flexibility. The slim depth profile enables installation in limited spaces while maintaining ample clearance behind the radio for proper cable management.
Simplified Flush Mounting
The radio features MFD-style mounting for elegant installation. Screw the radio directly into place, and snap-on body covers hide all mounting hardware for a clean finish. This mounting method is ideal for side pod installations on center console hard tops.
Three Display Modes for Comfortable Operation
First* color display in class. The wide viewing angle and bright screen deliver exceptional readability in any environment. Choose from Light mode, Dark mode, or Night mode; whether operating in direct sunlight or complete darkness, the display remains clearly visible. Seamlessly switch between Day and Night modes with a one-touch button. Backlit operation keys ensure confident operation in the dark.
Flexible System Integration
The radio offers plug-and-play installation via the NMEA 2000™, and also supports the NMEA 0183-HS network, enabling data sharing between the radio and other marine electronics. Compatible with Icom MA-510TR, and you can transmit an Individual DSC call to a selected AIS target.
Remote Microphone Installation Options
The included hand microphone can be mounted directly to the front panel or rear-mounted using the extension cable OPC-1000*. For dual-station capability, the CommandMic™* provides full remote control from a second location (cable extension up to 60 ft/18.3 m) and supports intercom functionality between stations. Ideal for sailboat installations requiring a second control position at the helm. A 90° L-type adapter* is a useful addition that helps prevent connector damage. *Optional accessory
Built-in GNSS (GPS) Antenna
The IC-M430 features a built-in GNSS receiver with an internal antenna. For installations where satellite reception is limited, such as when mounted inside a cabin or enclosed area, an optional external GNSS antenna UX-241 is available.
Features:
VSWR (Voltage Standing Wave Ratio) detection function notifies of antenna issues
25 W loud audio, hailer and foghorn functions
Active noise canceling reduces background noise
Dualwatch and Tri-watch function for monitoring Ch. 16 and/or call channel
Optional flush mount kit for conventional installations
IPX7 waterproof protection
AquaQuake™ water draining function
Weather channels with alert function
Priority and normal scan
Supports 4-digit channels
Specifications:
Frequency range: TX: 156.025 157.425 MHz
RX: 156.050 163.275 MHz
DSC: 156.525 MHz
Type of emission: 16K0G3E (FM), 16K0G2B (DSC)
Usable channels: USA, CAN, INT, WX channels
Power supply requirement: 13.8 V DC (11.7 15.9 V DC)
Current drain (at 13.8 V DC): TX 25 W output: 5.0 A maximum
RX maximum audio: Less than 1.6 A, Less than 2.0 A (with HM-195), Less than 4.0 A (with ext SP), Less than 7.0 A (with ext SP, RX hailer, and HM-195)
Operating temperature range: –20°C +60°C, –4°F +140°F
Antenna impedance: 50 Ω
Audio power output (hailer): 25W typical
Dimensions (W x H x D): 202 x 82 x 52.6 mm, 8.0 x 3.2 x 2.1 in
Weight (approximately): 640 g, 1.4 lb (not including microphone)
