Ignite Attachments Auger | Model MEX 210PH | Drilling Depth 56" | Max Bit Diameter 36" | Machine Size 5-6 Tons | For Mini Excavator

Product Description

Ignite Attachments Auger | Model MEX 210PH | Drilling Depth 56" | Max Bit Diameter 36" | Machine Size 5-6 Tons | For Mini Excavator

DESCRIPTION

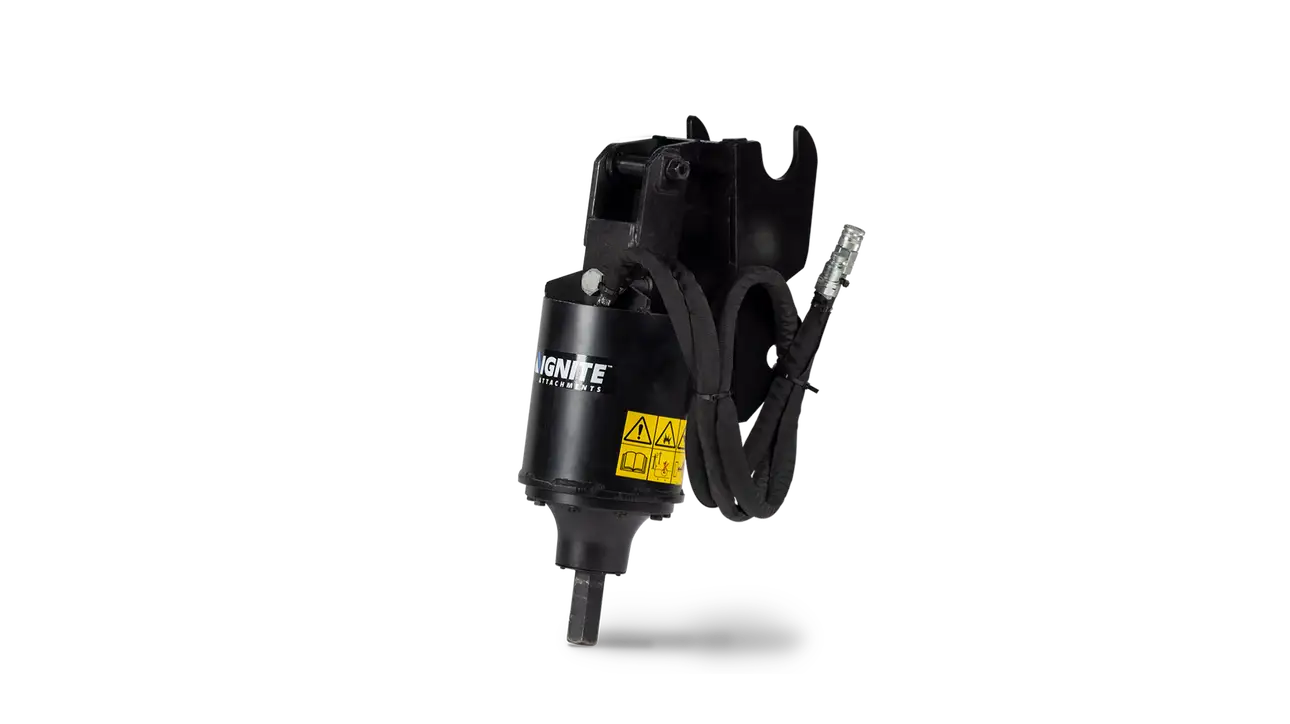

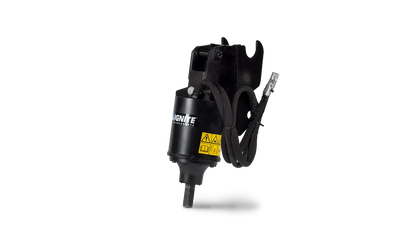

When tough soil stands in your way, the Ignite MEX 210PH Auger Attachment powers through with ease. Engineered for mini excavators like the Kubota KX057 and others with compatible flow rates, this hydraulic auger attachment delivers unmatched torque and drilling depth perfect for demanding excavation, fencing, tree planting, utility, and construction projects.

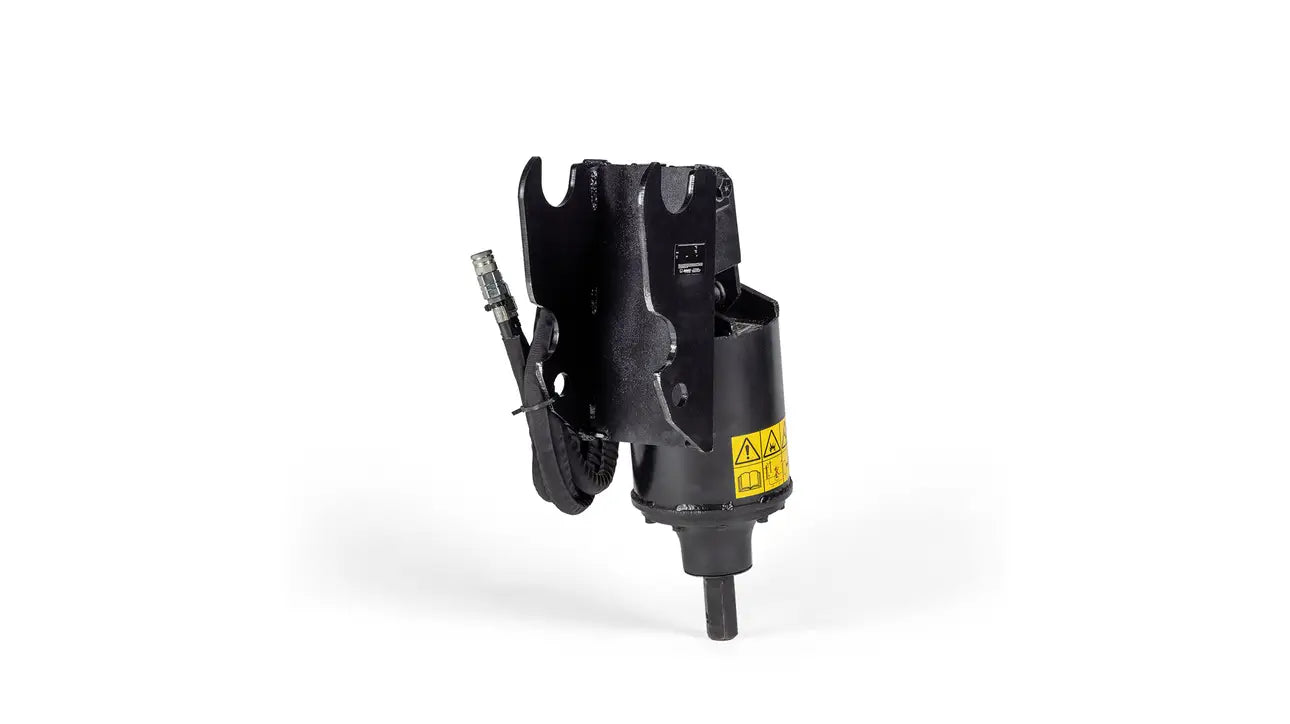

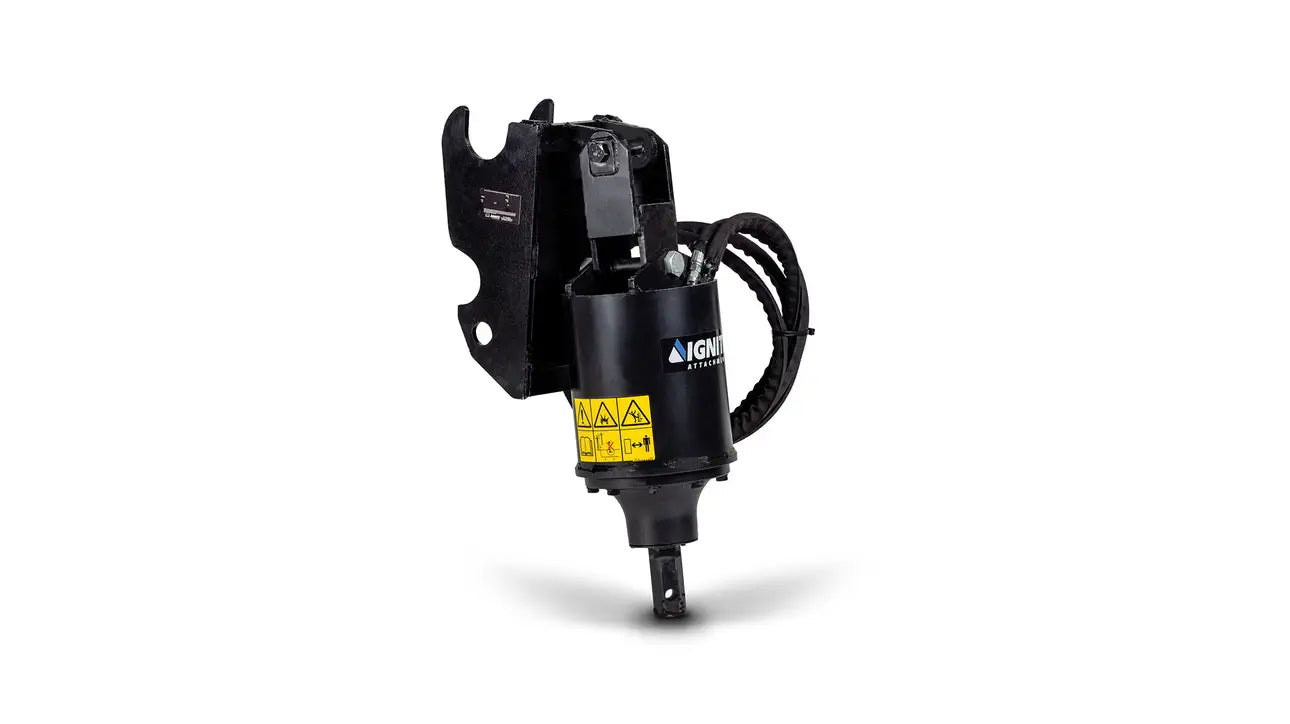

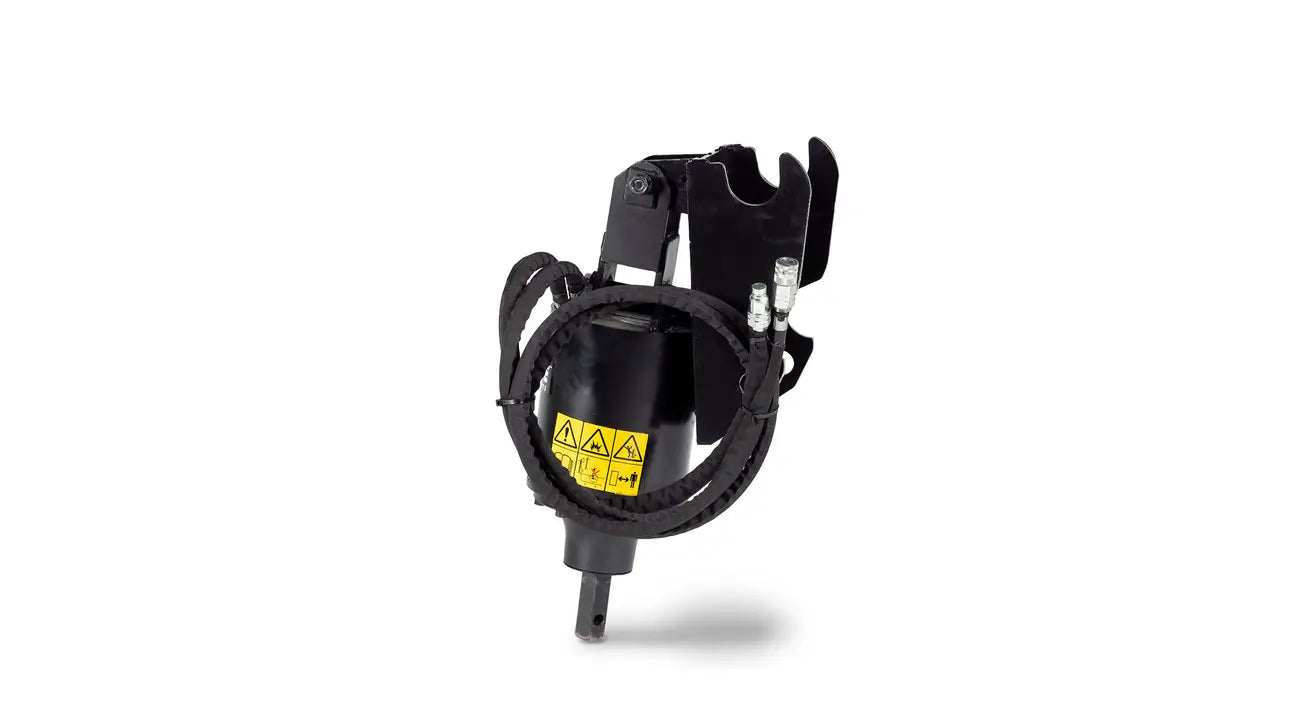

At the heart of the MEX 210PH is a planetary gear reduction drive, delivering up to 2,562 ft-lb of torque at 3,000 psi. Whether you’re working in shale, rocky ground, frost-packed earth, or dense clay, this auger is designed to perform. The smart joint system between the mount and the drive unit keeps every hole vertically aligned even on sloped or uneven terrain ensuring professional results with every plunge.

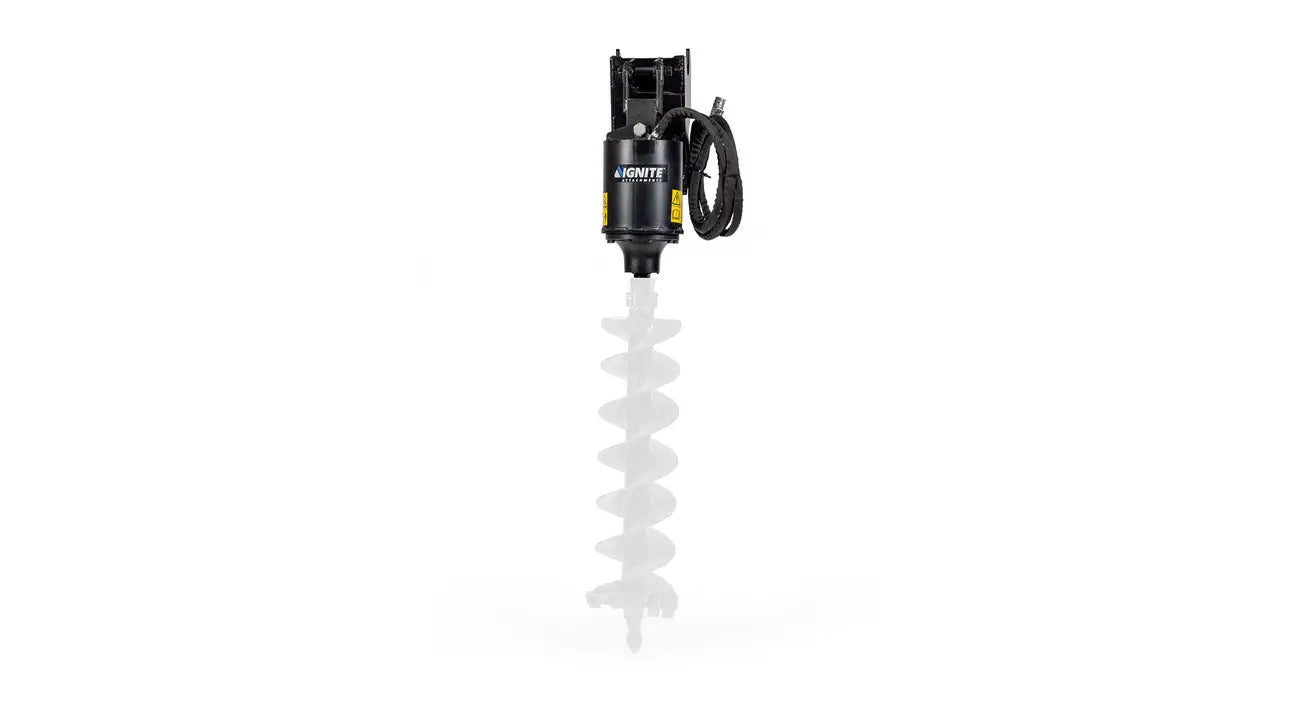

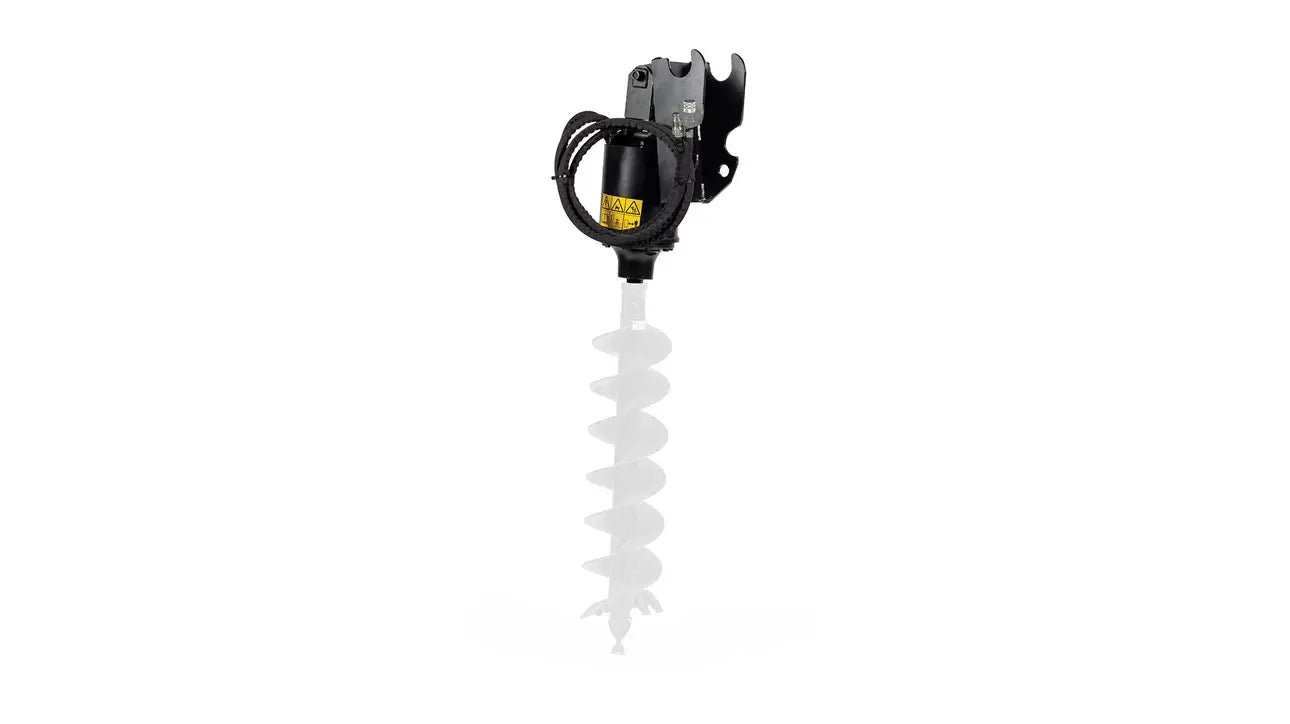

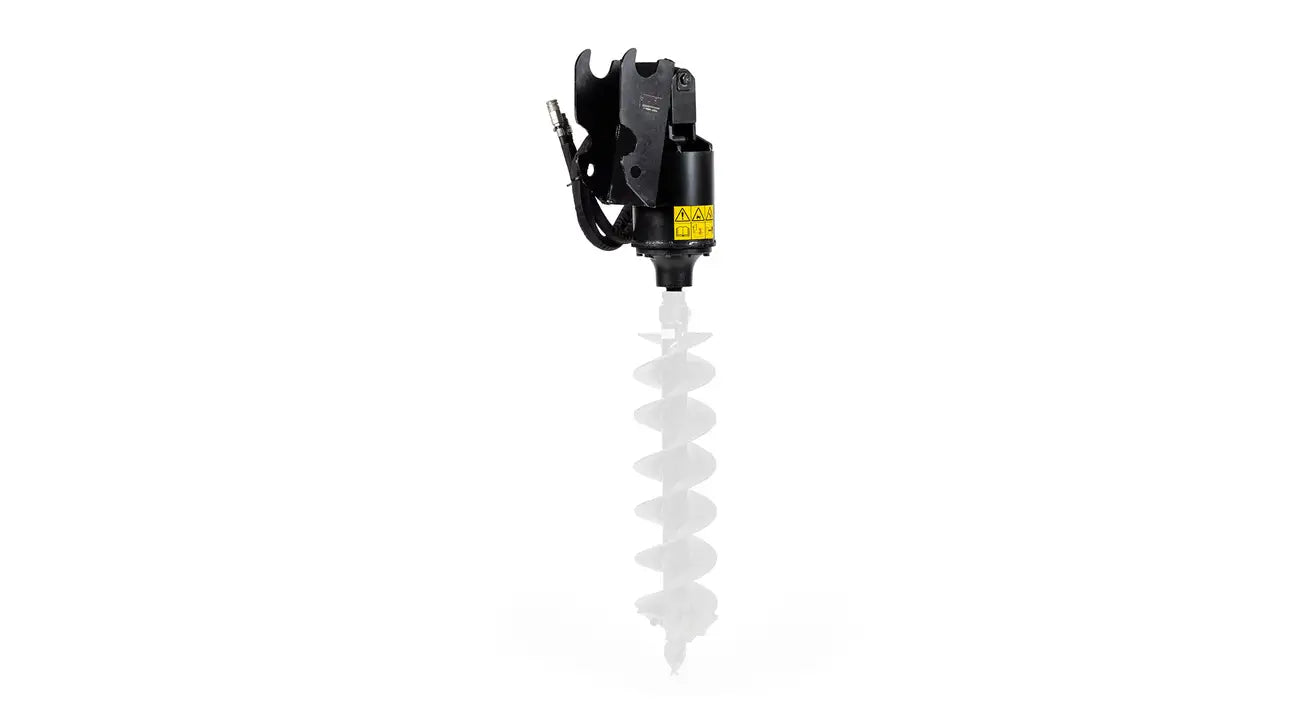

Compatible with 36-inch auger bits and optional extensions, this attachment delivers both reach and reliability. From rugged job sites to precision landscaping, this is the mini excavator auger that gets the job done fast, clean, and straight.

Key Features

• Planetary Gear Drive System: Delivers up to 2,562 ft-lb torque at 3,000 PSI—ideal for tough soil conditions like rock, clay, or frost.

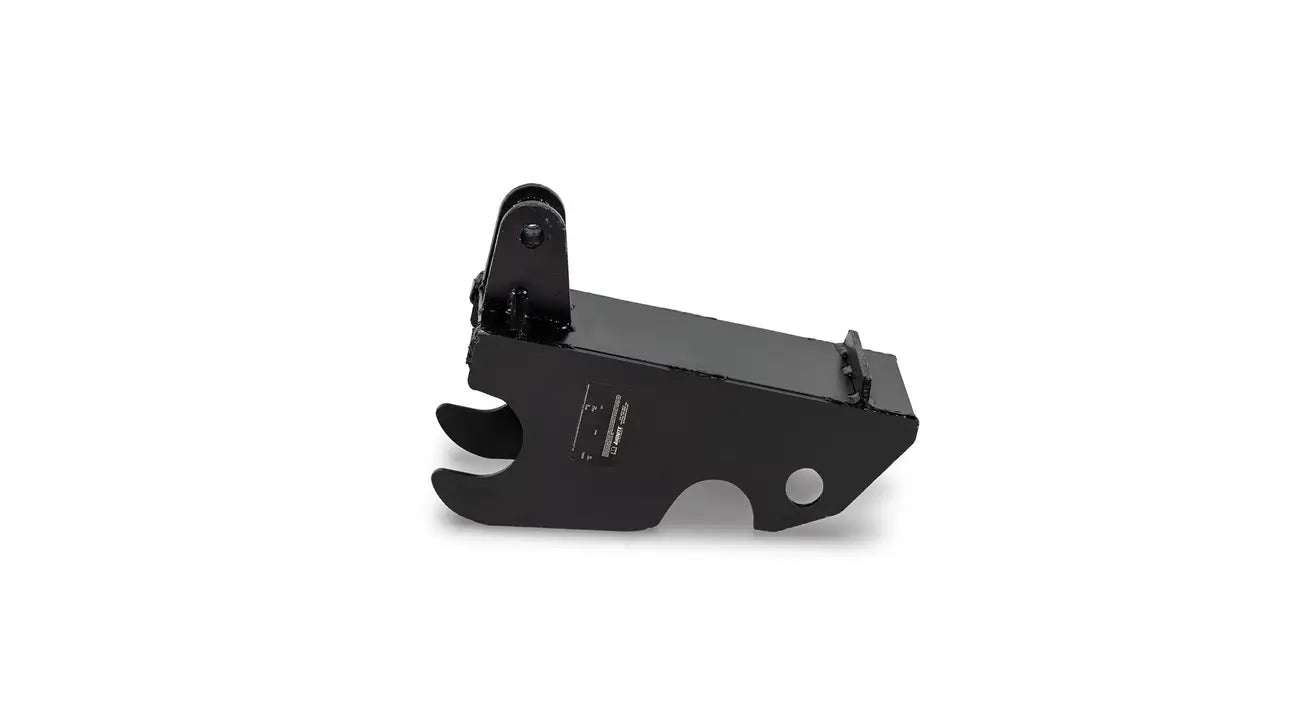

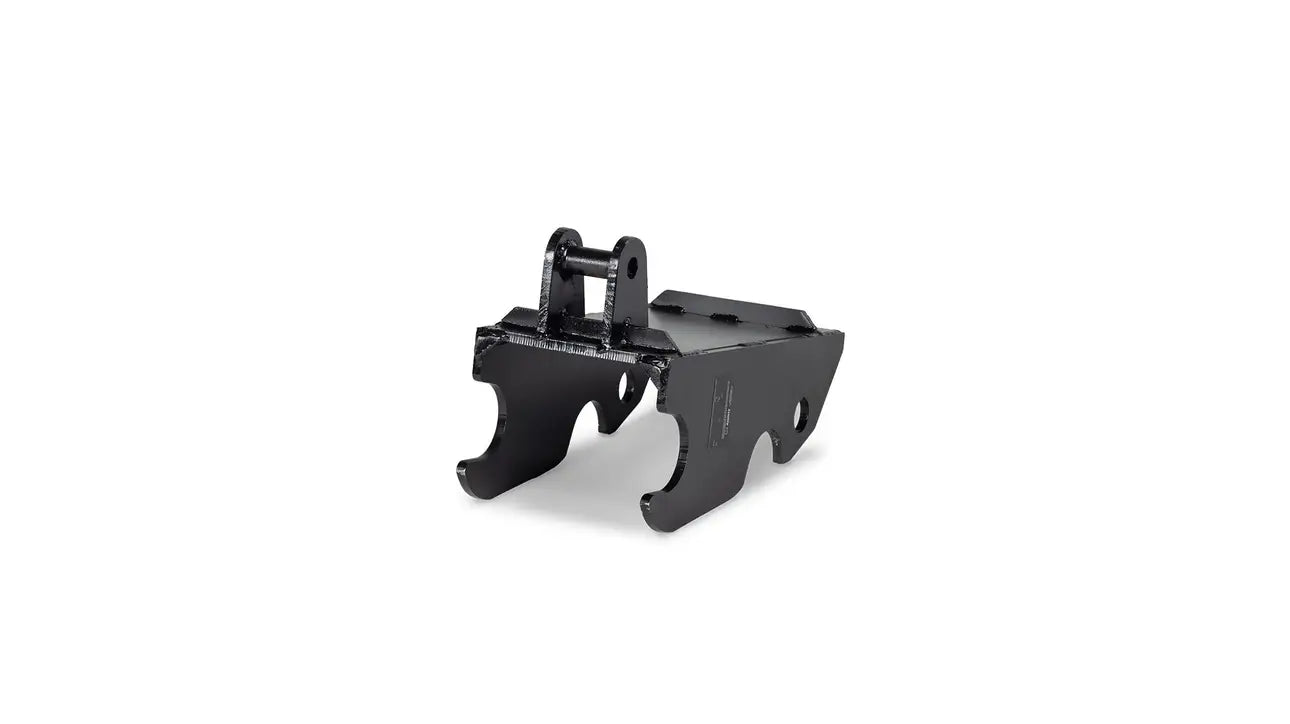

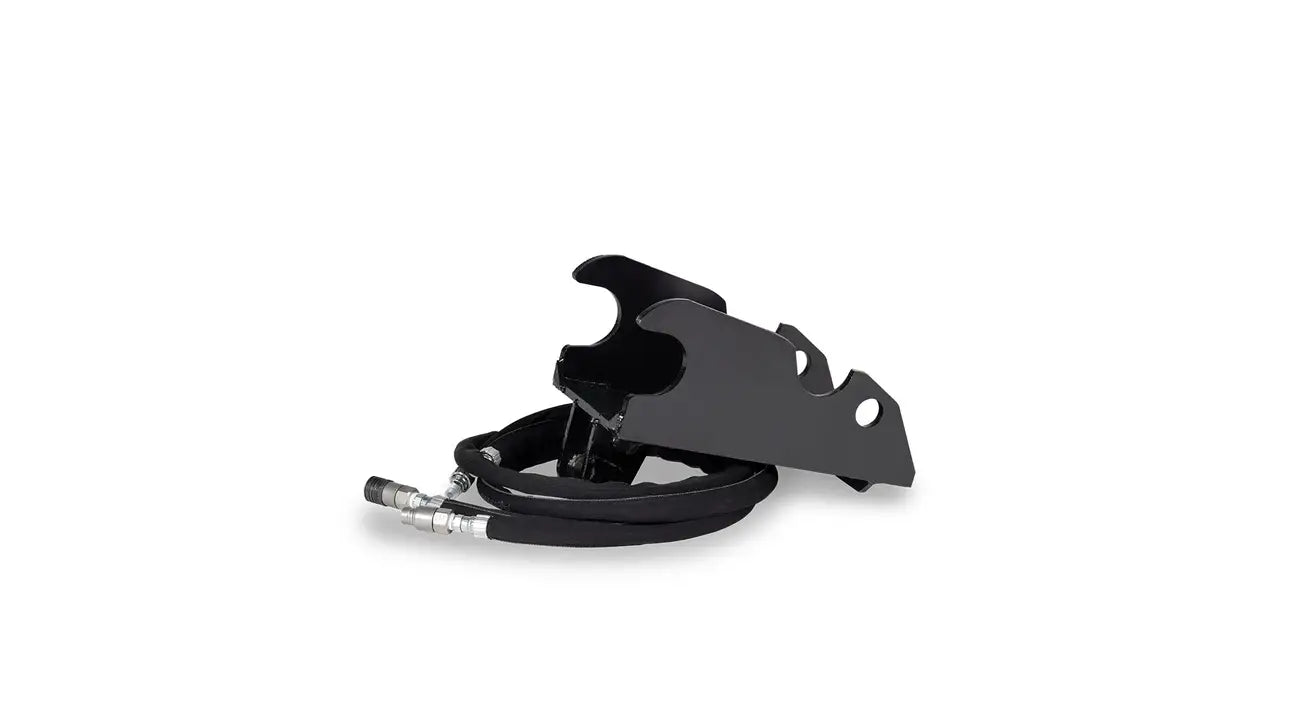

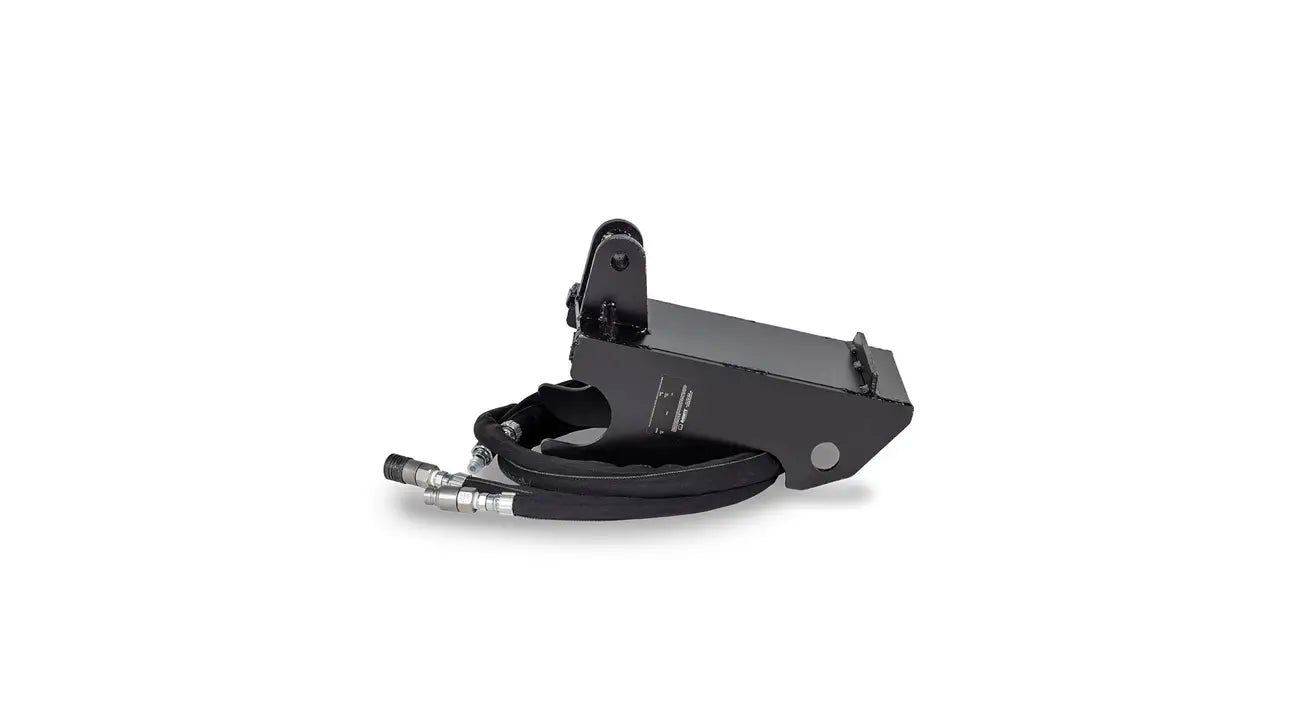

• Mini Excavator Compatibility: Designed for 5–6 ton machines, such as Kubota KX057, using standard CII interface mounts.
• Versatile Drilling Capacity: Supports auger bits up to 36" diameter with standard 50" depth, expandable to 86" using optional extensions.
• Heavy-Duty 2" Hex Drive Shaft: Withstands high torque loads and fits most common auger bits.
• Efficient Hydraulic Operation: Functions within a hydraulic flow range of 15–30 GPM at up to 3,500 PSI, reaching speeds up to 104 RPM.
• Auto-Vertical Joint System: Maintains straight-hole alignment on slopes and uneven terrain for professional-quality results.
• Compact & Lightweight Design: With 11.25" width and 226 lbs total weight, it's easy to maneuver in tight work zones.
• Quick Couplers Included: Comes equipped with Faster Flat Face couplers (CUP) for secure, pressure-friendly hydraulic connections.
• Optional Accessories Available: Add a Hex-to-Round adapter or 24"/36" extensions to customize reach and bit compatibility.

Detailed Specifications

Manuals & Documents

Auger Operations and Maintenance Manual

General Warranty Info:

• Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
• The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
• Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
• Please reach out to us for any specific warranty information neededabout products and parts you can’t find!
