Ignite Attachments Mini Rake Grapple | Width 44" | Horsepower 20–30 HP | Hydraulic Flow 5–15 GPM | For Mini Track Loaders

Product Description

Ignite Attachments Mini Rake Grapple | Width 44" | Horsepower 20–30 HP | Hydraulic Flow 5–15 GPM | For Mini Track Loaders

DESCRIPTION

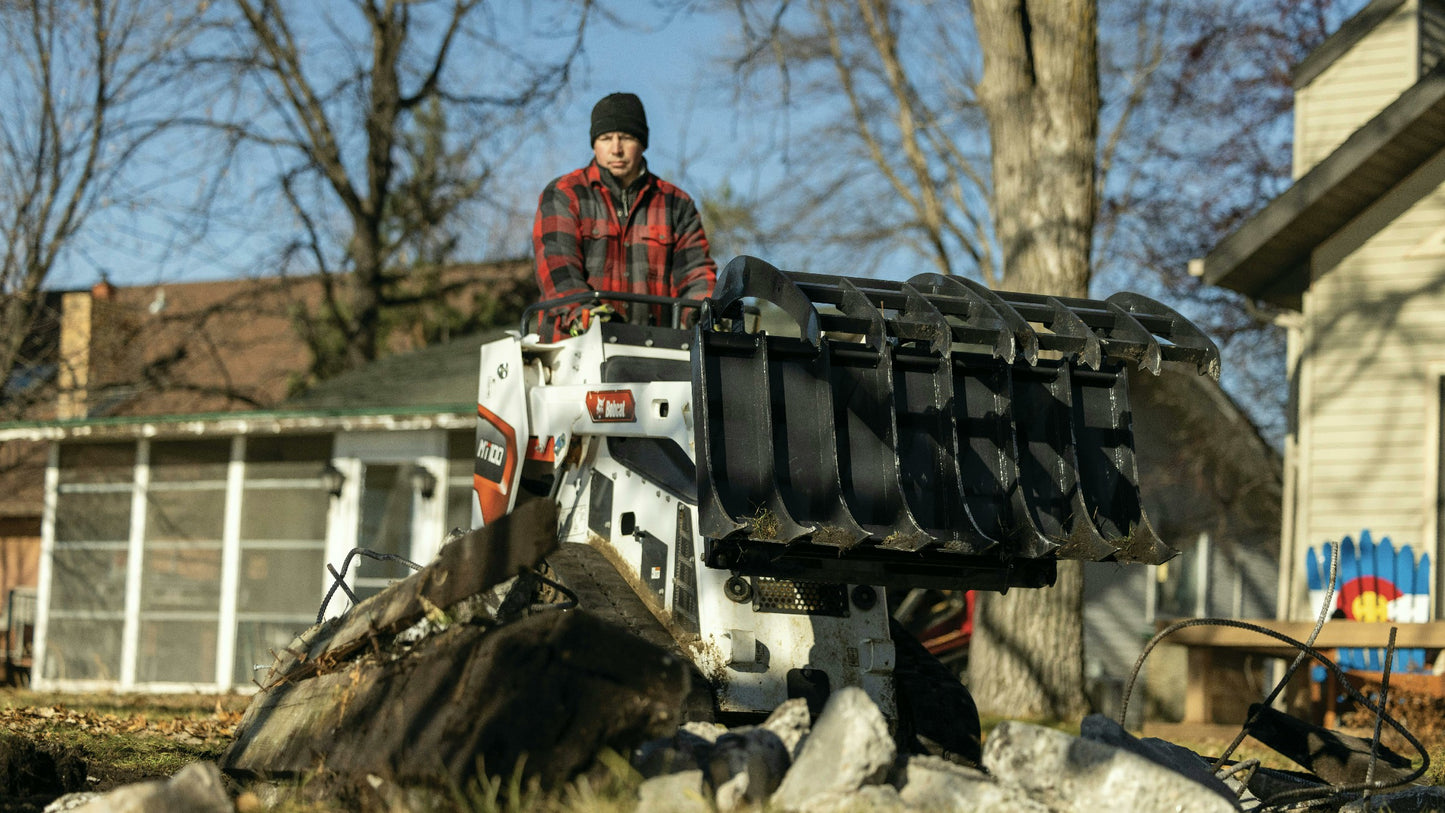

The Ignite 44-Inch Mini Rake Grapple is built for tight spaces but doesn’t compromise on power. Perfect for landscaping, construction cleanup, or storm debris removal, this attachment gives your mini skid steer or mini track loader the muscle to clear roots, branches, and brush without disturbing the soil underneath.

With its Grade 50 laser-cut steel, greaseable pins, and protective nylon-sleeved hoses, this mini rake grapple is engineered for high performance and low maintenance. The clamshell-style grapple grabs and holds bulky debris securely, so you can rake, clamp, and carry all without changing attachments.

Whether you’re part of a landscaping crew, running a rental fleet, or working in tight-access urban projects, this rake grapple saves time, reduces manual labor, and turns your compact machine into a clean-up powerhouse.

Key Features

• Grapple Width: 44 inches — designed for efficient coverage in compact loader applications
• Required Hydraulic Horsepower: 20–30 HP — optimized for mid-powered mini track loaders
• Hydraulic Flow Range: 5–15 GPM — compatible with low-flow hydraulic systems
• Max Operating Pressure: 3500 PSI — delivers strong clamping force under rugged conditions
• Max Grapple Opening: 36 inches — ideal for bulk material and brush grabbing
• Attachment Weight: 346 lb — balanced for maneuverability and structural integrity
• Overall Height (Closed/Open): 28.4 / 33.6 inches — compact when stowed, spacious when open
• Depth: 20.9 inches — provides an efficient working footprint
• Tine Spacing: 5.875 inches — allows sifting of rocks, brush, and debris with minimal clogging
• Tine Thickness: 0.375 inches — heavy-duty profile for resistance against bending and wear
• Hydraulic Cylinder Spec: Single 2.0" bore × 1.25" rod — delivers controlled motion and gripping power
• Material Grade: Grade 50 steel — engineered for strength, longevity, and weight optimization
• Top Grapple Style: Single clamp — simplified design with reliable engagement
• Quick Coupler Type: Faster Flat-Face (CUP) — ensures leak-free, fast attachment swaps
