Industrias America

Industrias America Tilt Box Blade | Model Fresno F-07 | Working Width 7' | Horsepower 50 To 90 HP | For Tractors

Industrias America Tilt Box Blade | Model Fresno F-07 | Working Width 7' | Horsepower 50 To 90 HP | For Tractors

Regular price $2,062.50
Regular price Sale price $2,062.50
Sale Sold out
Machine Compatibility
Customizable
Fast
24/7 Support
  • Working Width: 7 feet (84 inches) for efficient grading and material control.
  • Horsepower Requirement: Compatible with tractors rated between 50 To 90 HP.
  • Blade Tilt Function: Adjustable tilt angle for precision contouring and slope work.
View full details

Product Description

Industrias America Tilt Box Blade | Model Fresno F07 | Working Width 7' | Horsepower 50 To 90 HP | For Tractors



DESCRIPTION

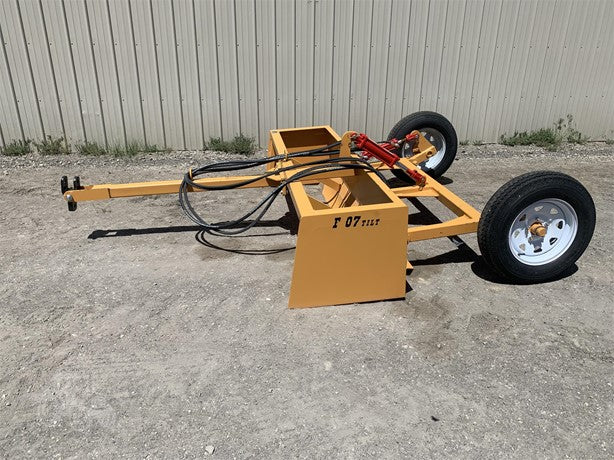

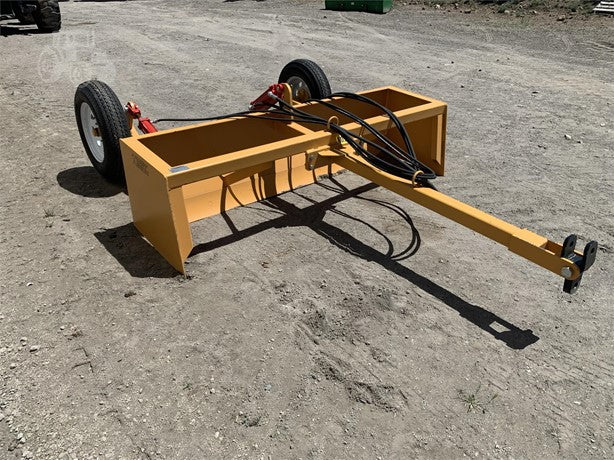

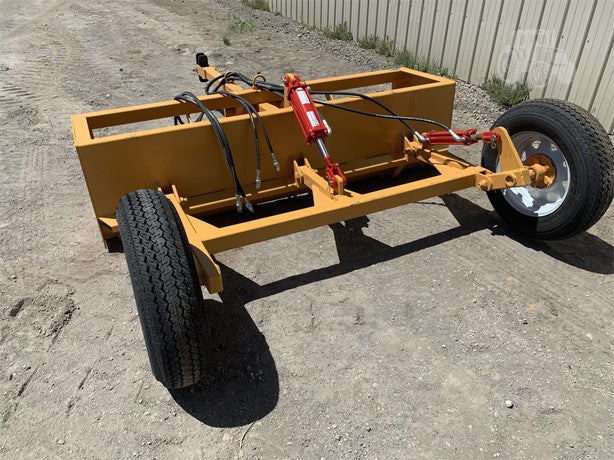

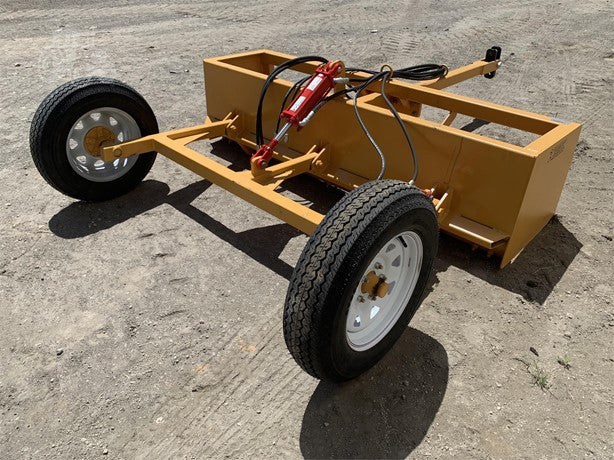

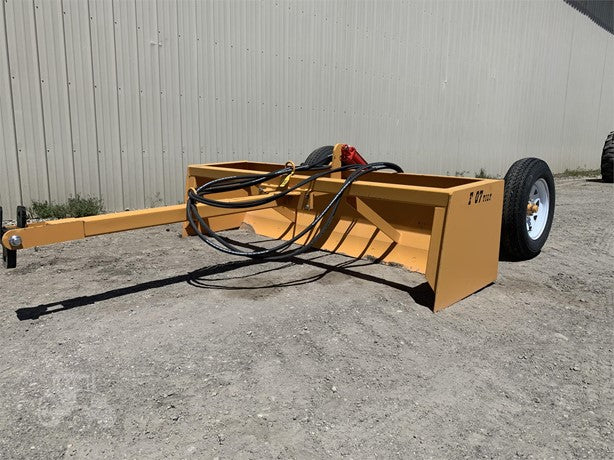

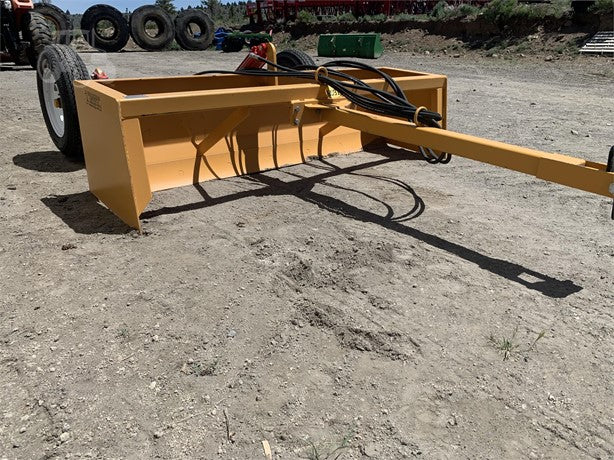

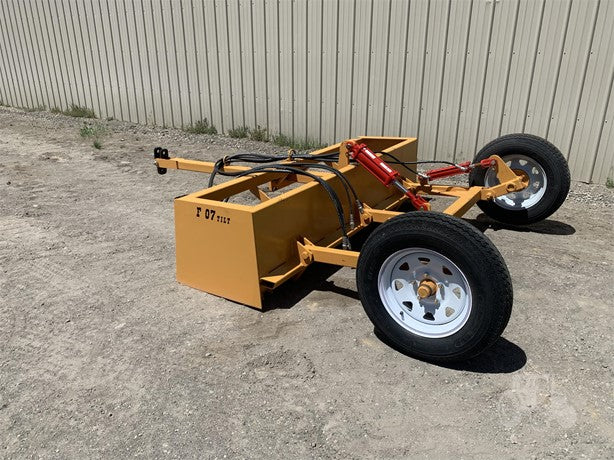

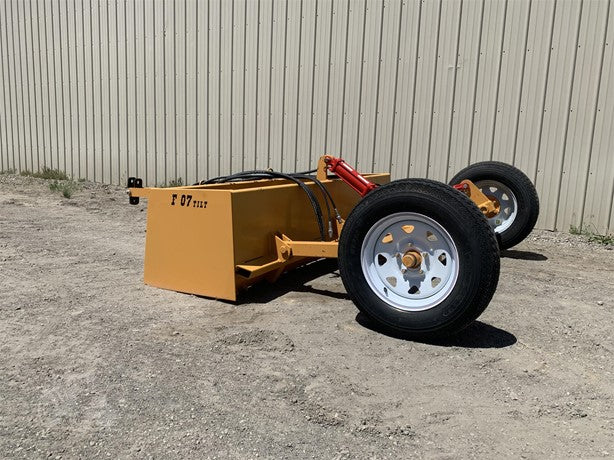

The Industrias America Fresno F07 Tilt Box Blade redefines versatility in land grading and earthmoving applications. This premium 7-foot box blade combines rugged construction with intelligent design, featuring hydraulic tilt functionality for precision contouring and slope work. Whether you're maintaining gravel driveways, shaping terrain, or preparing construction sites, the F07 delivers professional-grade performance with effortless control.

Engineered for efficiency, the Fresno F07 comes complete with tires and hydraulic cylinders, ready to transform your tractor into a multi-purpose grading machine. The tilt mechanism allows operators to create perfect crowns on roads, shape drainage ditches, or level uneven ground with unprecedented accuracy. Built with heavy-duty materials yet designed for smooth operation, this box blade handles everything from fine finish work to heavy material spreading.

Key Features

  • Working Width: 7 feet (84 inches) for efficient grading and material control
  • Horsepower Requirement: Compatible with tractors rated between 50 To 90 HP
  • Blade Tilt Function: Adjustable tilt angle for precision contouring and slope work
  • Construction: Heavy-duty steel frame engineered for rugged field conditions
  • Mounting Type: Tractor Drabar Hitch
  • Cutting Edge: Replaceable high-carbon steel blade for extended wear life
  • Primary Applications: Ideal for grading, land leveling, ditch shaping, and surface maintenance
  • Side Panel Design: Reinforced side plates for added strength during aggressive cuts
  • Versatility: Suitable for agricultural, landscaping, and light construction use
  • Finish: Durable powder-coated surface for corrosion resistance and long-term durability

Detailed Specifications

Feature Details
Brand Industrias America
Model Name Fresno F07
Type Tilt Box Blade
Working Width 7 feet
Horsepower 50–90 HP
Tilt Adjustment Hydraulic Tilt
Tires Included
Hydraulic Cylinders Included
Attachment Style Pull-Type/ Tractor Drawbar Hitch
Construction Heavy-Duty Steel
Application Land Leveling, Grading, Road Maintenance
Compatibility Tractors / Utility Vehicles / Tractor Drawbar Hitch
Color May Vary
