Products Description

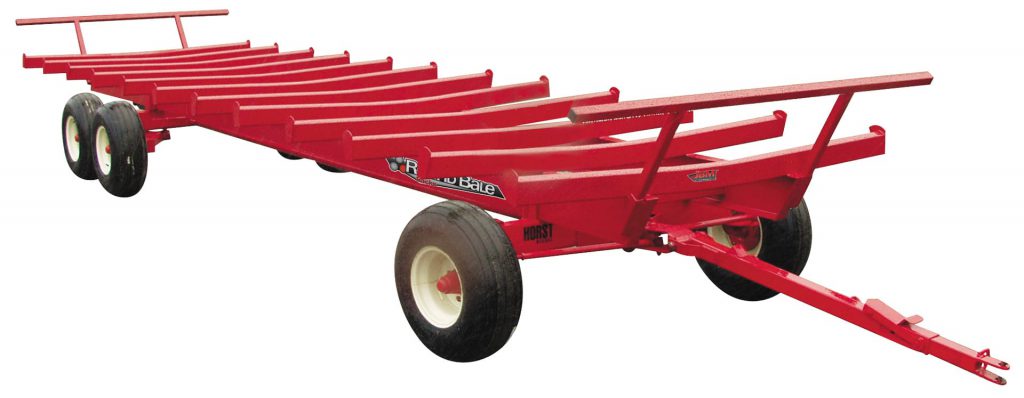

JBM 20′, 24′, 30′ & 36′ Round Bale Wagon with Rear Hitch for Tractors
DESCRIPTION
The Optimized Round Bale Wagon is built to meet the demands of modern farming operations with its versatility, durability, and efficient design. Suitable for round bales ranging from 4 to 6 feet in diameter, this bale wagon is available in widths of 8 ½ feet and lengths of 20, 24, 30, and 36 feet. Featuring heavy-duty 10-inch longitude beams (12-inch for the 36-foot length) and high-strength 5-inch x 3-inch HSS steel cross bars, this wagon ensures secure transport of bales while maintaining structural integrity.
The wagon is equipped with removable front and rear slant end gates, allowing for easy loading and unloading of bales. With customizable options like extended rear hitches, rear light kits, and steel rub guards, the Optimized Round Bale Wagon can be tailored to meet your unique operational needs.
Key Features
- Hauling Capacity: Efficiently transports round bales with diameters of 4, 5, and 6 feet.
- Durable Frame: 10-inch heavy-duty longitude beams ensure robust support (12-inch beams on the 36-foot length).
- Strong Cross Bars: 5-inch x 3-inch HSS steel cross bars for exceptional stability and performance.
- Removable Gates: Flexible front and rear slant end gates for easy operation.
- Customizable Design: Available with straight or curved cross bars and optional add-ons for enhanced functionality.
- Flexible Sizing: Choose from lengths of 20, 24, 30, and 36 feet to match your needs.
Detailed Specifications
| Feature | Details |
|---|---|
| Hauling Capability | Designed to transport round bales efficiently |
| Beam Construction | 10-inch heavy-duty longitude beams (12-inch on 36-foot models) |
| Cross Bars | 5-inch x 3-inch HSS steel, available as straight or curved |
| End Gates | Removable front & rear slant end gates |
| Width | 8 ½ feet |
| Lengths Available | 20, 24, 30, and 36 feet |
Available Options
- Extended Rear Hitch: For increased versatility.
- Rear Light Kit: Enhances safety and visibility during transport.
- Rub Guard: 5-inch x 3-inch HSS steel rub guard on cross bars for added durability.
- Horst Running Gear: Optional upgrade for smoother operation.
In Package
- Optimized Round Bale Wagon in your chosen width and length configuration.
- 10-inch heavy-duty longitude beams (12-inch on 36-foot models).
- 5-inch x 3-inch HSS steel cross bars for reliable bale support.
- Removable front and rear slant end gates for convenient loading and unloading.
- Customizable options based on your operational needs.
