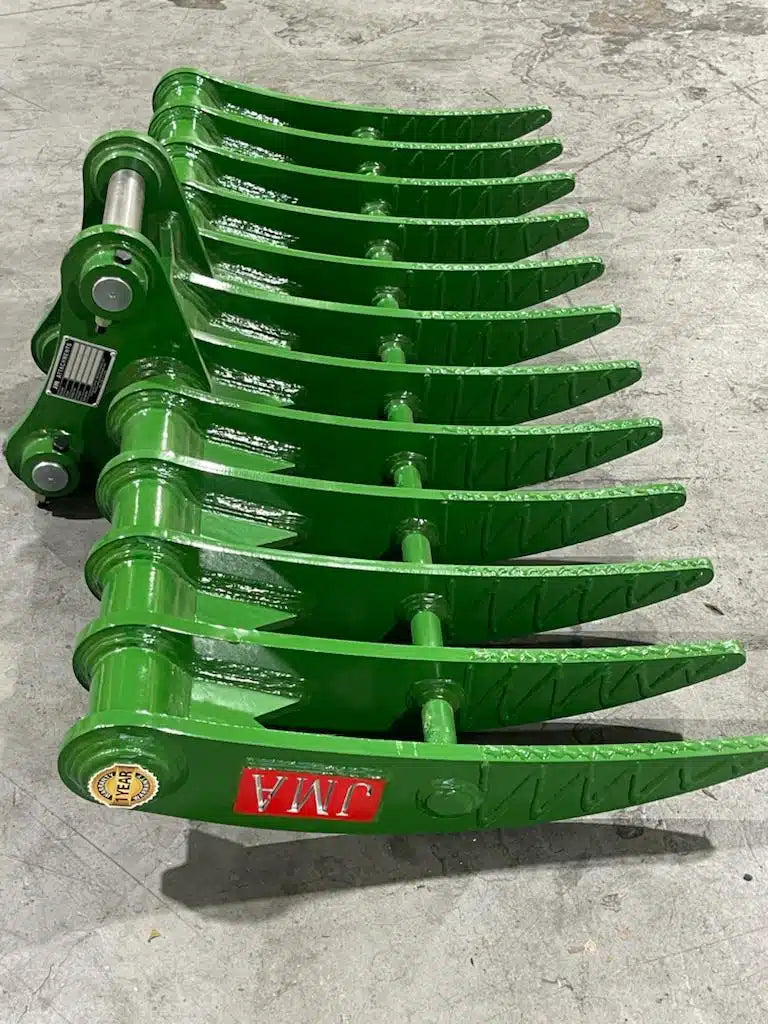

JMA Attachments Brush Rake | Rake Width 60" inches | Pin Size 50mm | For 8 – 13 Tons Excavators

JMA Attachments Brush Rake | Rake Width 60" inches | Pin Size 50mm | For 8 – 13 Tons Excavators

$3,186.70
$3,186.70
Sale Sold out
Customizable
Fast
24/7 Support
  • Wide-Area Coverage: 29.87" width for fast, efficient clearing
  • Unmatched Toughness: Constructed with AR400 Steel for superior durability
  • Optimized Tine Design: 12 heavy-duty tines, each 0.79" thick, with 30.83" penetration
View full details

Product Description

JMA Attachments Brush Rake | Rake Width 60" inches | Pin Size 50mm | For 8 – 13 Tons Excavators

Description

Experience unparalleled land clearing efficiency with the 60" Brush Rake for 8 - 13 Tons Excavators. 50mm Pins. This 29.87" powerhouse is engineered to tackle the most challenging brush and debris removal tasks. Designed specifically for 16,000 - 26,000 lbs Excavators, it's the perfect fusion of strength and precision.

Key Features

  • Wide-Area Coverage: 29.87" width for fast, efficient clearing
  • Unmatched Toughness: Constructed with AR400 Steel for superior durability
  • Optimized Tine Design: 12 heavy-duty tines, each 0.79" thick, with 30.83" penetration
  • Secure Attachment: 40" pins with 710.36 lb ear-to-ear and 650.36 lb center-to-center specs
  • Strategic Spacing: Excavator Attachment between tines for optimal performance
  • Powerful Yet Controllable: 322.21 kg kg for stable and effective operation

Detailed Specifications

Attribute Value
Product Length (mm) 758.8 mm
Product Length (in) 29.87"
Product Width (mm) 1,524 mm
Product Width (in) 60"
Tines (ct.) 12
Tines Thickness (mm) 20 mm
Tines Thickness (in) 0.79"
Penetration (mm) 783 mm
Penetration (in) 30.83"
Material Type AR400 Steel
Finish Powder-Coated Green
Tines Spacing (mm) 116.7 mm
Front Pin Diameter (mm) 50 mm
Rear Pin Diameter (mm) 50 mm
Front Ear to Ear Distance (mm) 194 mm
Rear Ear to Ear Distance (mm) 194 mm
Center to Center Distance (mm) 300 mm
Front Pin Length (mm) 346 mm
Rear Pin Length (mm) 346 mm
Carrier Weight Class (tn) 8 - 13 Tons
Carrier Weight Class (lbs) 16,000 - 26,000 lbs
Product Weight (lbs) 650.36 lbs
Product Weight (kg) 295 kg

Fits To

Brand

Model
Airman AX90
Case CX80C MSR, CX90D MSR, CX85D SR, CX75 LR, CX75CSR, CX75MSR, CX75SR, CX80SR, CX80B, CX80C, CX90D, CX75, CX80
Caterpillar 308E2 Z2.1, 309 CR VAB, 307SSR-V2, 308CR VAB, 308E2 CR, 308E2 SR, 308B CR, 308C CR, 308D CR, 308E CR, 308E SR, 307 CR, 307SSR, 308 CR, 308BSR, 308C R, 308CSR, 308DRR, 308DSR, 309 CR, 307.5, 307B2, 308.5, 308SR, 307B, 307C, 307D, 307E, 308D, 308E, 307, 308, 309
Daewoo S130W
Hanix H75C
Hitachi ZX85USB LCN-3, ZX85USB LC-3, ZX85US LC-3, ZX70 LCN-3, ZX75US-3LC, ZX75USK-5B, ZX85USB-5A, ZX85USB-5N, ZX70 LC-2, ZX70 LC-3, ZX75UR-5B, ZX75US-5A, ZX75US-5B, ZX75US-5N, ZX75USL-3, ZX80 LC-2, ZX80LCK-3, ZX80SB LC, ZX85US-5A, ZX85USB-3, ZX85USB-5, ZX85USB-6, ZX85USB-7, EX75US-5, ZX75UR-3, ZX75US A, ZX75US-2, ZX75US-3, ZX75US-5, ZX75US-7, ZX75USBL, ZX80 LCK, ZX85US-3, ZX85US-5, ZX85US-6, ZX95US-7, ZX70 LC, ZX70-5A, ZX70-5G, ZX80 LC, EX60-5, EX75US, ZX70-3, ZX70BL, ZX75UR, ZX75US, ZX80SB, ZX85US, EX80U, UH043, WH04D, EX90, ZX70, ZX75, ZX80, ZX90, ZX85USB
Ihi 80NX-3, IS50G, IS55J, IS55N, 65NX, 80NX, IS50, IS55, IS65
John Deere 75C, 75D, 75G, 80C, 85D, 85G, 70, 75, 80, 80G, 50P, 60P, 75P, 85P
Kato HD140SE, 180G
Kobelco SK070 SR, SK075 SR, SK75SR-3, SK85SR-3, SK070SR, SK60MK5, SK80MSR, SK60-2, SK60SR, SK70SR, SK75UR, SK95UR, K9033, SK80
Komatsu PC88MR-11E0, PC60-7C BL, PC75UU-3AC, PC78US-6E0, PC78US-6N0, PC78UU-6E0, PC60 LC-5, PC70FR-2B, PC75 LC-6, PC75UU-2A, PC75UU-2B, PC75UU-2E, PC75UU-3C, PC75UU-3E, PC78MRX-1, PC78US LC, PC78US-10, PC78US-11, PC78US-6E, PC78US-6Y, PC78UU-10, PC78UU-6E, PC78UUT-6, PC80 LC-3, PC88MR-10, PC88MR-11, PC60-6BL, PC60-7BE, PC60-7BH, PC60-7BK, PC60-7BL, PC60SC-7, PC60SS-1, PC60UU-5, PC70FR-1, PC75R HD, PC75R-2K, PC75UR-2, PC75UR-3, PC75US-1, PC75US-2, PC75US-3, PC75US-5, PC75US-6, PC75UU-1, PC75UU-2, PC75UU-3, PC76UU-2, PC78MR-1, PC78MR-2, PC78MR-5, PC78MR-6, PC78MR-8, PC78US-2, PC78US-5, PC78US-6, PC78US-7, PC78US-8, PC78UU-6, PC78UU-8, PC80MR-3, PC80MR-5, PC88MR-2, PC88MR-6, PC88MR-8, PC60 LC, PC60-6B, PC60-6S, PC60-7A, PC60-7B, PC60-7C, PC60-7E, PC60-7S, PC60B-7, PC60L-1, PC60L-2, PC60L-3, PC60L-5, PC60L-6, PC60U-1, PC60U-2, PC60U-3, PC60U-5, PC60U-8, PC70-7E, PC75 HD, PC75R-1, PC75R-2, PC75R-8, PC75U-2, PC90R-2, PC95R-1, PC95R-2, PW110RT, PC110R, PC60-1, PC60-2, PC60-3, PC60-4, PC60-5, PC60-6, PC60-7, PC60-8, PC60-9, PC60BL, PC60SS, PC70-1, PC70-4, PC70-6, PC70-7, PC70-8, PC70FR, PC75-1, PC75-2, PC75-3, PC75U1, PC75UL, PC75UR, PC75US, PC75UU, PC78LC, PC78MR, PC78US, PC78UU, PC80-1, PC80-3, PC80-5, PC80MR, PC88MR, PC90-1, PC90-5, PC90-6, PC90-7, PC95-1, PC95-2, PC95-5, PC95-6, PC95RT, PC60B, PC60L, PC60S, PC60U, PC75R, PC75U, PC78R, PC78U, PC95R, PC60, PC70, PC71, PC75, PC78, PC80, PC88, PC90, PC91, PC95
Linkbelt 75 SPIN ACE, 80 SPIN ACE, 75 X3, 80 X3
Lonking CDM6065
Sany SY65 C, SY75C, SY85C, SY65, SY70, SY75, SY80, SY85, SY75C PRO, SY55C-9, SY60C-9, SY75C-9
Sumitomo SH75XU-3B, rSH60B65, SH80X-3, SH80X-6, SH60-2, SH80-3, SH60B, SH75U, S160
Takeuchi TB180FR, TB175W, TB070, TB175, TB285, TB68S
Volvo EC80D PRO, EC70VV, EC70V, EC75D, EC80D, EC70
XCMG XE80E
Yanmar VIO100, SV100, VIO70, VIO75, VIO80

Manual & Documents

General Warranty Info:

  • Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
  • The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
  • Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
  • Please reach out to us for any specific warranty information needed about products and parts you can’t find!
