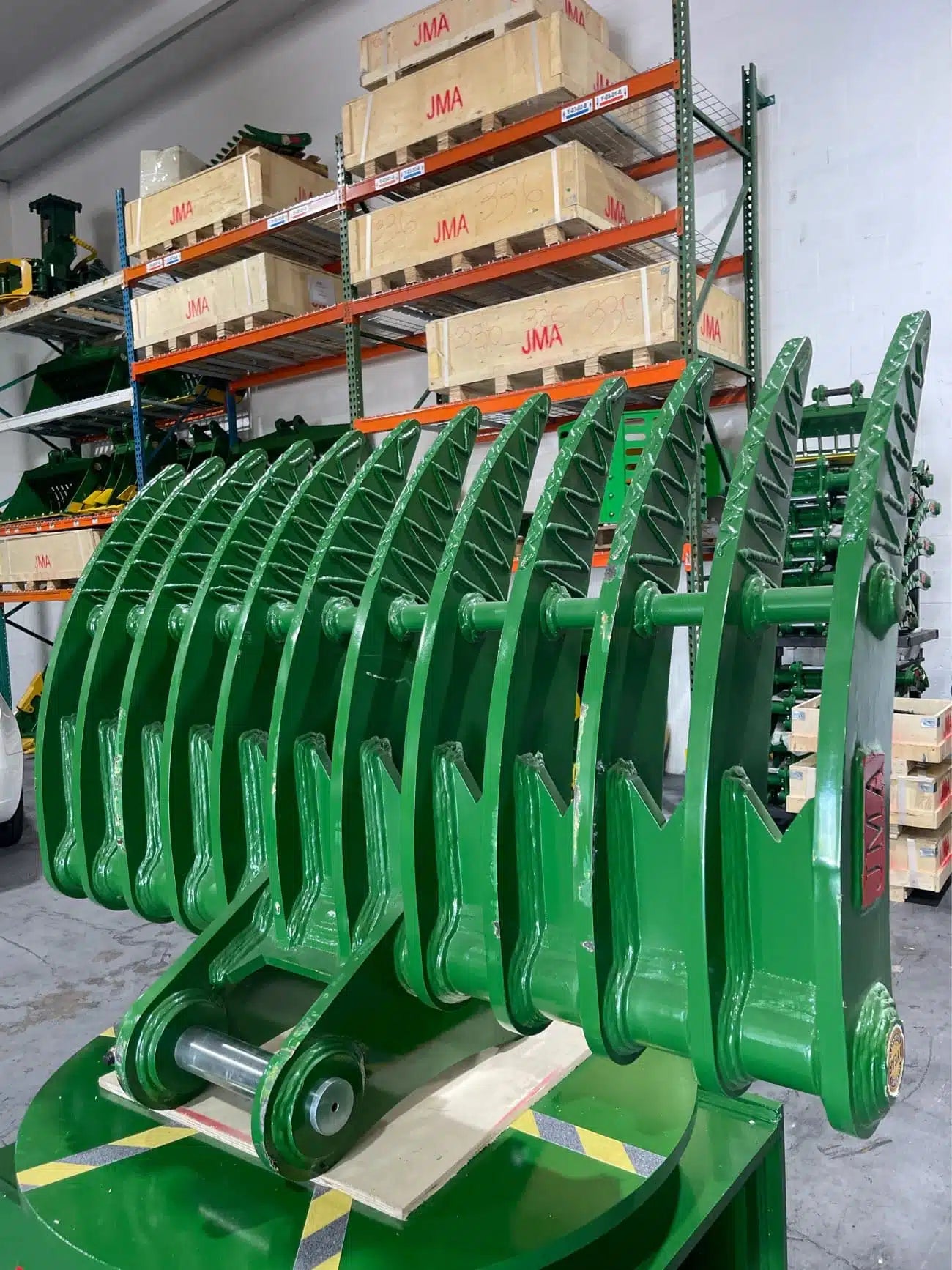

JMA Attachments Brush Rake | Rake Width 60" Inches | Pin Size 60mm | For 8 – 13 Tons Excavators

JMA Attachments Brush Rake | Rake Width 60" Inches | Pin Size 60mm | For 8 – 13 Tons Excavators

$4,396.70
$4,396.70
Sale Sold out
Customizable
Fast
24/7 Support
  • Expansive Clearing Width: 36.83" for efficient large-scale operations
  • Superior Strength: Constructed with AR450 Steel for unparalleled durability
  • Optimized Tine Design: 12 tines, each 0.98" thick, with 32.99" penetration depth
View full details

Product Description

JMA Attachments Brush Rake | Rake Width 60" Inches | Pin Size 60mm | For 8 – 13 Tons Excavators

Description

Revolutionize your land clearing approach with the 60" Brush Rake for 8 - 13 Tons Excavators. 60mm Pins. This 36.83" marvel is engineered to make light work of the toughest brush and debris. Designed specifically for 16,000 - 26,000 lbs Excavators, it's the perfect blend of power and precision.

Key Features

  • Expansive Clearing Width: 36.83" for efficient large-scale operations
  • Superior Strength: Constructed with AR450 Steel for unparalleled durability
  • Optimized Tine Design: 12 tines, each 0.98" thick, with 32.99" penetration depth
  • Precise Fitment: 48" pins ensure a rock-solid connection
  • Thoughtful Spacing: Excavator Attachment between tines for optimal debris collection
  • Balanced Performance: 567.21 kg kg for stable and powerful operation

Detailed Specifications

Attribute Value
Product Length (mm) 935.6 mm
Product Length (in) 36.83"
Product Width (mm) 1,524 mm
Product Width (in) 60"
Tines (ct.) 12
Tines Thickness (mm) 25 mm
Tines Thickness (in) 0.98"
Penetration (mm) 838.6 mm
Penetration (in) 32.99"
Material Type AR450 Steel
Finish Powder-Coated Green
Tines Spacing (mm) 111.3 mm
Front Pin Diameter (mm) 60 mm
Rear Pin Diameter (mm) 60 mm
Front Ear to Ear Distance (mm) 216 mm
Rear Ear to Ear Distance (mm) 216 mm
Center to Center Distance (mm) 428 mm
Front Pin Length (mm) 393 mm
Rear Pin Length (mm) 393 mm
Carrier Weight Class (tn) 8 - 13 Tons
Carrier Weight Class (lbs) 16,000 - 26,000 lbs
Product Weight (lbs) 1,190.49 lbs
Product Weight (kg) 540 kg


Fits To

Brand

Model
Caterpillar 310
Hyundai R75-5
Ihi IS110, IS120
Kato HD550SE
Kobelco SK100-2, SK100-3, SK115SR, SK100V, SK100
Komatsu PC138US LC-2E0, PC138US LC-10, PC138US LC-11, PC138US LC-2E, PC120 LC-6E0, PC120 LC-6LE, PC128US LC-2, PC138US LC-2, PC138US LC-3, PC138US LC-7, PC138US LC-8, PC138US-11E0, PC120 LC-5L, PC120 LC-6E, PC120 LC-6L, PC128US-1MB, PC128US-2E0, PC128US-2E1, PC128US-2MB, PC128USI-10, PC128UU-1MB, PC128UU-2E0, PC130 LC-11, PC138US-2E1, PC138US-8NM, PC100 LC-1, PC100 LC-2, PC100 LC-3, PC100 LC-4, PC100 LC-5, PC100 LC-6, PC120 LC-3, PC120 LC-4, PC120 LC-5, PC120 LC-6, PC120 LC-7, PC120-1 -2, PC120SC-6E, PC128US LC, PC128US-10, PC128US-11, PC128US-2A, PC128US-2H, PC128UU-15, PC128UU-1E, PC128UU-1Y, PC130 LC-6, PC130 LC-7, PC130 LC-8, PC138 LC-2, PC138US LC, PC138US-10, PC138US-11, PC138US-2E, PC100-6ZE, PC100SS-3, PC110SP-6, PC118MR-8, PC120-6AC, PC120-6E0, PC120-6ZE, PC120SS-3, PC128US-1, PC128US-2, PC128US-5, PC128US-6, PC128US-8, PC128UU-1, PC128UU-2, PC128UU-6, PC128UU-8, PC128UUMB, PC138US-2, PC138US-8, PC 100-2, PC 100-6, PC 120-6, PC100 LC, PC100-5Z, PC100-6E, PC100L-1, PC100L-2, PC100L-3, PC100L-5, PC100L-6, PC100N-6, PC100U-2, PC100U-3, PC110R-1, PC120 LC, PC120 LE, PC120-11, PC120-15, PC120-3K, PC120-3W, PC120-5C, PC120-5G, PC120-5K, PC120-5Z, PC120-6E, PC120-6J, PC120-6L, PC120-6M, PC120-6Z, PC128 LC, PC128U-2, PC130 LC, PC130-11, PC130-5K, PC130-5S, PC130-6E, PC130-6K, PC130-6W, PC130-7K, PC130F-7, PC138 LC, PC100-1, PC100-2, PC100-3, PC100-4, PC100-5, PC100-6, PC100-7, PC100-8, PC110-1, PC110-2, PC110-7, PC120-1, PC120-2, PC120-3, PC120-4, PC120-5, PC120-6, PC120-7, PC120-8, PC120BE, PC120UU, PC128-1, PC128-2, PC128US, PC128UU, PC130-3, PC130-5, PC130-6, PC130-7, PC130-8, PC138US, PC100L, PC100N, PC100U, PC120B, PC128U, PC100, PC110, PC120, PC128, PC130, PC135, PC138
Kubota KX080-3, KX080-4, KX085-5, KX080
Lonking CDM6150
Nagano NS75-3
Sumitomo S260F2
Volvo ECR88, EC88
